Customization: Available
shape: DIP/SMD
Conductive Type: N/a
Send Inquiry

Product Description

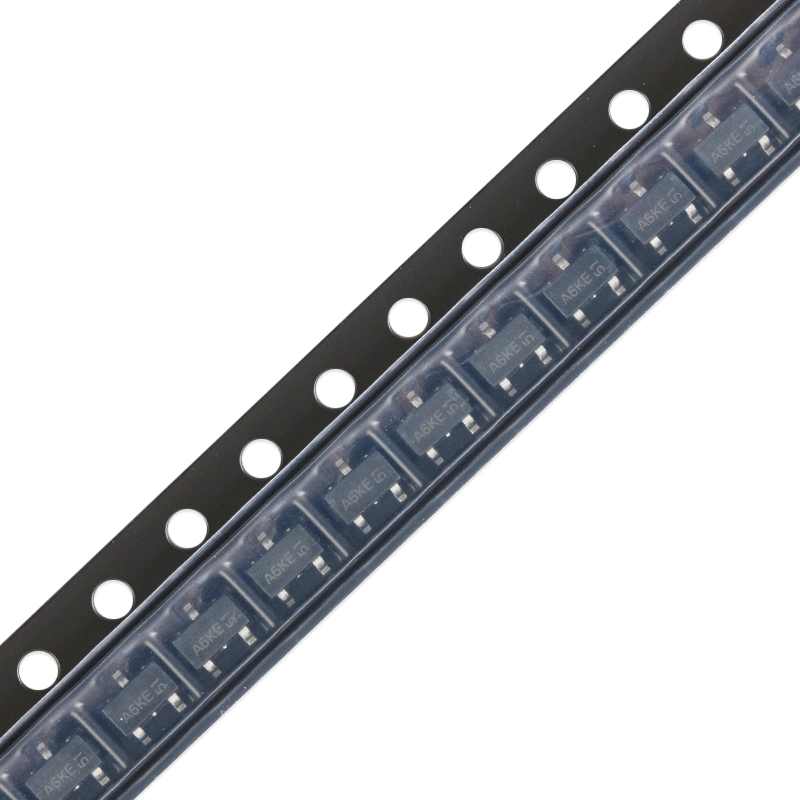

AO3406 Transistor
Transistor N-Channel 30V 3.6A (Ta) 1.4W (Ta) Surface Mount AO3406 Discrete Semiconductor Products
Basic Information
Model NO.
AO3406
Specification
DIP/SMD
Origin
Original
Production Capacity
5000
Package Size
1.00cm * 1.00cm * 1.00cm
Gross Weight
0.100kg
Technical Specifications
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C3.6A (Ta)
Drive Voltage (Max/Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs50mOhm @ 3.6A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) @ Vds210 pF @ 15 V
Power Dissipation (Max)1.4W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23-3
Package / CaseTO-236-3, SC-59, SOT-23-3
Product Gallery
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Detail 7
Detail 8
Detail 9
Technical Diagram
Frequently Asked Questions
Q1: How do you protect intellectual property?
We are willing to sign an NDA governed by the customer's local laws, ensuring a high level of confidentiality for your design data.
Q2: What files are required for a quotation?
For PCB, please provide Gerber files and technical requirements. For PCBA, include Gerber files, a Bill of Materials (BOM), and functional test instructions.
Q3: What are your standard delivery terms?
We offer various delivery terms such as EXW, FCA, FOB, and DDU based on each individual quote.
Q4: How long does it take to receive a PCB quote?
Typically, it takes 12 to 48 hours for our internal engineering team to evaluate and confirm your quote.
Q5: How do you handle market fluctuations for IC products?
Due to rapid market changes, we do not have fixed MOQs or pricing. We work closely with clients to provide real-time updates and flexible solutions.
Q6: How do you manage your electronic component supply chain?
We maintain established relationships with major manufacturers and distributors to ensure a stable supply and minimize procurement risks.
