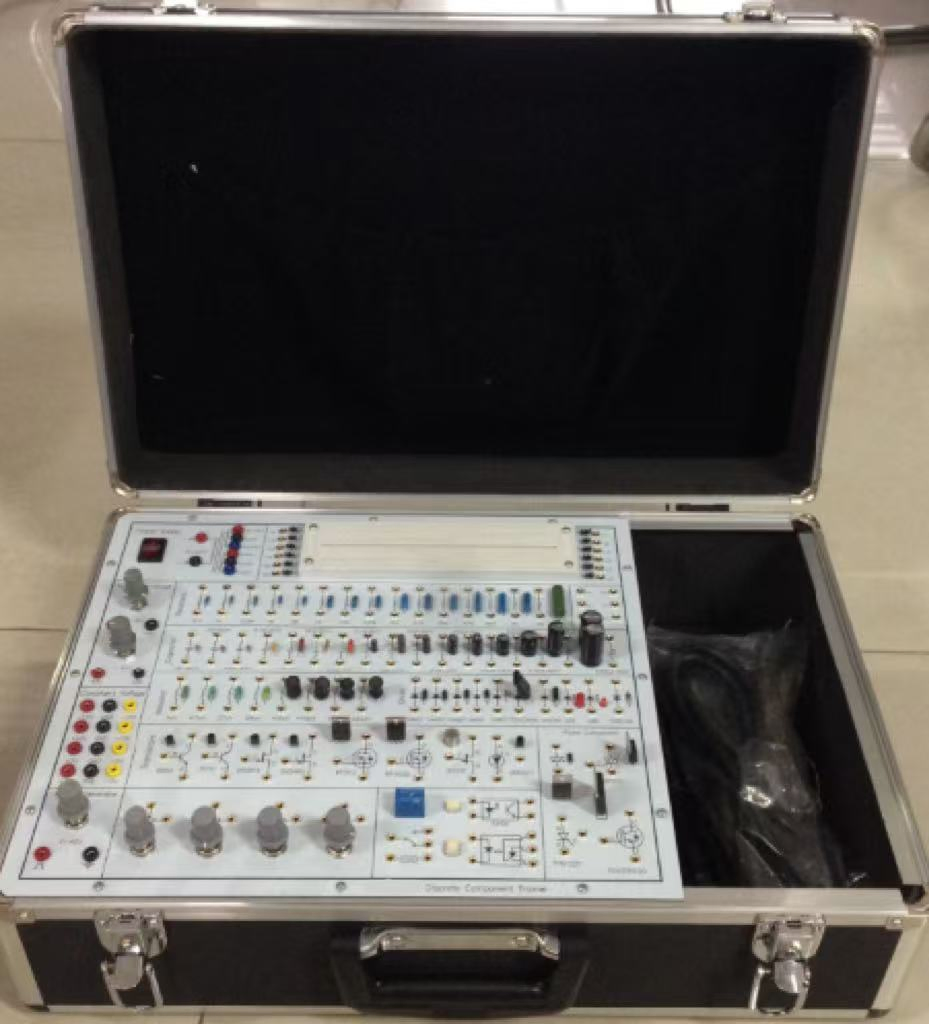

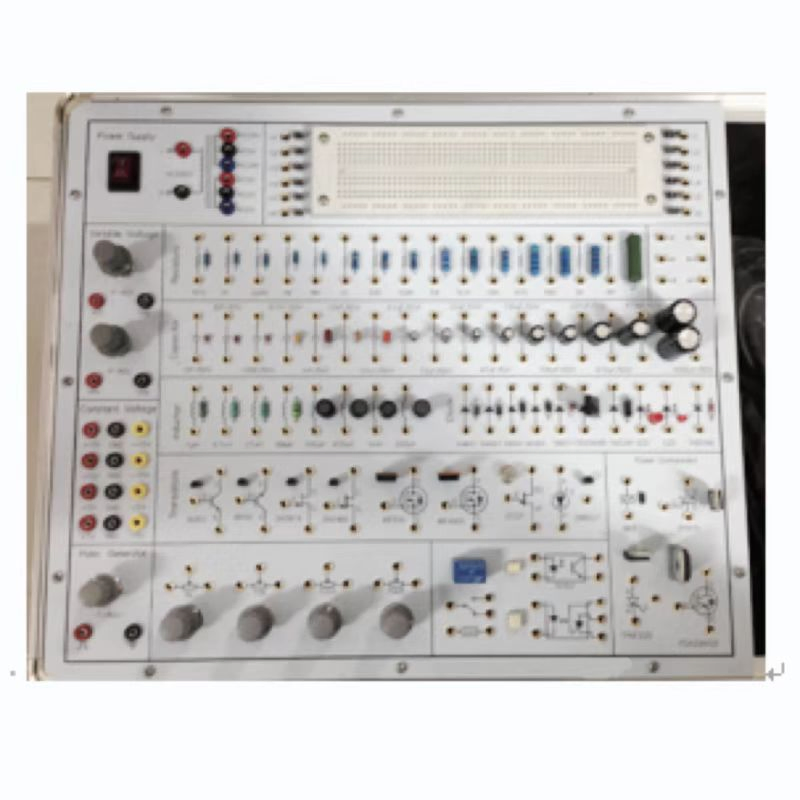

Discrete Component Trainer Basic Electronics Training Kit Vocational Training Device

The panel consists of a breadboard panel, common power supply, and signal source. It includes basic components such as resistance, capacitance, and inductance, alongside basic semi-conductor components like diodes, transistors, MOSFETs, unijunction transistors, SCRs, photoelectric couplers, and relays. This trainer is designed to familiarize students with common components and their characteristics. Students build circuits themselves to realize experiments, exercising their operational ability while gaining theoretical knowledge.

• Power supply line: 1 piece
• K2 jumping wire: 60 pieces

• Study the working of Resistors, Capacitors, Inductors, and Potentiometers.
• Study the working of Relay and Opto-Coupler.
• Study the frequency response working of Opto-Coupler.
• Study of Ohm's law.
• Full wave and half wave rectifying experiment.
• Filtering experiment.
• Voltage stabilization and voltage-multiplying experiment.
• Simple logical gate circuit experiment.
• Study of Kirchhoff's voltage and current law.
• Study of voltage and current divider rule.
• Study of different types of Diode characteristics (Diode, Ge-Diode, FSD, Zener Diode, LED, and Varactor Diode).
• Study of different types of transistors characteristics (BJT, JFET, MOSFET, UJT).
• Study of different types of power components (DIAC, TRIAC, SCR, and IGBT).
• Study of effect of frequency on R, L, C.
• Study of RC integrator and differentiator.
