Customization: Available
Application: Diode, Optimized for Line Frequency Rectifiers
Batch Number: 2023+
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
Zp1800A 2800V
Technology
Optoelectronic Semiconductor
Material
Element Semiconductor
Package
Presser
Signal Processing
Analog Digital Composite
Type
N-Type Semiconductor
Outline Type
Capsule
Cooling
Double-Side Cooling
Install
Parallel, Series
Chip Type
Silicon Controlled Chip
Feature
High Current Density
Outline Size
42*14.5
Min Operating Temp
-40 C
HS Code
8541300000
Origin
China
Payment
T/T
📦 Packaging & Delivery
Package Size
50.00cm * 30.00cm * 20.00cm
Gross Weight
15.000kg
Transport Package
Carton Box
Delivery Time
3 Days
🔍 Product Description

Diode Standard Recovery Diodes Electronic Component Zp1800A 2800V Diodo Rectificador

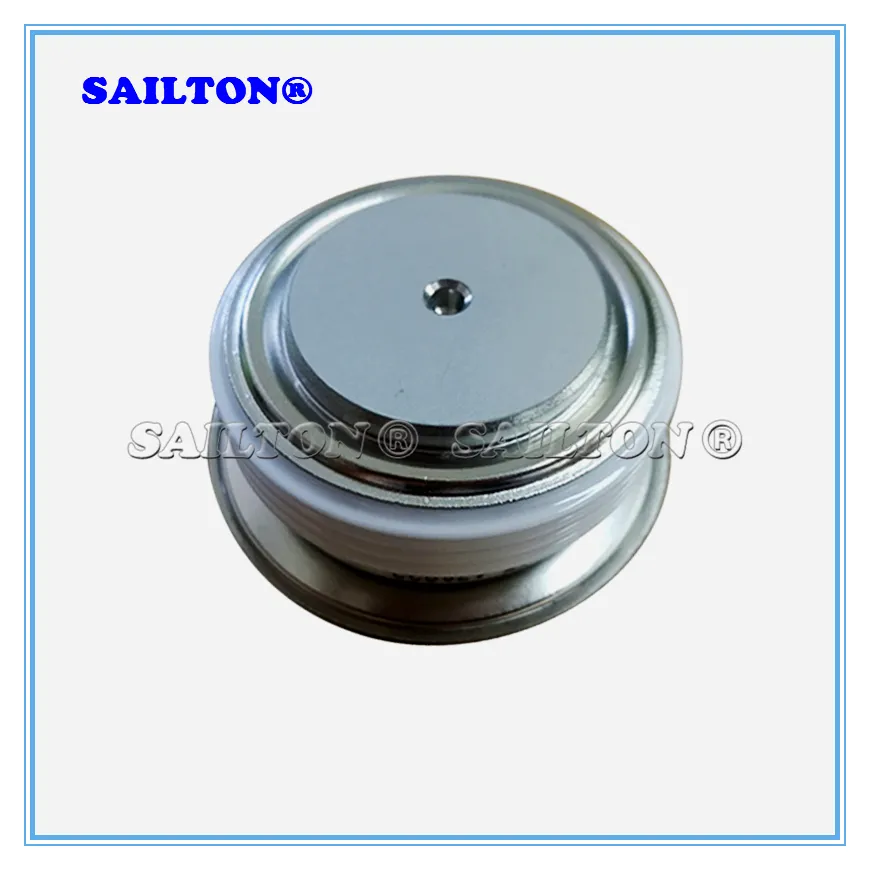

Zp1800A 2800V
Packing

Rectifier diode, also named rectifying diode, includes standard rectifier diode, power diode, fast recovery diode, and high current diode. These are optimized for line frequency rectifiers and offer low forward voltage (VF) for parallel and series matching.

Key Features
  • Optimized for line frequency rectifiers
  • Low VF and narrow VF for parallel operation
  • Reverse voltage capability up to 8000V
  • Match Qrr available for series connection
Application Fields
  • High-power inversion systems
  • Welding equipment
  • Motor control and drive systems
  • Large-scale charging equipment
📊 Technical Specifications (Capsule)
Part No. IF(AV) (A) VRRM (V) IFSM (A) I²t (A²S·10³) VFO (V) rF (mΩ) Outline
ZP500/01-14500100-140069002380.850.680D6
ZP1000/01-141000100-14001600012800.850.350D7
ZP1500/01-141500100-14002100022050.900.200D9
ZP2500/01-142500100-14003400057800.910.050D11
ZP3000/25-3530002500-35003500061250.840.120D13
ZP4000/25-3540002500-350047000110450.850.085D15
ZP6000/16-2260001600-220071000252050.820.046D16
ZP7000/16-2270001600-220082000336200.800.036D17
📐 Dimensional Drawings

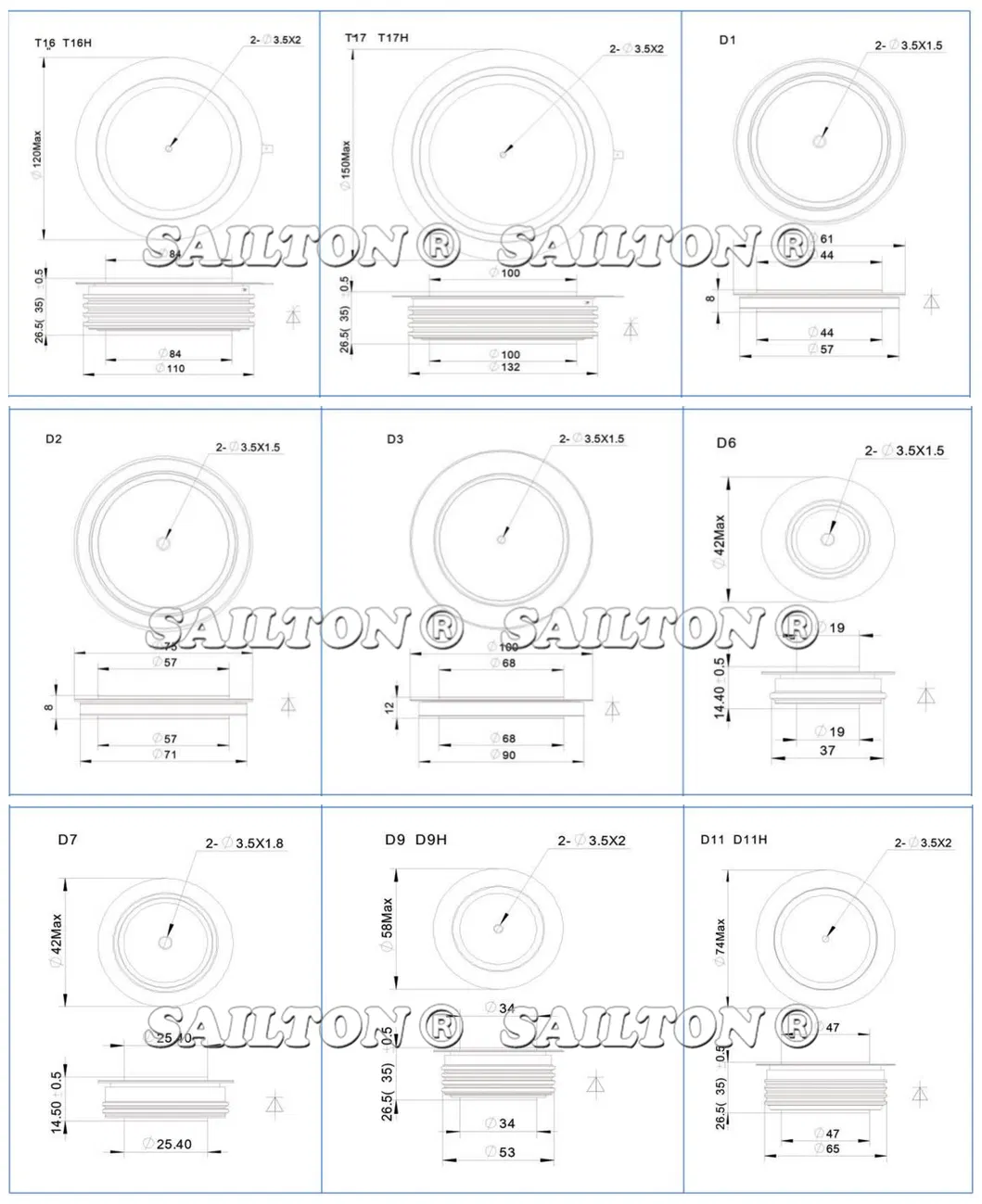

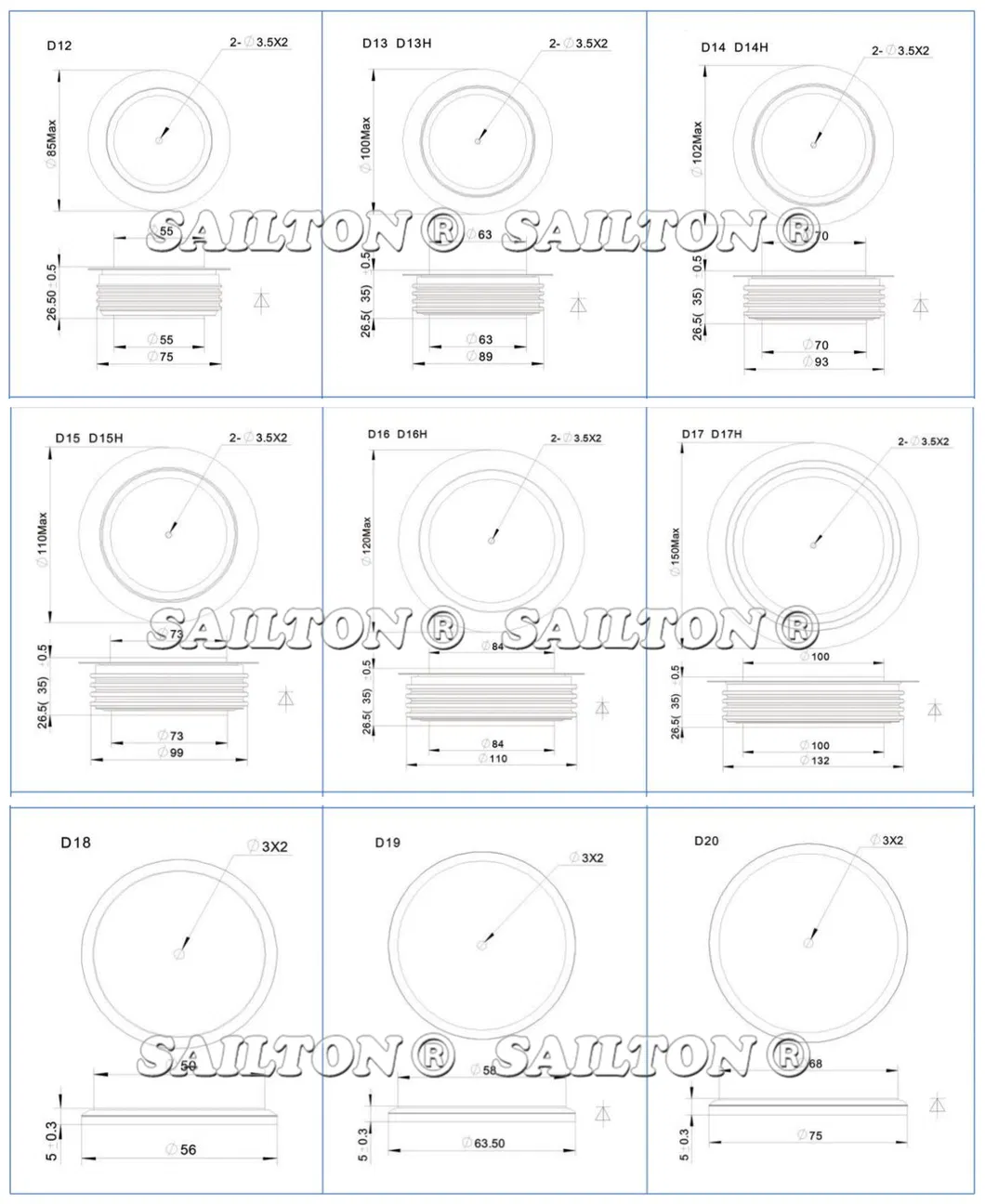

Size Diagram 1
Size Diagram 2
🏭 Factory & Quality Control
Certificate 1
Certificate 2
Factory Environment

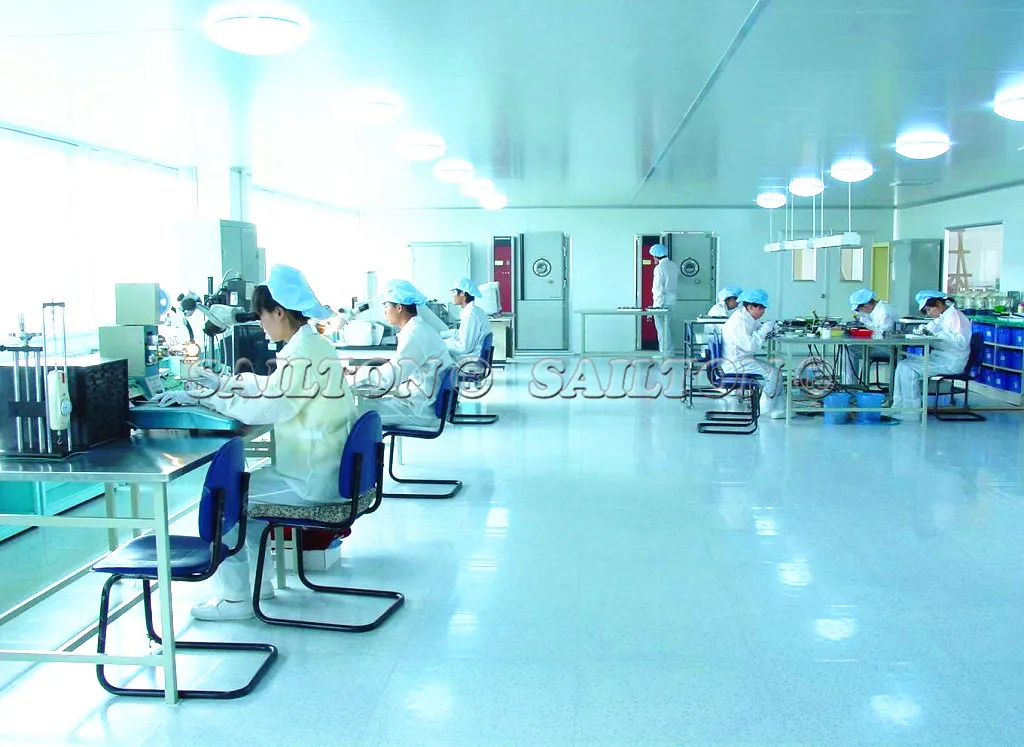

Workshop

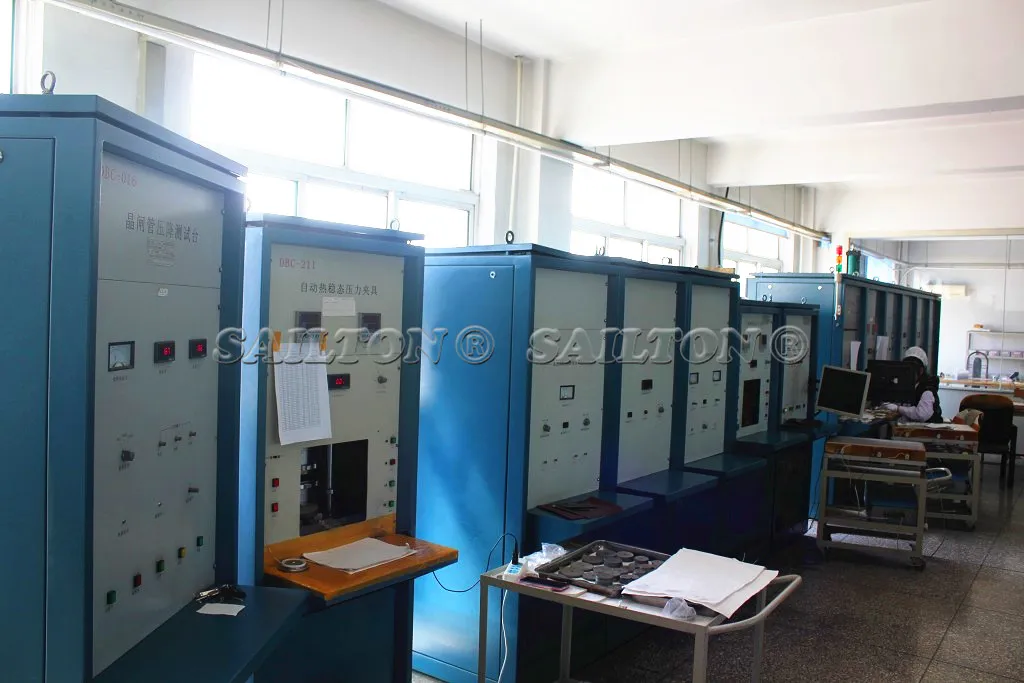

Equipment 1

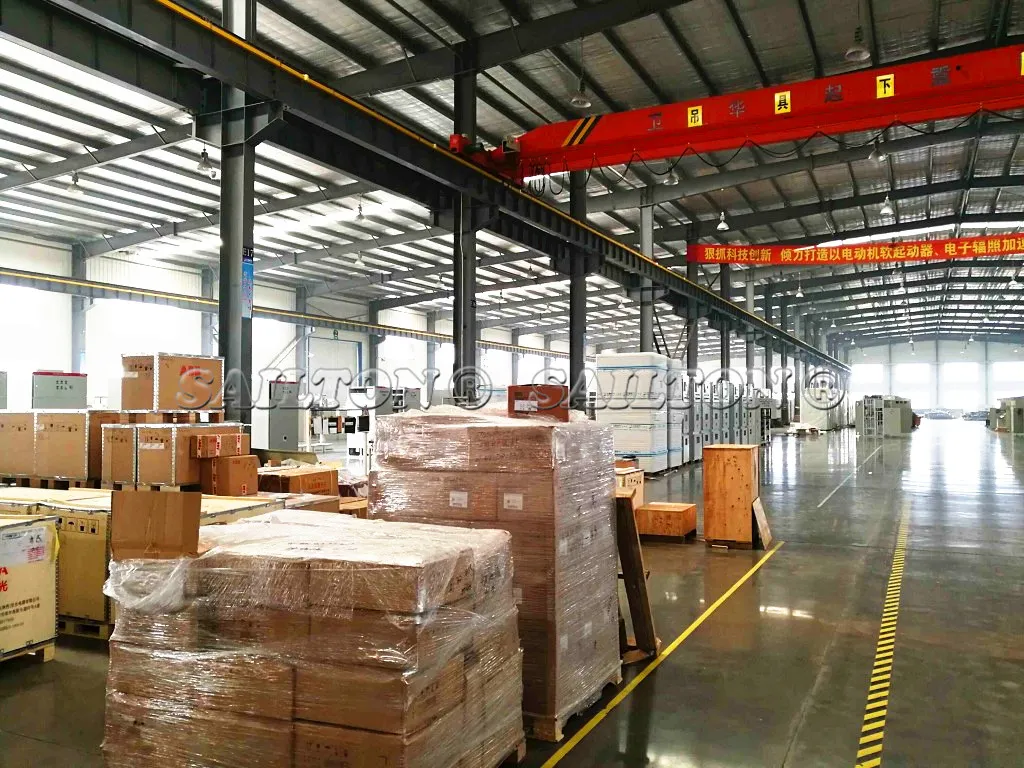

Equipment 2
FAQ
What are the primary applications for the ZP1800A diode?
The ZP1800A is widely used in high-power inversion, welding equipment, motor control drives, and industrial charging systems.
What cooling method is required for these capsule-type diodes?
These diodes are designed for double-side cooling to ensure stable performance under high current density.
Does this series support high-voltage requirements?
Yes, the series offers reverse voltage protection up to 8000V, making it suitable for high-voltage power rectifiers.
What is the operating temperature range for these components?
The components are rated for a minimum operating temperature of -40°C, ensuring reliability in harsh environments.
Can these diodes be installed in parallel or series?
Yes, they feature low and narrow VF (Forward Voltage) characteristics, which makes them ideal for parallel and series installations.
What is the standard delivery time for these products?
Standard delivery for these electronic components is typically within 3 days.
