XZ307-509 Knob Gear Switch USD In AC250V
XZ307-509 Knob Gear Switch USD In AC250V
XZ307-509 Knob Gear Switch USD In AC250V
XZ307-509 Knob Gear Switch USD In AC250V
XZ307-509 Knob Gear Switch USD In AC250V
1 / 5
XZ307-509 Knob Gear Switch USD In AC250V
XZ307-509 Knob Gear Switch USD In AC250V
XZ307-509 Knob Gear Switch USD In AC250V
XZ307-509 Knob Gear Switch USD In AC250V
XZ307-509 Knob Gear Switch USD In AC250V

XZ307-509 Knob Gear Switch USD In AC250V

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

⚙️ Basic Info.
Model NO.
XZ307-509
Standard
Standard
Structure
Automatic
Operation
Knob
Certification
ISO, RoHS, CE
Condition
New
Technical Parameters
AC250V 16-20A
Transport Package
Carton Packing
📦 Packaging & Delivery
Package Size
41.00cm * 22.50cm * 47.00cm
Gross Weight
19.800kg
🖼️ Product Showcase

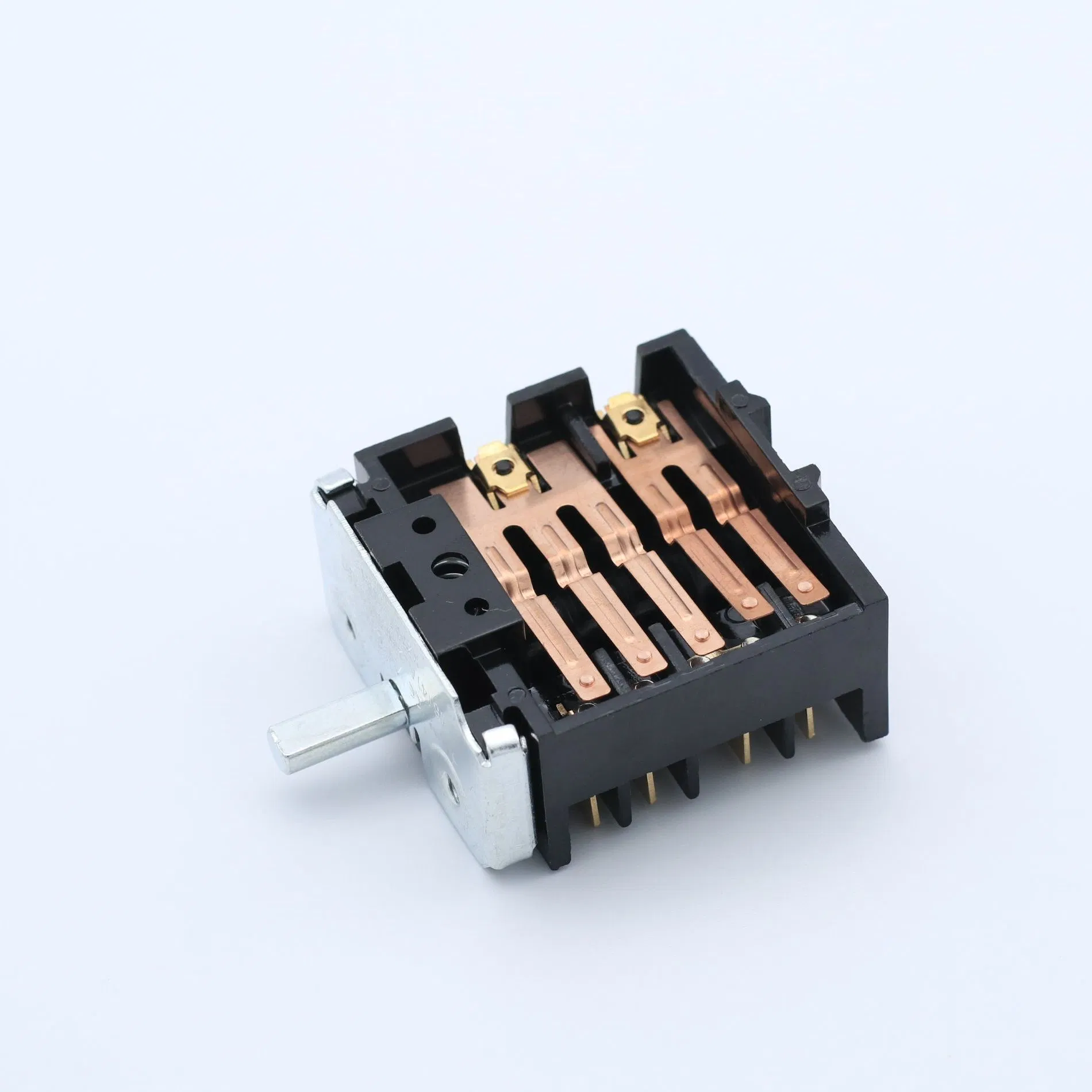

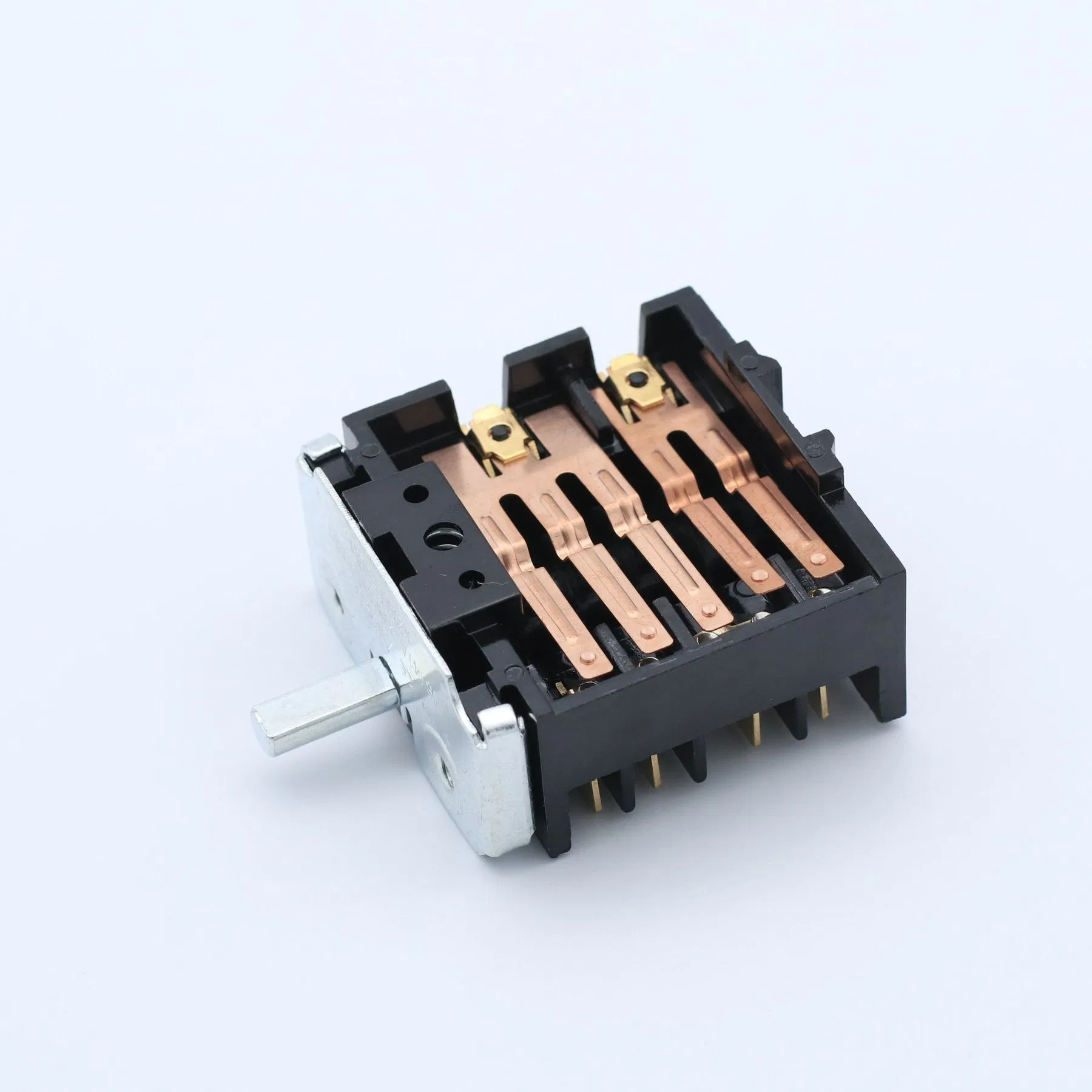

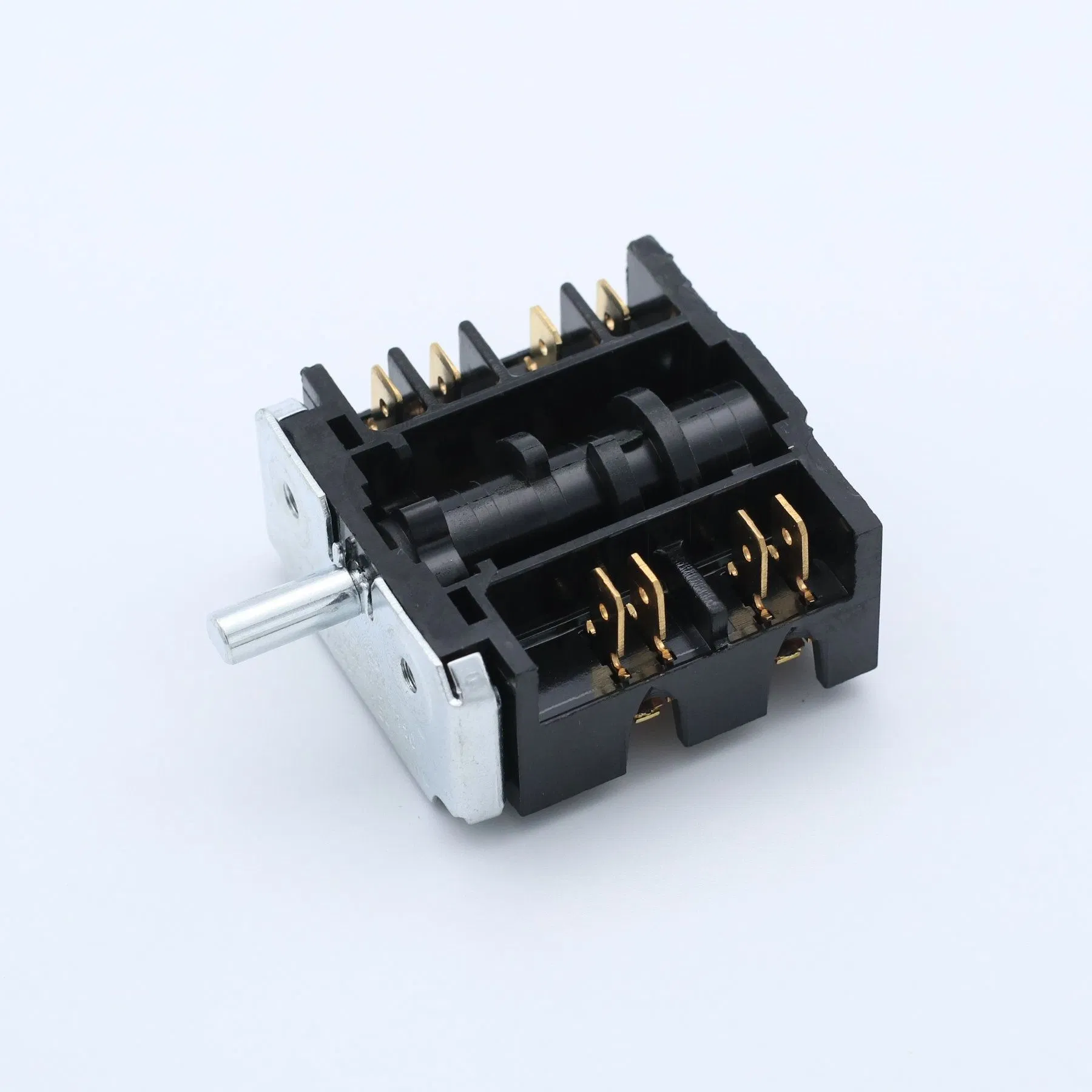

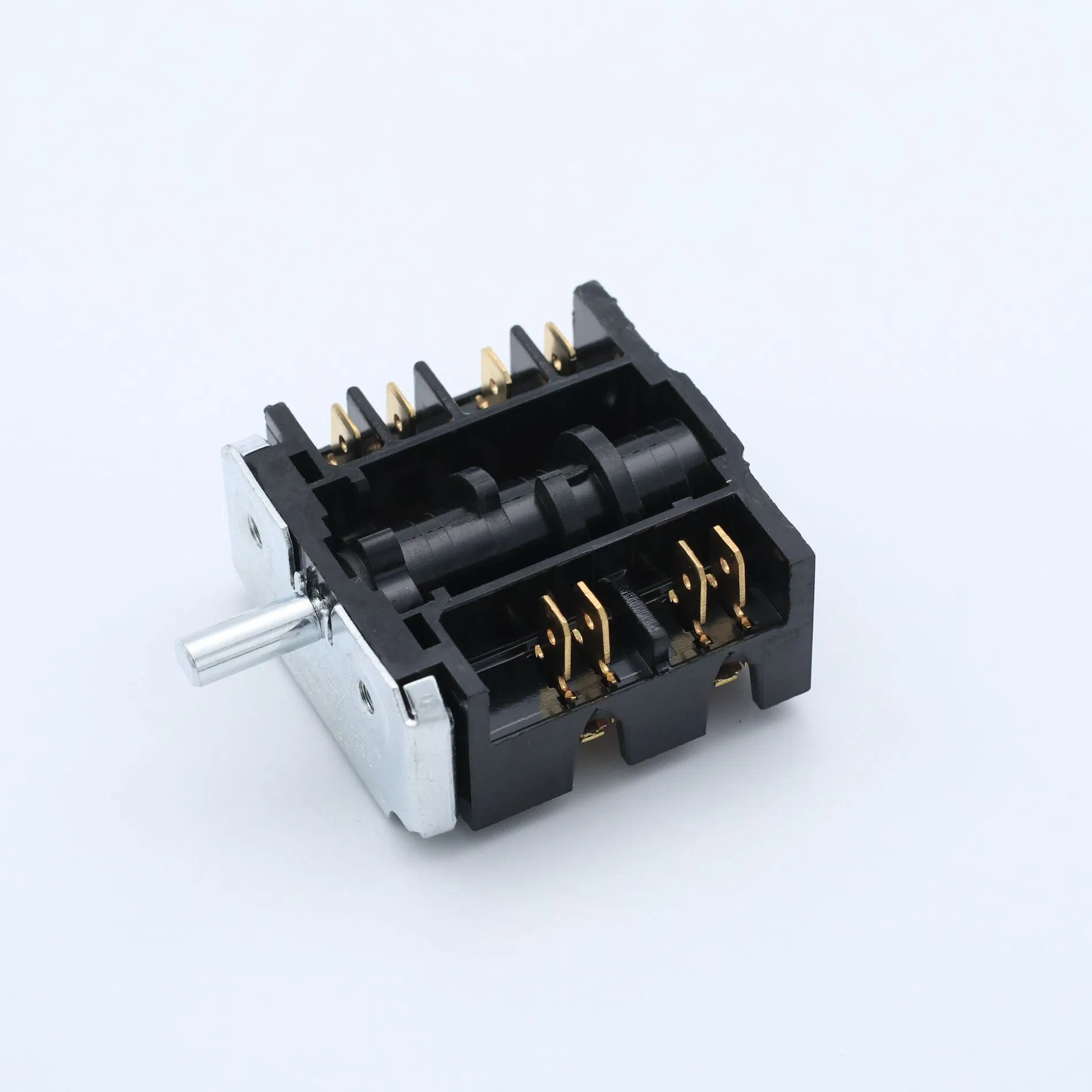

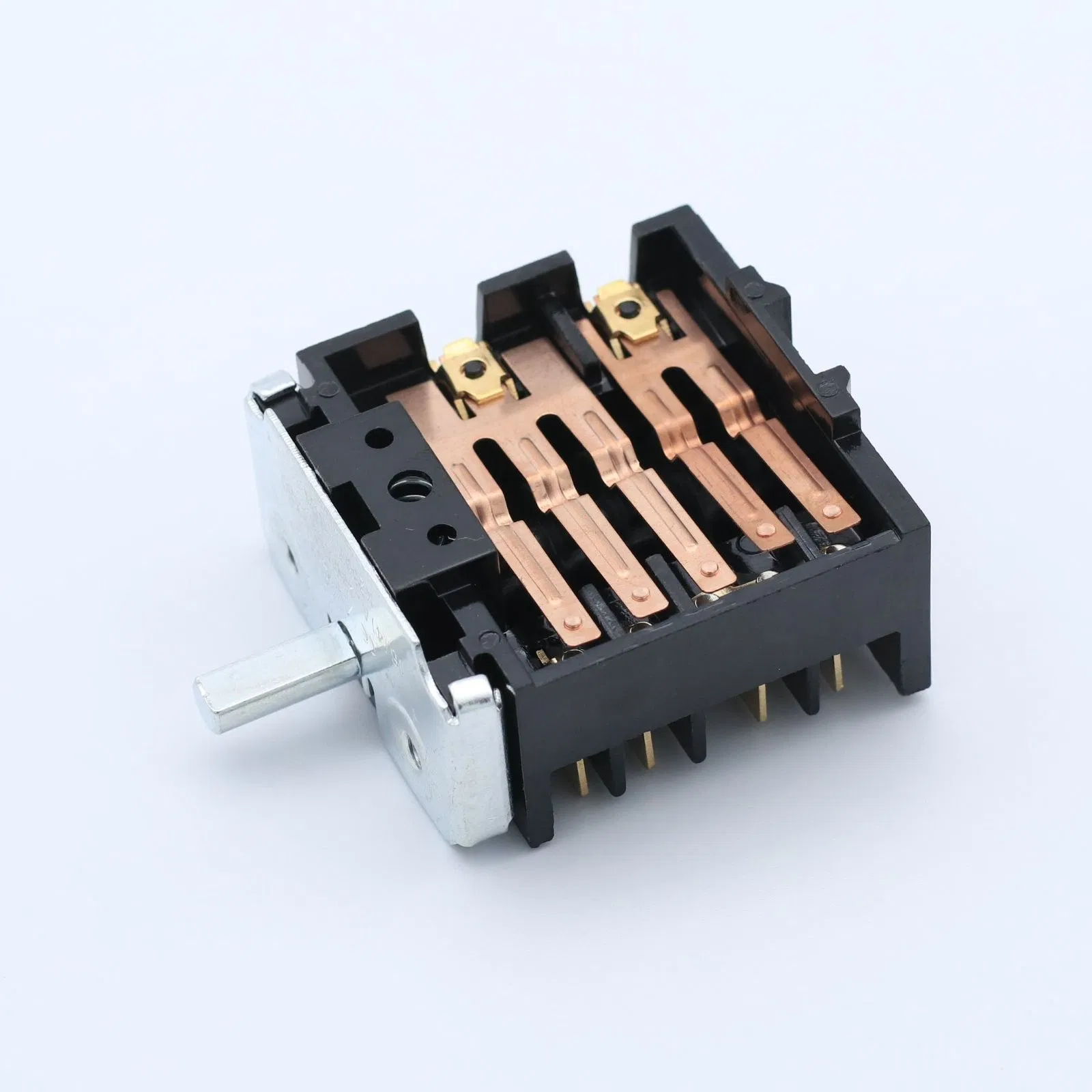

XZ307-509 Knob Gear Switch
Knob Gear Switch AC250V

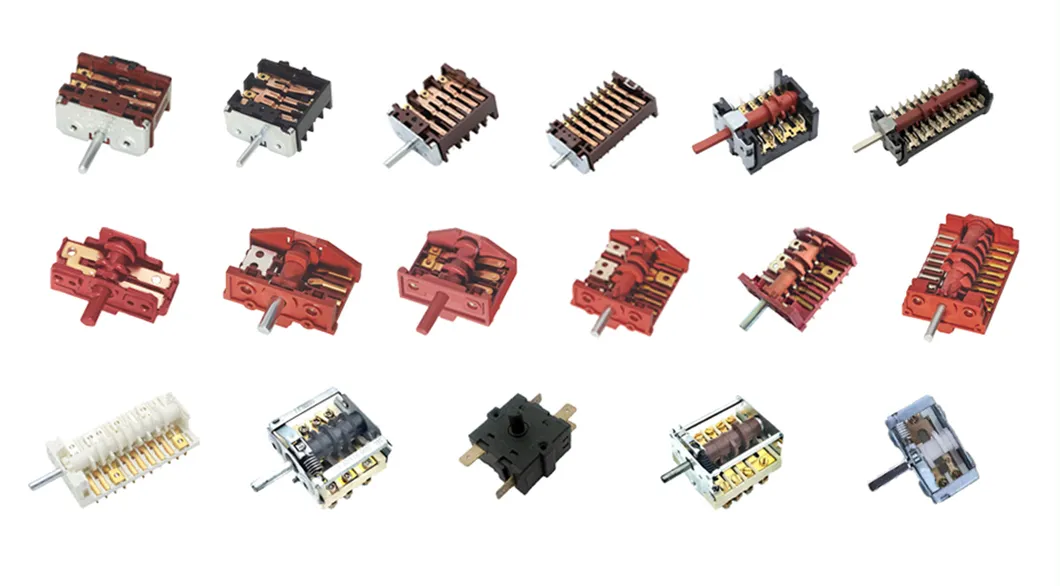

Switch Detailed View

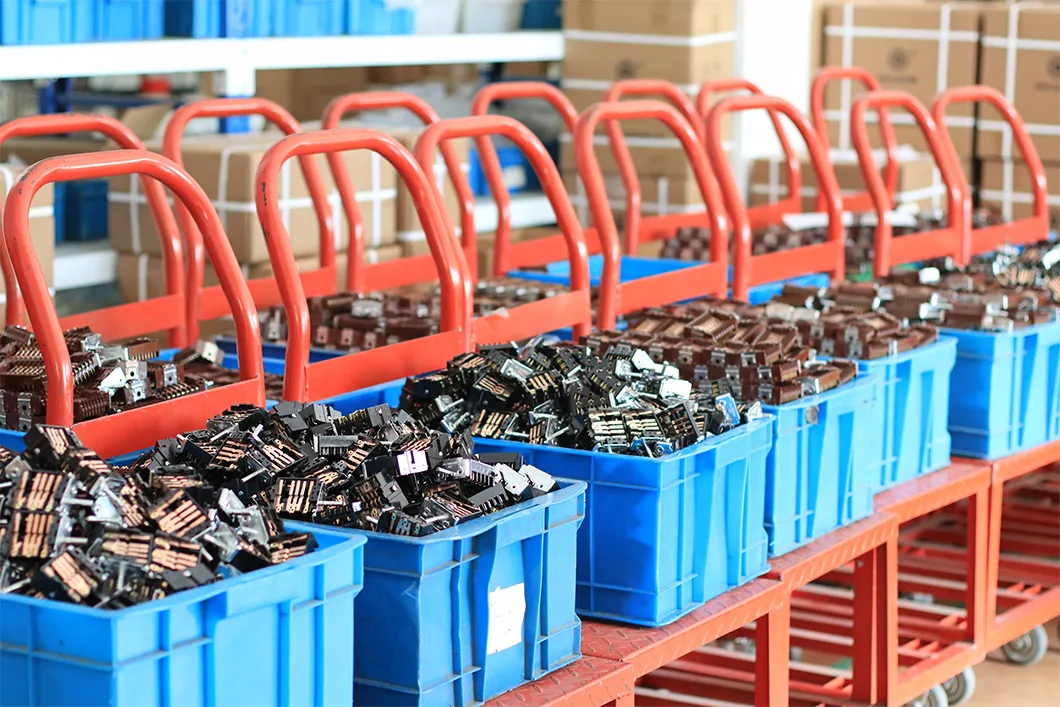

Switch Technical View

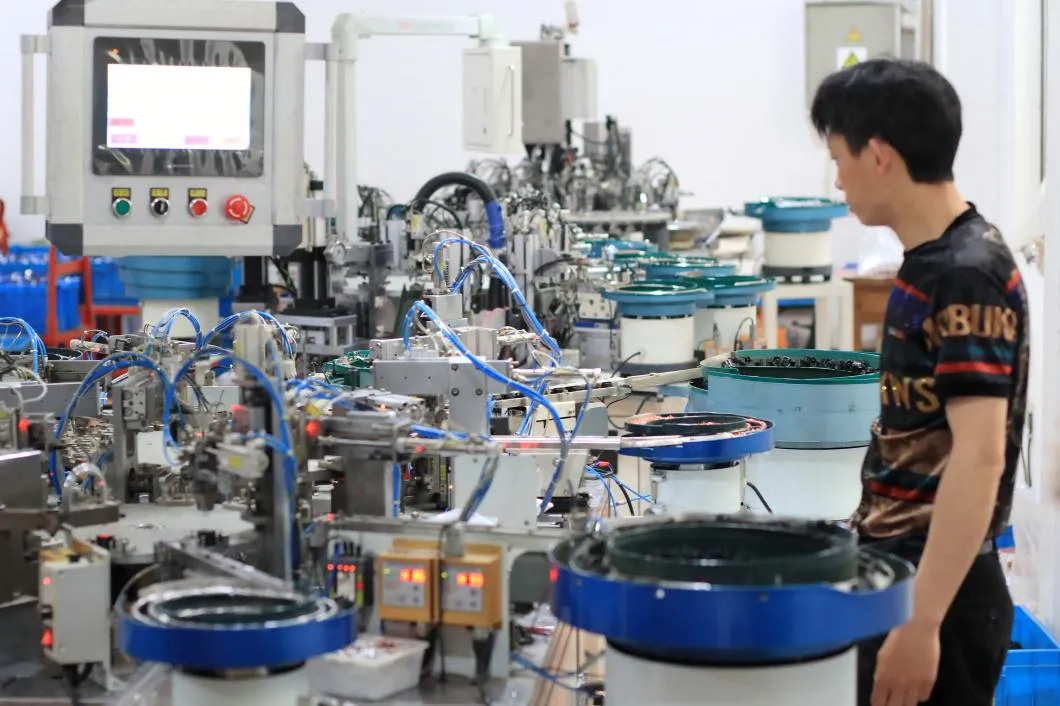

Product Layout
📝 Product Description

This rotary switch, also known as a gear switch, is designed for high-performance multi-circuit control.

🔍 Working Principle

Simultaneously control multiple circuits through the rotation of the switch to shift gears to achieve the desired function, or constantly increase or decrease power. Generally used in ovens, kitchen equipment, electric stoves, and other electrical equipment that requires constant power adjustment. The switch can withstand a maximum current of 16A per group, the voltage is 250V. Available from 1 to 12 sections with flexible wiring options customized to specific needs.

🏭 Application Areas

Specifically designed for adjusting gears in:

  • Electric ovens and barbecue grills
  • Heaters and warmers
  • Water heaters and electric cookers
  • Household appliances and industrial machinery
🛠️ Professional Services
✔️
Sample Test: We conduct matching installation tests to ensure product performance, temperature, and parameters align perfectly with requirements.
✔️
Special Requirements: Custom mold design based on drawings or physical samples provided by the customer.
✔️
After-sales Support: Continuous support for temperature adjustments and technical modifications to ensure long-term win-win cooperation.
✔️
Flexible Payment: Support for T/T payment with standard advance deposit structures depending on order scale.
📊 Product Parameters
Technical Specification Detail / Value
Product CertificatesCE, TUV
Electrical Contact Resistance≤50mΩ
Electrical Insulation Resistance≥100mΩ/DC500V
Working Temperature-25-150ºC
Electrical Strength1800 VAC / minute
❓ Frequently Asked Questions
What is the maximum current rating for this switch?
The switch can withstand a maximum current of 16A to 20A per group at AC 250V.
Can the number of gear sections be customized?
Yes, the switch can be customized from 1 section up to 12 sections based on your specific application needs.
Are samples available for testing before bulk orders?
Yes, we provide sample testing and matching installation tests to ensure all parameters meet your technical requirements.
What certifications do these switches hold?
Our switches are fully certified with CE, TUV, RoHS, and ISO standards for global compliance.
What kind of equipment are these rotary switches suitable for?
They are ideal for electric ovens, heaters, water heaters, barbecue grills, and various household or industrial machinery requiring power adjustment.
Can you design a switch based on our technical drawings?
Yes, we can design molds according to your drawings. If no drawings are available, we can measure and design based on physical samples provided.
