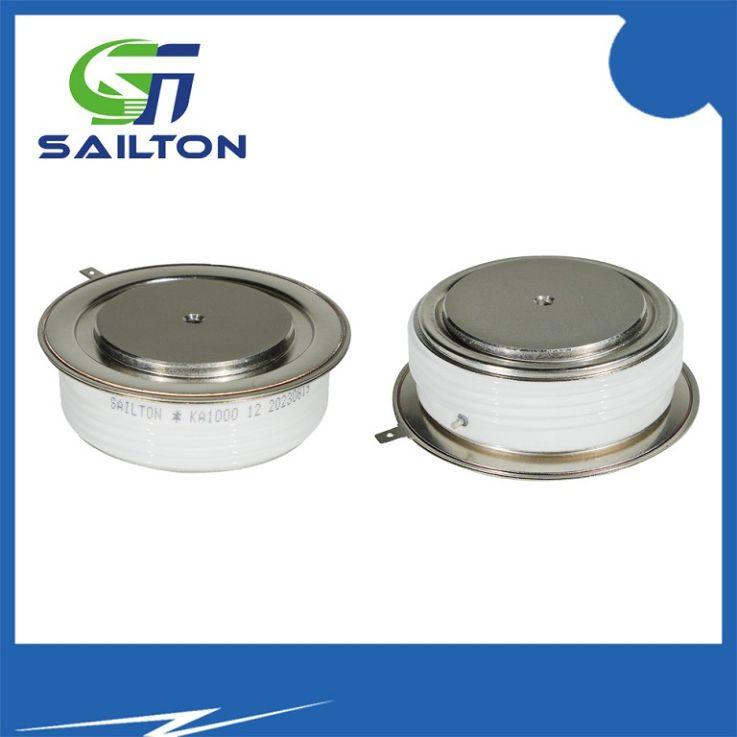

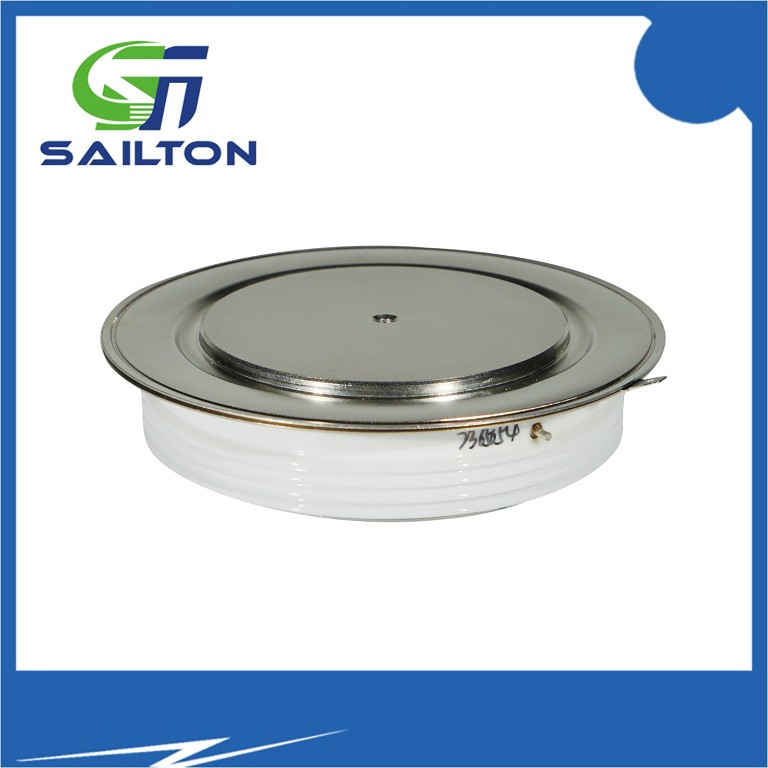

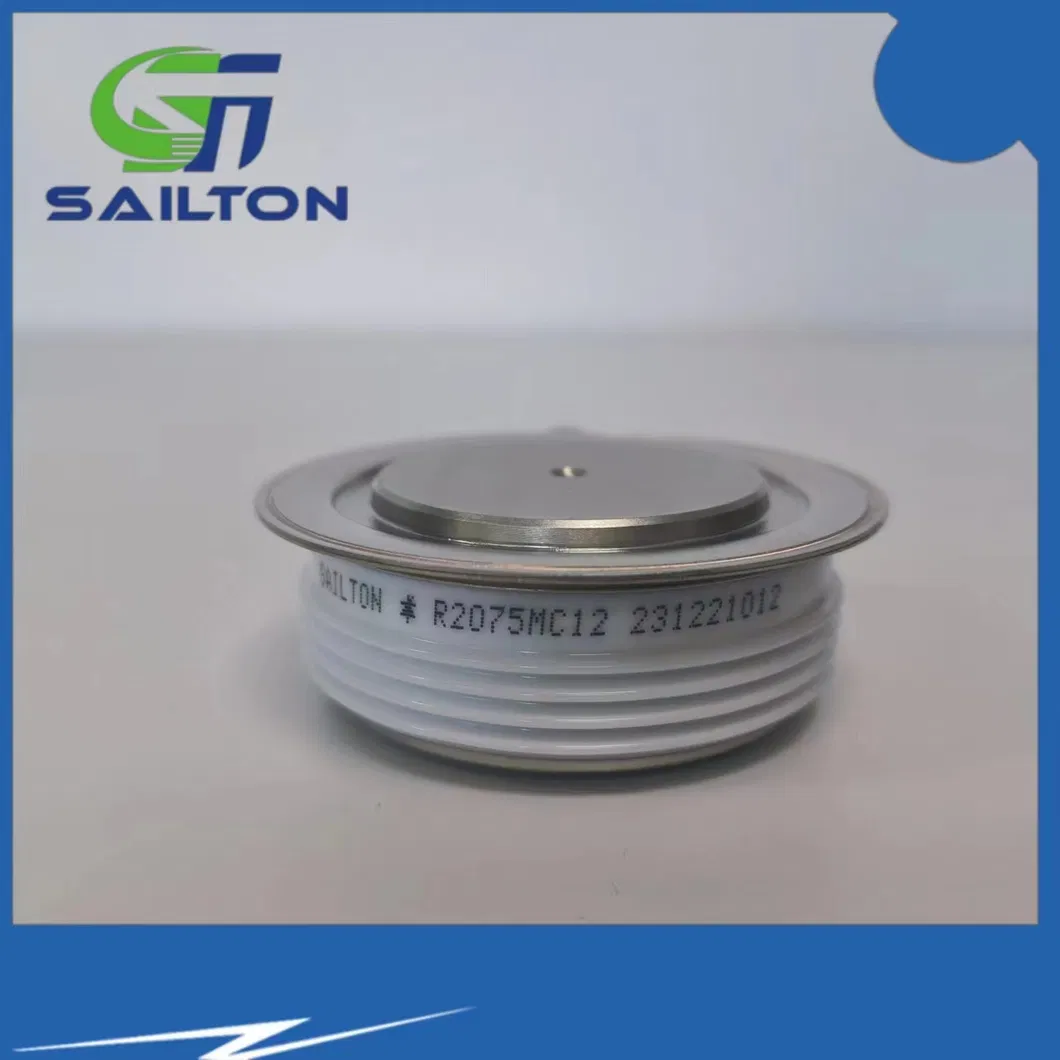

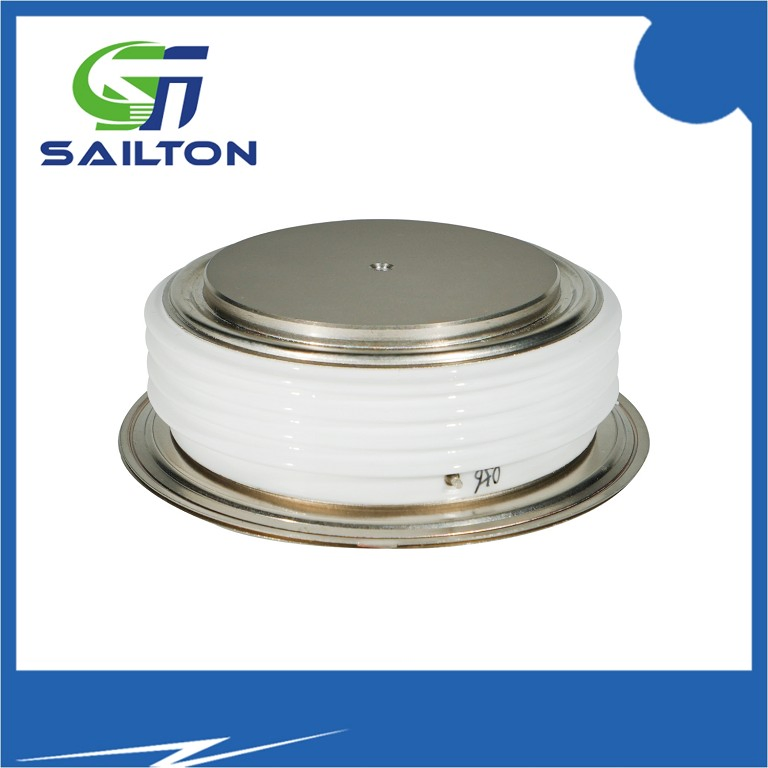

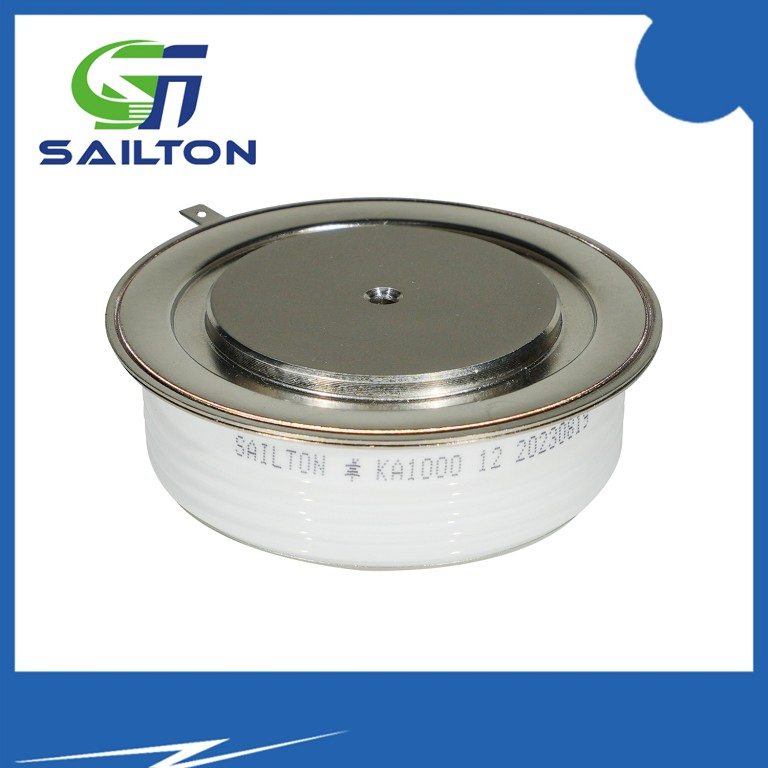

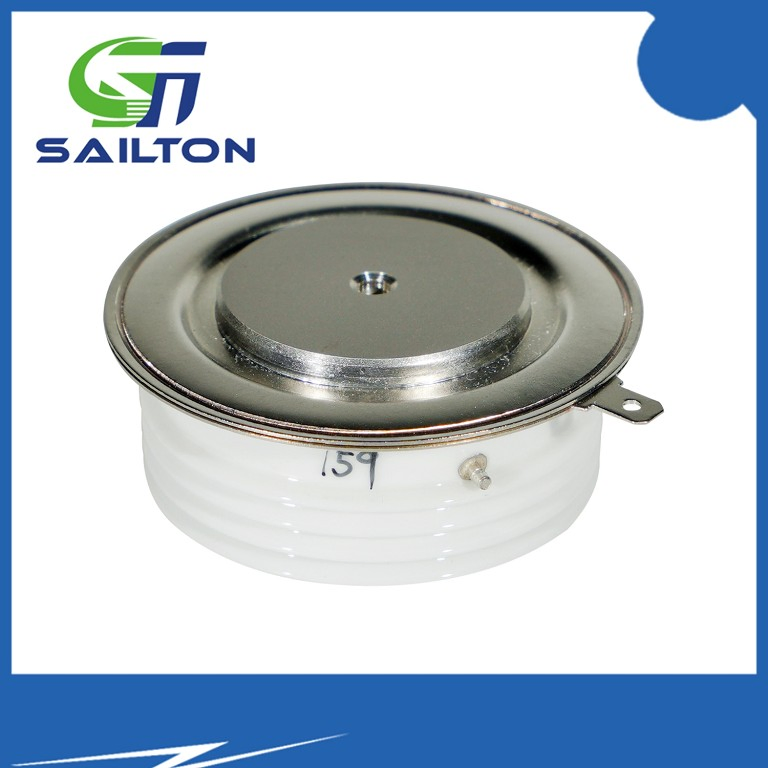

New Capsule Type Replacement High Frequency Thyristors KA1000A/1200V
Key Features:
Fast Switching Thyristor is a fast turn-off semiconductor device, also known as an "Inverter Thyristor" or "Fast Thyristor". It is a critical component for furnace power supplies and induction heating applications. Our range includes standard fast switching and medium frequency fast thyristors with current ranges from 500A to 4000A and voltage ranges from 1000V to 4500V.

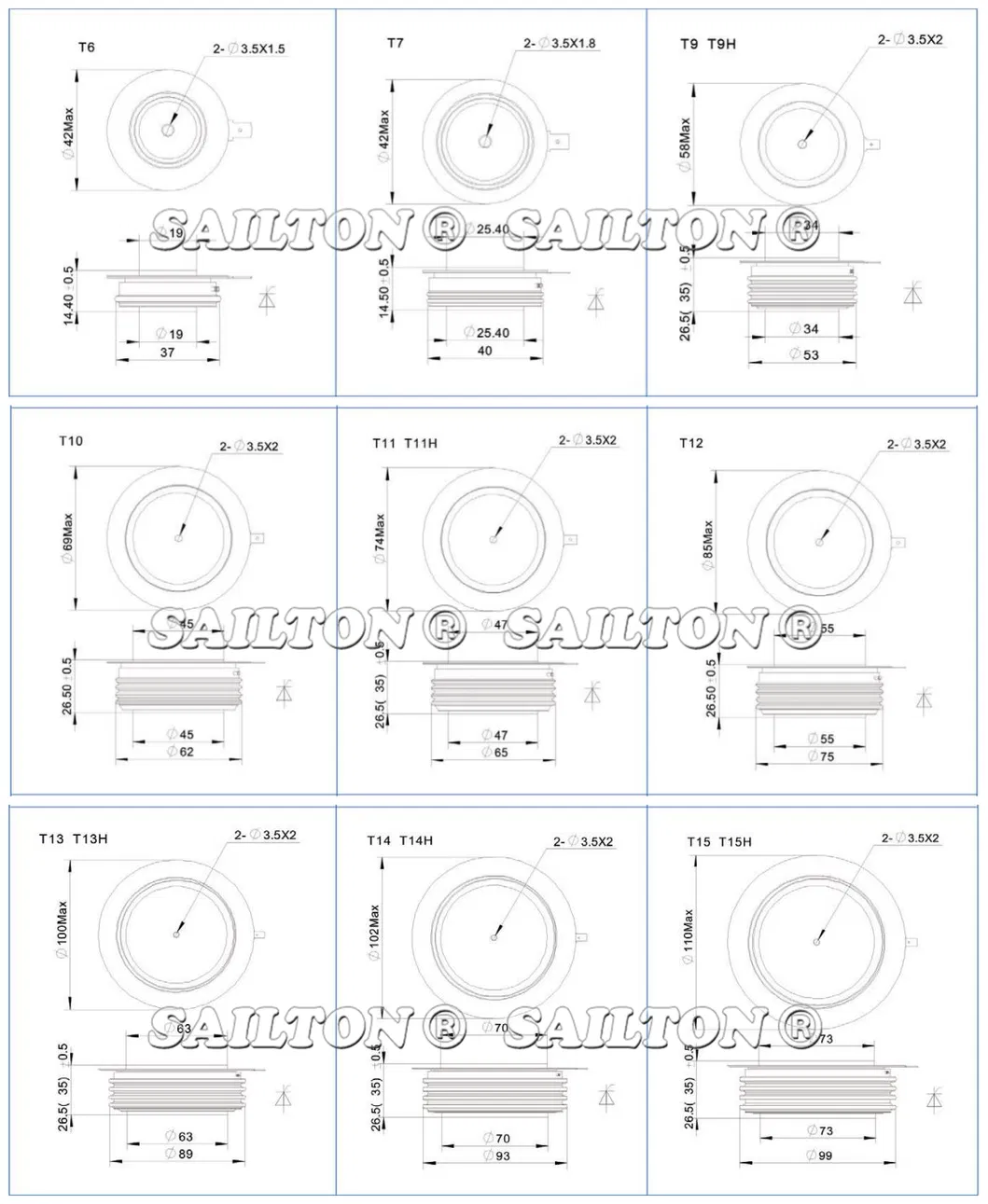

| Part No. | IT(AV) (A) | VDRM/VRRM (V) | ITSM 50Hz (KA) | VTM (V) | ITM (A) | VGT (V) | IGT (mA) | tq (µs) | Rthjc (ºC/W) | Outline |
|---|---|---|---|---|---|---|---|---|---|---|
| KA200/1200 | 200 | 1200 | 3.8 | 2.4 | 600 | 3 | 200 | 8~15 | 0.08 | T6 |
| KA300/1200 | 300 | 1200 | 5.7 | 2.4 | 900 | 3 | 200 | 8~15 | 0.04 | T7 |
| KA500/1200 | 500 | 1200 | 9 | 2.4 | 1500 | 3 | 200 | 8~15 | 0.031 | T9 |
| KA800/1200 | 800 | 1200 | 15 | 2.4 | 2000 | 3 | 250 | 8~15 | 0.026 | T10 |
| KA1000/1200 | 1000 | 1200 | 19 | 2.4 | 3000 | 3.5 | 300 | 8~15 | 0.021 | T11 |
