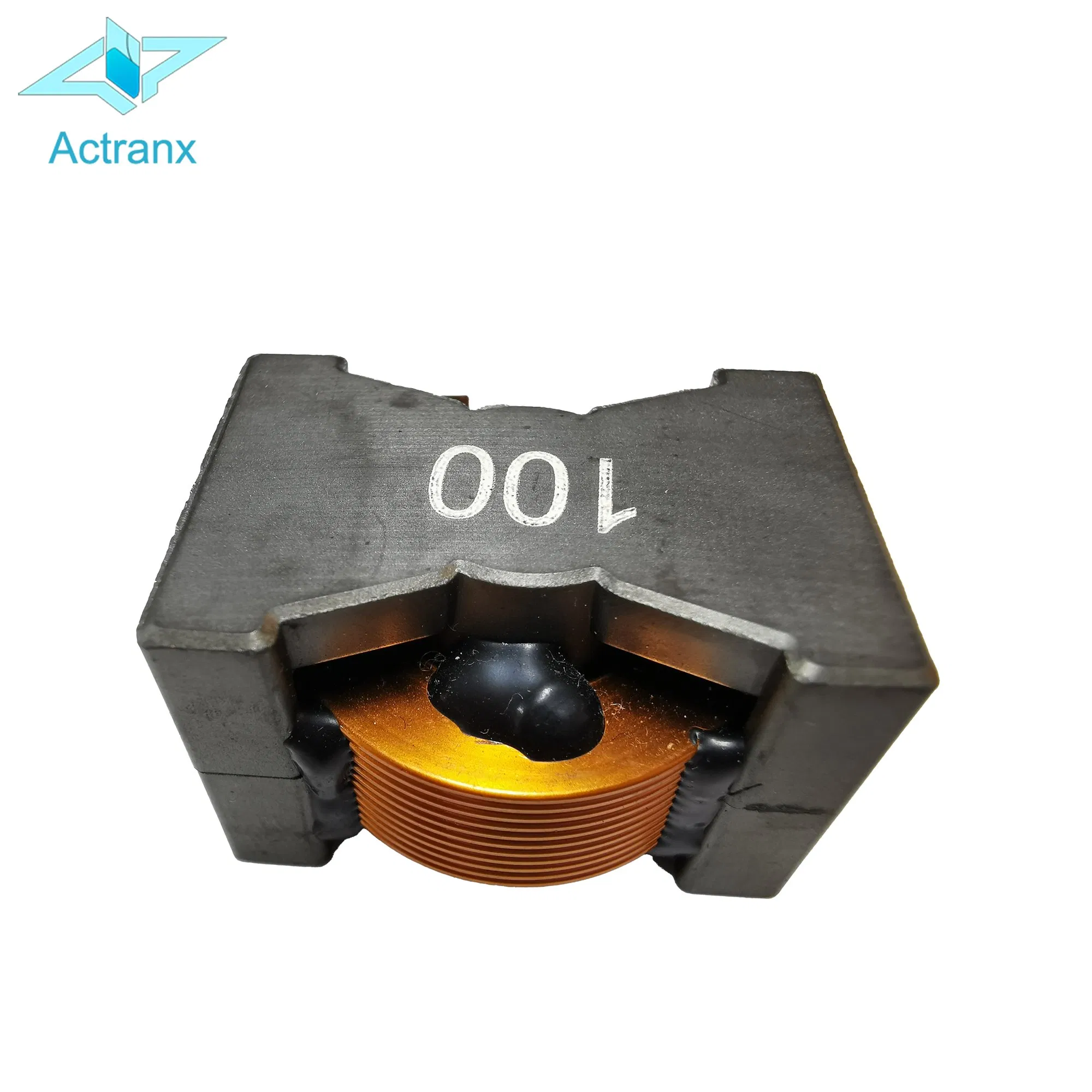

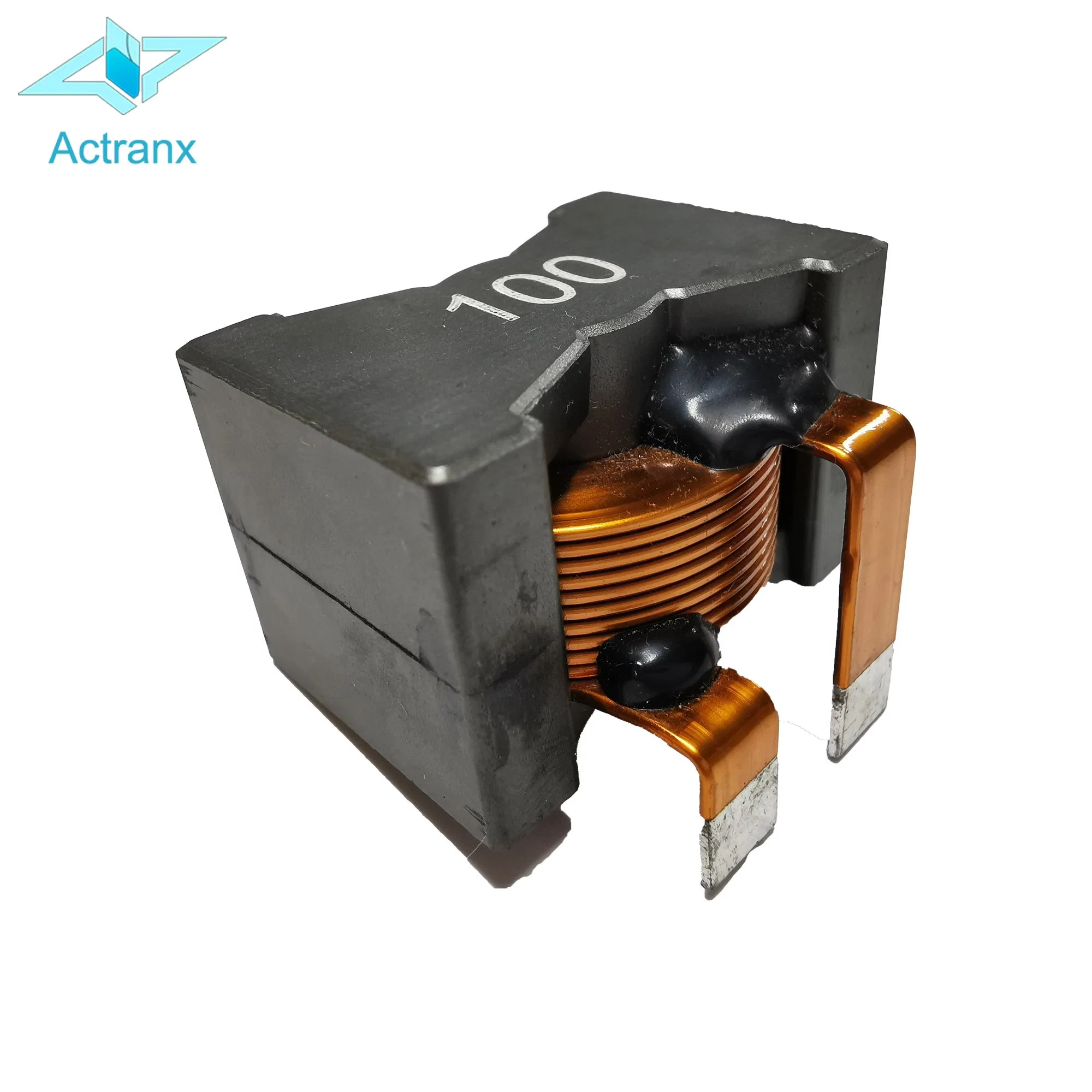

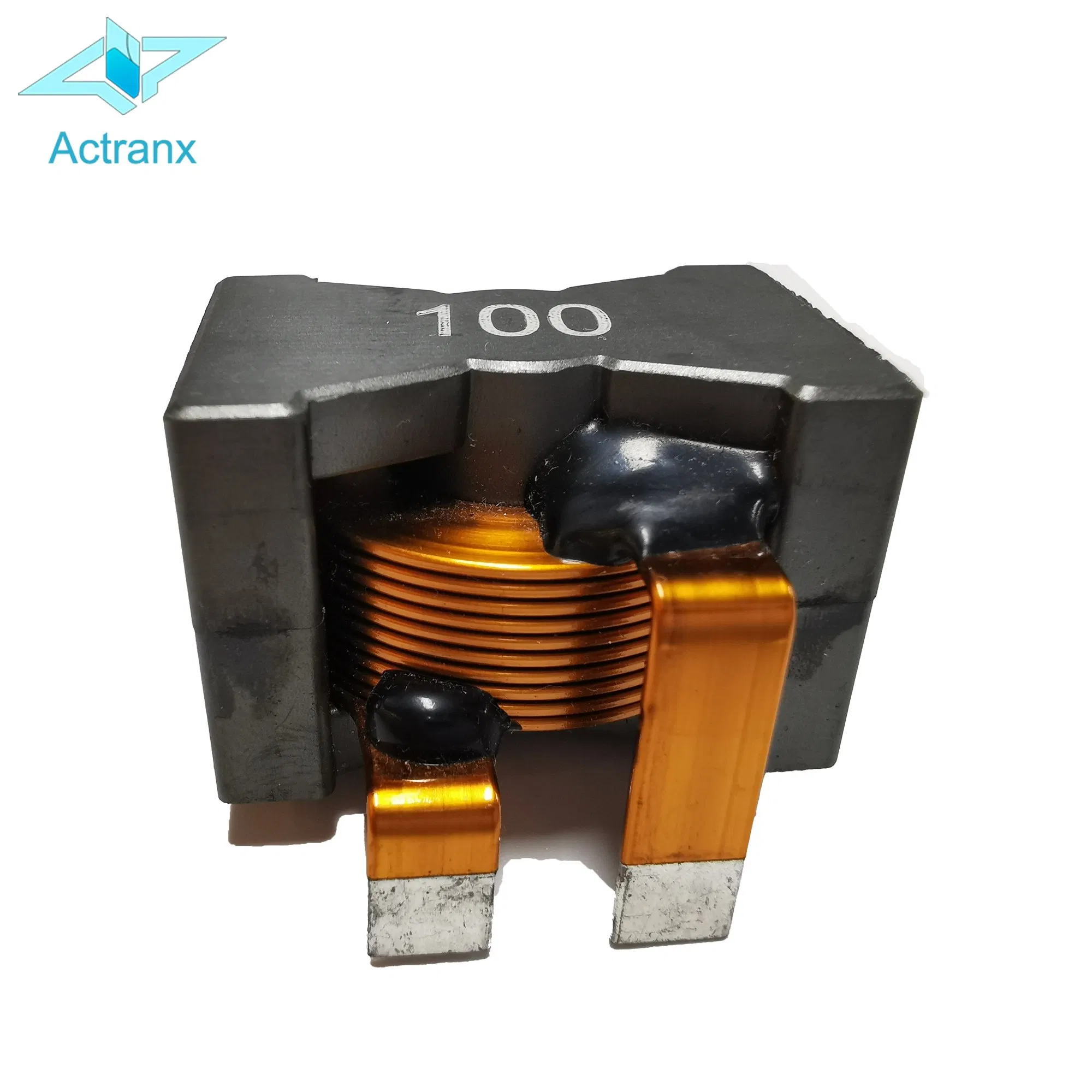

Vertical Wound High Frequency Power Inductor with Semi-Shielded Metal Case for Telecom/Industrial Power Supply
Vertical Wound High Frequency Power Inductor with Semi-Shielded Metal Case for Telecom/Industrial Power Supply
Vertical Wound High Frequency Power Inductor with Semi-Shielded Metal Case for Telecom/Industrial Power Supply
Vertical Wound High Frequency Power Inductor with Semi-Shielded Metal Case for Telecom/Industrial Power Supply
Vertical Wound High Frequency Power Inductor with Semi-Shielded Metal Case for Telecom/Industrial Power Supply
1 / 5
Vertical Wound High Frequency Power Inductor with Semi-Shielded Metal Case for Telecom/Industrial Power Supply
Vertical Wound High Frequency Power Inductor with Semi-Shielded Metal Case for Telecom/Industrial Power Supply
Vertical Wound High Frequency Power Inductor with Semi-Shielded Metal Case for Telecom/Industrial Power Supply
Vertical Wound High Frequency Power Inductor with Semi-Shielded Metal Case for Telecom/Industrial Power Supply
Vertical Wound High Frequency Power Inductor with Semi-Shielded Metal Case for Telecom/Industrial Power Supply

Vertical Wound High Frequency Power Inductor with Semi-Shielded Metal Case for Telecom/Industrial Power Supply

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HF Power Inductor
Working Frequency
High Frequency
Structure
Single Coil / Ferrite Coil
Application
Solar Inverter / Industrial Control / SMPS
Core Material
Ferrite / Metal Alloy Powder
Feature
High Frequency, High Current, Low Loss
Grade
Industrial / Automotive Grade (AEC-Q200)
Mounting Type
Surface Mount (SMD)
Certifications
ISO-9001 / CE / RoHS / UL
Specification
0.22~47uH
Product Description

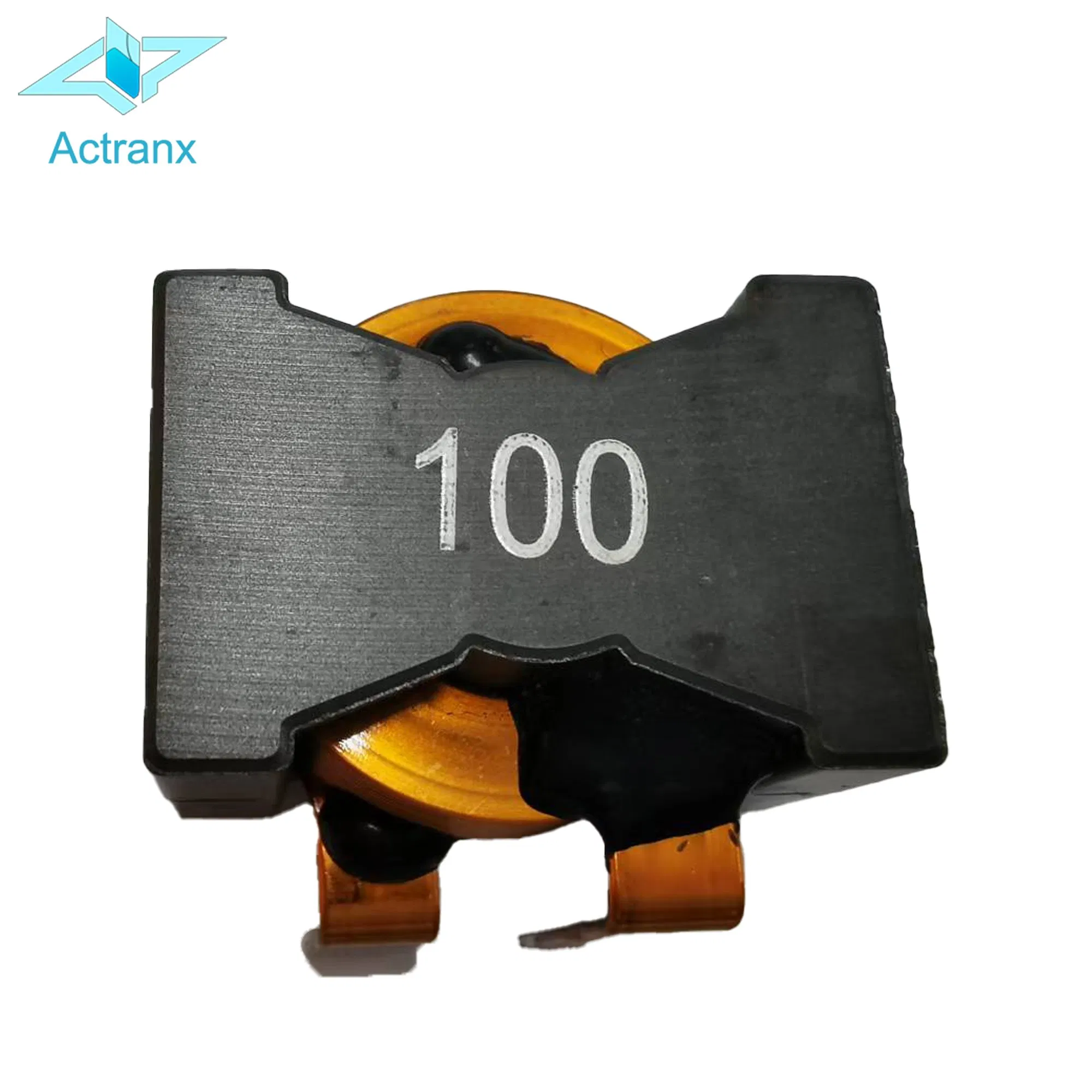

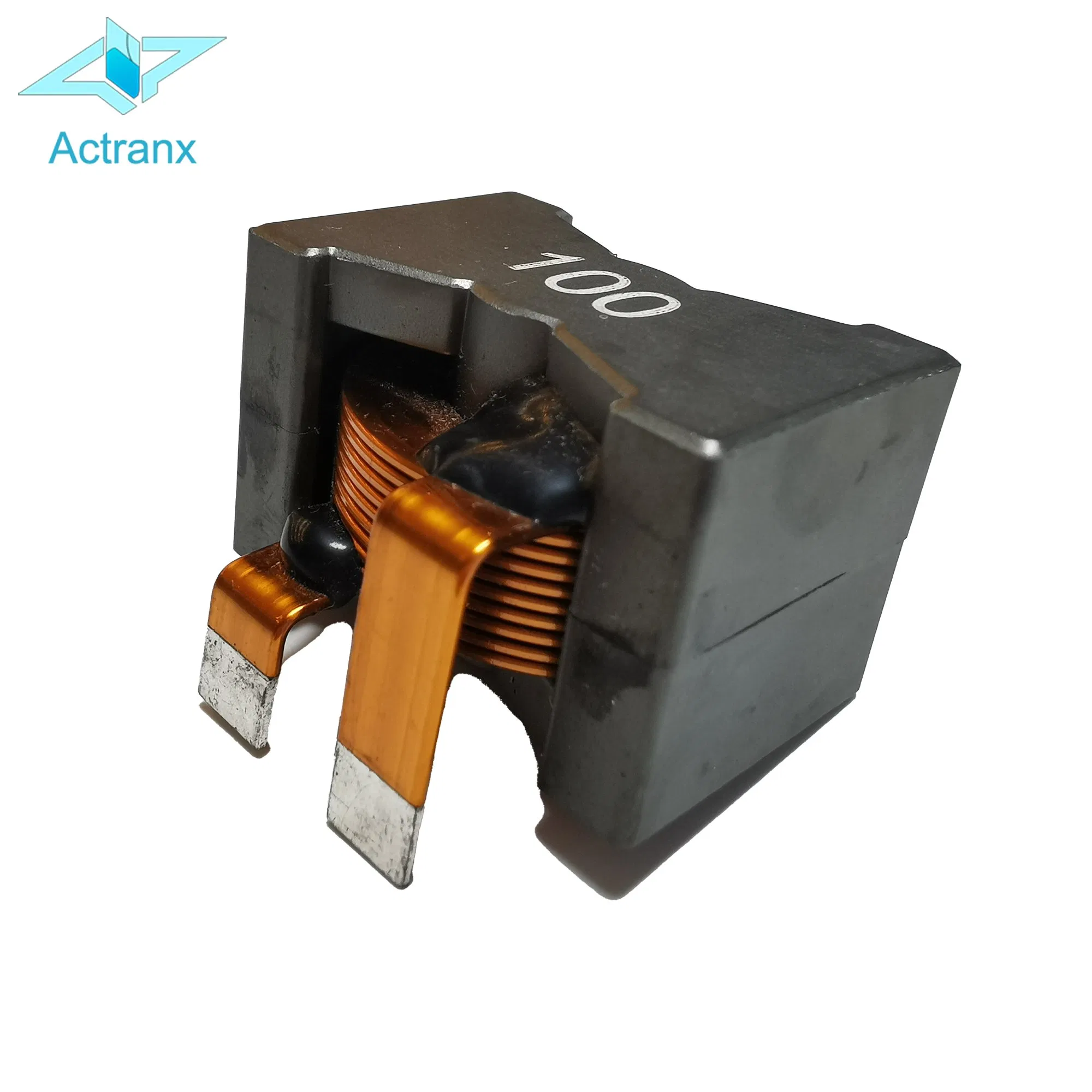

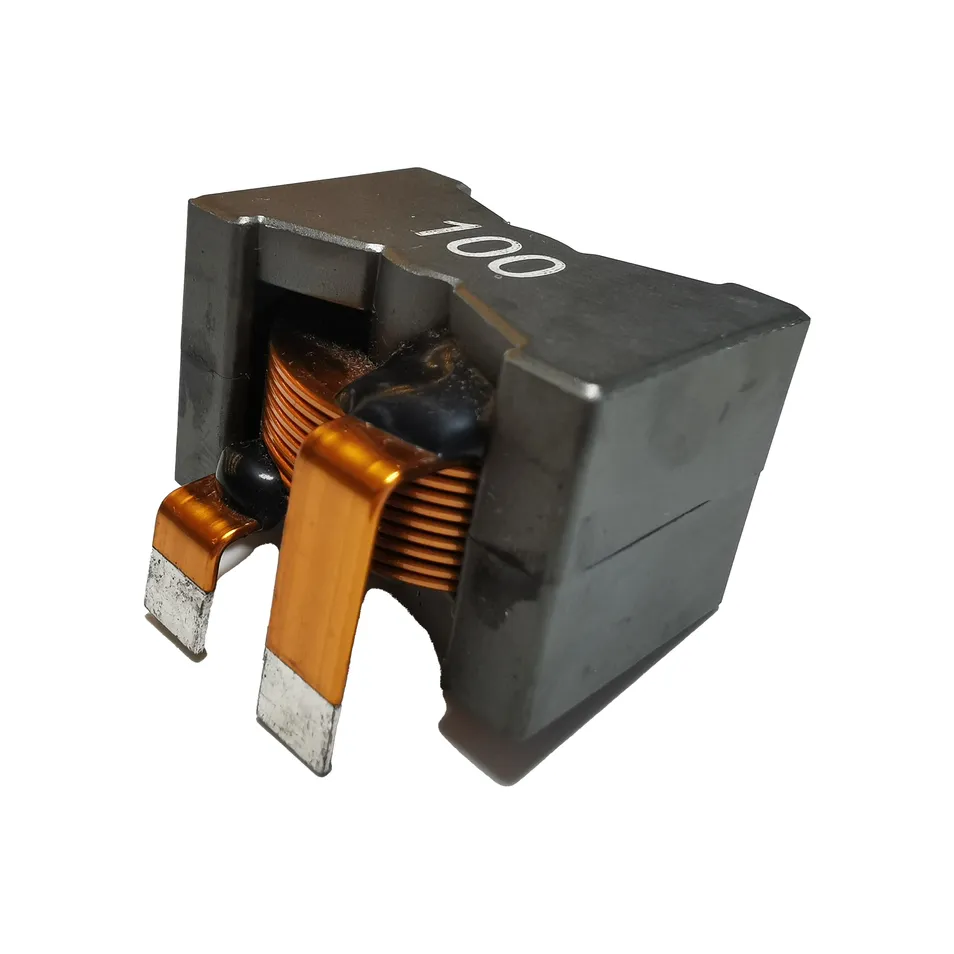

Our edge-wound inductors utilize advanced flat wire edge-winding technology to achieve ultra-low DCR (DC Resistance) and very high saturation current. Designed for high-efficiency, high-power-density applications like server/GPU VRM, automotive OBC/DC-DC converters, and industrial power.
Power Inductor
High Frequency Inductor
  • Edge-winding with Flat Wire: Optimizes conductor cross-sectional area for ultra-low DCR.
  • High Saturation Current: Enables excellent resistance to magnetic saturation.
  • Superior Thermal Performance: Larger surface area for efficient heat dissipation.
  • Reduced Skin Effect: Mitigates negative impacts at high frequencies.
  • Wide Operating Range: Suitable for frequencies up to 200kHz.
Technical Parameters
Inductance 0.22~47uH (Customizable) Freq. Range 1.0kHz ~ 200kHz
Tolerance ±5% / ±10% Rated Current ≤10A
DC Resistance 2.30~10.0mΩ (@25℃) Saturation Current ≤76A
Insulation Class Class F / H Operating Temp -20℃ ~ +100℃
Outline Dimensions
Dimension 1
Dimension 2
Dimension 3

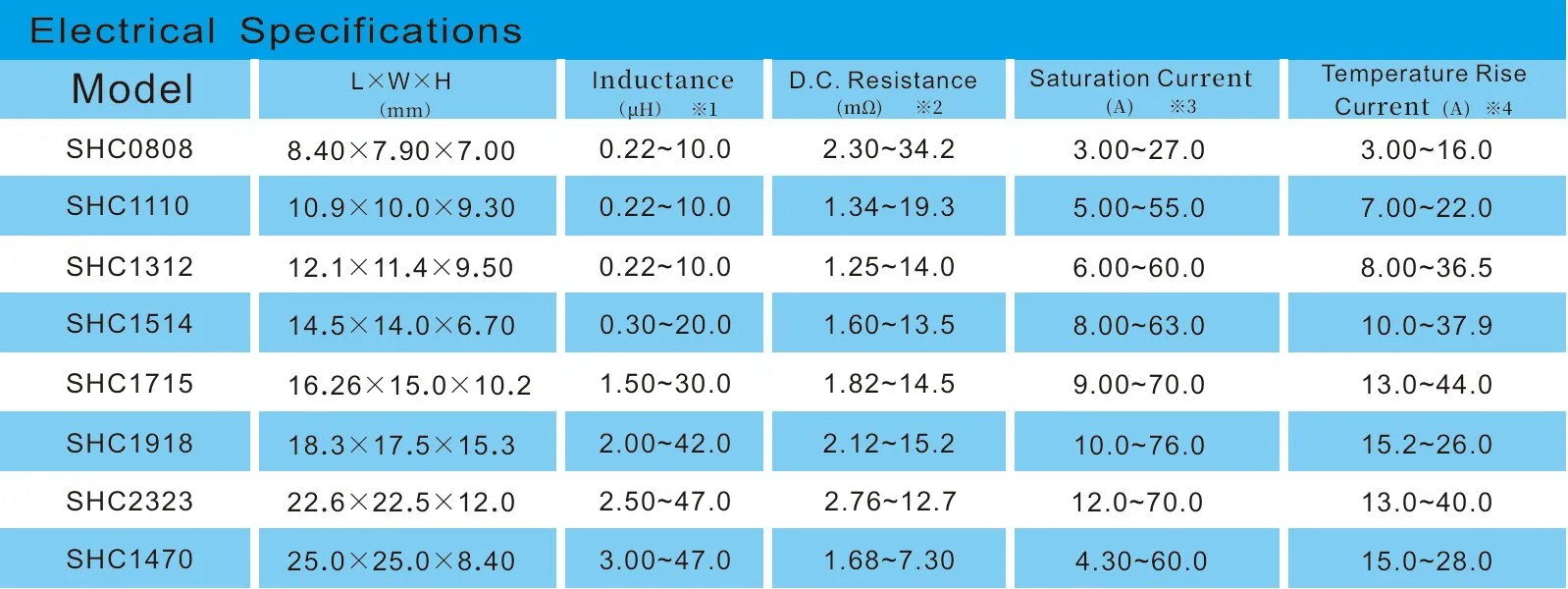

Full Dimension Chart
Specific Applications
  • Servers/Data Centers: CPU/GPU Voltage Regulator Modules (VRM).
  • Automotive Electronics: On-Board Chargers (OBC), DC-DC Converters, BMS.
  • Telecommunications: 5G Base Station Power Supplies, Network Switches.
  • Industrial Systems: Solar Inverters, Energy Storage Systems (ESS), UAVs.
  • Consumer Electronics: High-End Graphics Cards, AI Acceleration Cards.
Power Supplier
Electric Vehicle
Aerospace
Communication
Medical Device
Renewable Energy
Manufacturing Process
Process Flow
Production 1

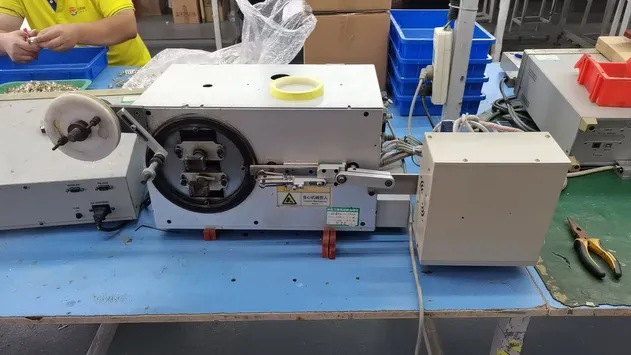

Production 2

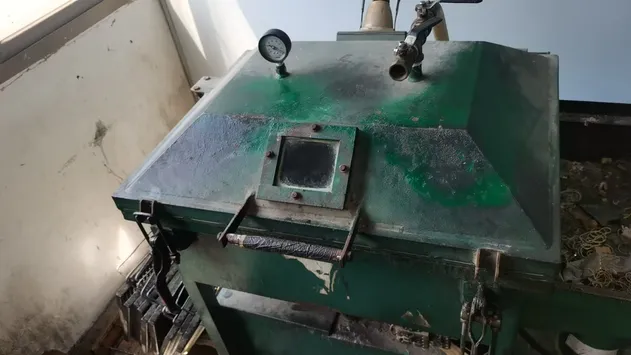

Production 3

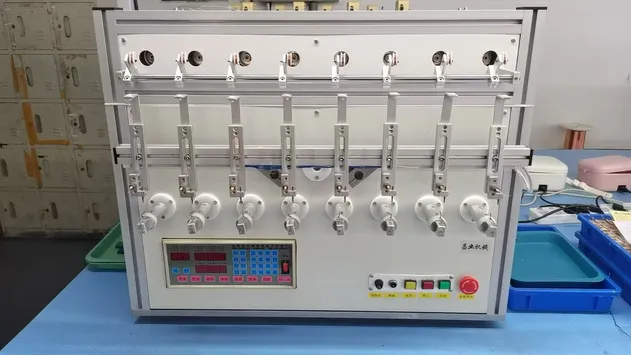

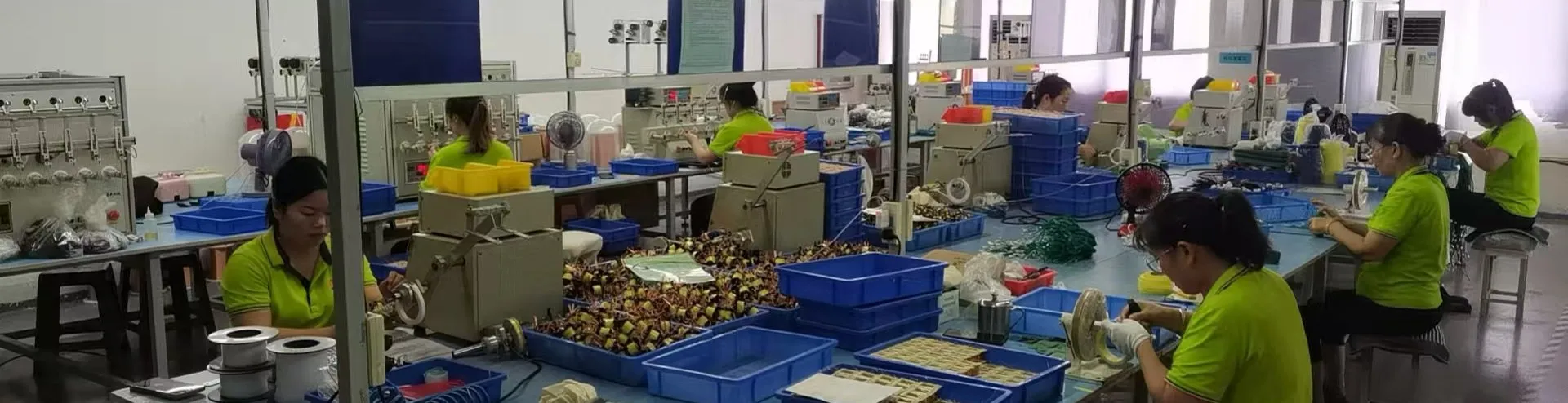

Our components are manufactured using semi-automated production lines integrating exquisite craftsmanship with modern technology. Every step—from winding and assembly to testing—strictly adheres to a robust quality control system.

Frequently Asked Questions
Q1: Do you test all your goods before delivery?
A: Yes, we conduct 100% testing on all products before delivery to ensure performance and reliability.
Q2: Is OEM/ODM service available for these inductors?
A: Yes. We have extensive experience in translating your designs and ideas into real products, including laser printing your brand.
Q3: What is the typical delivery lead time?
A: Stock items are ready to ship immediately. For mass production, the delivery time is usually between 15 to 30 days.
Q4: What kind of after-sales support do you provide?
A: We offer a one-year guarantee period and provide 24-hour online technical support.
Q5: Can the electrical parameters be customized?
A: Absolutely. We can flexibly adjust inductance, current ratings, and structural dimensions to meet your specific application needs.
Q6: Are your products certified for international markets?
A: Yes, our products meet ISO-9001, CE, RoHS, and UL standards, with some models available in Automotive Grade (AEC-Q200).
