Customization:	Available
Theory:	Electromagnetic Relay
Usage:	Car Relay

Send Inquiry

Product Description

Basic Information

Model NO.

DC 24V

Phase

3

Electricity Type

DC

Number of Pole

2

Load

Medium Power Relay

Protective Characteristics

Sealed Relay

Action Principle

Electromagnetic Type

Size

Miniature

Max Voltage

60V

HS Code

8536411010

Package Size

54.00cm * 54.00cm * 35.00cm

Package Gross Weight

15.000kg

Product Features

Superior Performance: Robust magnetic arc extinguishing capabilities for enhanced reliability.

High Quality Build: Crafted with full copper enameled wire and silver alloy contacts for optimal conductivity.

Safety Guaranteed: Durable nylon flame retardant shell offers enhanced protection.

Easy Installation: Convenient card slot design allows for secure fixation with an iron backrest.

Product Visuals

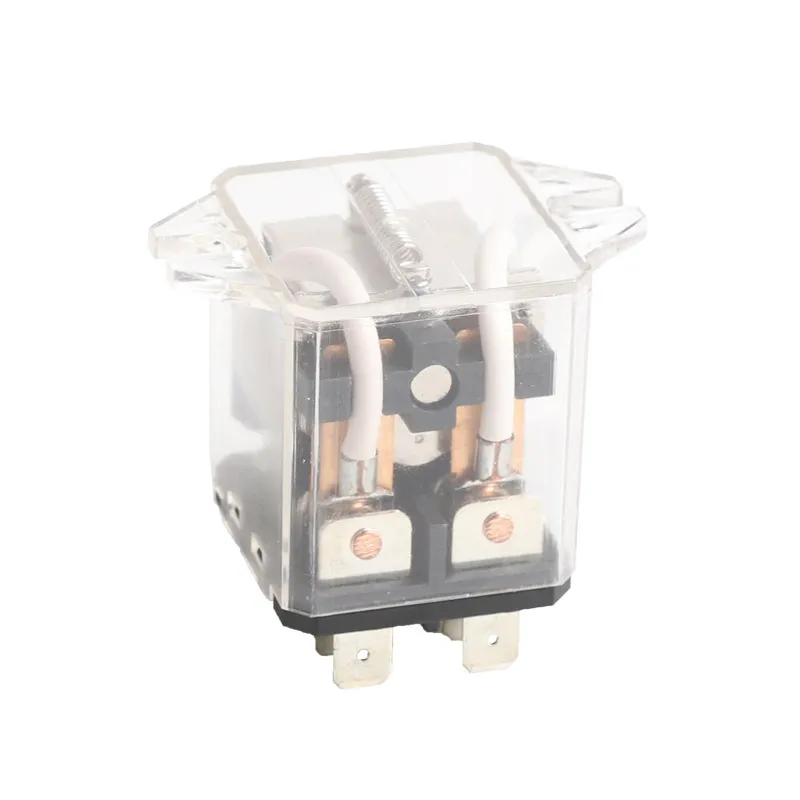

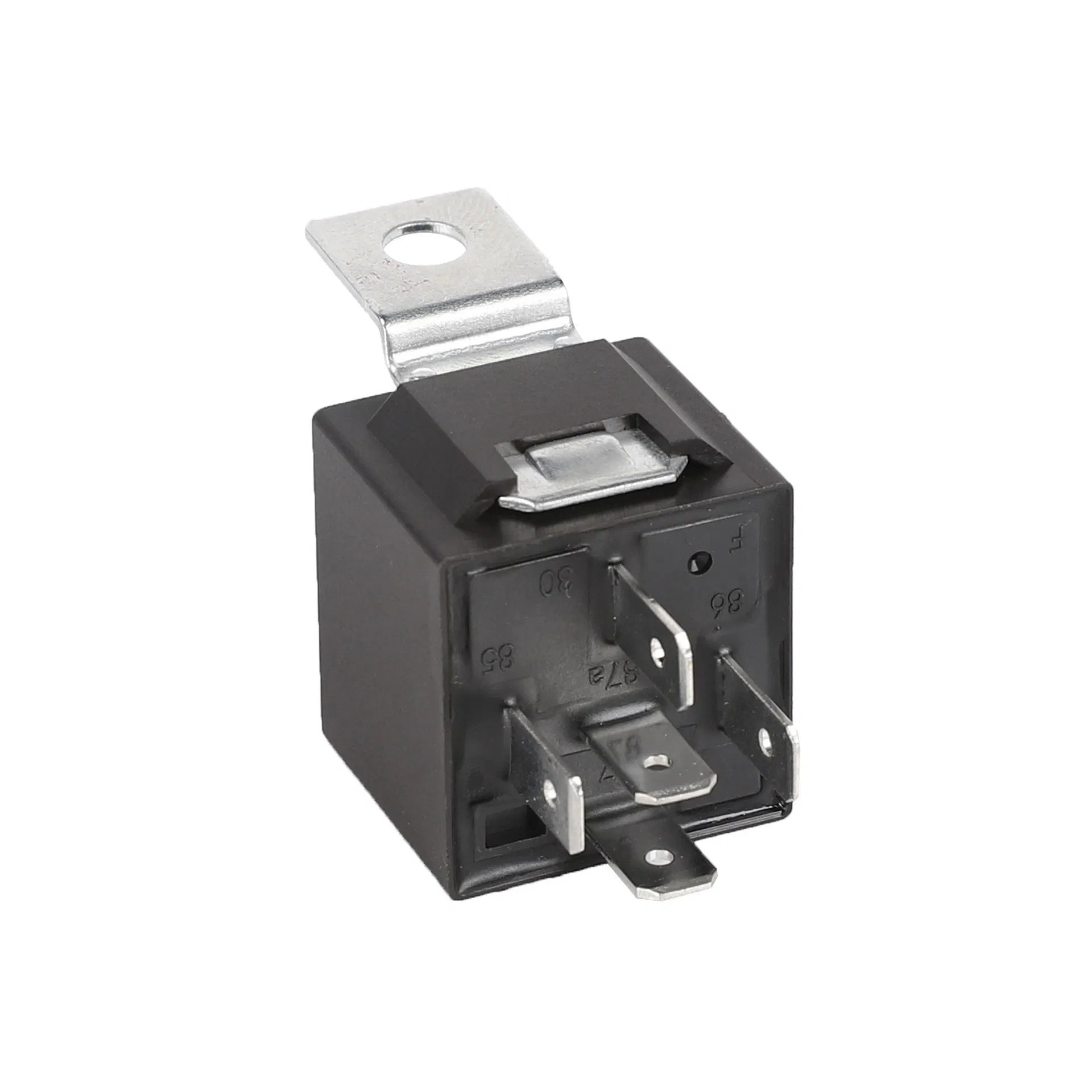

Relay Visual 1

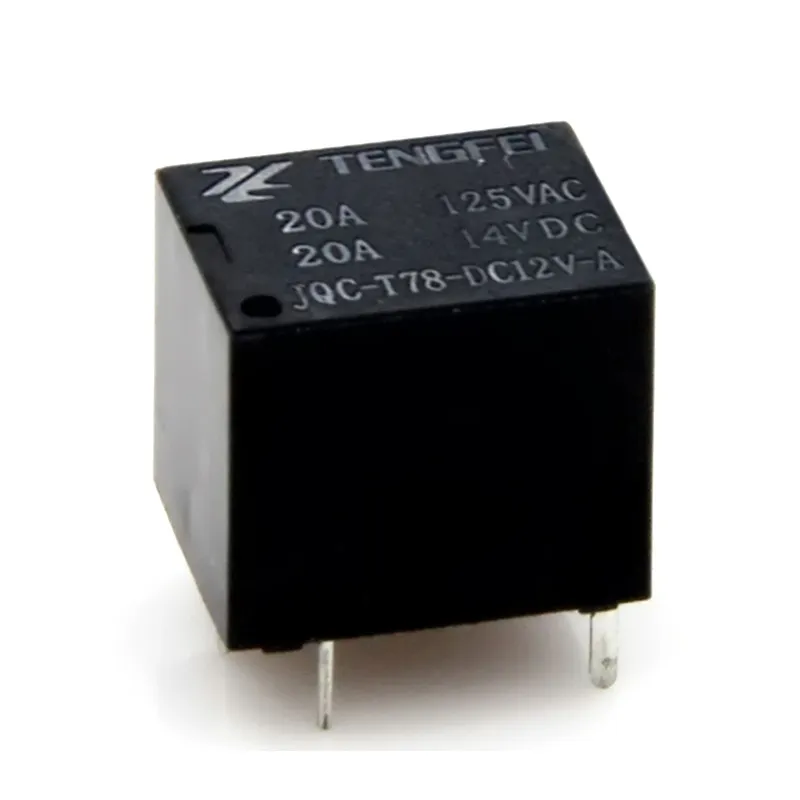

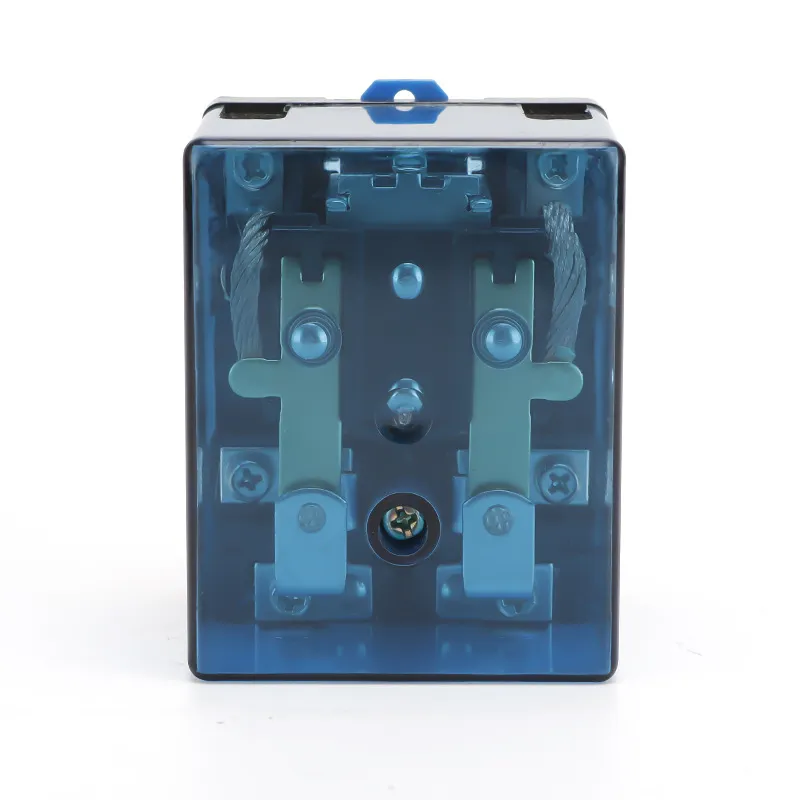

Relay Visual 2

Relay Visual 3

Relay Visual 4

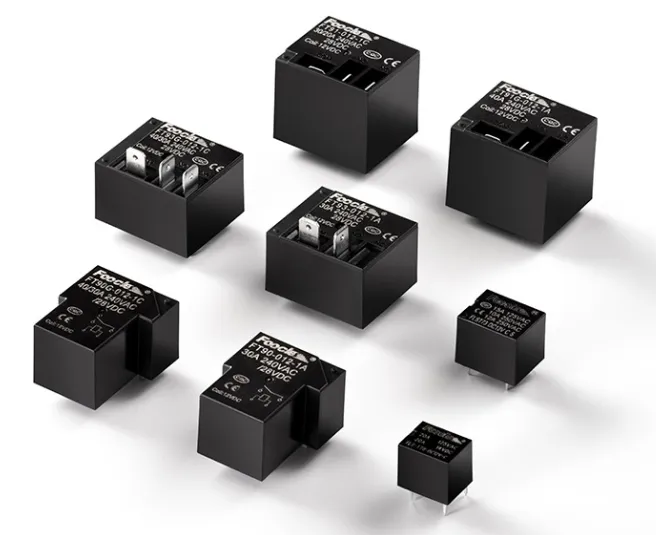

Relay Visual 5

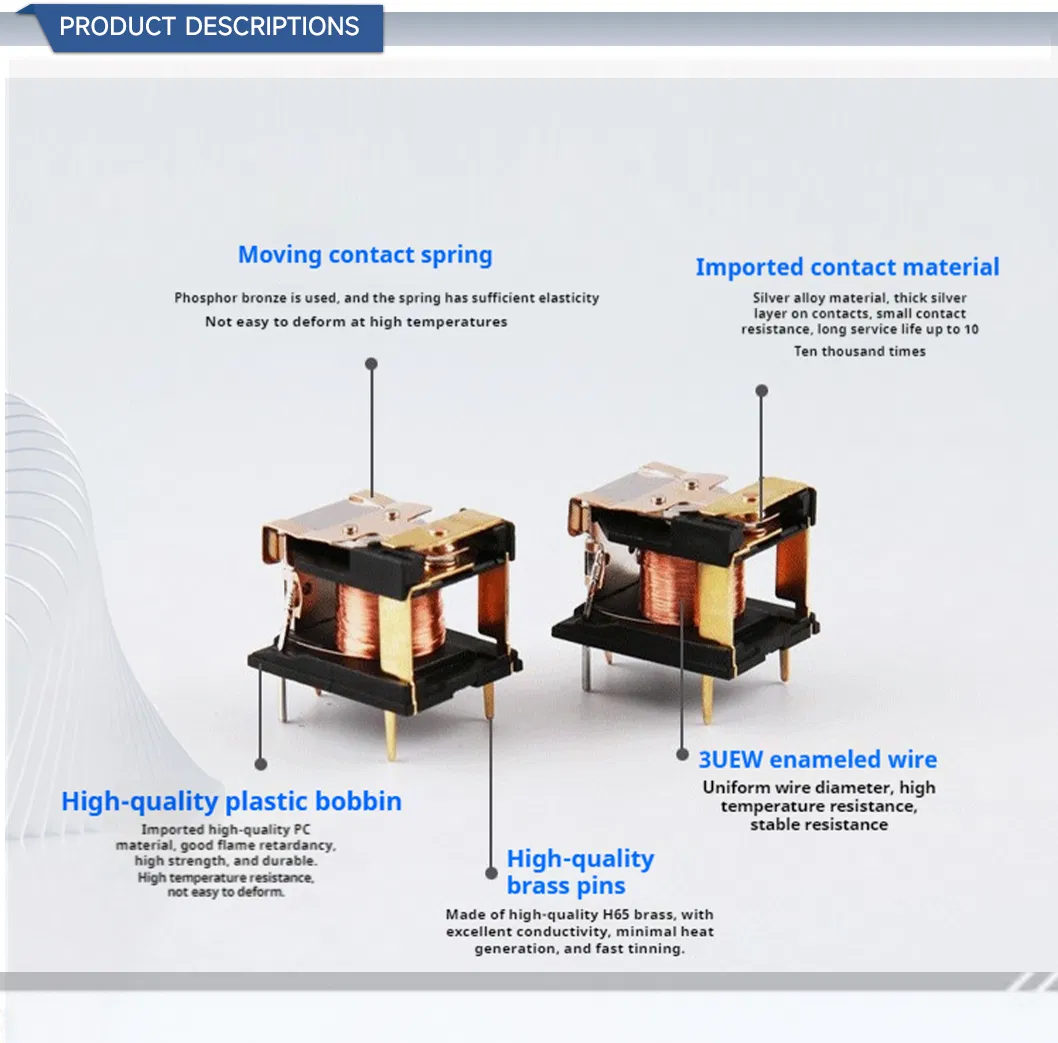

Relay Visual 6

Technical Specifications

* Compact and efficient design for space-saving integration.

* Sealed type options available for environmental protection.

* Compliant with RoHS and ELV directives.

* Dimensions: 19.2mm x 15.4mm x 15.4mm.

Normal Voltage (VDC)	Pick-up Voltage (VDC)	Drop-out Voltage (VDC)	Coil Resistance (Ω±10%)	Power Consumption
12	≤8.4	≥1.2	80	1.8W
24	≤16.8	≥2.4	320	1.8W

Parameter	Value
Contact Form	A group often open (1A)
Contact Material	AgSnO2
Max Operating Current	15A/48V
Insulation Resistance	100MΩ
Dielectric Strength	500VAC (1min)
Ambient Temperature	-40°C to +85°C
Mechanical Life	1,000,000 times
Electrical Life	100,000 times

Specification Chart 1

Specification Chart 2

Specification Chart 3

Technical Drawing 1

Technical Drawing 2

Frequently Asked Questions

1. What are the primary applications for this relay?

This relay is ideal for use in compressors, heaters, water pumps, four-way valves, and various automotive electronics.

2. What contact materials are used in this model?

The relay features high-quality AgSnO2 (Silver Tin Oxide) contacts and full copper enameled wire for superior conductivity and longevity.

3. Is this relay environmentally friendly?

Yes, the product is fully compliant with RoHS and ELV directives, ensuring it meets international environmental standards.

4. What is the expected lifespan of the relay?

It has a mechanical life of at least 1,000,000 operations and an electrical life of approximately 100,000 operations under rated loads.

5. Can it withstand extreme temperatures?

Yes, it is designed to operate within an ambient temperature range of -40°C to +85°C.

6. What makes the installation process easy?

The relay includes a built-in card slot design, allowing for quick installation and secure attachment using an iron backrest.
