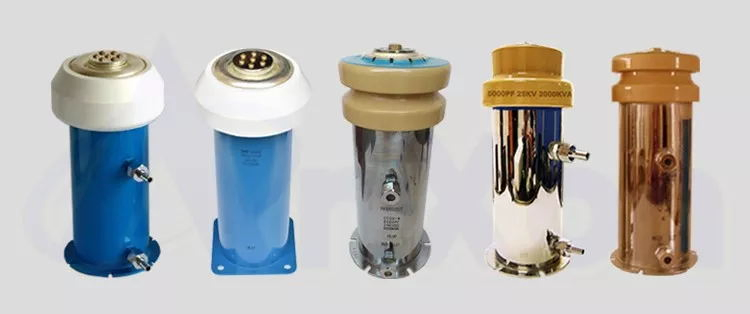

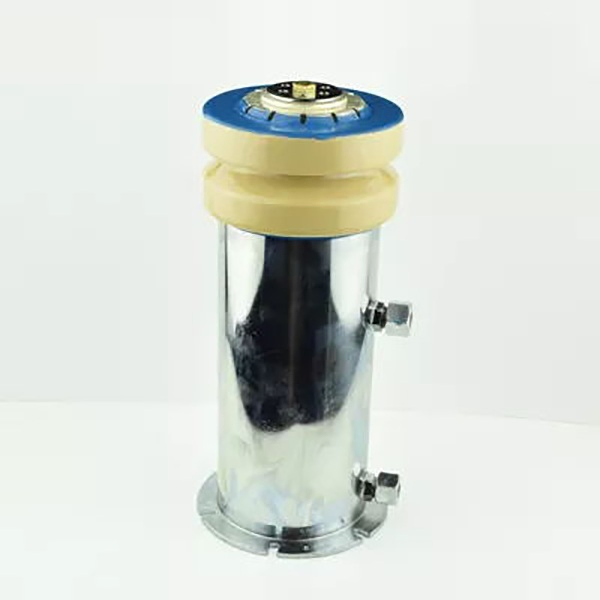

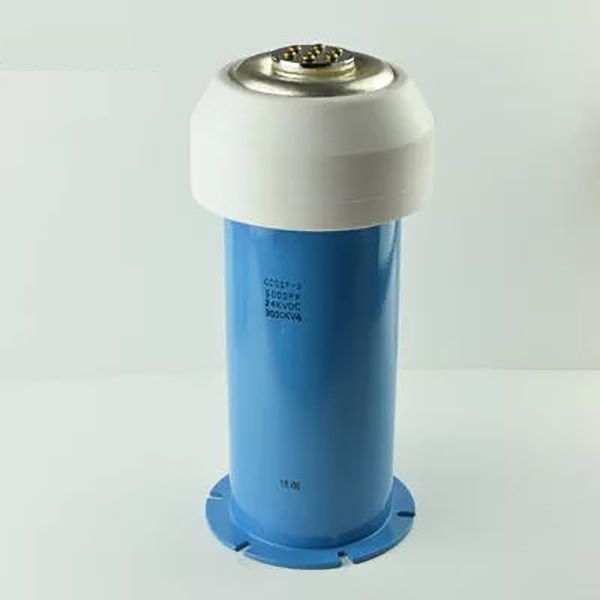

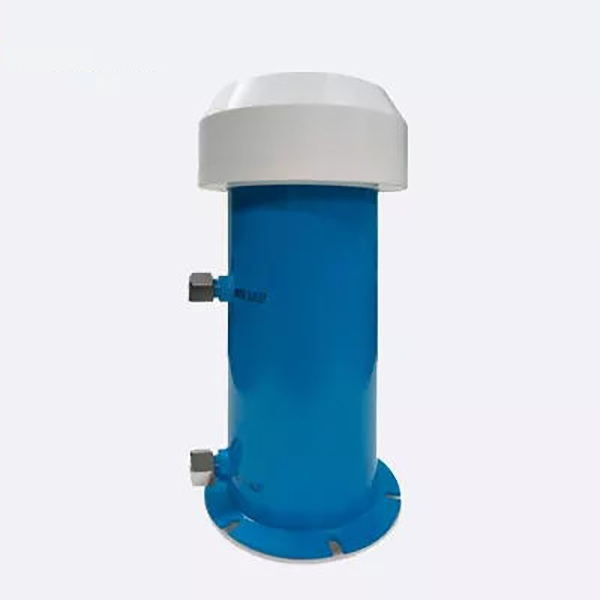

Twxf135285 20kv 5000PF 3000kVA Ceramic Water Cooled Tank Capacitor

1 / 5

Twxf135285 20kv 5000PF 3000kVA Ceramic Water Cooled Tank Capacitor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

TWXF135285 20KV 5000PF 3000KVA

Release Heat

Water/Ceramic

Temp Char.

-750ppm/°c

Type

Ccgsf Water Cooled / Ceramic Trimming

Application

General Purpose, High Voltage, Power

Capacitance

50-100uf

Structure

Fixed Capacitor

Material

Polypropylene / Ceramic

Electrolyte

Electrolytic

HS Code

85321000

Capacity

100000PCS/ Month

Package

Wooden Case

📝 Product Overview

The TWXF135285 20KV 5000PF 3000KVA water cooled tank capacitor is a complex electronic ceramic component designed for assemblies used in a wide range of cutting-edge technologies. These capacitors are fabricated from very low loss CLASS 1 ceramic dielectric materials, enabling them to carry exceptionally high electrical loads over a broad frequency range.

📋 Technical Data Sheet

High Power RF Watercooled Ceramic Capacitors

⭐ Key Features

✔ Low loss Class 1 ceramic dielectric materials

✔ Noble metal electrodes with low self-heating

✔ Very low capacitance-temperature characteristics

✔ Low tuned frequency drift

✔ Low Inductance construction for higher frequency use

✔ High voltage and High Reactive Power Ratings

✔ Low magnetic susceptibility

🚀 Main Applications

🔹 Radio broadcast transmitters

🔹 HF filter, By-Pass & Coupling Circuits

🔹 High power matching tuned/Antenna circuits

🔹 Plasma Generators & Matching networks

🔹 Medical imaging systems (MRI)

🔹 Induction and Dielectric Heating Equipment

🔍 Quality Inspection

100% of the plate ceramic capacitors are tested for the following parameters:

● Capacitance & Tolerance

● Dielectric withstanding voltage

● Dissipation Factor

● Insulation Resistance

Process and inspection data are maintained on file and available upon special request.

❓ Frequently Asked Questions

1. What cooling method is used for this capacitor?

This model utilizes a combination of water and ceramic cooling to manage heat release during high-power operations.

2. What are the core dielectric materials?

The capacitor is fabricated using very low loss CLASS 1 ceramic dielectric materials and noble metal electrodes.

3. In which industries is the TWXF135285 primarily used?

It is widely used in radio broadcasting, medical imaging (MRI), industrial induction heating, and plasma generation.

4. What quality tests does the product undergo?

Each unit undergoes 100% testing for capacitance, tolerance, dielectric withstanding voltage, dissipation factor, and insulation resistance.

5. What makes it suitable for high-frequency use?

Its low inductance construction and very low capacitance-temperature characteristics allow for stable performance at high frequencies with minimal drift.
