NPN Darlington Bipolar Power Transistor TIP140

1 / 5

NPN Darlington Bipolar Power Transistor TIP140

Customization:	Available
Certification:	RoHS, CE, ISO, CCC
Structure:	Planar

Send Inquiry

Product Description

Basic Info.

Model NO.

TIP140

Encapsulation

TO-247

Material

Silicon

Switching Loss

Extremely Low

Stability

Excellent Uniformity

Testing

100% Avalanche Tested

ESD Protection

Built-in ESD Diode

Capacity

10000 Pieces/Day

Product Description

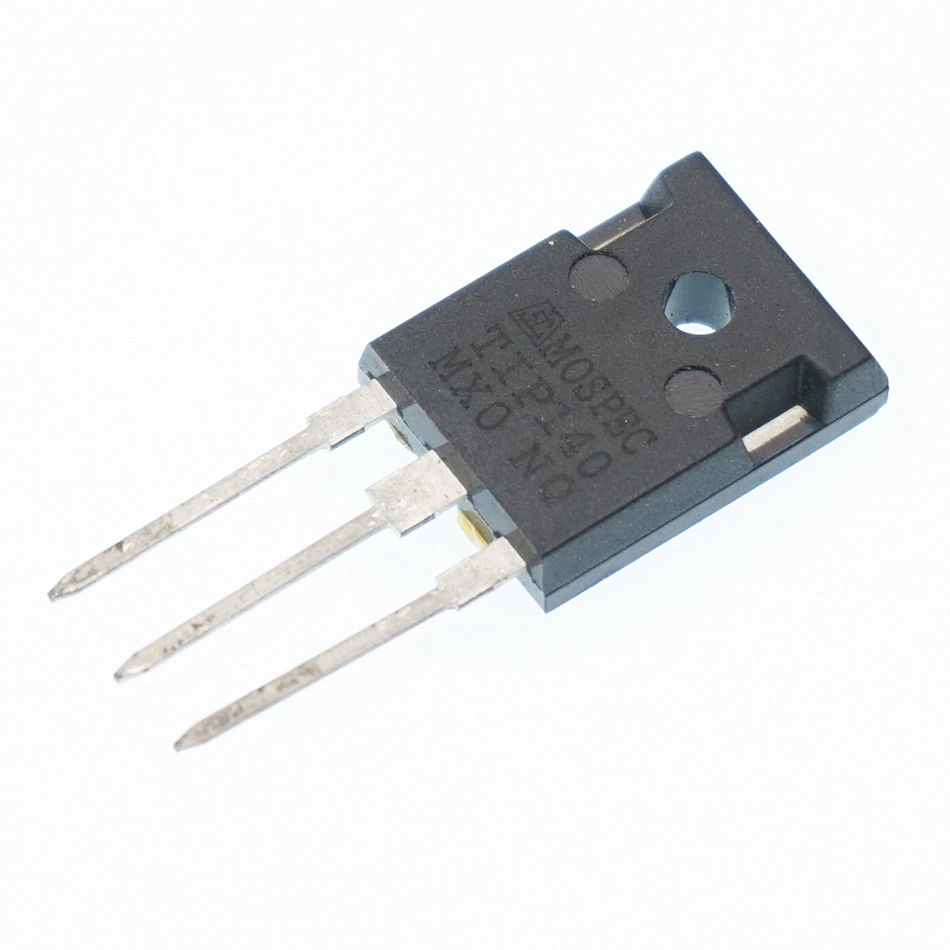

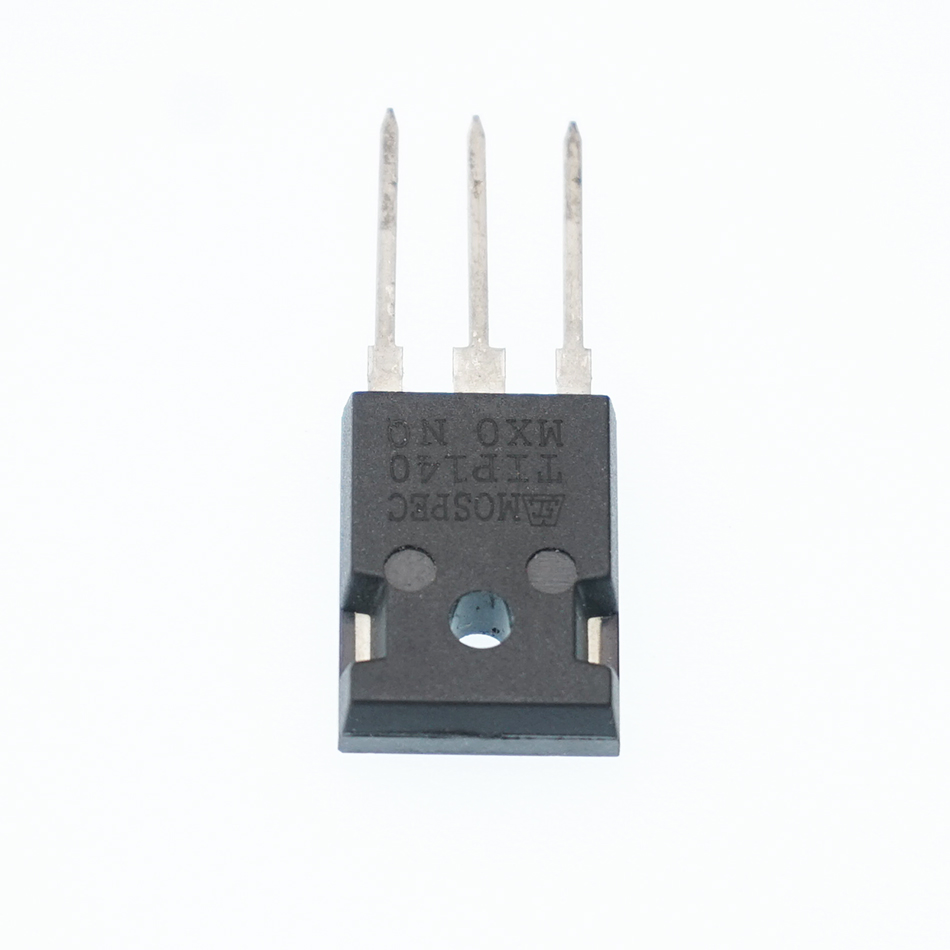

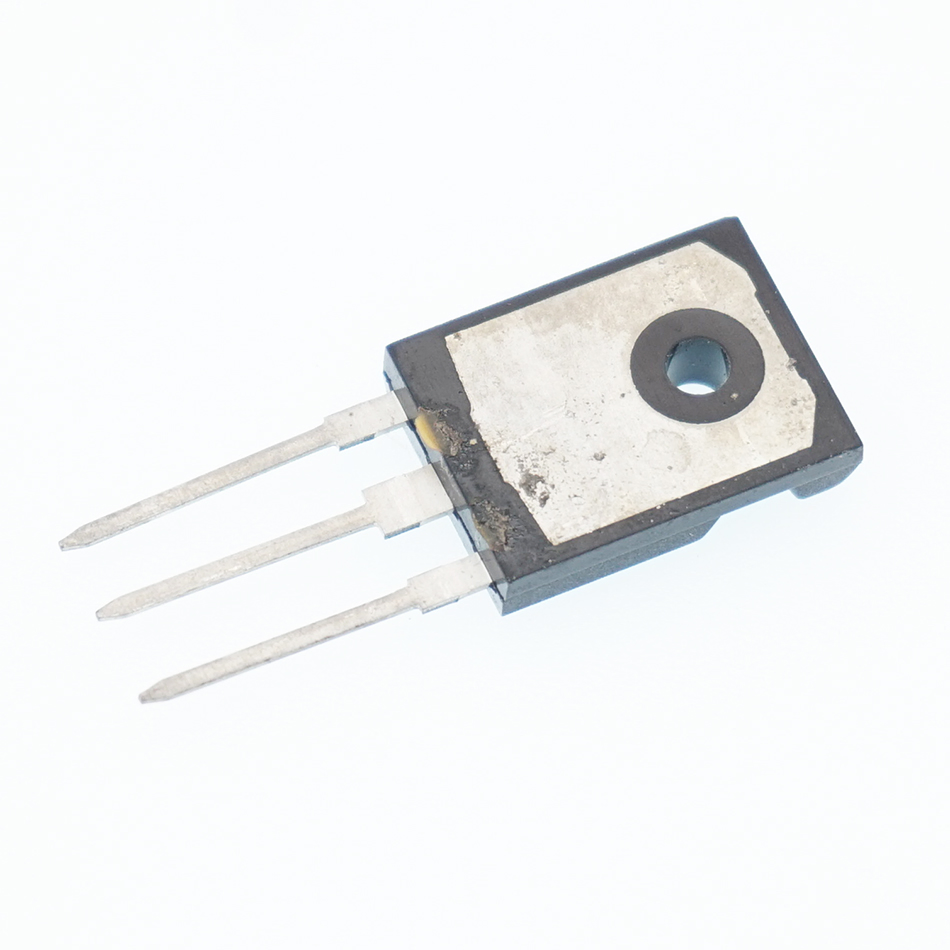

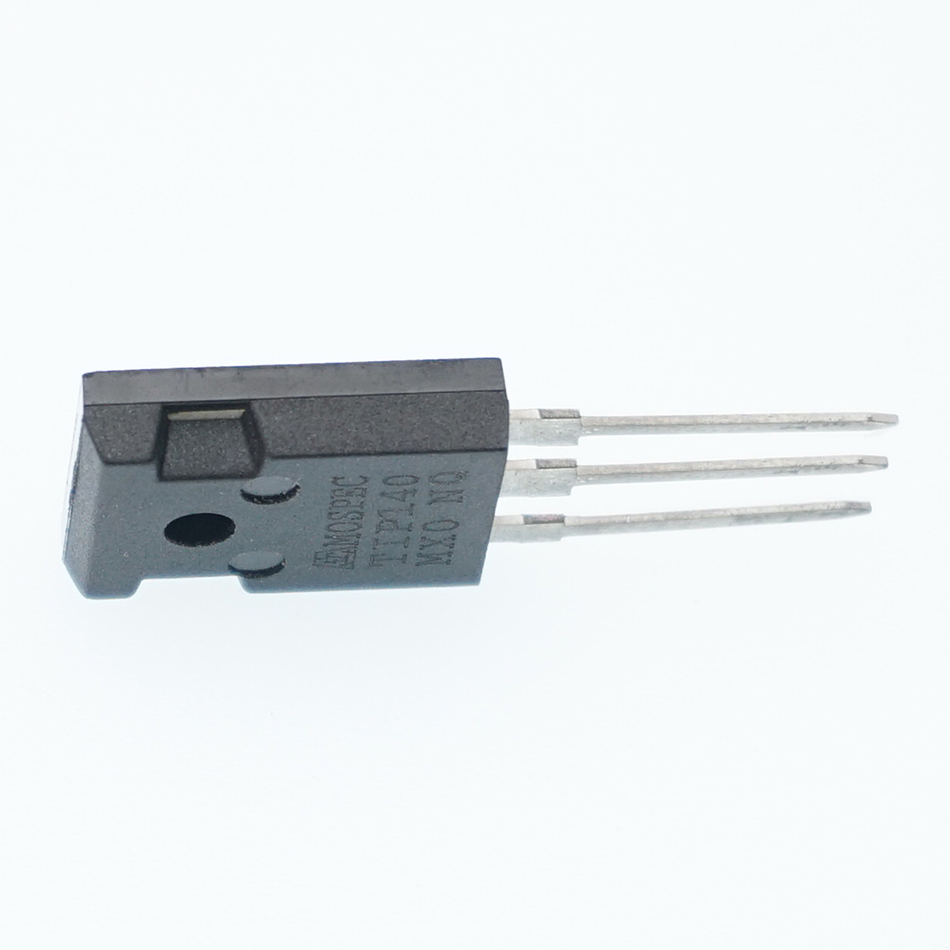

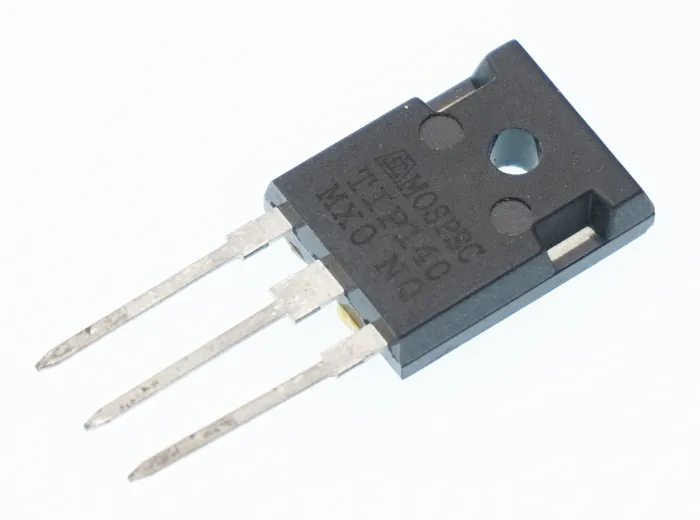

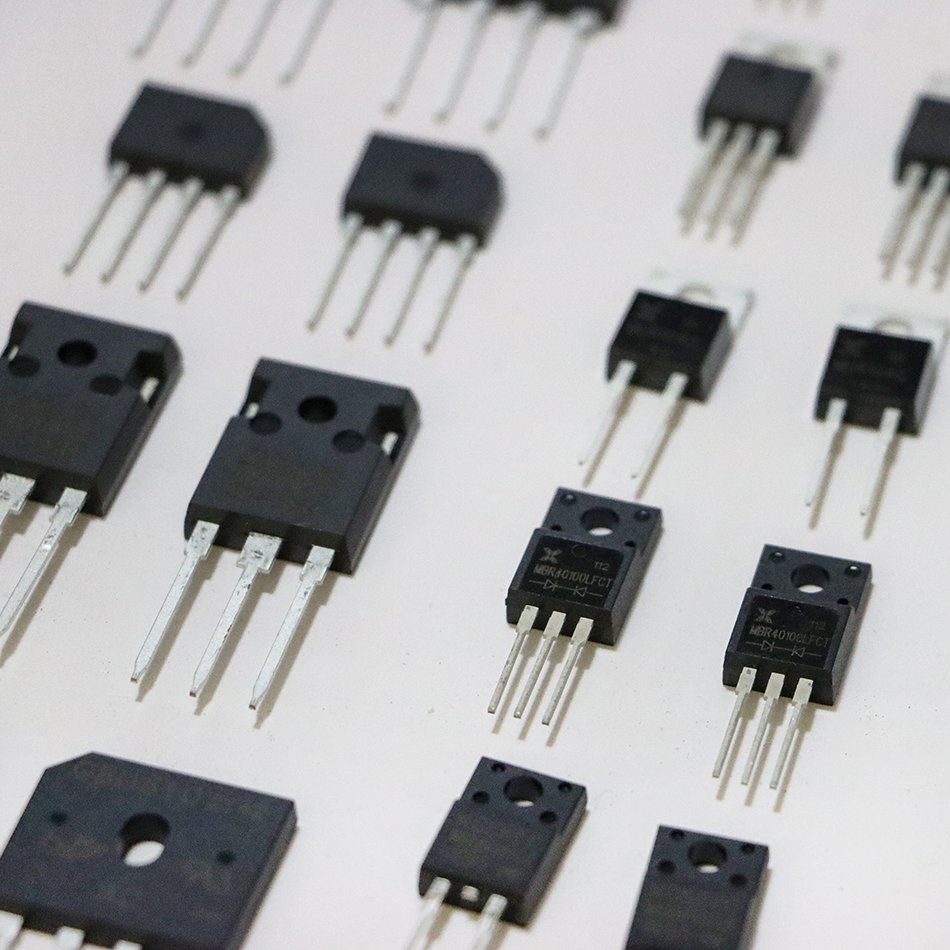

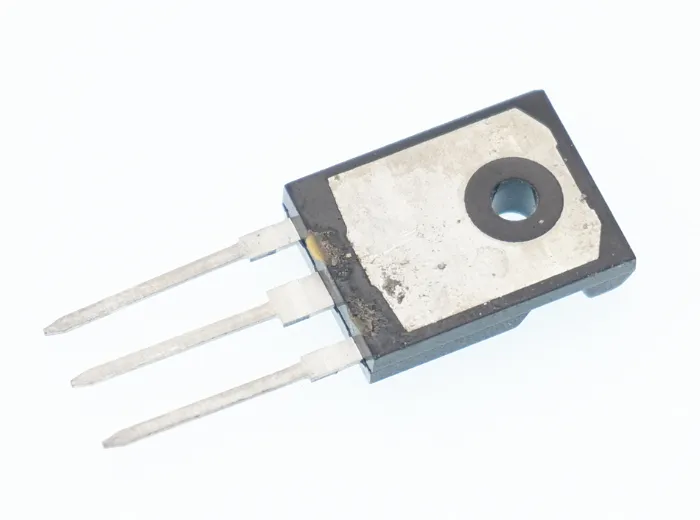

NPN Darlington Bipolar Power Transistor TIP140

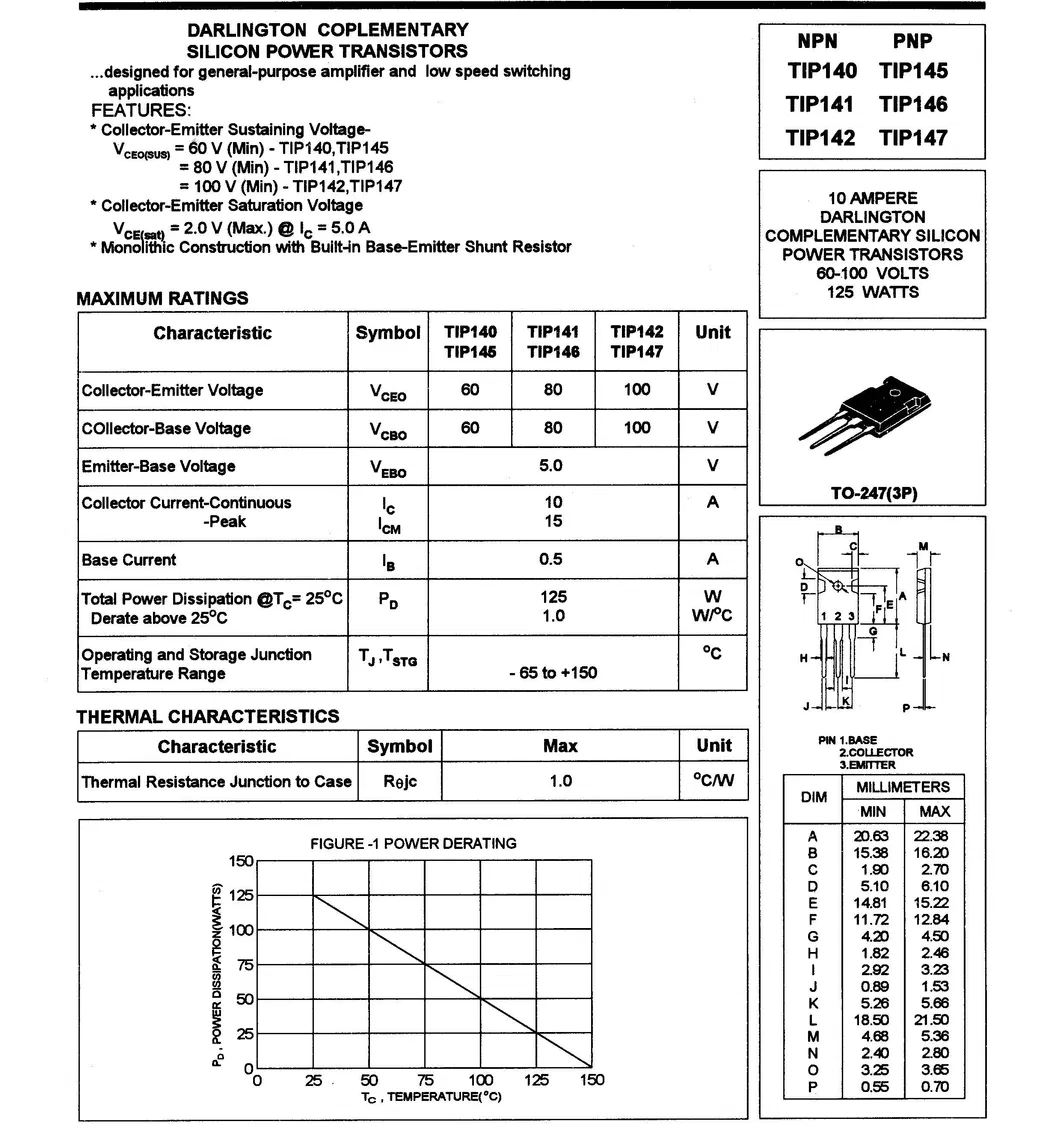

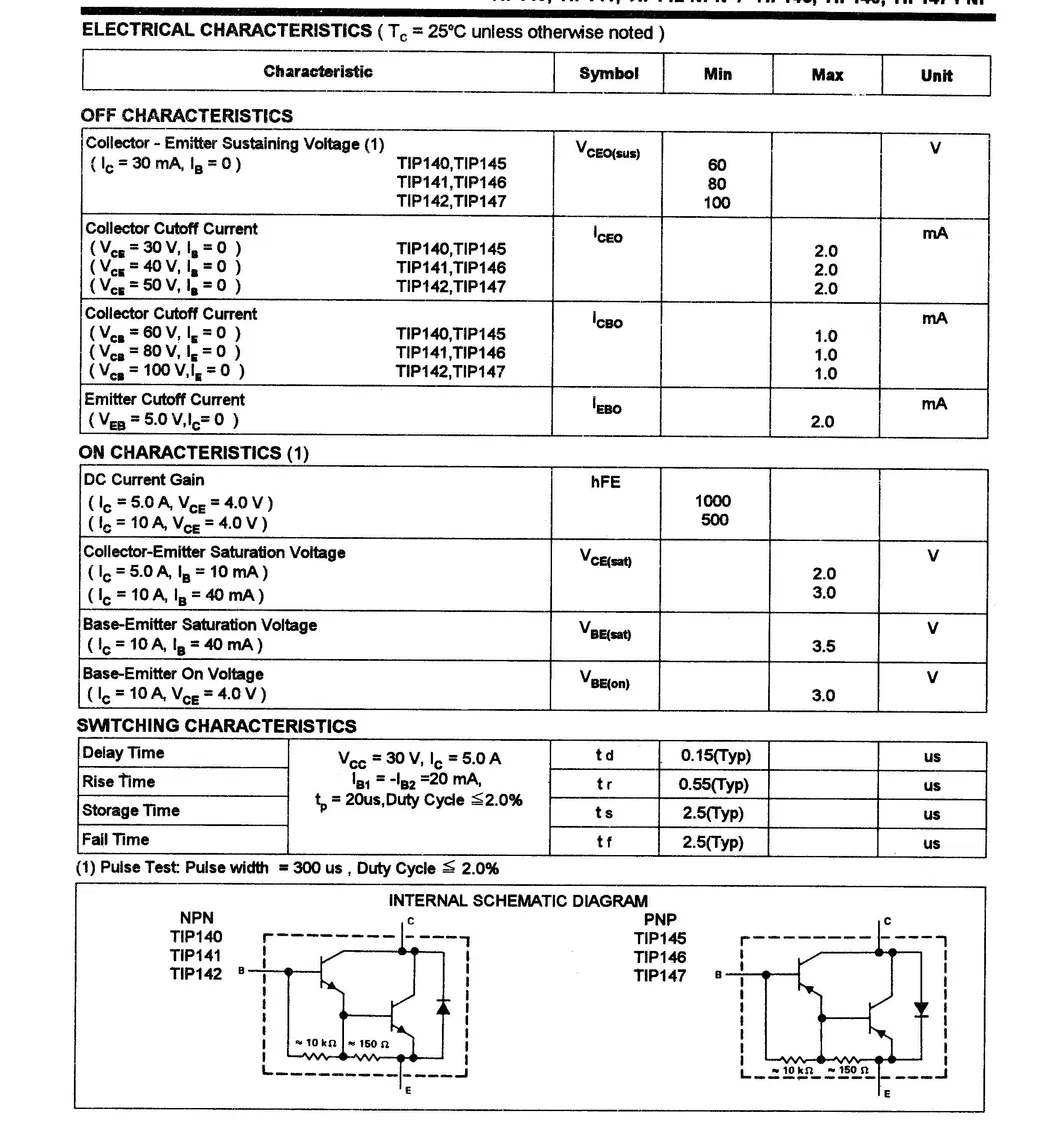

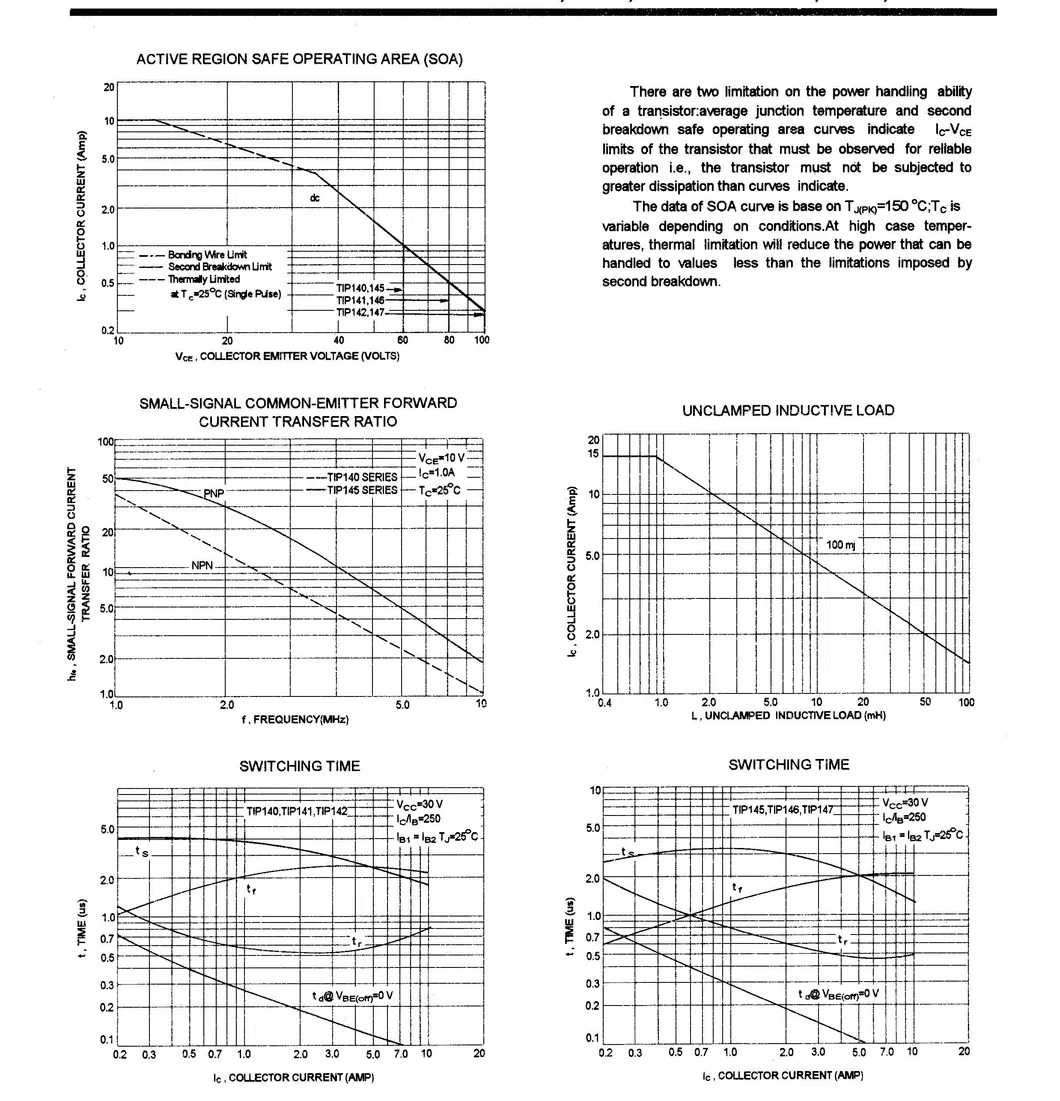

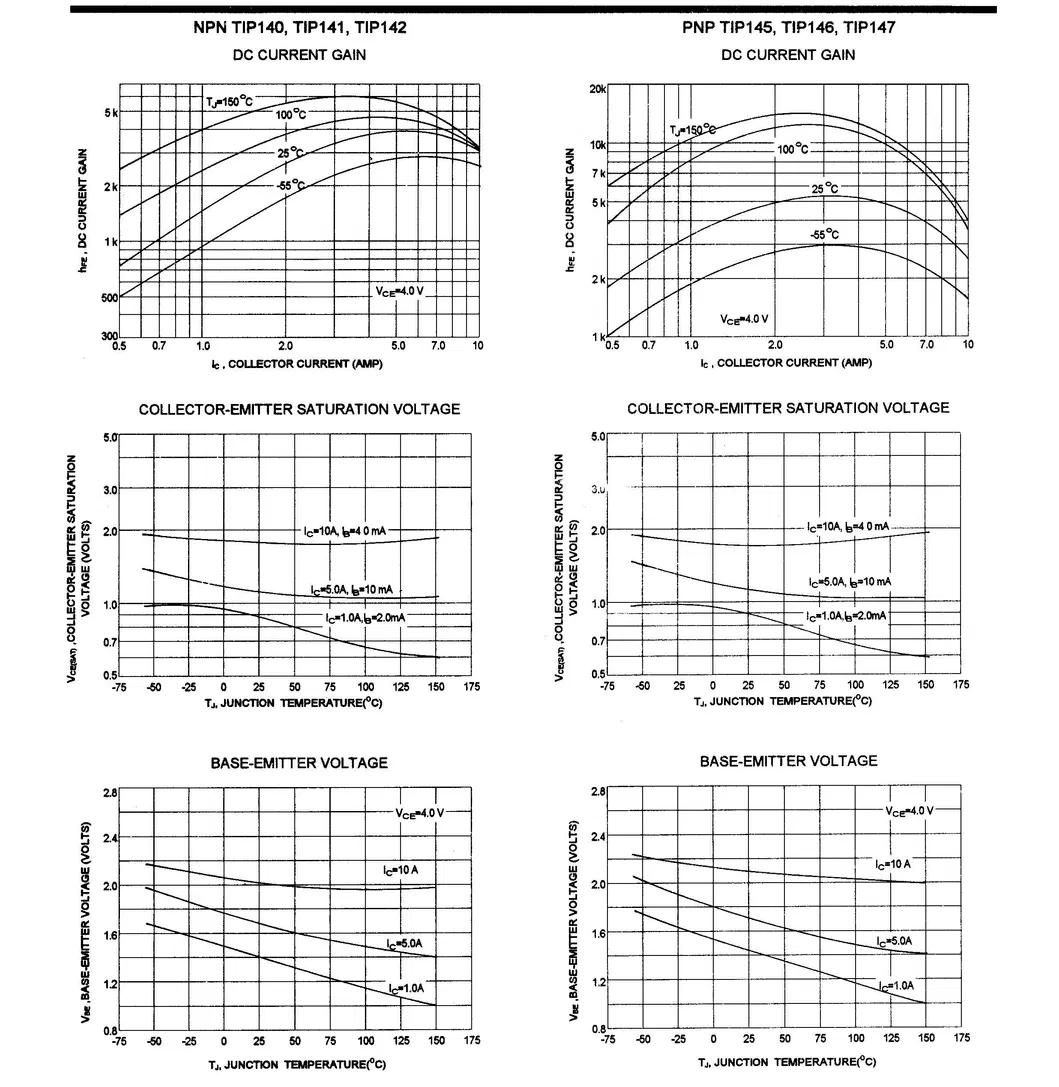

10 AMPERE DARLINGTON COMPLEMENTARY SILICON POWER TRANSISTORS 60-100 VOLTS 125 WATTS

Key Features:

High DC Current Gain Min hFE = 1000 @ IC= 5 A, VCE = 4 V
Collector-Emitter Sustaining Voltage @ 30 mA VCEO(sus) = 60 Vdc (Min)
Monolithic Construction with Built-In Base-Emitter Shunt Resistor
Pb-Free Packages are Available

Applications:

Designed for general purpose amplifier and low frequency switching applications. Complementary devices include TIP140, TIP141, TIP142 (NPN) and TIP145, TIP146, TIP147 (PNP).

Switch Mode Power Supply (SMPS)
Power Factor Correction (PFC)
Uninterruptible Power Supply (UPS)
AC to DC Converters
Telecom & LED Lighting Power

Type	NPN
Number of Elements per Chip	1
Minimum Operating Temperature	-65°C
Minimum DC Current Gain	1000@5A@4V \| 500@10A@4V
Maximum Operating Temperature	150°C
Maximum Emitter Base Voltage	5V
Maximum Continuous DC Collector Current	10A
Maximum Collector Emitter Voltage	60V
Maximum Collector Base Voltage	60V
Configuration	Single
