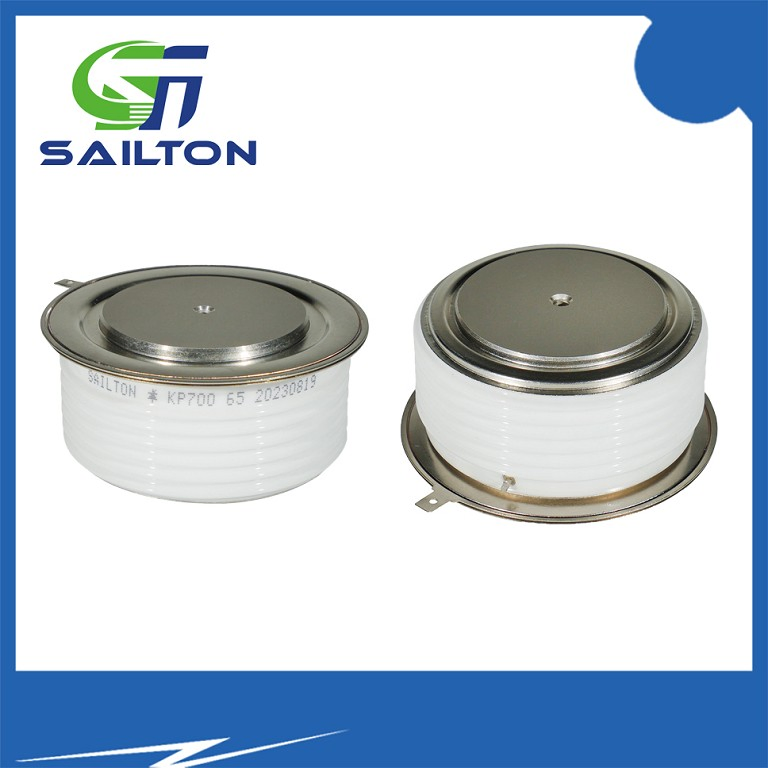

New Thyristor Flat Type Thyristor Phase Controlled Thyristor Electronic Components Kp8000A1000V

1 / 5

New Thyristor Flat Type Thyristor Phase Controlled Thyristor Electronic Components Kp8000A1000V

Customization:	Available
Application:	Design for High Power Industrial
Batch Number:	2023+

Send Inquiry

Product Description

Basic Specifications

Model NO.

Kp8000A1000V

Technology

Optoelectronic Semiconductor

Material

Element Semiconductor

Package

Presser/Capsule

Type

N-Type Semiconductor

Cooling

Double-Side Cooling

Chip Type

Silicon Controlled Chip

Delivery

3 Days

Operating Temp

-40 C (Min)

Origin

China

Packaging & Logistics

Package Size

50.00cm * 30.00cm * 20.00cm

Gross Weight

15.000kg

Transport

Carton Box

Product Description

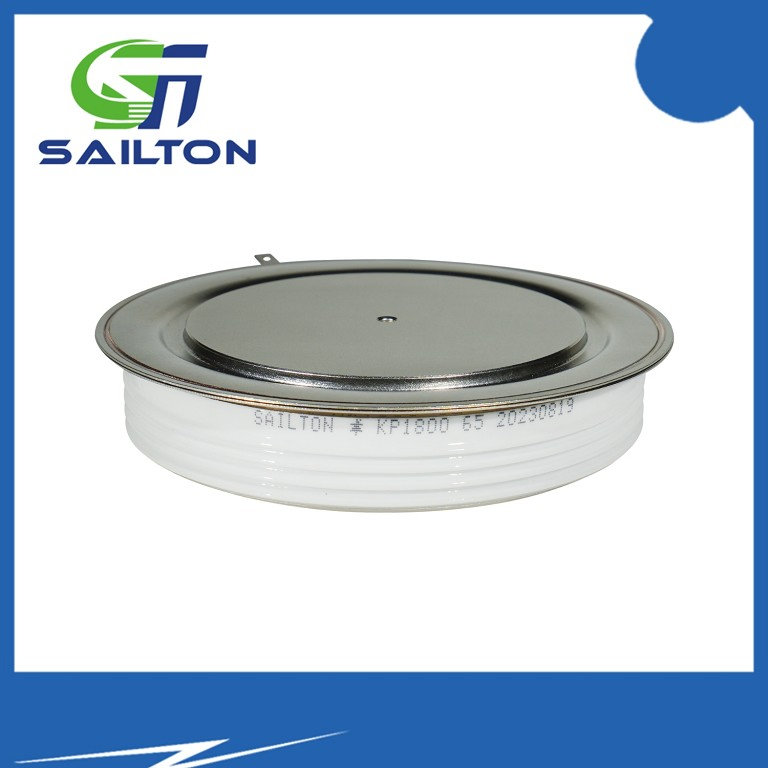

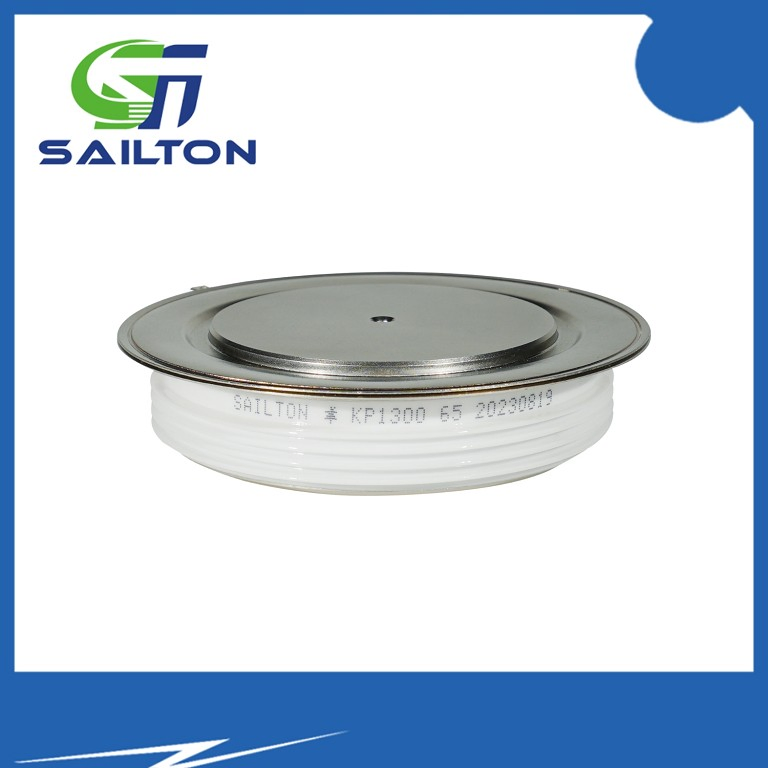

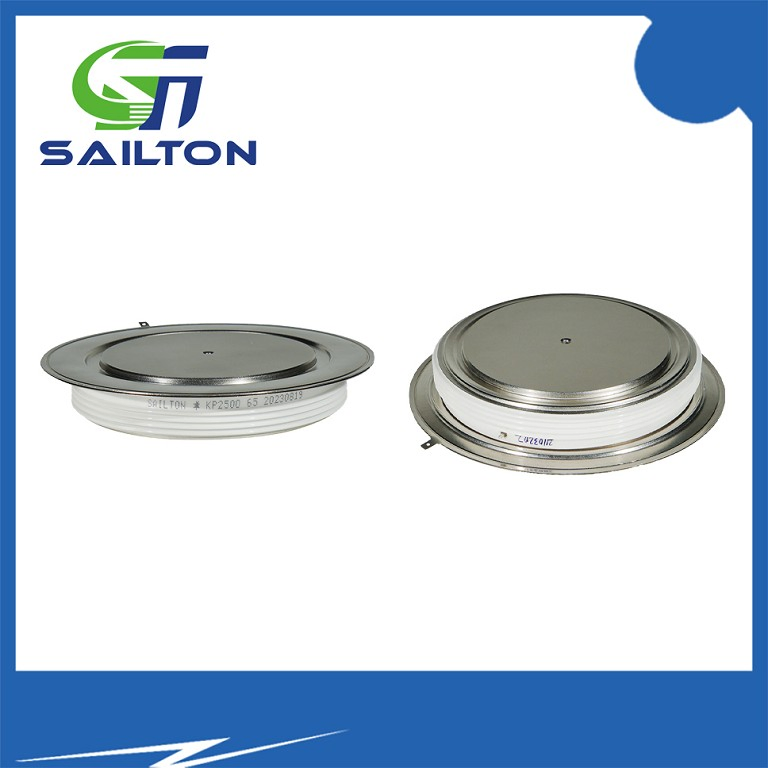

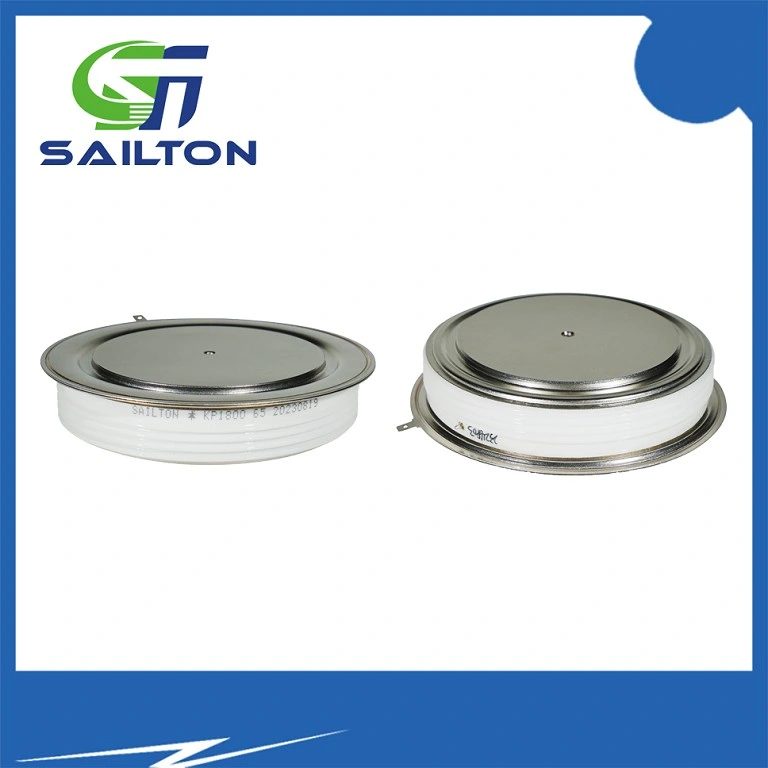

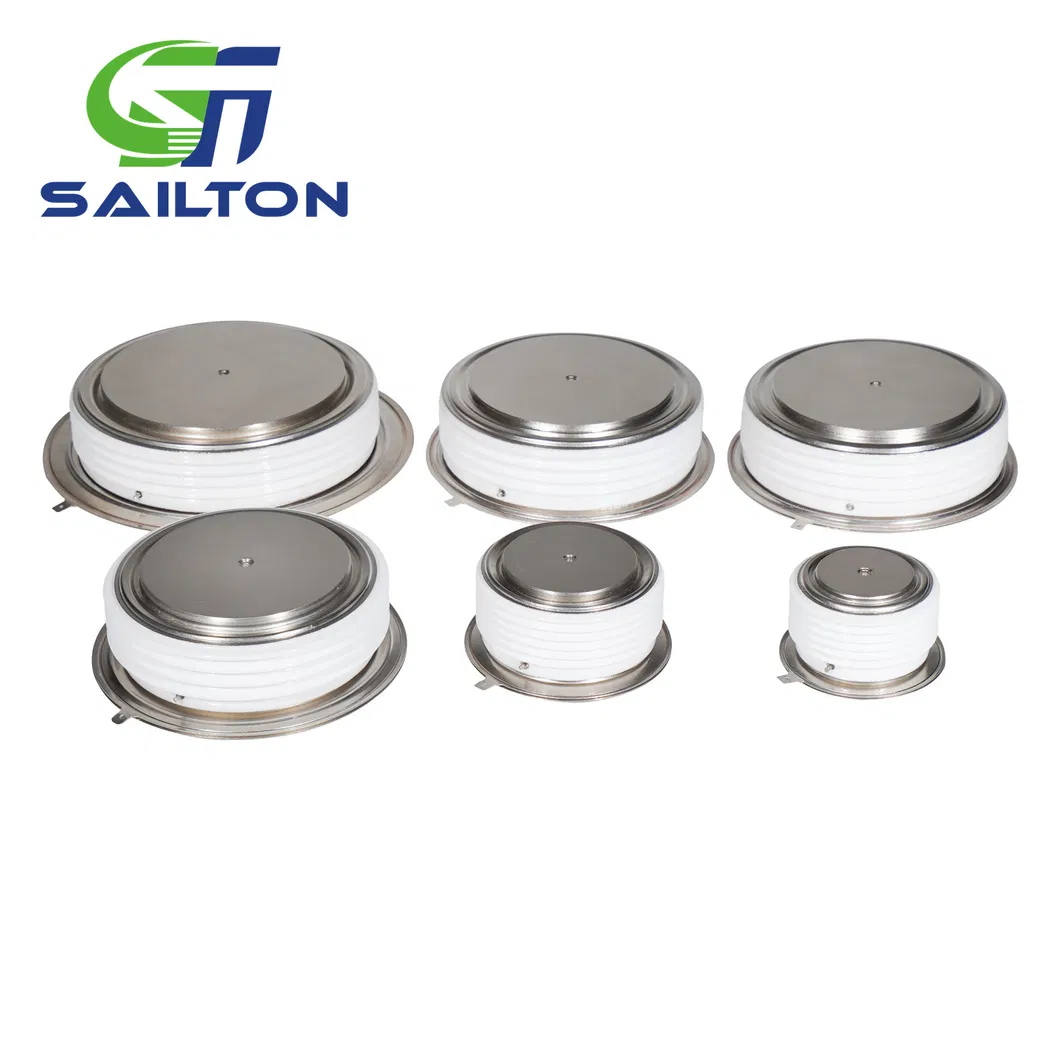

Phase Control Thyristor Kp8000A1000V

◈

Introduction: Phase control thyristor is a low loss switch semiconductor device. It features a wide voltage range from 1000V-8000V and current range from 100A-5000A. As a high power electronic component, it plays a vital role in industrial applications.

◈

Versatile Range: We manufacture various shapes including disc and stud thyristors. Disc types range from 500A to 6000A (1000V-7500V), while stud types reach up to 500A (2500V).

Key Features & Applications

■ Core Features:

High power industrial and transmission application design.
Optimized for low on-state voltage.
Matched Qrr and VT for series or parallel connections.
Specialized 6500V variants for MSS high voltage.
Comprehensive range of standard SCRs.

■ Applications:

Low/Medium voltage soft starters.
Industrial drives, Inverters, and Converters.
Traction, transmission, and high current supplies.
Excitation systems.
Static var compensators (SVC).

Datasheet for Code Selection

Part No.	IT(AV) (A)	VDRM (V)	ITSM (A)	I²t (A²s·10³)	VTO (V)	rT (mΩ)	RthJC	F (KN)	Outline
Up to 1200V
KP400/06-12	400	600-1200	6300	198	0.90	0.650	0.085	6	T6
KP1000/06-12	1000	600-1200	12500	781	0.83	0.350	0.035	16	T9
KP3800/06-12	3800	600-1200	62000	19220	0.80	0.050	0.011	55	T15
Up to 2000V
KP600/12-20	600	1200-1800	8200	336	1.00	0.600	0.045	9	T7
KP1500/12-20	1500	1200-1800	24600	3026	0.92	0.230	0.020	25	T11
Up to 3500V
KP800/25-35	800	2500-3500	11500	661	1.00	0.750	0.030	20	T10
KP3000/25-35	3000	2500-3500	40000	8000	0.85	0.180	0.009	70	T16

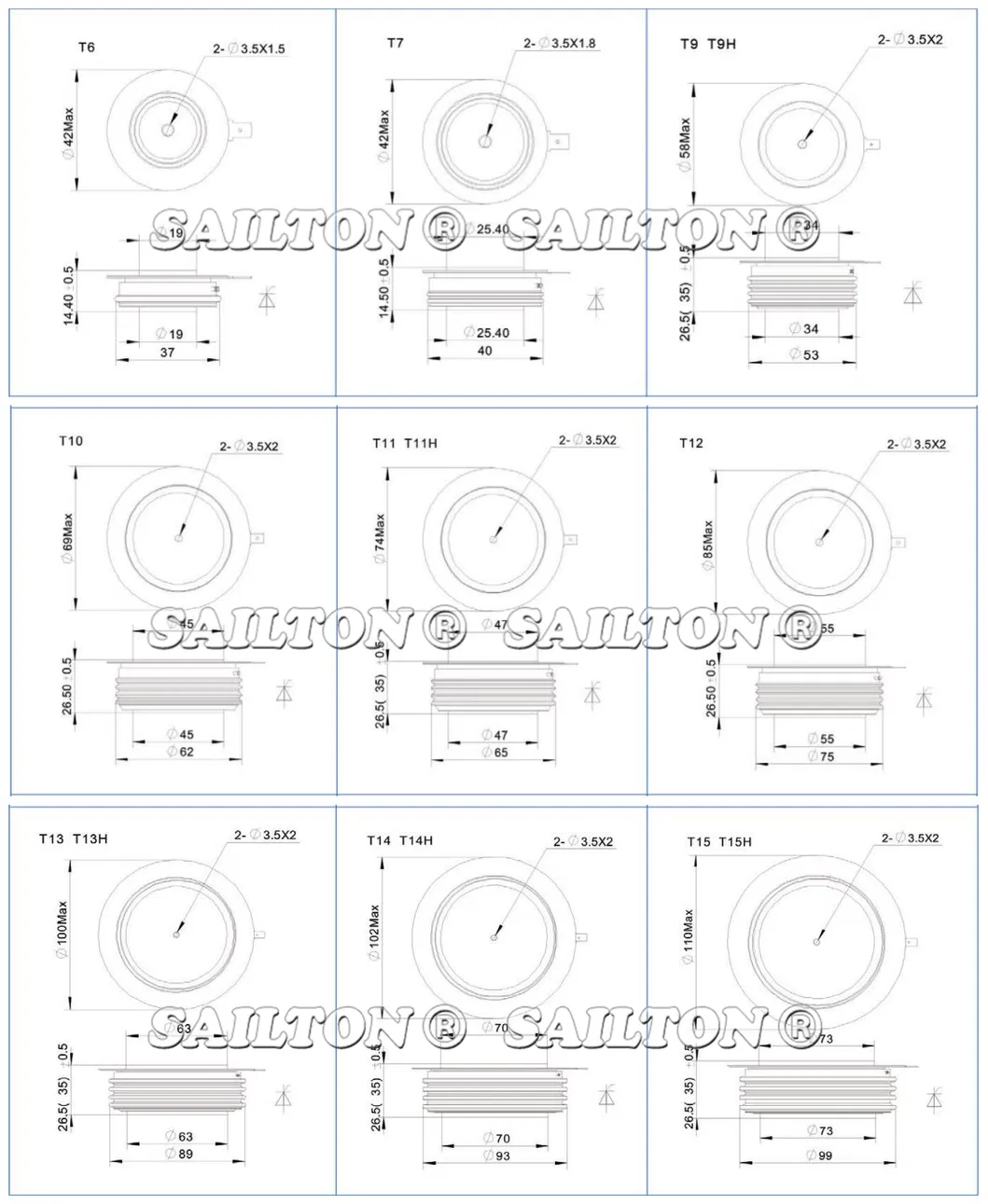

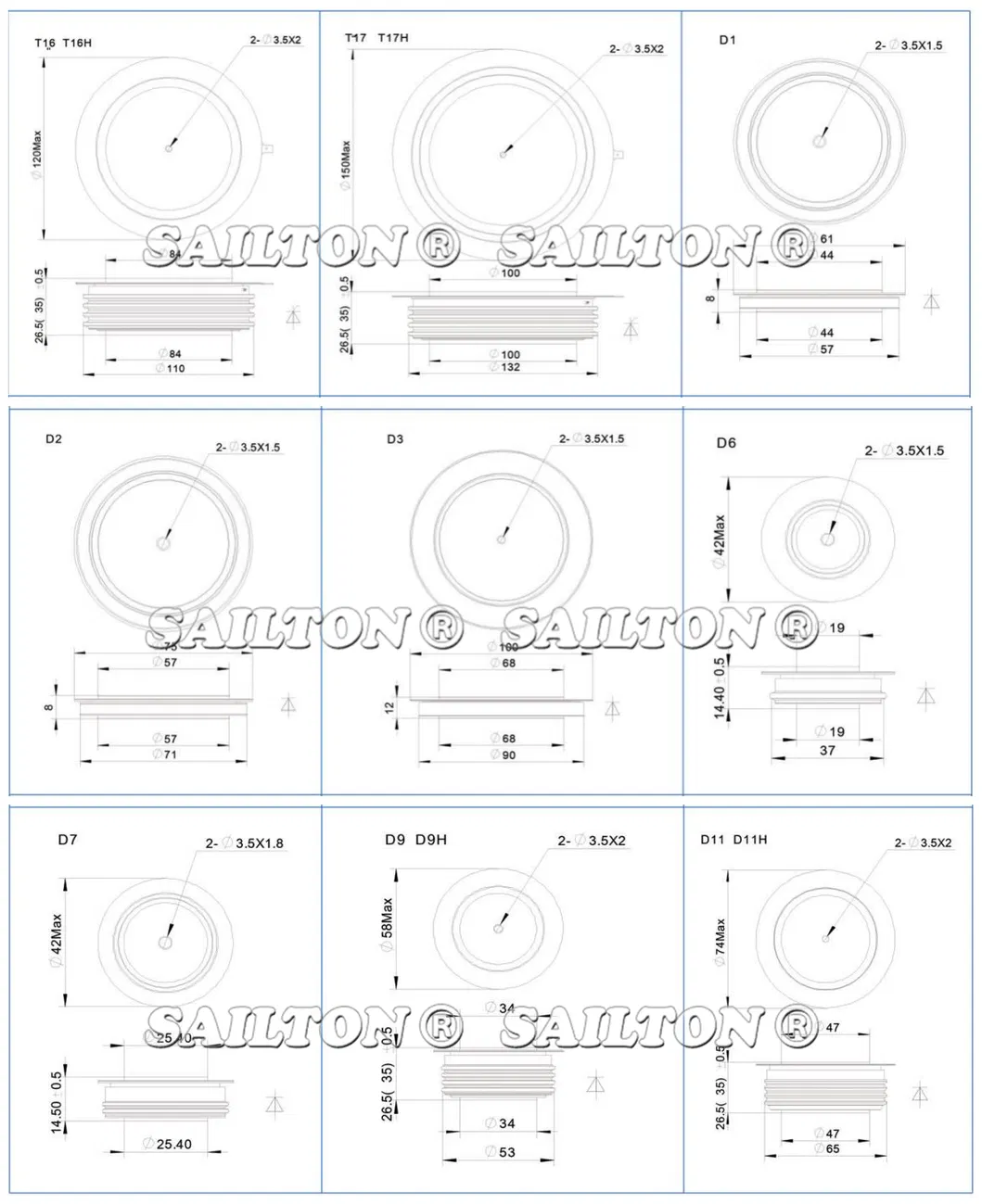

Technical Drawings & Quality

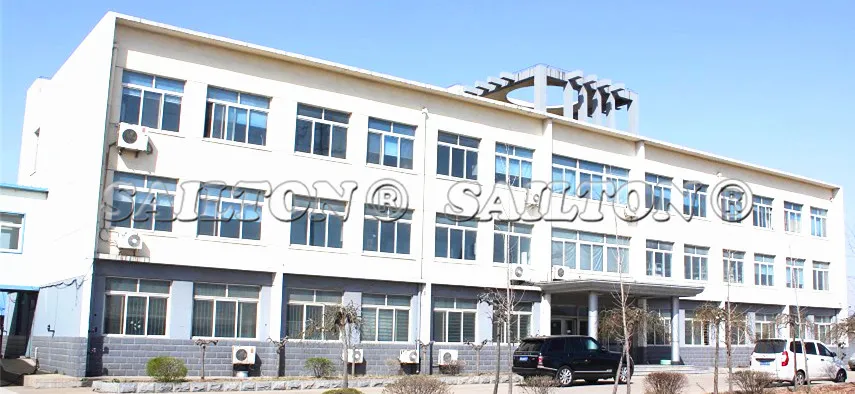

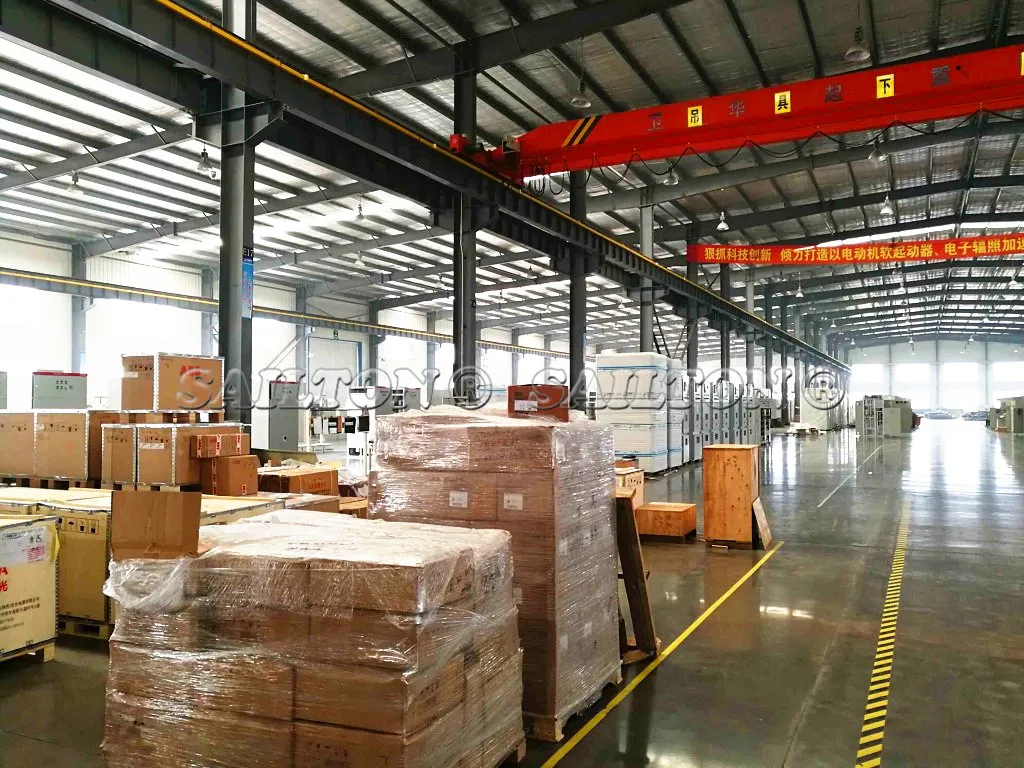

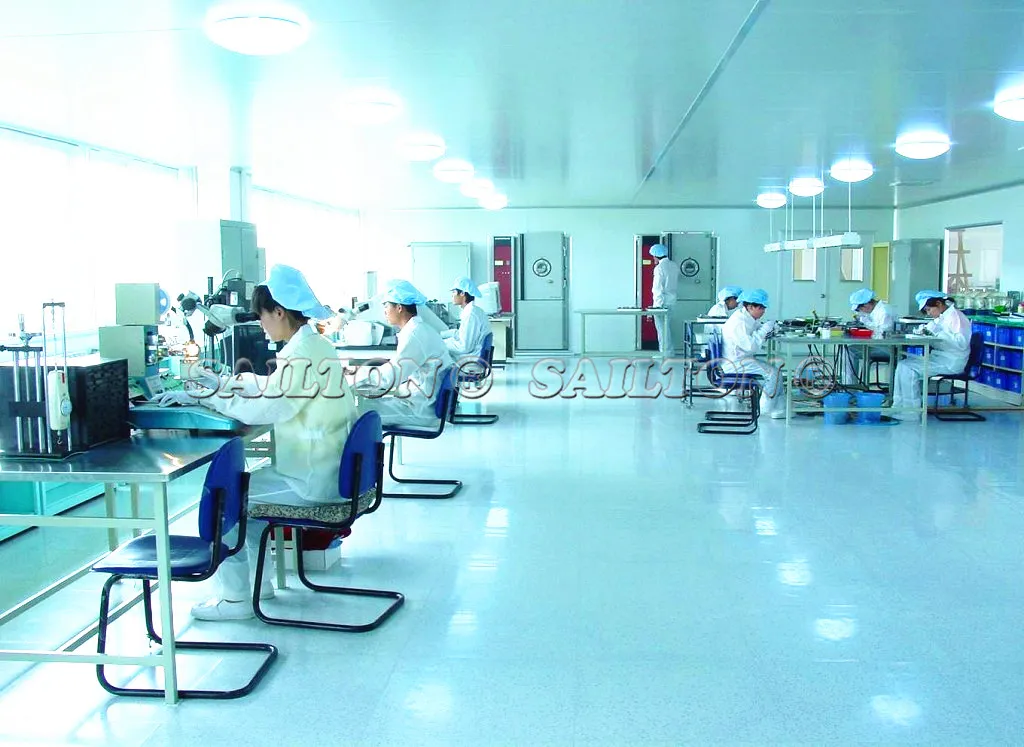

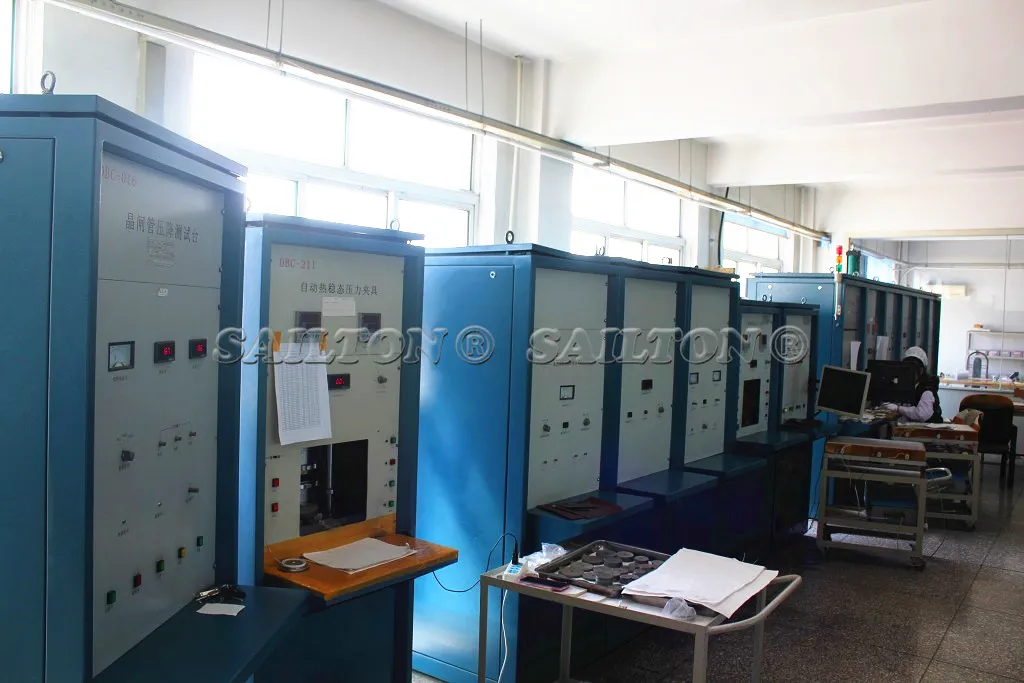

Factory & Production Environment

Frequently Asked Questions

What is the voltage and current range for these thyristors?

Our phase control thyristors offer a wide voltage range from 1000V to 8000V and a current range from 100A to 5000A to suit various industrial needs.

Are these thyristors suitable for series or parallel connections?

Yes, they are optimized for low on-state voltage and matched Qrr and VT, making them ideal for both series and parallel configurations.

What cooling method is required for the Kp8000A1000V?

This model is designed for Double-Side Cooling to ensure stable performance under high power loads.

What is the typical delivery time for an order?

The standard delivery time is approximately 3 days, ensuring a fast turnaround for your projects.

In which applications are 6500V thyristors commonly used?

Our 6500V thyristors are popular in medium voltage soft starters, AC motor drives, and high power converters.

What are the package and outline types available?

We provide standard Capsule and Presser type packages, including disc and stud configurations, to meet different mounting requirements.
