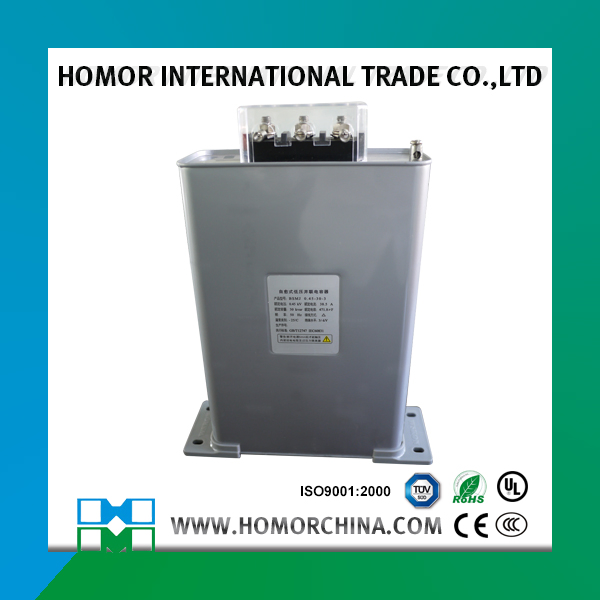

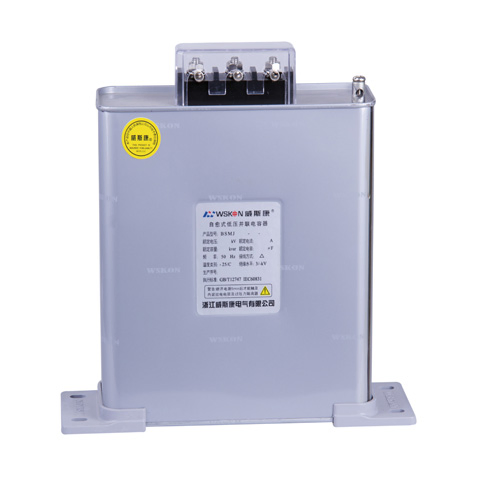

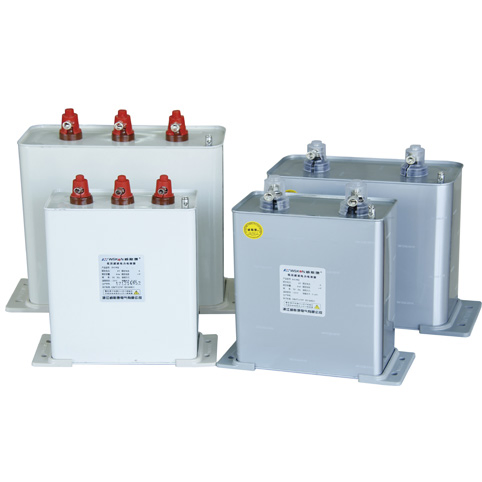

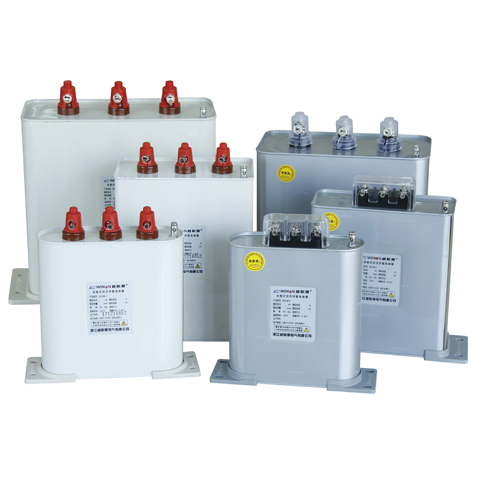

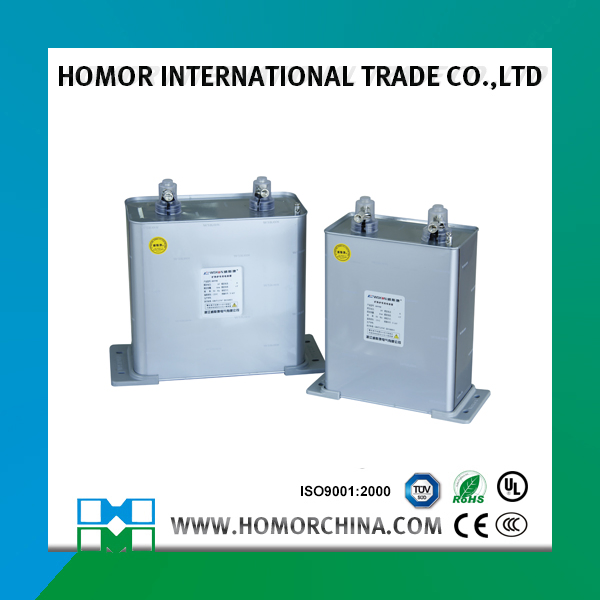

Three Phase Low Voltage Shunt Capacitor with Durable Ceramic Terminals for Enhanced Power Factor Correction

Customization:	Available
Power Capacitor Function:	Reduce Reactive
Frequency:	50/60Hz

Basic Specifications

Model NO.

BSMJ

Case Material

Aluminum Cans

Discharge Unit

Built-in Discharge Resistor

Type

Polypropylene Capacitor

Application

General Purpose, Power

Packaging Type

Through Hole

Capacitance

1-60kvar

Structure

Fixed Capacitor

Manufacturing Material

Polypropylene

Usage

Low Frequency Bypass

Filter

Composite Paper Capacitor

Transport Package

Standard Export Carton

Specification

Self Healing Low Voltage

HS Code

85321000

Production Capacity

1000PCS/Month

Product Description

Our self-healing type low voltage shunt capacitor applies advanced Zn-Al complexes metallized film, utilizing foreign advanced production techniques and international IEC60831-1(1996) standards. These products are primarily designed for low voltage electric networks to improve power factors, reduce reactive loss, and enhance overall voltage quality.

01

Small Volume & Light Weight: It is only 1/4 to 1/5 of the weight and volume of outdated traditional products.

02

Low Loss: Actual loss is less than 0.1%, ensuring low radiation, minimal temperature rise, and excellent energy conservation.

03

Excellent Self-Healing: Capable of self-healing after isolation breakthroughs caused by over-voltage, greatly improving operational reliability.

04

Safety Mechanisms: Equipped with internal self-discharging resistors and safety devices. The fuse equipment can disconnect power in case of failure.

05

Leakage-Free Design: Uses advanced half-solid soak material with a melting point higher than 70°C, ensuring environmental protection and durability.

Technical Parameters

Rated voltage	250-690VAC
Rated capacitance	1-100KVAR
Capacitance tolerance	-5% - +10%
Tangent of the loss angle	≤0.15%
Withstand voltage (Phase to Phase)	2.15Un.2s
Withstand voltage (Phase to Case)	3KV(AC)10s & 3.6KV(AC)2s
Insulation	500VDC among phases, 1 min > 100mΩ
Max allowable voltage	110% of Rated voltage
Max allowable current	130% of Rated voltage
Self-discharging characteristic	Residual voltage < 50V within 3 min after power-off

Model and Dimension

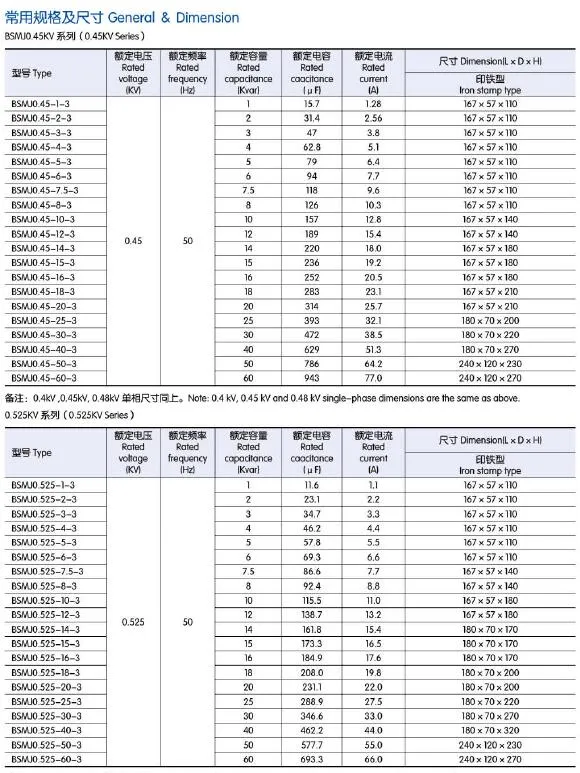

Low Voltage Shunt Power Capacitor Dimensions 1

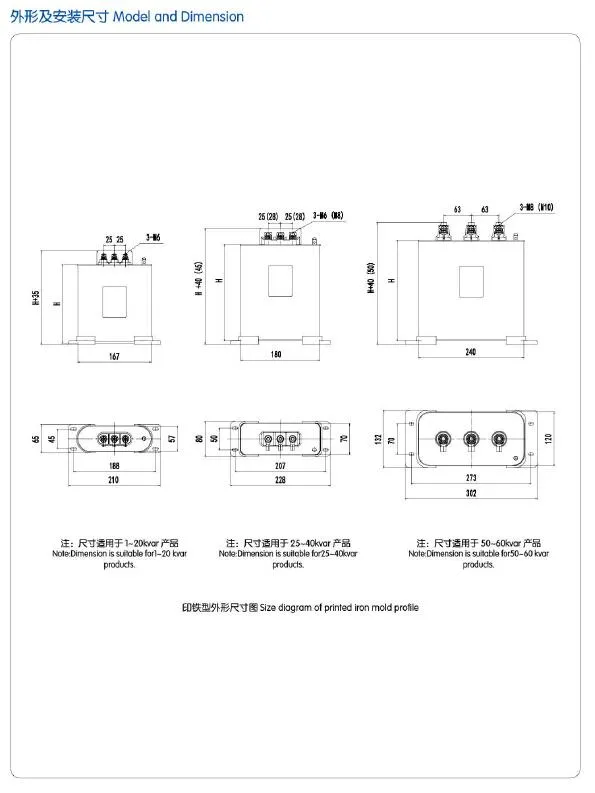

Low Voltage Shunt Power Capacitor Dimensions 2

Frequently Asked Questions

What is the advantage of a self-healing capacitor?

The self-healing property allows the capacitor to automatically restore insulation after a dielectric breakdown caused by over-voltage, ensuring the unit continues to operate reliably without immediate failure.

How does the internal safety device protect the system?

The capacitor is equipped with internal fuses and discharge resistors. In the event of an internal fault, the fuse disconnects the power supply, while the resistor ensures residual voltage drops to safe levels quickly.

Does this capacitor require specific maintenance for oil leaks?

No, this product uses a half-solid soak material with a high melting point (>70°C). This design eliminates the risk of oil leakage, making it environmentally friendly and maintenance-free.

What is the maximum allowable voltage for this series?

The BSMJ series can handle a maximum allowable voltage of up to 110% of its rated voltage, providing a safety margin for fluctuating power conditions.

In what environments can these capacitors be used?

They are ideal for low-voltage electric networks where power factor correction is required to reduce energy loss and improve the quality of the voltage supply.

How fast does the capacitor discharge after being switched off?

According to the technical parameters, the residual voltage will drop to less than 50V within 3 minutes after the power supply is disconnected.
