Super Ceramic Capacitor Water Pump Capacitor

Customization:	Available
AC Capacitor Capacitance Tolerance:	+/-5%
AC Capacitor Security Level:	P0/P2

Send Inquiry

Product Description

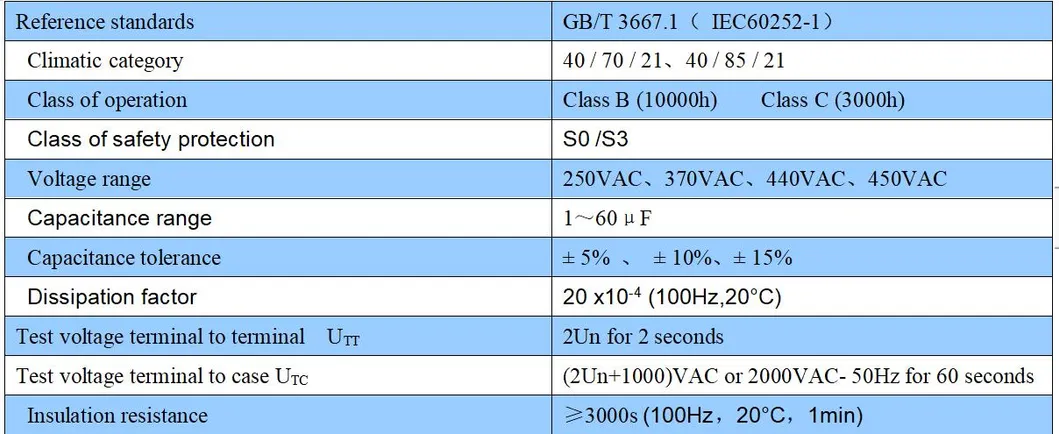

📊 Basic Specifications

Standard

IEC60252-1:2001

Operating Life

10000h (Class B), 3000h (Class C), 30000h (Class A)

Operating Frequency

50Hz/60Hz

Filling Material

Epoxy Resin

Case Material

Plastic Can (Self-extinguishing)

Dielectric Material

Metallized Polypropylene Film

Capacitance Range

1uF ~ 60uF

Application

Water Pump, Fan, Motor, Air Conditioner, Lighting

Structure

Fixed Capacitor

Production Capacity

500,000 PCS/Month

🔍 Product Description

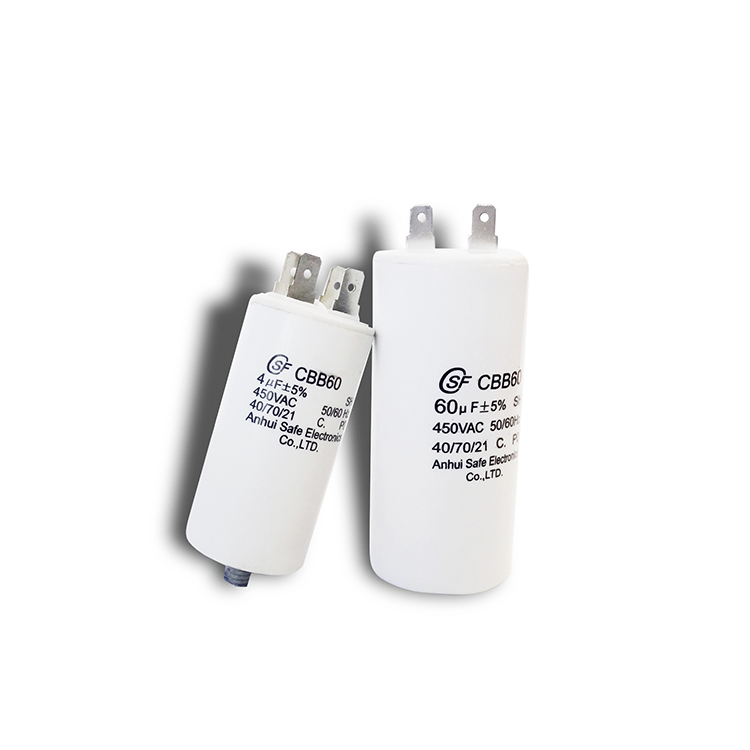

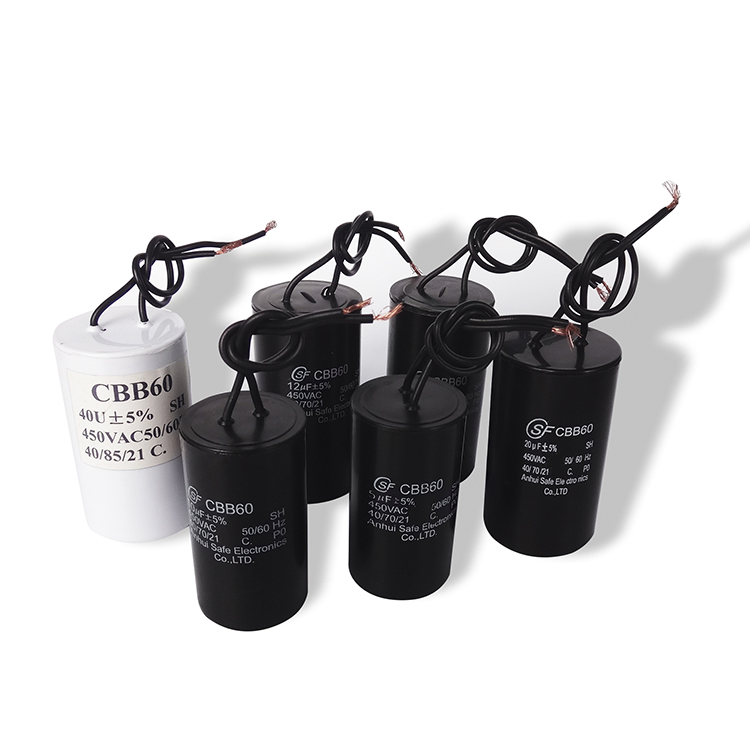

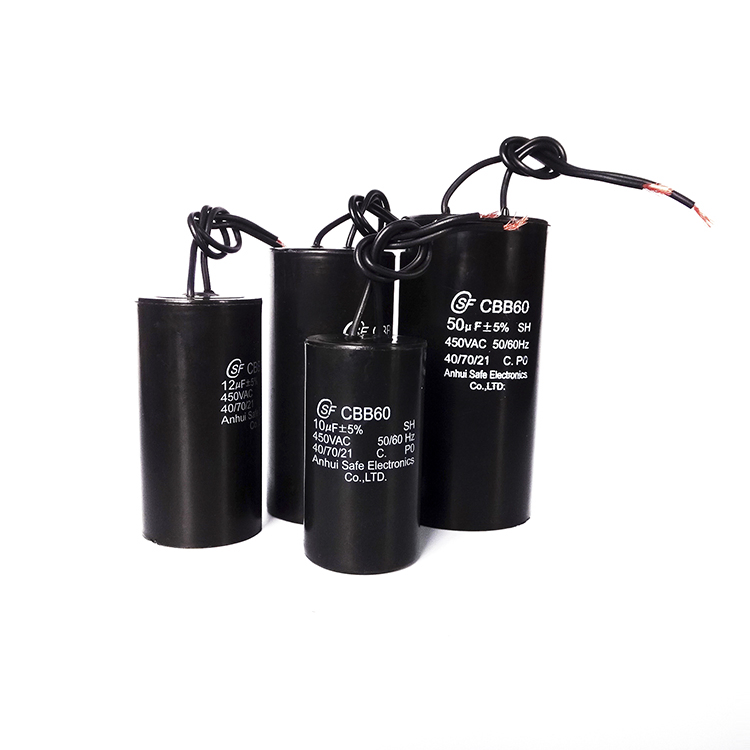

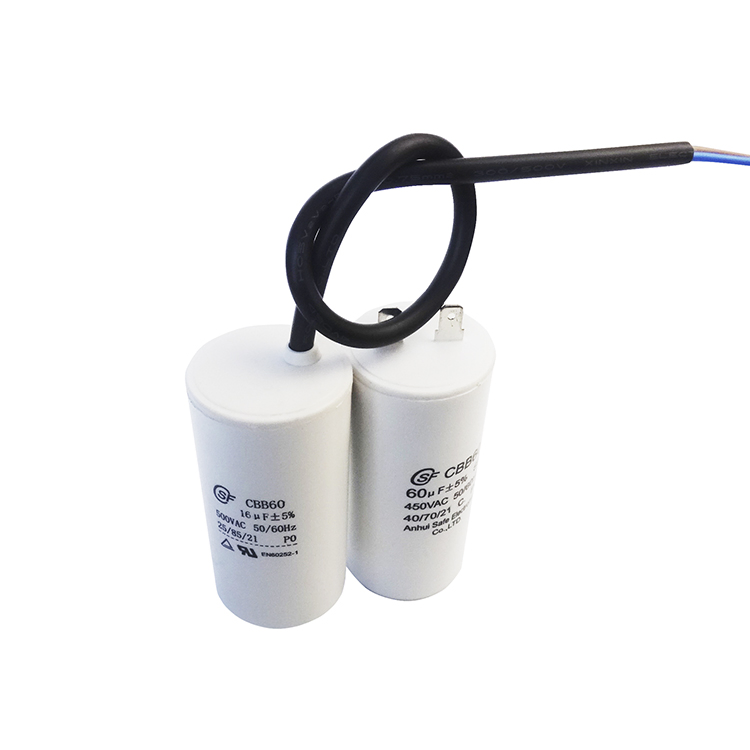

Super Ceramic Capacitor - Water Pump Capacitor

The CBB60 motor run capacitors utilize low-loss metalized polypropylene film for dielectric. These capacitors are encapsulated with resin and housed in a self-extinguishing plastic case, allowing for superior reliability and high mechanical shock and vibration strength.

Key Features

Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency.
Excellent self-healing property for longevity.
High stability and operational reliability.
Small bulk with long life-span.

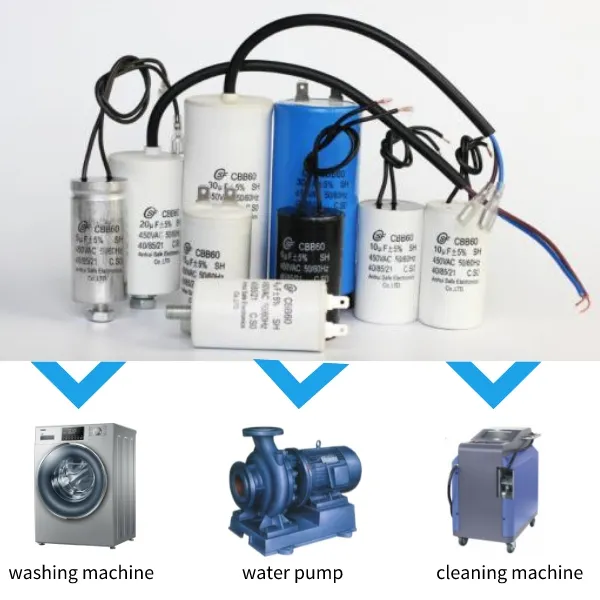

Applications

This motor run capacitor is specifically designed for micro water pumps, cleaning machines, washing machines, and various single-phase water pump motors.

📏 Dimensions (mm)

Specifications	Routine		With Screws or Pins
Specifications	450VAC	250VAC	450VAC	250VAC
1μF	φ26*52	φ26*52	φ30*52	φ30*52
2μF	φ26*52	φ26*52	φ30*52	φ30*52
5μF	φ28.5*55	φ26*52	φ35*62	φ30*52
10μF	φ34*62	φ26*52	φ35*72	φ30*52
20μF	φ40*72	φ34*62	φ40*72	φ35*67
40μF	φ50*100	φ42*90	φ50*110	φ40*97
60μF	φ50*115	φ42*90	φ50*120	φ40*97
