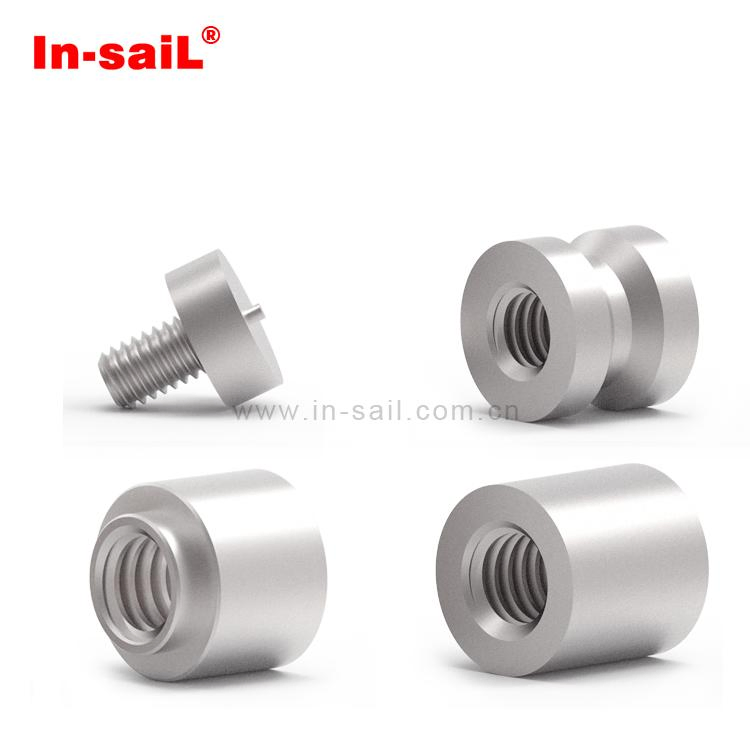

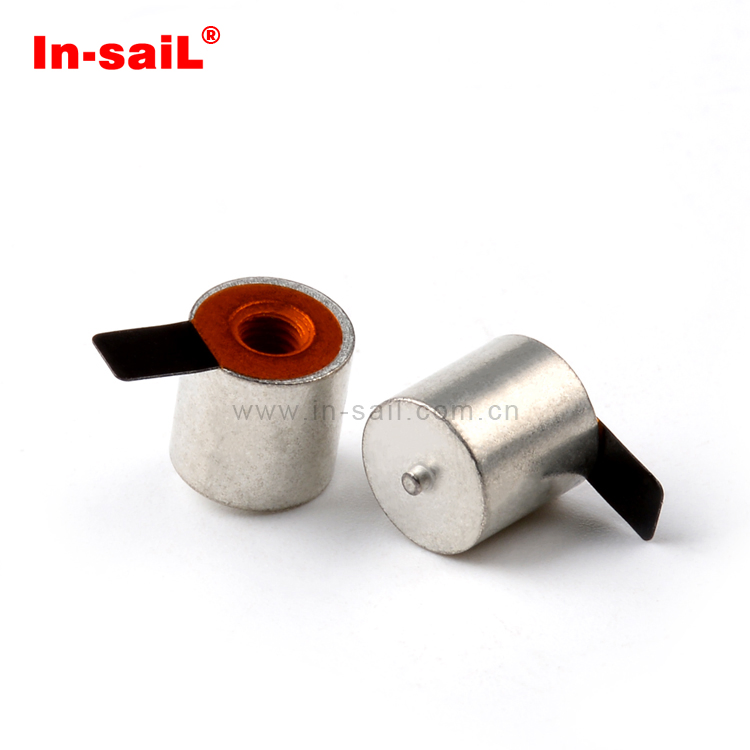

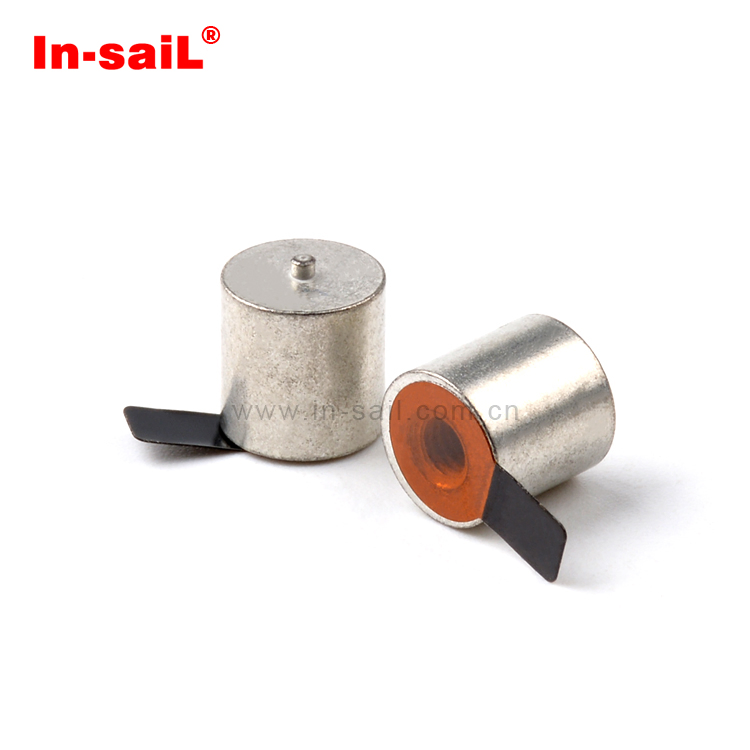

SMD Connectors SMT with Internal Blind-Hole Thread 746600330 7466003 746600430

1 / 5

SMD Connectors SMT with Internal Blind-Hole Thread 746600330 7466003 746600430

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

7466004

Connection

Press Fit

Head Style

Round

Standard

DIN, ANSI, JIS, BSW

Grade

4.8

Surface Treatment

Zn/Ni/Tin/Au Plating, Black Oxide, Anodizing

Application

Machinery, Chemical Industry, Environmental

Inspection

100% QC Steps Inspect Before Shipment

Manufacture Processing

Automatic Lathe, CNC Lathe, Turning

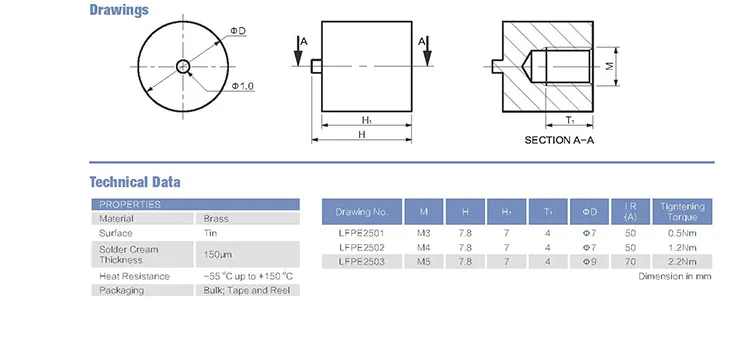

Materials

Brass; Cuzn39pb3

Heat Resistance

-55 up to +150 Degree

Solder Cream Thickness

150μ

Installation Way

SMD/SMT

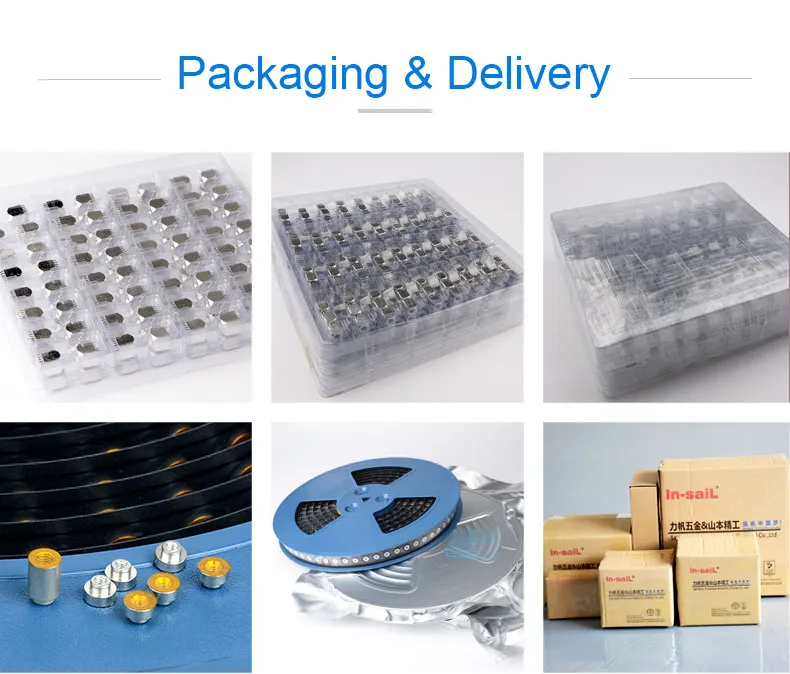

Transport Package

Bulk; Tape and Reel

Specification

SGS, Material certification

HS Code

8536904000

Production Capacity

200000PCS Per Week

Product Description

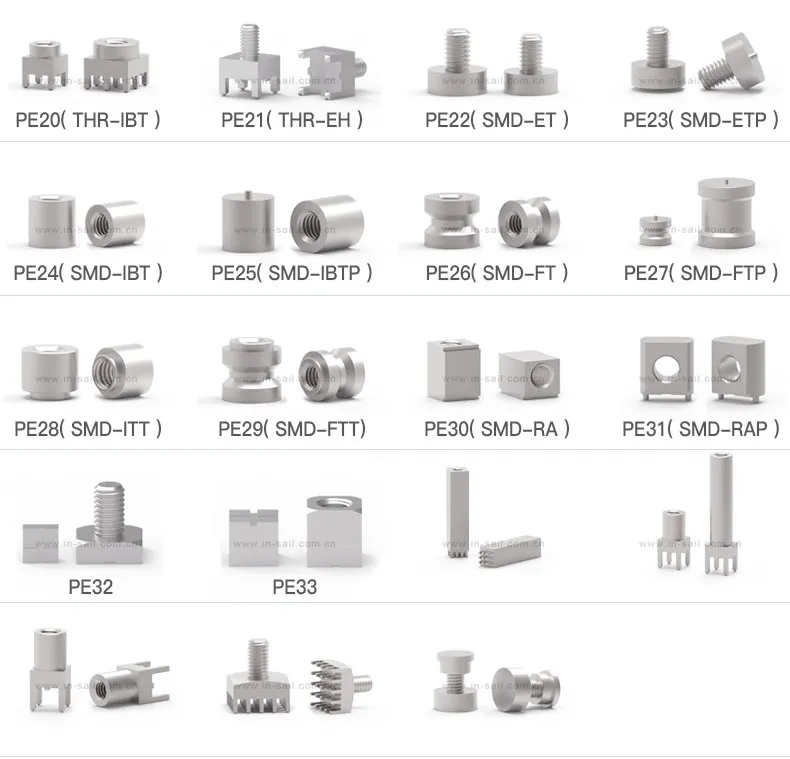

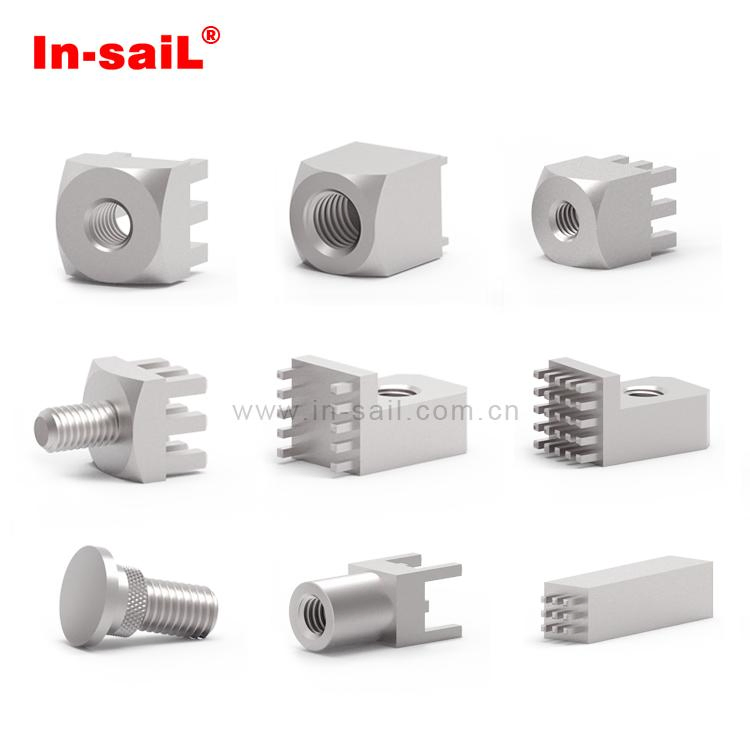

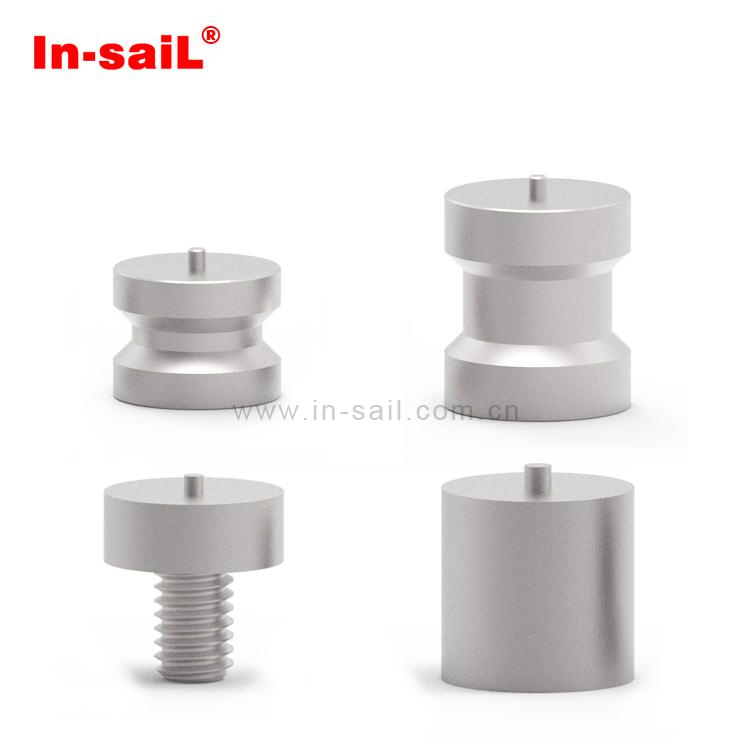

SMT Standoffs Fasteners for PCB

Dedicated to manufacturing of precision components and the design, fabrication of engineering specialty fasteners and fastening solution development.

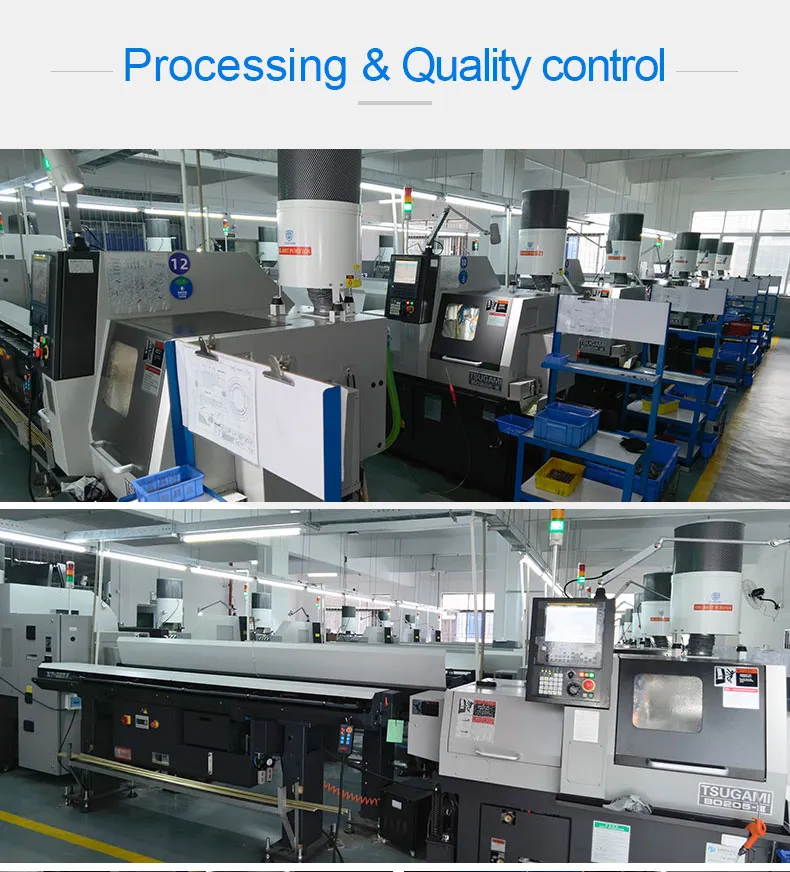

Manufacturing Capability

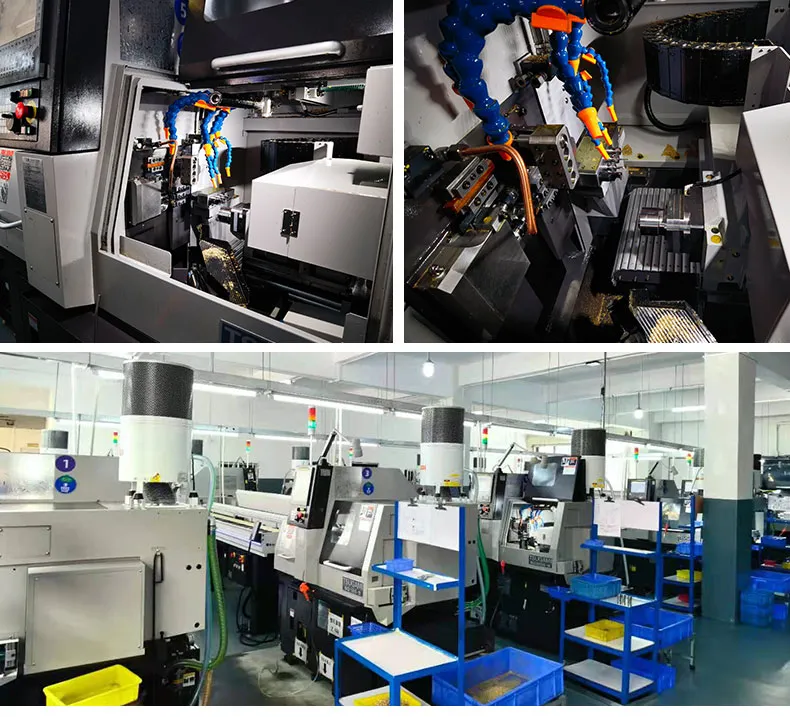

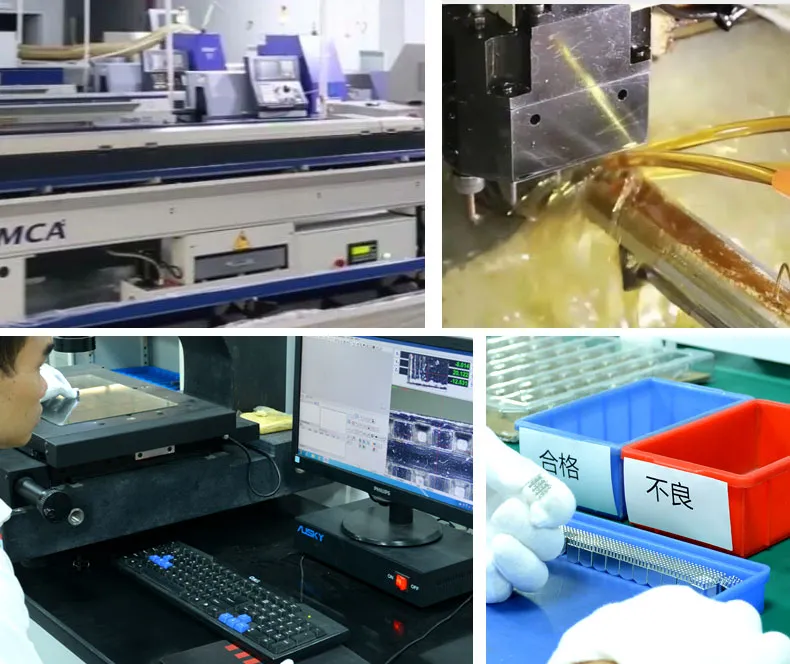

With powerful manufacturing capability including automatic lathes, CNC lathes, CNC machining centers, stamping machines, and cold heading machines, we support components for both prototyping and series production. Our facilities are supplemented by milling, grinding, and EDM equipment.

Auto Lathe Turning

Single shaft cam-base automatic lathes for massive production of brass, aluminum alloy, and stainless steel components.
Production range: O. D. 0.5-15

CNC Milling

4-axis and 5-axis machining centers for complex structural parts.
Production range: 800X600

Screw Heading & Rolling

Cold heading and thread rolling for small carbon steel or stainless steel screws.
Production range: M0.8-M6 or equivalent sized imperial screws

Stamping

Blanking, punching, blending, and drawing operations.
Production range: 200T max.

Material	Aluminum alloy, Brass, Stainless Steel, Carbon steel, according to requirement
Finish	Milled / Tin plating, copper-plating, hot-dip galvanizing, black oxide coating, red anodized, black anodized, painting, powdering, rust preventive oil, titanium alloy galvanized, silver plating, plastic, electroplating, anodizing etc.

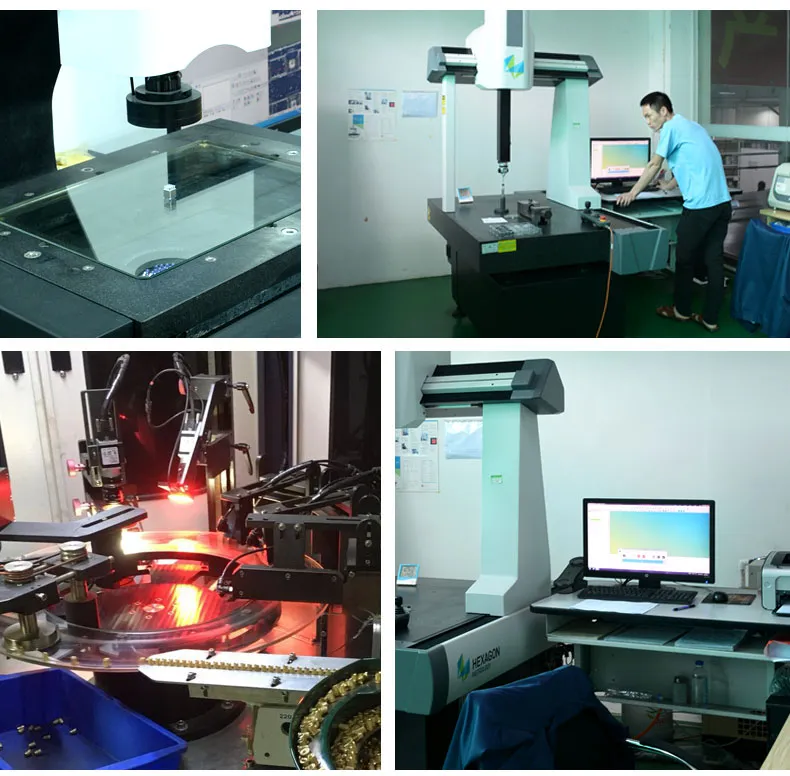

Testing Equipment	CMM, Projector, Pull Tester, Automatic Optic Inspector, Projecting apparatus, Salt Spray Test, Durometer, and Coating Analyzer, Tensile Machine
Management System	ISO9001:2008
Certification	SGS, RoHS, Material Certication, PPAP
Production Capability	Auto-lathe turning: ODΦ0.5-20mm, Tol.±0.01mm CNC lathe turning: ODΦ0.5-250mm, Tol.±0.005mm CNC Milling: 800x600mm(LxW), Tol.±0.05mm Grinding: Tol.±0.002mm Screw heading & rolling: Metric 0.8-M6, Unified Imperial #0-1/4'' Stamping: 200T max
Lead Time	5-15 working days
Warranty	Replacement at all cost for rejected products

Frequently Asked Questions

1. What materials are used for these SMT standoffs?

Our standard SMT standoffs are primarily made from high-quality Brass (Cuzn39pb3), but can also be manufactured using Aluminum alloy, Stainless Steel, or Carbon steel depending on your specific project requirements.

2. What is the typical lead time for production?

The standard lead time for manufacturing is between 5 to 15 working days, depending on the complexity of the components and the order volume.

3. How do you ensure product quality before shipment?

We follow a strict 100% QC inspection process. Our testing equipment includes CMM, Projectors, Pull Testers, and Automatic Optic Inspectors to ensure every part meets the required tolerances and standards.

4. What surface treatments can be applied to the fasteners?

We offer a wide range of finishes including Zn/Ni/Tin/Au plating, black oxide coating, anodizing (various colors), silver plating, and rust preventive oil treatments.

5. What is the heat resistance of these components?

These SMT fasteners are designed to be highly durable with a heat resistance range of -55 degrees up to +150 degrees, making them suitable for demanding electronic environments.

6. What installation methods are supported?

These components are specifically designed for SMD/SMT (Surface Mount Device/Technology) installation, featuring a press-fit connection style and round head style for automated PCB assembly.
