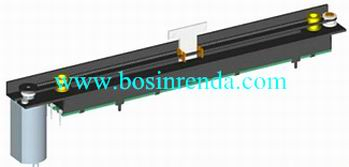

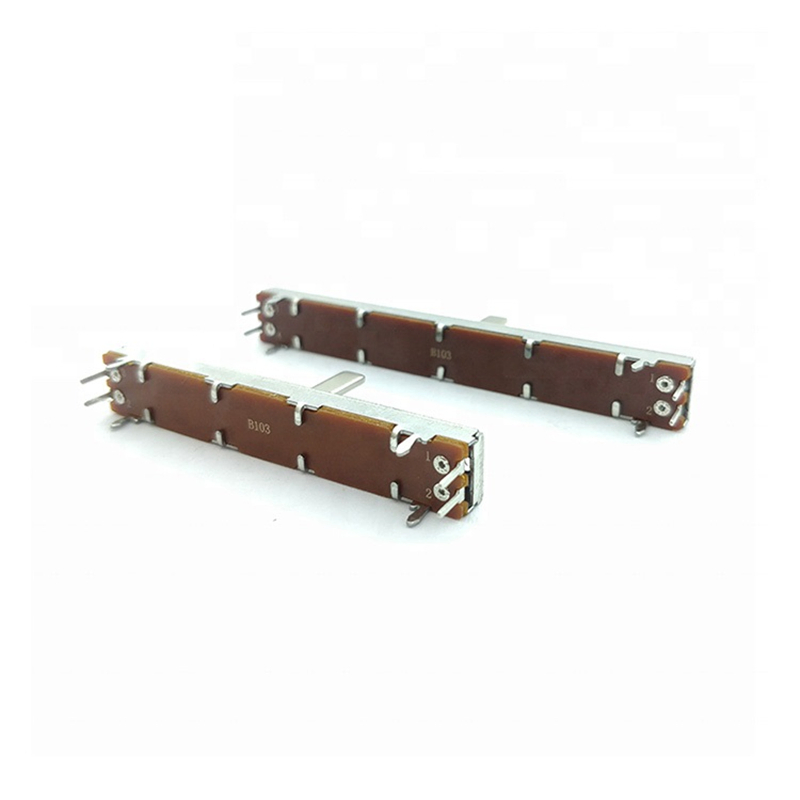

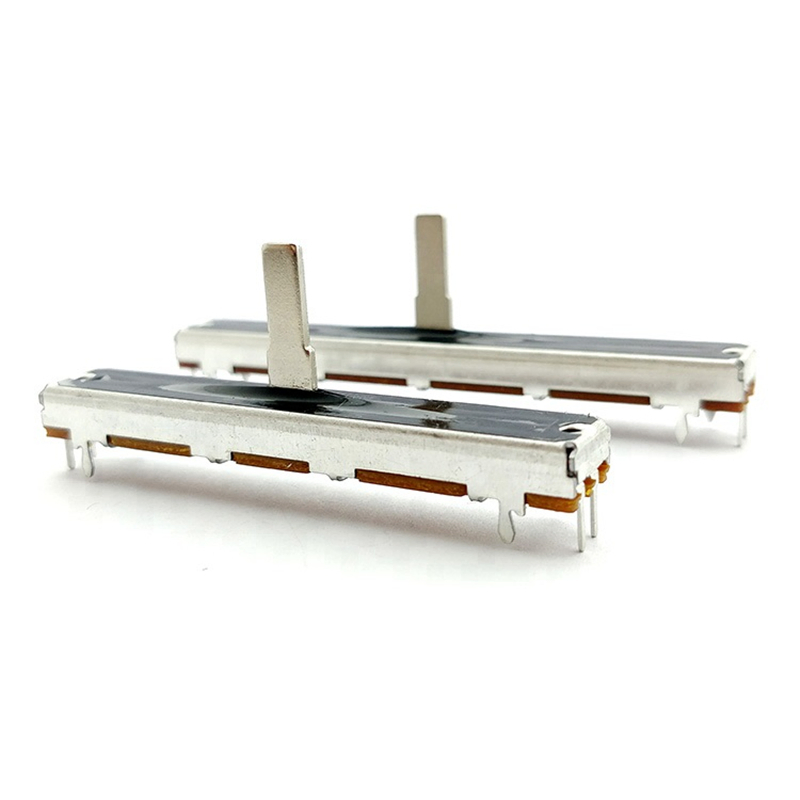

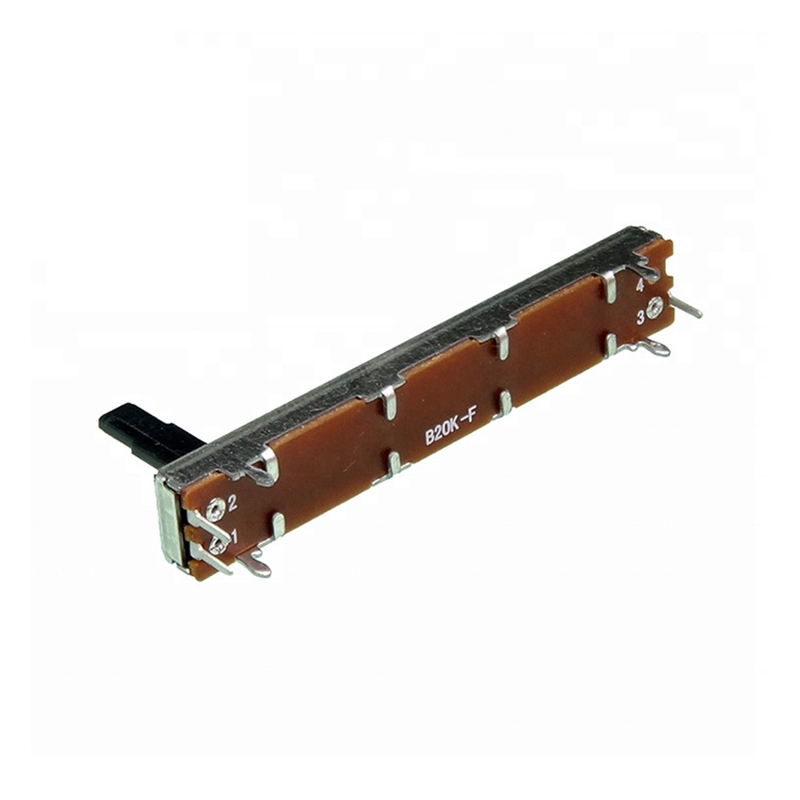

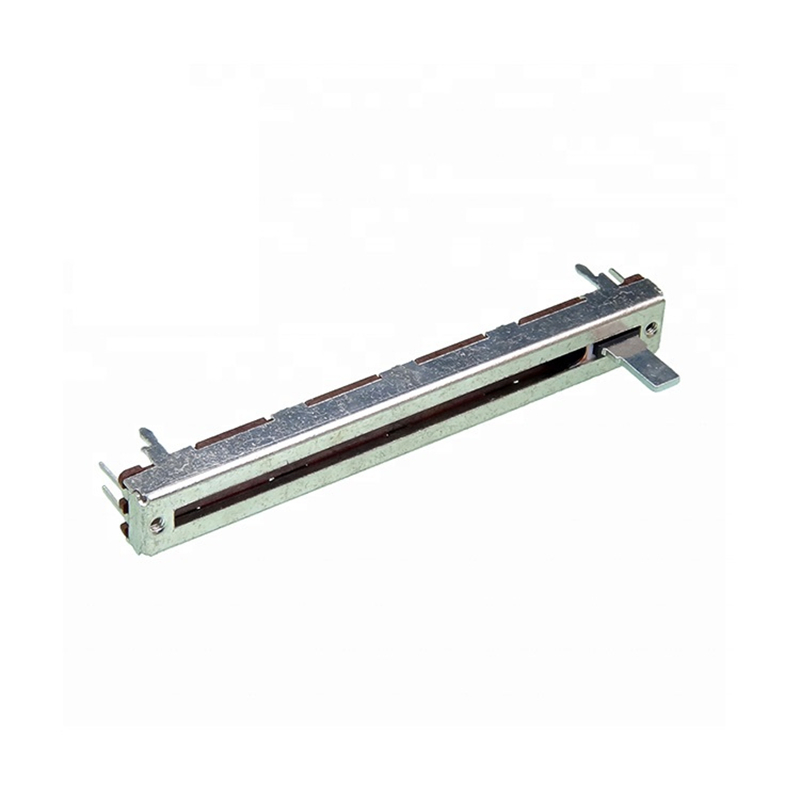

| 1. Mechanical Characteristics (Slide Potentiometer with Motor) | |
| 1.1 Slide Travel | 100mm±0.5mm |
| 1.2 Mounting Dimension | 120mm±0.5mm |
| 1.3 Slide Torque | 30~50gf |
| 2. Electrical Characteristics | |
| 2.1 Total Resistance | 10KΩ~100KΩ |
| 2.2 Resistance Tolerance | ±20% |
| 2.3 Resistance Taper | B |
| 2.7 Insulation Resistance | More Than 100MΩ at DC 250V |
| 2.8 Withstand Voltage | 1 minute at AC 250V/DC 100V |
| 2.9 Residual Resistance | 30Ω Max |
| 3.0 Gang Error | 40db~0db±3db |
| 3. Durability & Temperature | |
| 3.1 Rotational Life | 100,000 Cycles Min. |
| 3.2 Working Temperature | -10°C ~ 70°C |
| 3.3 Storage Temperature | -30°C ~ 70°C |
| 4. Motor Capacity | |
| 4.1 Starting Current | 500mA max. |
| 4.2 Operating Voltage | DC 5-11V |
| 4.3 Motor Response | 100mm travel, 100msec. max |
