1. Application:
▶
Serving in all kinds of electrical meters, energy meters, and measurement instruments as a power measurer.
2. Electrical Specifications:

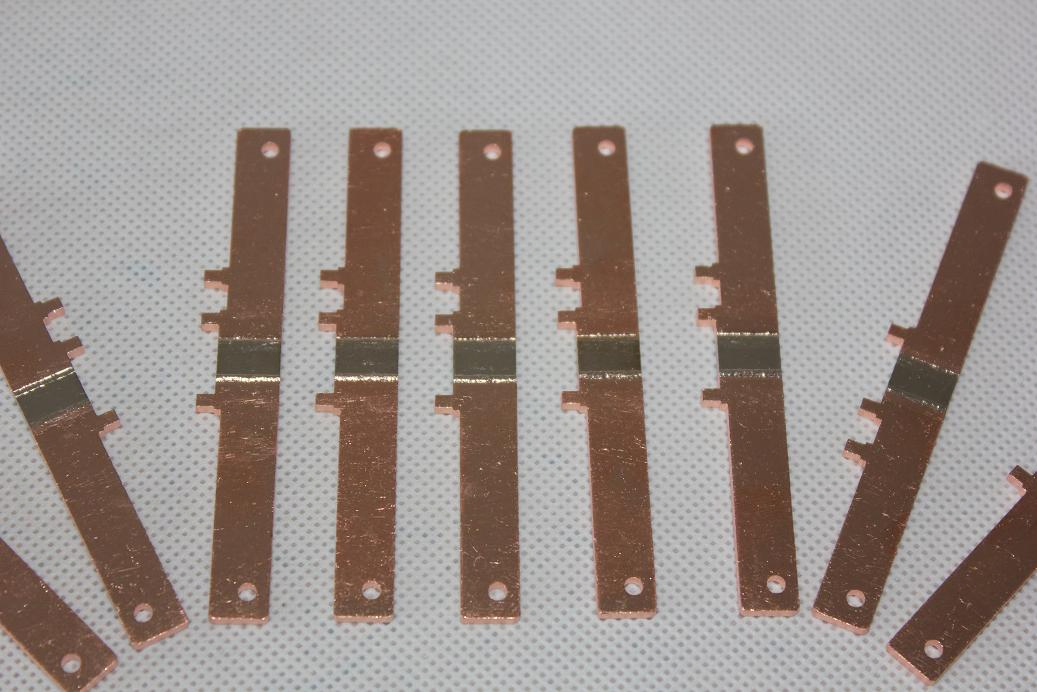

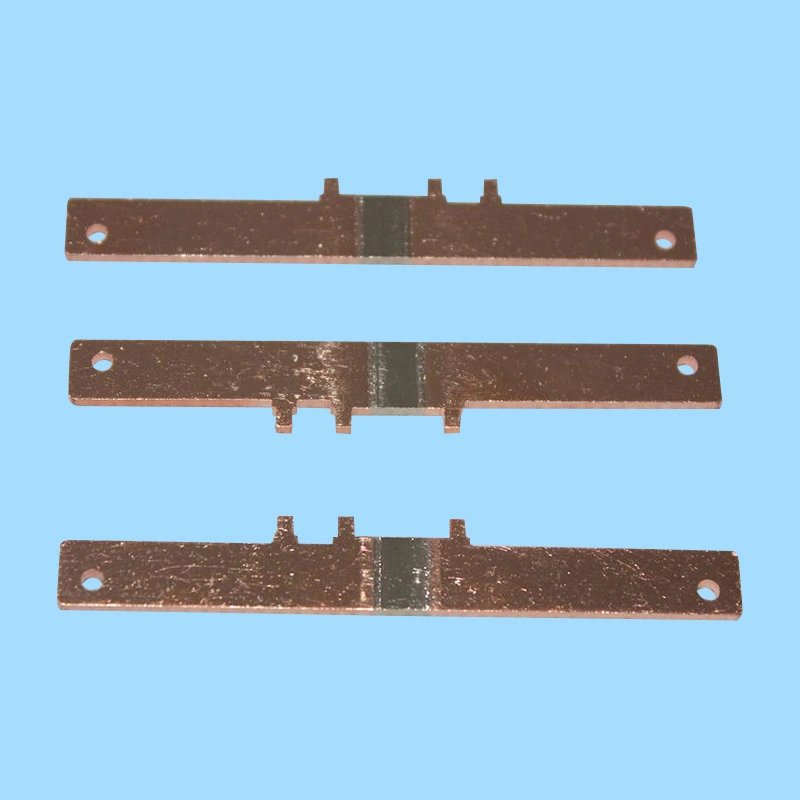

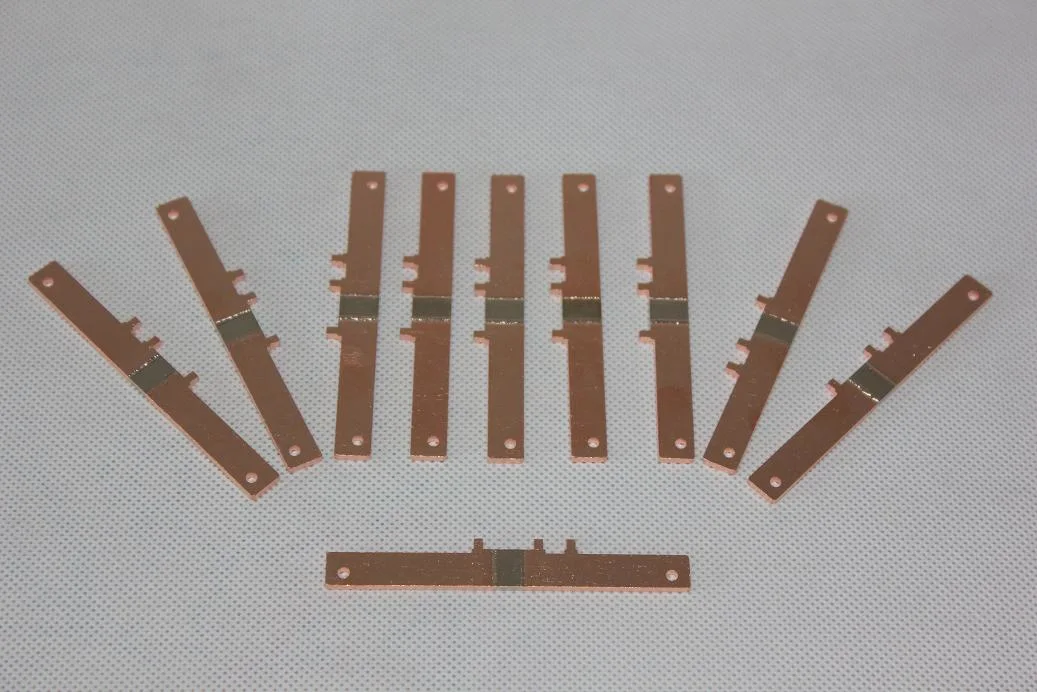

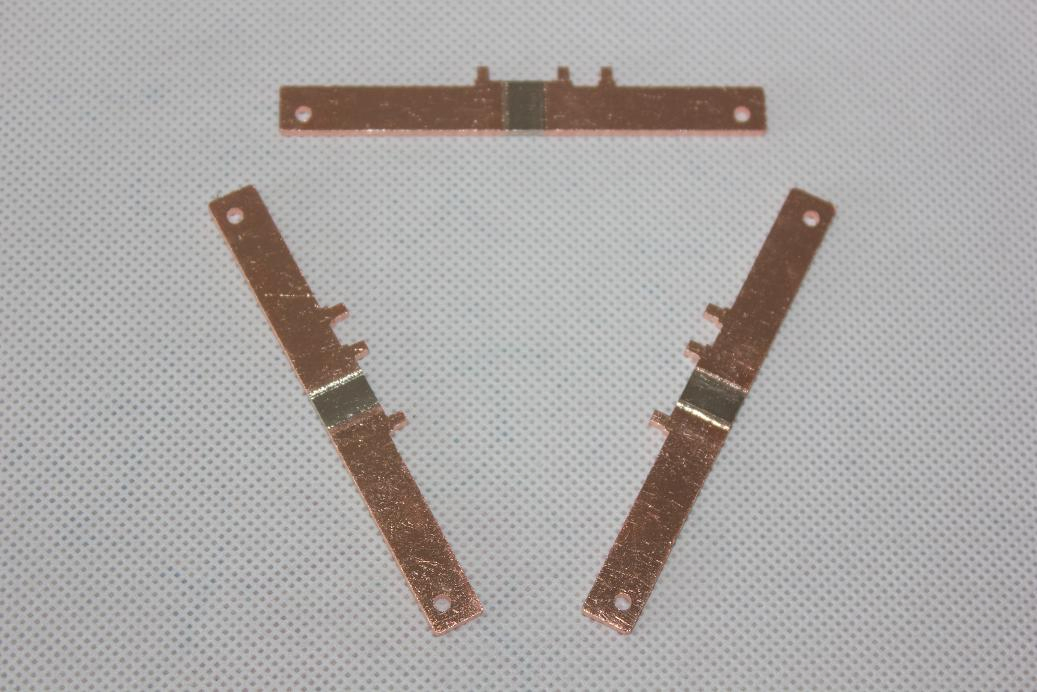

✓Material: F2 or 6J13 Manganin and pure copper.
✓Welding Mode: Electro-beam welding.
✓Resistance Value Tolerance: 100-1600 micro ohms ± 5%.
✓Shunt Type: Mountable type with holes for screw fixing.
✓Termination: Integrated lead wires are available.
✓Temperature Stability: Independent from temperature variation with low TCR value.
✓Characteristics: TC < 50PPM/K.
✓Power Loss: < 50 milli watt.
✓Aging: 10 hours under 120 deg.
✓Customization: Customized designs are available against drawings or samples.
✓Quality: Top quality with competitive pricing.
