Sailton Brand Power Module Semiconductor Devices Electronic Component

Customization:	Available
Application:	Motor Drives, Power Supply, Power Transmission
Batch Number:	2023+

Send Inquiry

Product Description

ℹ

Basic Information

Model NO.

Manufacturing Tech

Optoelectronic Semiconductor

Material

Element Semiconductor

Package

Presser

Signal Processing

Analog Digital Composite

Type

N-Type Semiconductor

Cooling

Double-Side Cooling

Chip Type

Fast Thyristor, Rectifier Modules

Application Field

Inverter, Induction Heating, Chopper, UPS

Quality

Guaranteed

📦

Packaging & Delivery

Package Size

50.00cm * 30.00cm * 20.00cm

Gross Weight

15.000kg

Delivery Time

3 Days

Origin

China

⚙

Product Description

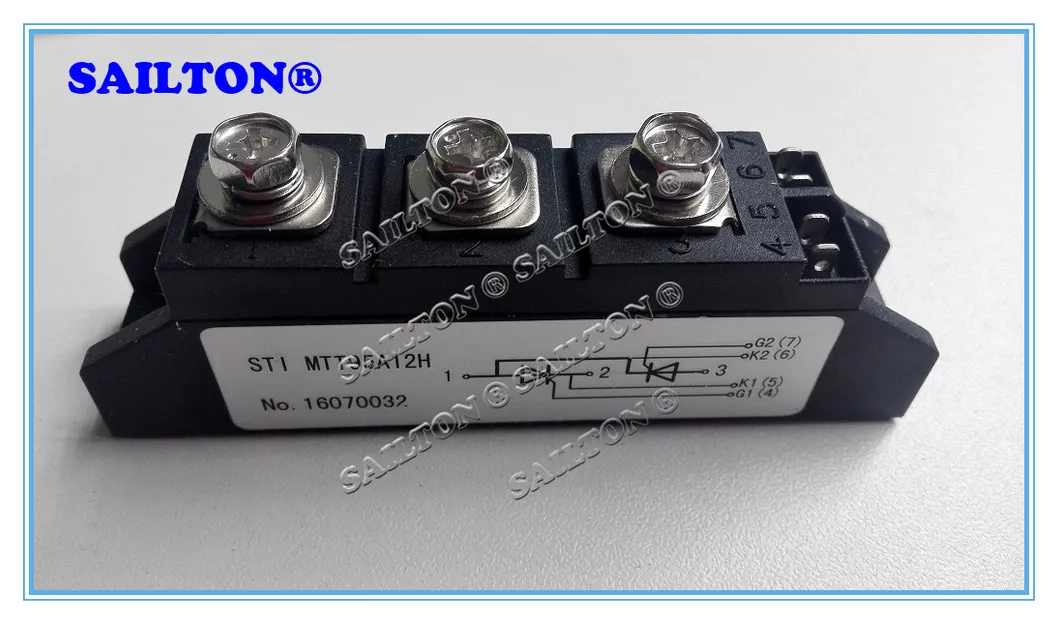

Power Module Semiconductor Devices & Electronic Components

Supplying a wide range of thyristor modules, diode modules, SCR modules, and bridge rectifiers including single phase and 3 phase options.

Key Features

Isolated mounting base

International standard package

Base plate insulation using AIN substrate

Low forward voltage drop

High surge current capability

Press-pack structure for stability

Applications

Ideal for motor drives, power supply systems, power transmission, distribution, railway transportation, machinery manufacturing, welding machines, and renewable energy industries.

📊

Technical Datasheets

MT Series (Thyristor Modules)

Type	IT(AV) A	VDRM/VRRM V	ITSM A	IDRM/IRRM mA	dv/dt V/μs	VGT v	IH mA	Rth(j-c) ºC/W
MTx25	25	600-1800	0.55	10	>800	<2	<50	0.95
MTx110	110	600-1800	2.40	20	>800	<2	<150	0.26
MTx250	250	600-1800	8.50	30	>800	<3	<200	0.12
MTx500	500	600-1800	14.5	50	>800	<3	<200	0.08

MD Series (Diode Modules)

Type	IF(AV) A	VRRM V	IFSM A	IRRM mA	VF0 V	rF mΩ	Rth(j-c) ºC/W
MDx25	25	600-1800	0.65	10	0.80	10.9	1.25
MDx160	160	600-1800	6.00	30	0.79	1.35	0.23
MDx500	500	600-1800	19.0	50	0.75	0.32	0.09

📐

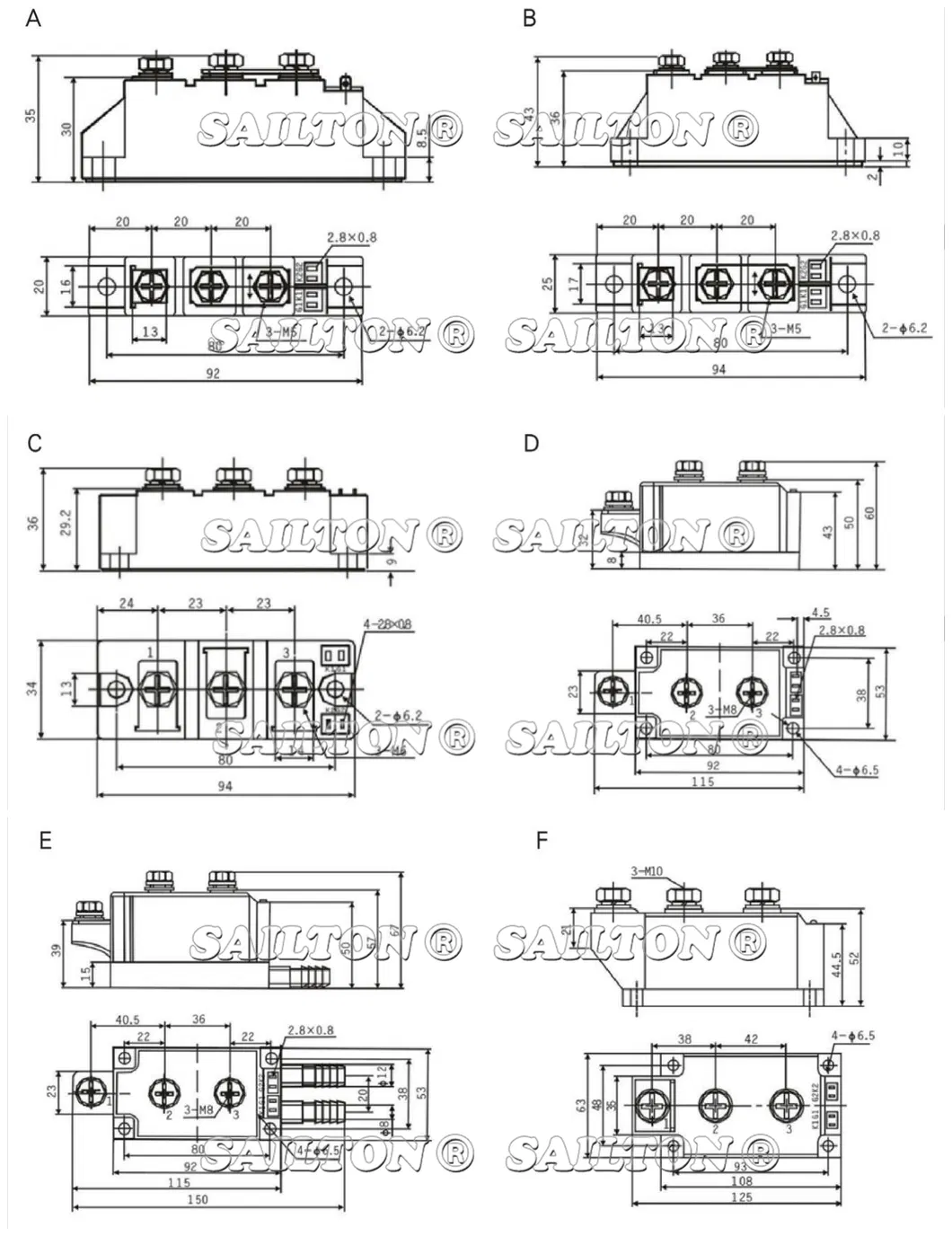

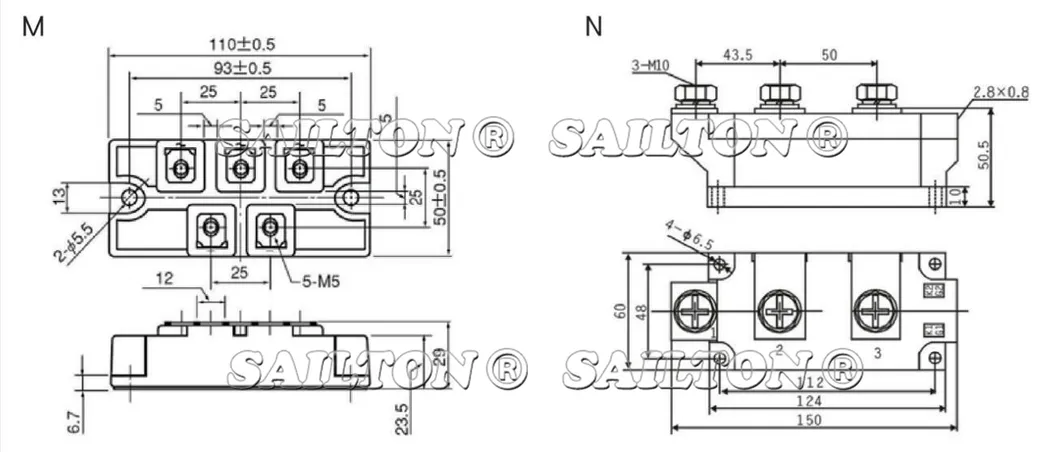

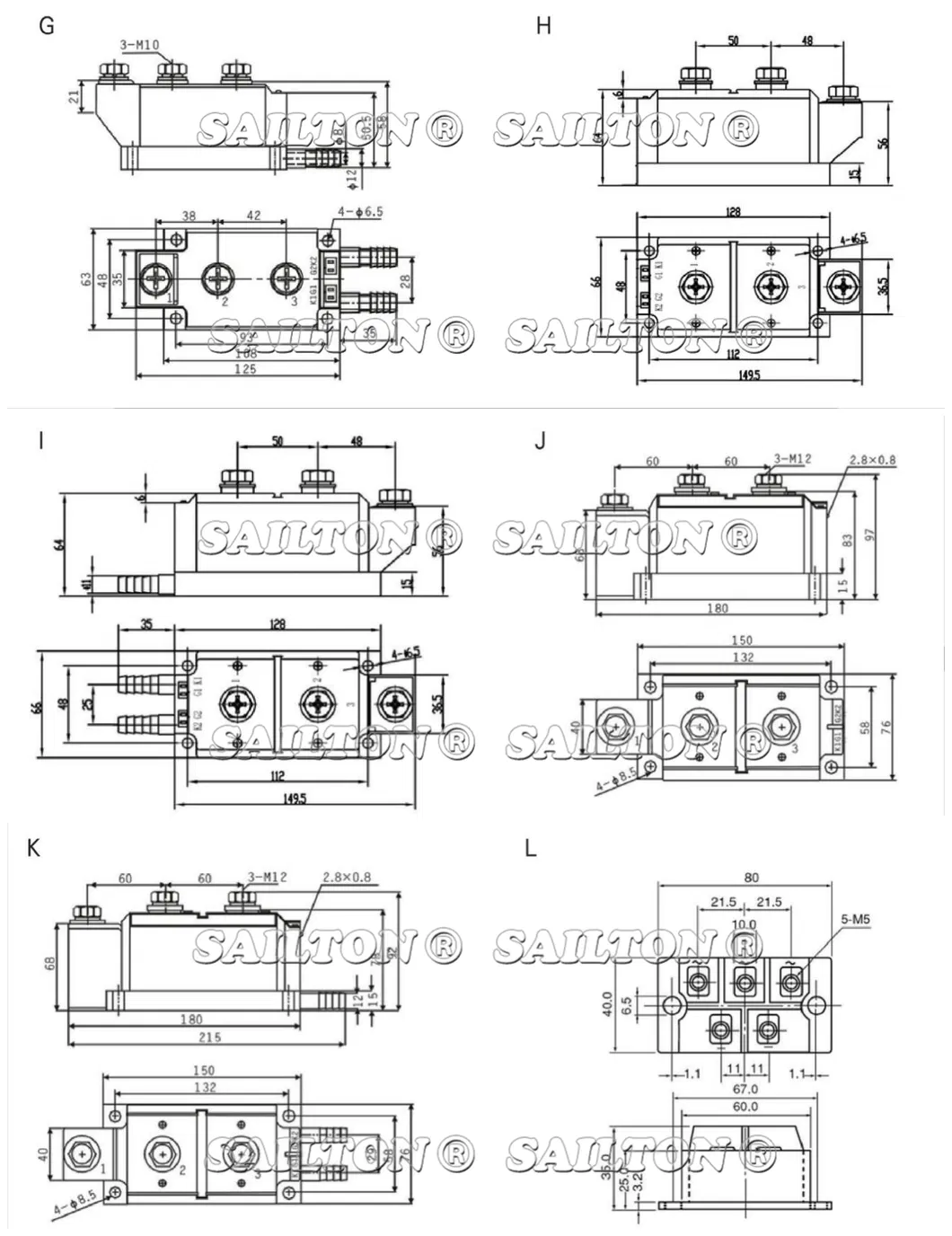

Technical Outlines & Certifications

🏭

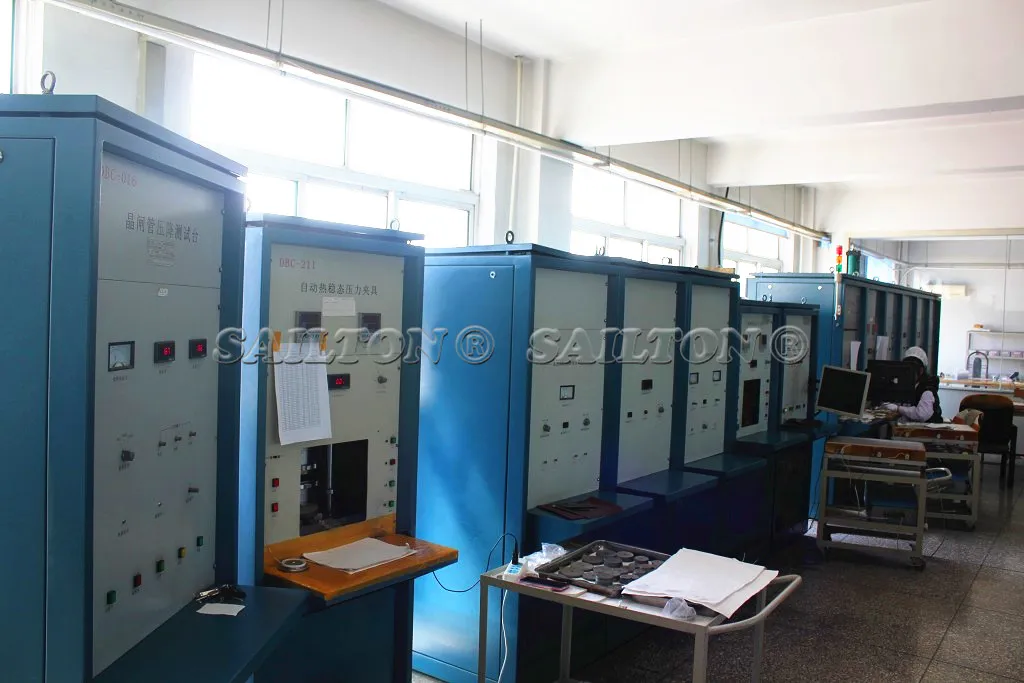

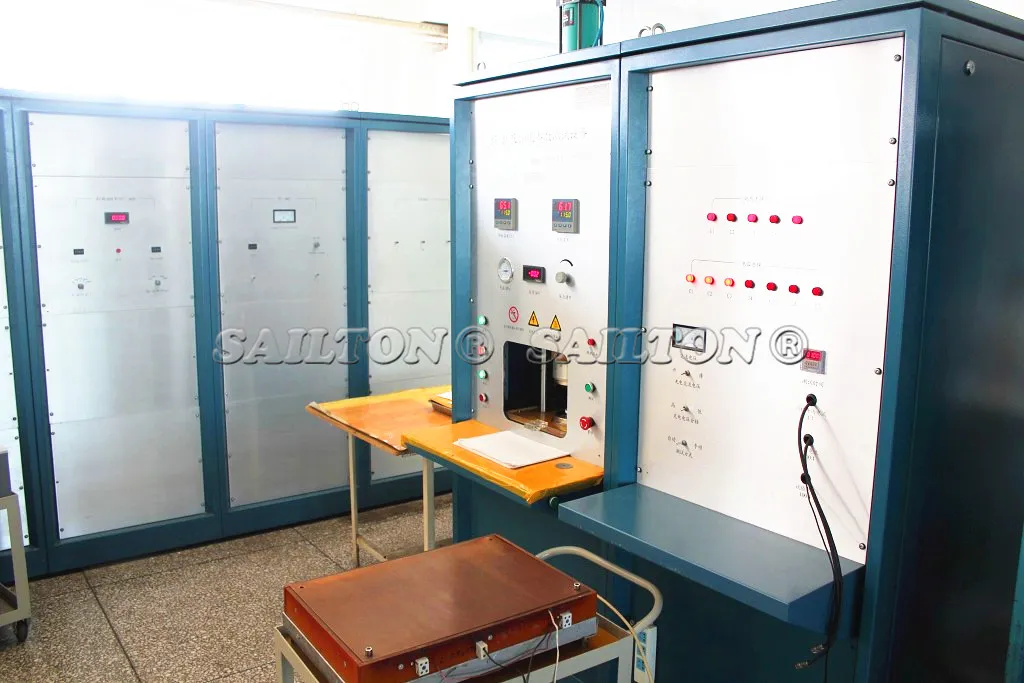

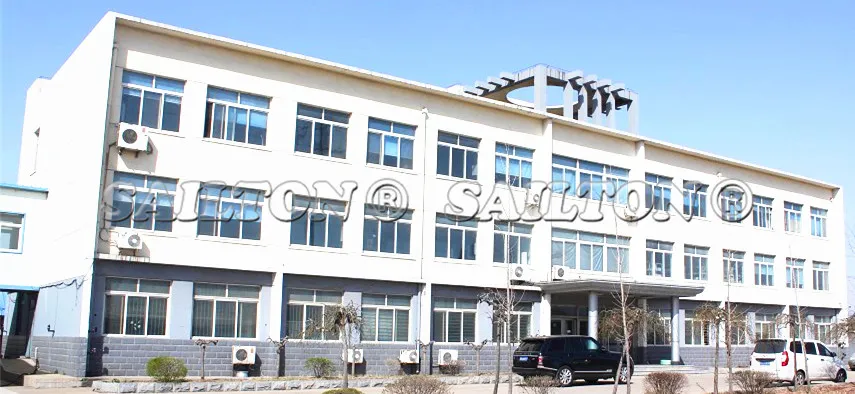

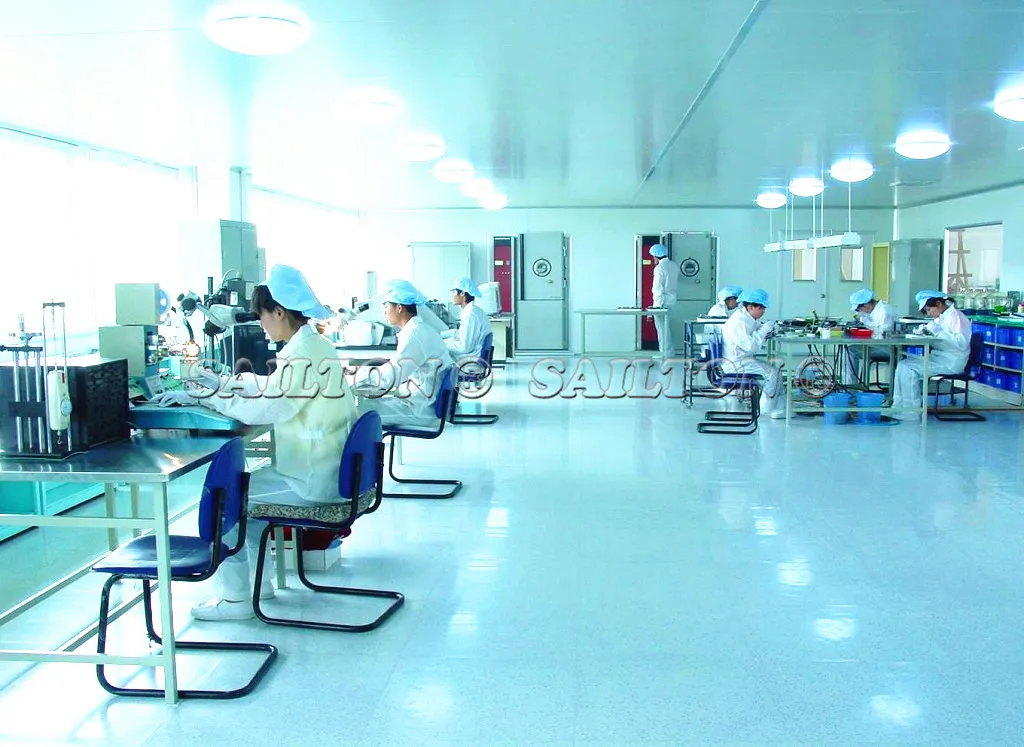

Factory Display

Frequently Asked Questions

What are the primary features of these power modules?

The modules feature an isolated mounting base, standard international packaging, low forward voltage drop, and high surge current capability, making them highly efficient for industrial applications.

What cooling methods are recommended for high-current modules?

Modules below 350A are typically cooled via forced air. For modules above 400A, both air-cooling and water-cooling options are available depending on your specific thermal requirements.

Are these semiconductor devices internationally certified?

Yes, our products come with CE certification and are manufactured according to international standard packaging and quality protocols.

Which industries typically use these Thyristor and Diode modules?

They are widely used in motor drives, power transmission and distribution, railway transportation, renewable energy systems, and chemical industry machinery.

What is the standard delivery time for these components?

The typical delivery time is approximately 3 days, with multiple shipping options including Sea, Air, and major express carriers like DHL, FedEx, UPS, and TNT.
