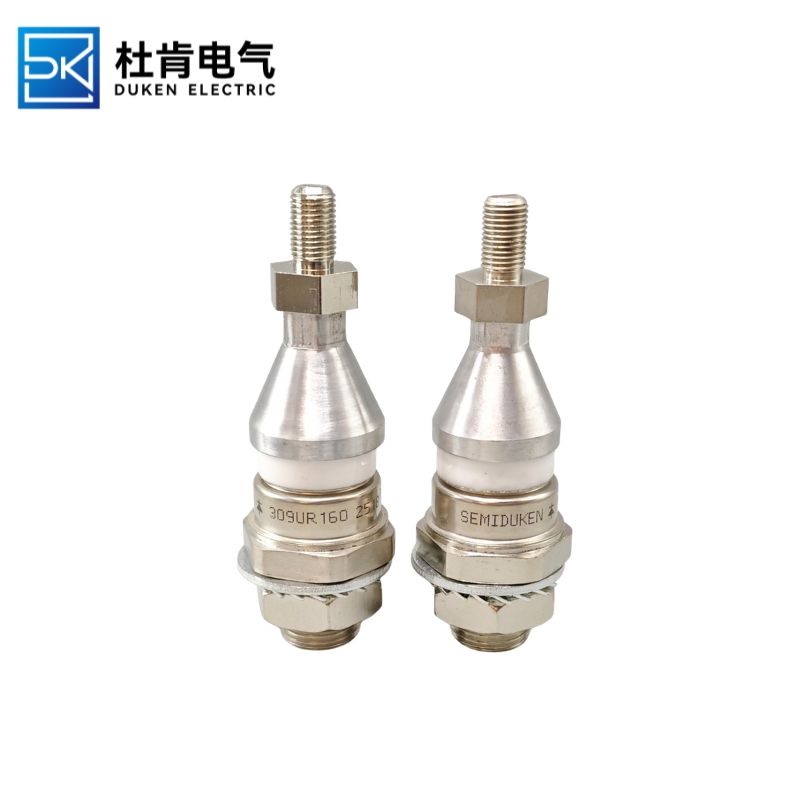

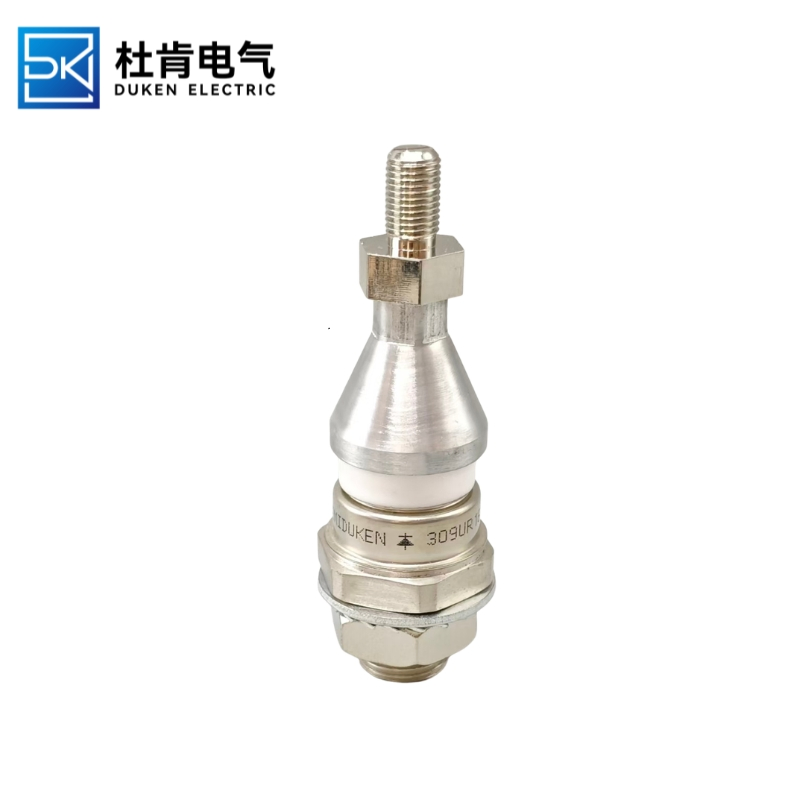

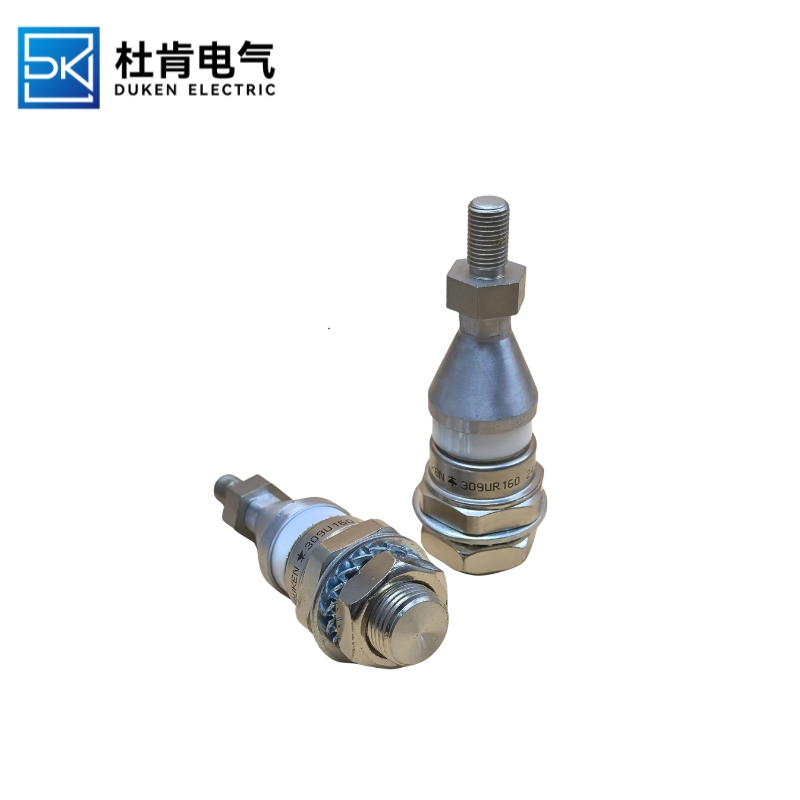

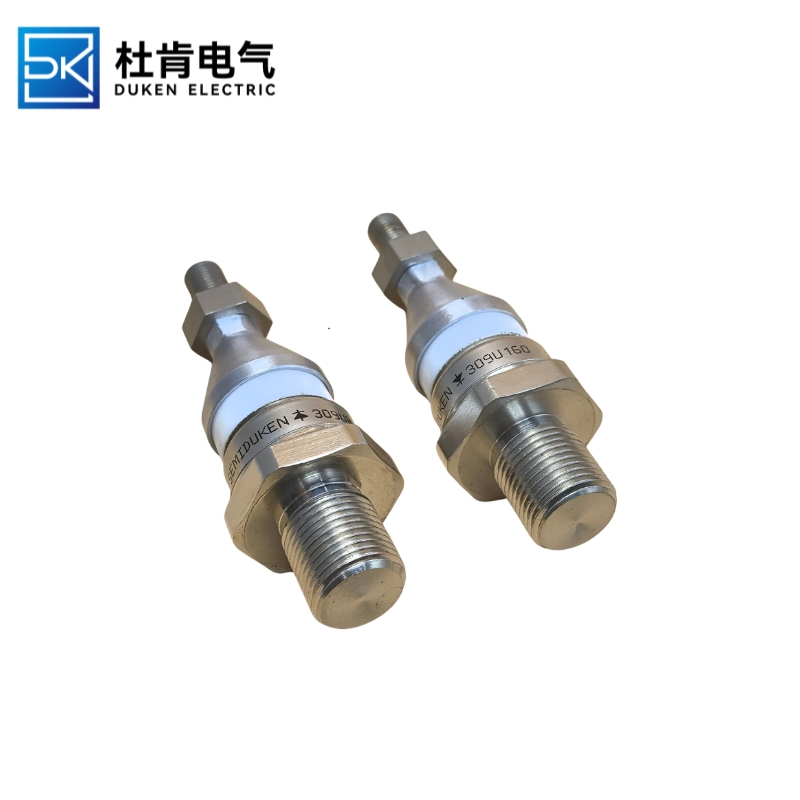

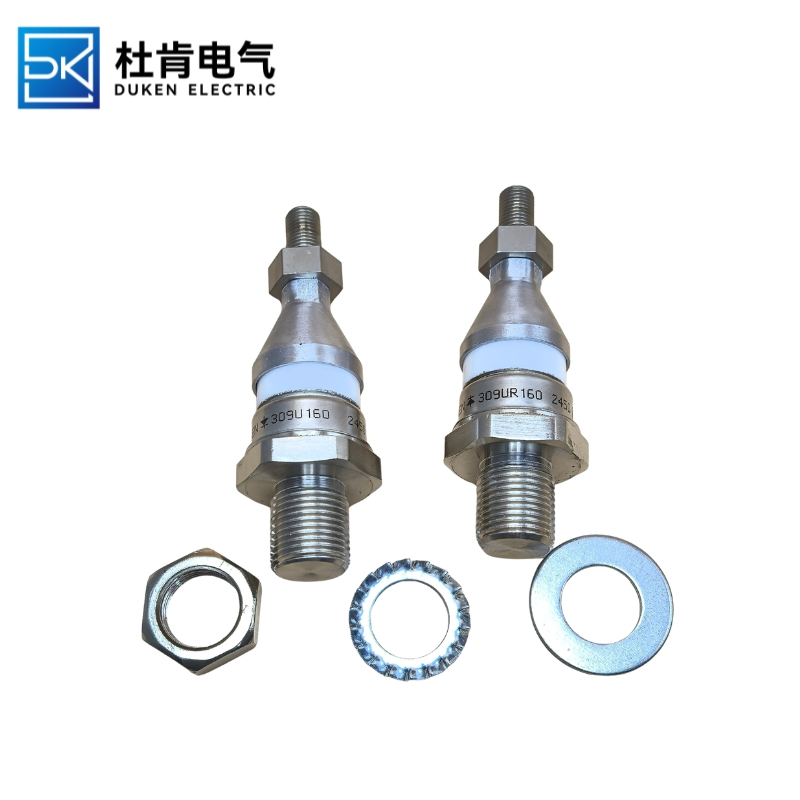

309UR160 / 309U160 ROTATING DIODE
The 309UR160 and 309U160 are high-performance rotating diodes designed for demanding power control and rectification applications. With 300A average forward current, 1600V repetitive peak reverse voltage, low forward voltage drop, and soft recovery characteristics, they provide reliable electrical performance in industrial systems.
Built with hermetic metal cases and ceramic insulators, these rotating diodes offer stable thermal performance, strong surge current capability, and dependable long-term operation. They are suitable for inverters and choppers, AC motor control systems, and snubber and free-wheeling diode applications.
| Parameter | Details |
|---|---|
| Product Name | Rotating Rectifier Diode |
| Model Number | 309UR160 / 309U160 |
| Diode Type | Soft Recovery Rotating Diode |
| Reverse Voltage | 1600V (Peak Repetitive Reverse Voltage) |
| Forward Current | 300A |
| Mounting Type | Stud Mount |
| Lead Material | Silver Plated Copper Flexible Wire |
| Case Material | Hermetic Metal Case with Ceramic Insulator |
| Certifications | RoHS, CE, ISO 9001 |
| Unit Weight | 200 grams |

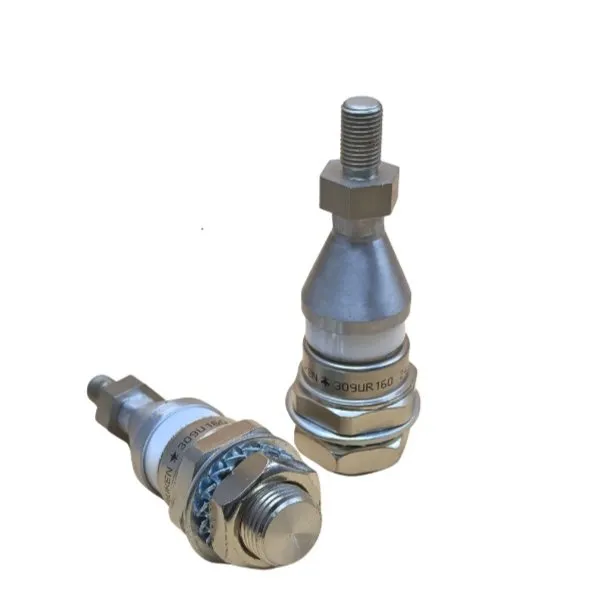

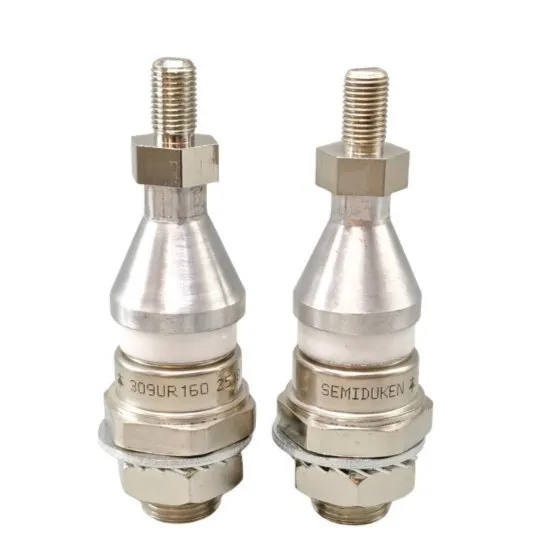

Designed for reliable operation in high power control systems. Featuring 300A average forward current and 1600V repetitive peak reverse voltage, these diodes ensure dependable electrical performance in demanding industrial environments.

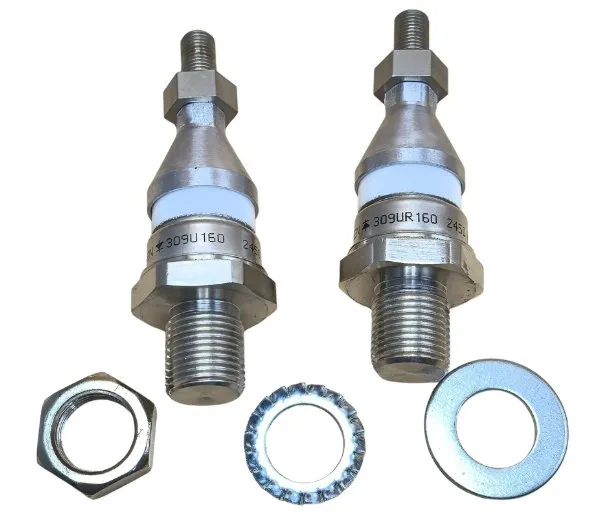

Constructed with a hermetic metal case and ceramic insulators, providing stable thermal and mechanical performance. The stud type structure supports reliable installation for long-term industrial use.
