Directional Coupler, Power Splitter, Hybrid Combiner, Power Tapper, RF Duplexer (multiband-combiner), and Filter for Public Safety DAS systems.

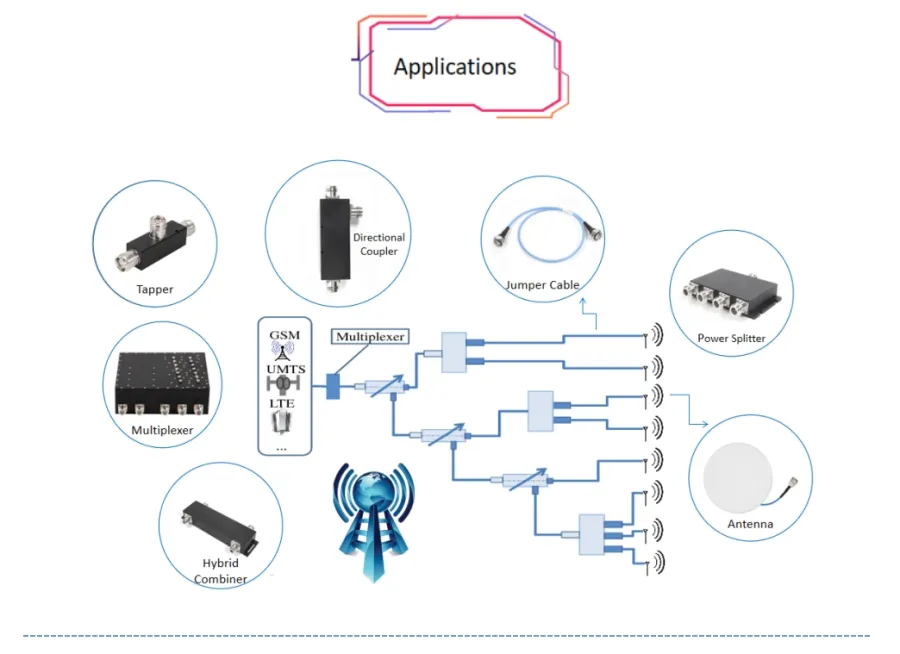

A Public Safety DAS (Distributed Antenna System) is a built-in wireless radio system that supplies radio signals to first responders for communication during emergencies. These units are critical for many buildings to meet safety regulations.
We provide a comprehensive series of Public Safety Components covering VHF, UHF & PS700/800MHz frequency bands, designed for high reliability in mission-critical environments.

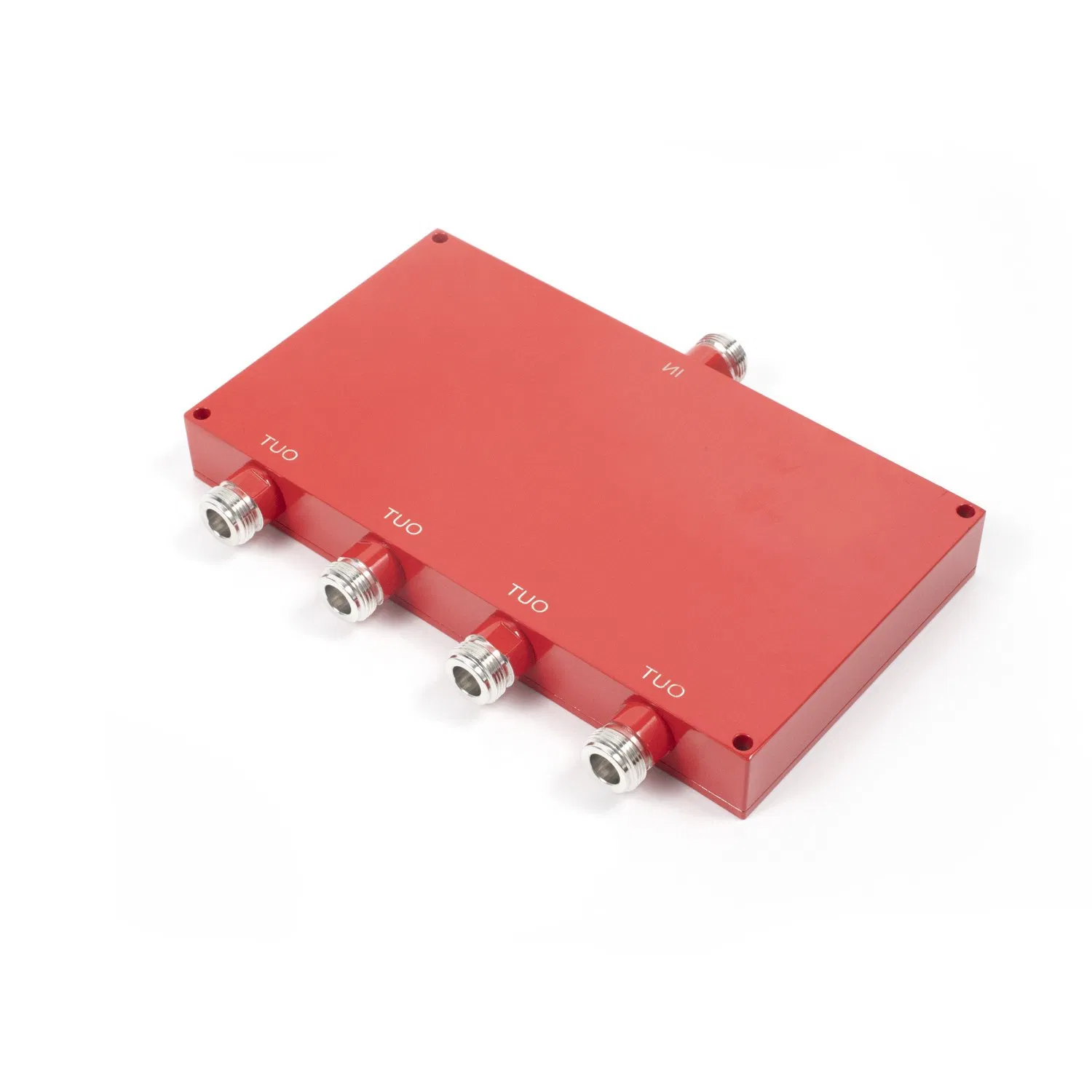

| Parameter Item | Specifications (Model: TPW-4WPS-1396-150-NF) |
|---|---|
| Frequency (MHz) | 136-960MHz |
| Split Channel | 4-way |
| Split Loss (dB) | 6.0 |
| Insertion Loss (dB) | ≤1.3 |
| Isolation (dB) | ≥14 |
| PIM (dBc) | ≤-150dBc (Typ); ≤-130dBc (Nor) |
| VSWR | ≤1.30 |
| Power Rating (W) | 50W (Average Per Port) |
| Impedance | 50 ohm |
| Connector | N Female |
| Color | Red |
| Operating Temperature | -30~+65 ºC |
| Weight (kg) | 0.68 |

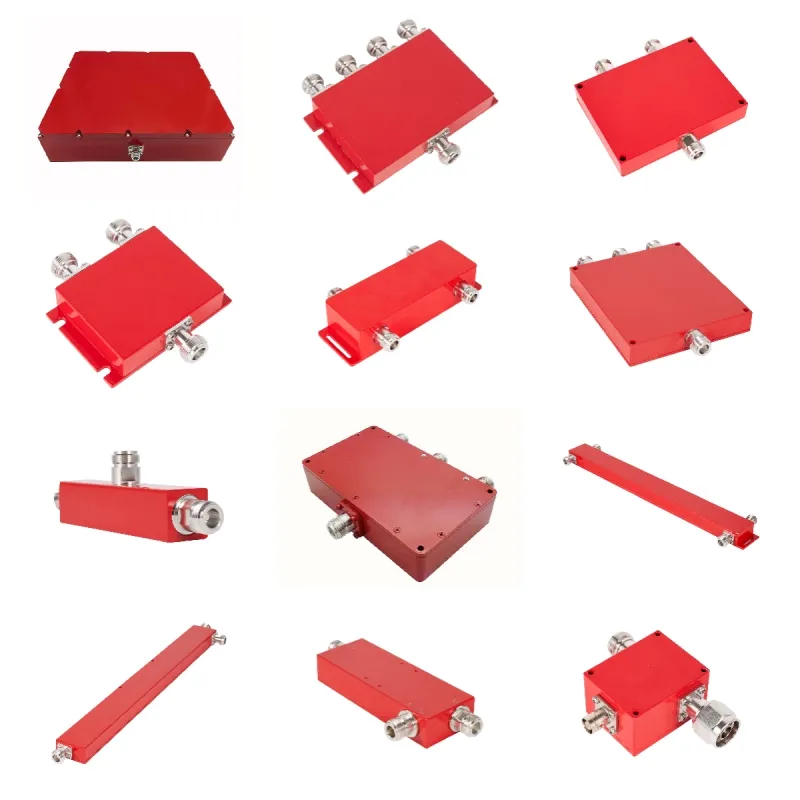

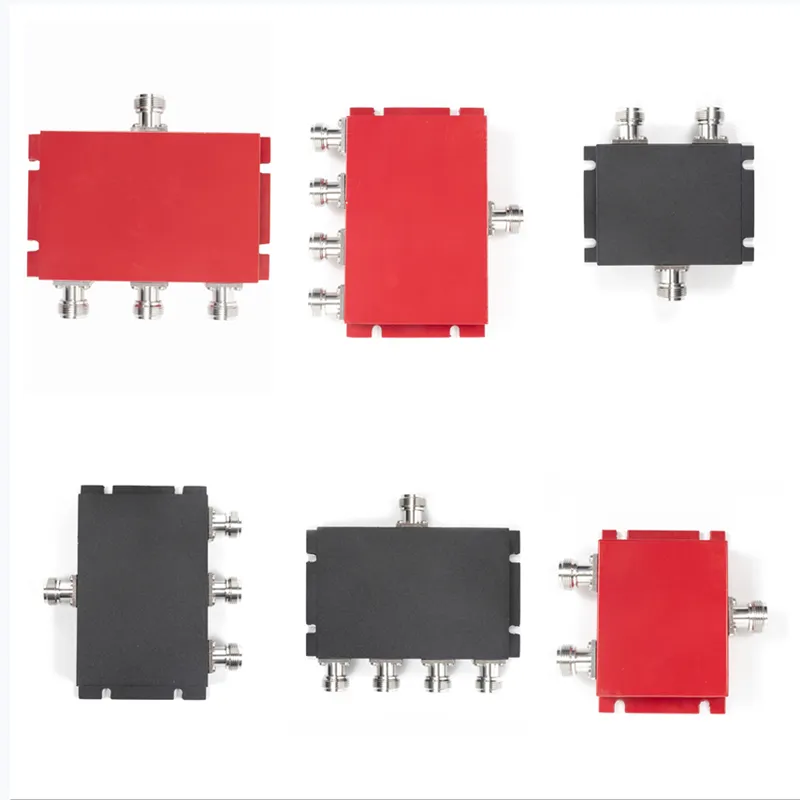

Frequency band components widely deployed in mission-critical communication networks for Fire, Medical, and government agencies. Our series includes Power Splitters, Hybrid Couplers, and FirstNet Filters tailored for Public Safety DAS.

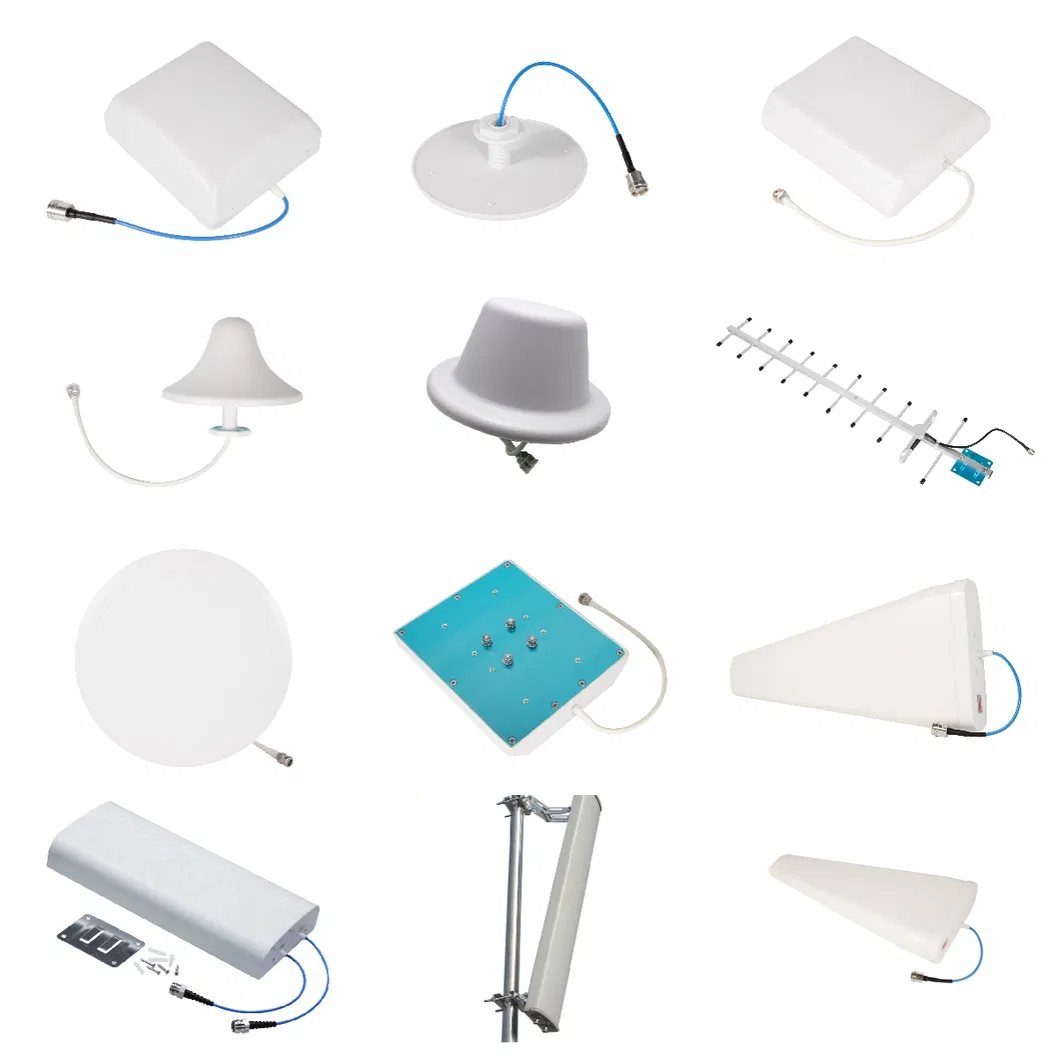

Small Cells Antenna for 5GInnovative antennas providing exceptional performance for 5G base station solutions. We focus on design and manufacturing to enable full connectivity value.
