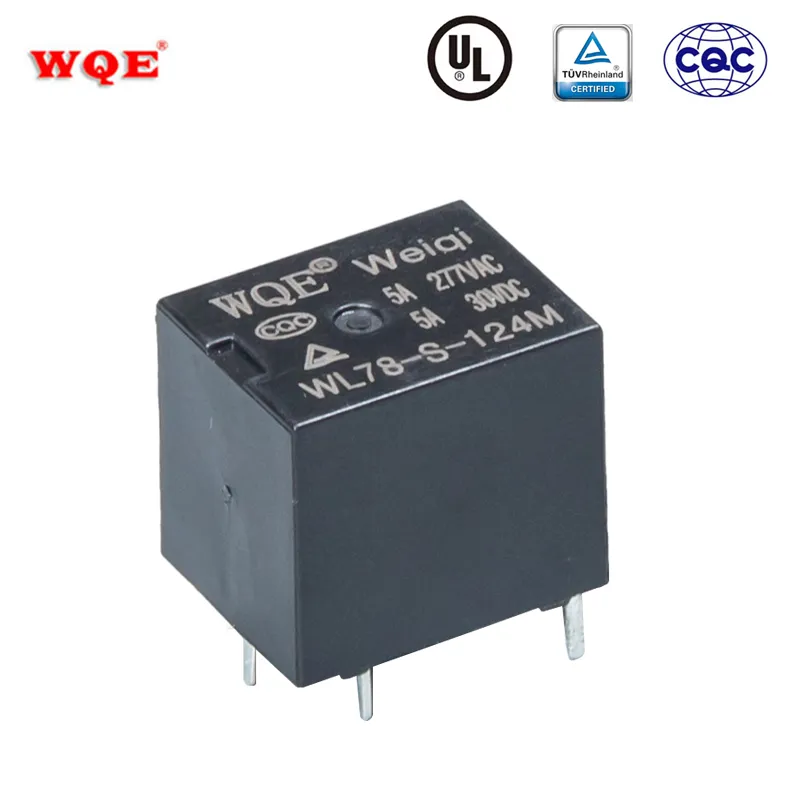

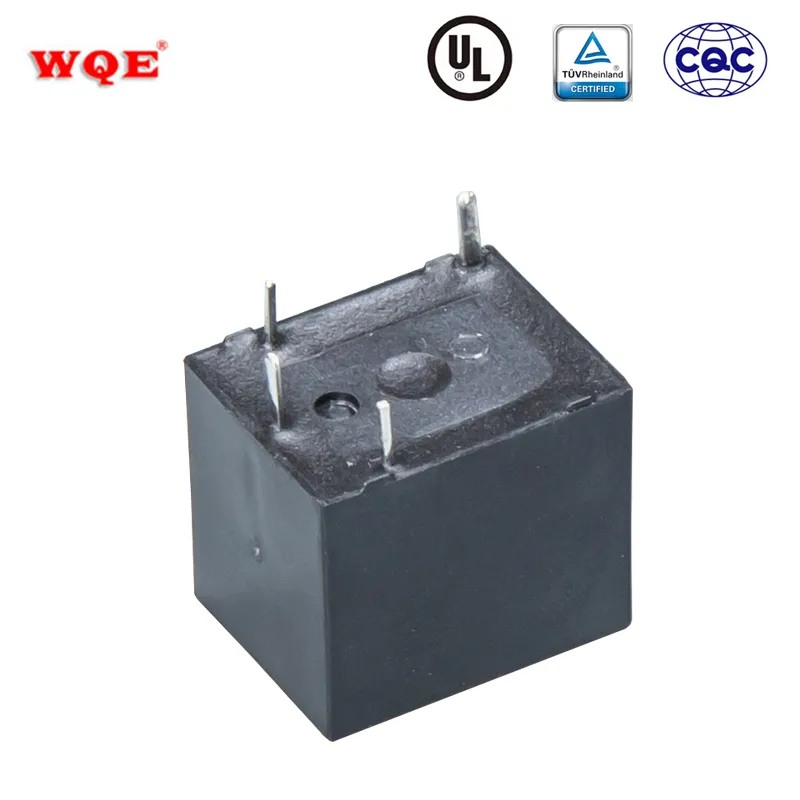

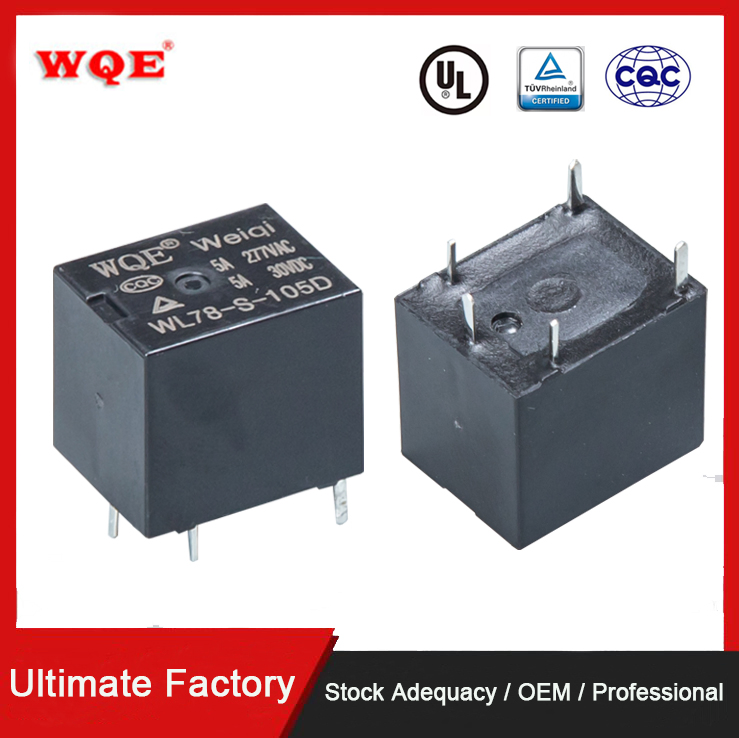

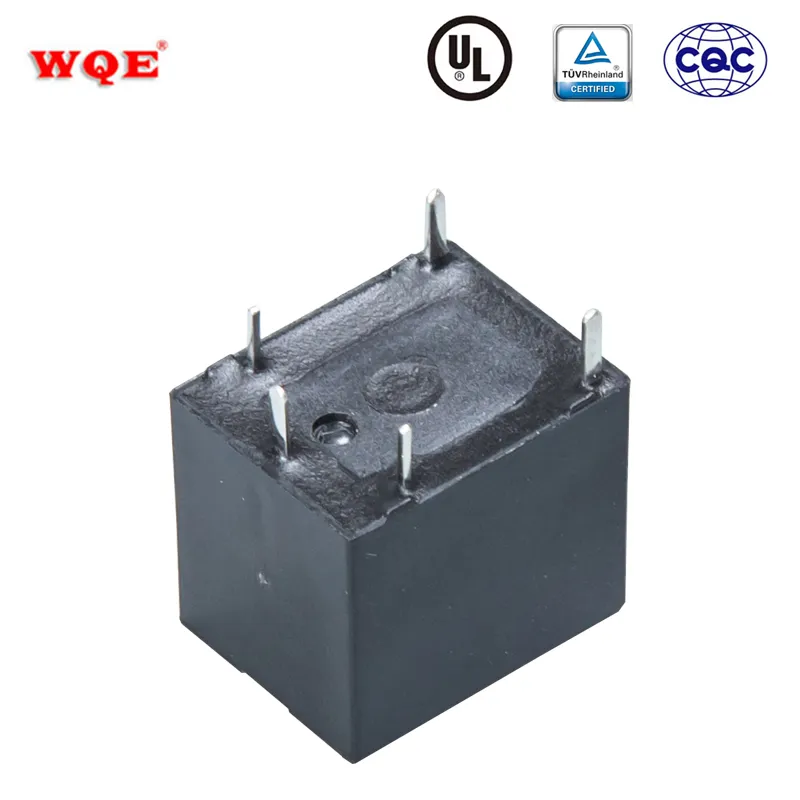

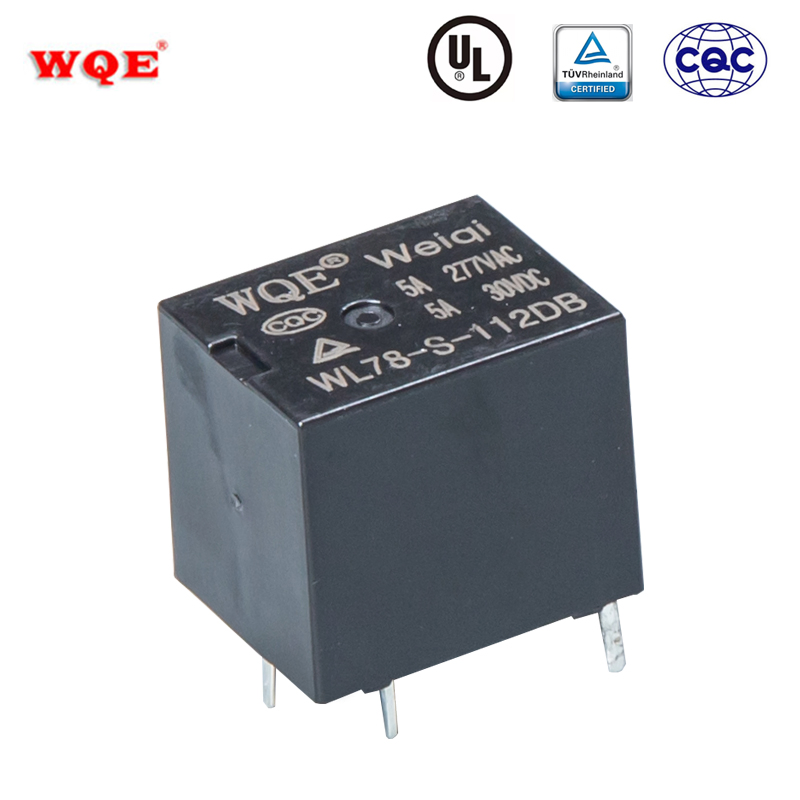

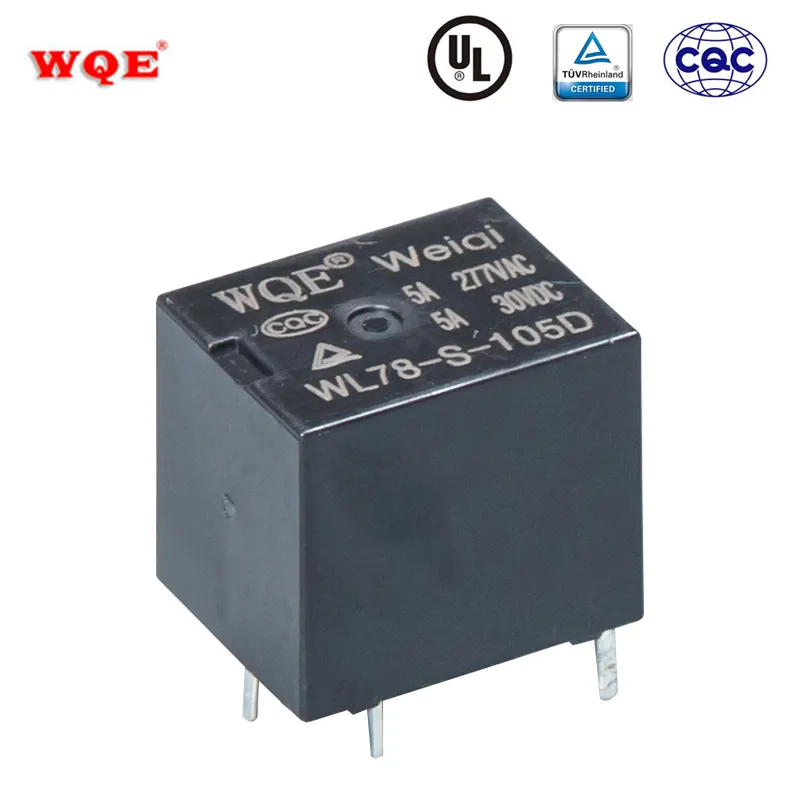

Power Relays 20A 5 Pins for 6V 9V 12V 24V 48V T78 WL78 Reliable Switching Solutions for Global B2B Procurement

Basic Specifications

Model NO.

WL78

EMC/EMS

Supported

Contact Type

H Type

Contact Material

AgCdO

Input Parameter

12VDC

Application

Automotive / Appliances

Certification

TUV

Voltage

20A 14VDC

Dimension

15.7x12.3x13.9mm

HS Code

8536410000

Product Description

General Purpose Relays 20A 14VDC for PCB (1A 1B 1C)

Main Usage:
Car Systems, Household Appliances, Automation Systems, Electronic Equipment.

Technical Summary:
Electromagnetic Type, Sealed Protective Characteristics, Single Pole.

Electricity Type: AC, DC
Action Principle: Electromagnetic
Outline Dimension: 15.7 x 12.3 x 13.9mm
Number of Poles: 1
Protective Characteristics: Sealed Relay

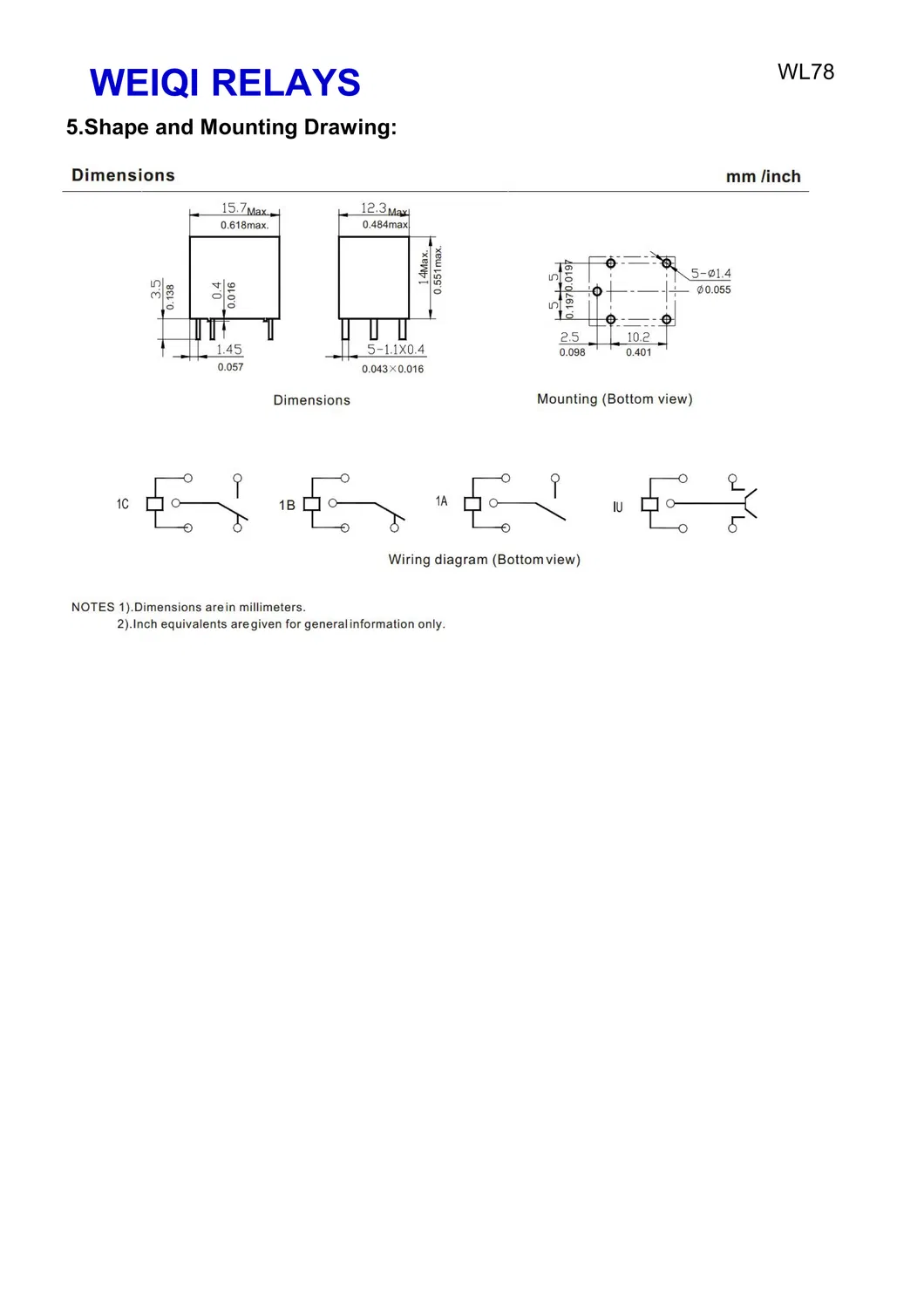

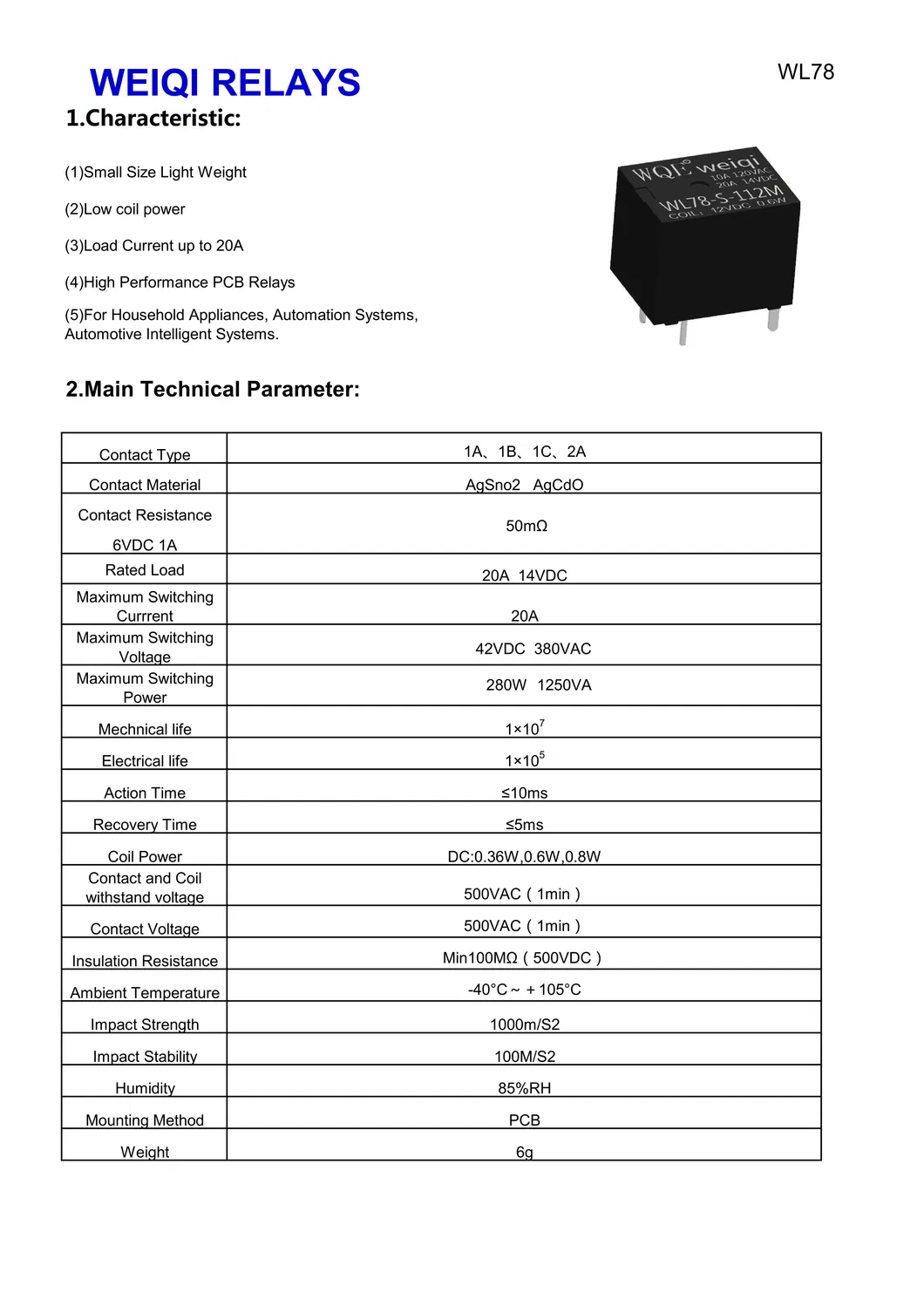

Technical Dimensions & Diagrams

Packaging Details

100pcs per small box
10 small boxes per master box
2000pcs total per master box
Shockproof packing with corrugated board filler

Frequently Asked Questions

Q1. Can I have a sample order for the relay? Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2. What is the lead time for production? Samples need 3-9 days, while mass production typically takes 2-3 weeks for normal orders.

Q3. Do you have any MOQ limits for relay orders? We offer low MOQ, and 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive? We usually ship via DHL, UPS, FedEx, or TNT, which takes 3-5 days. Airline and sea shipping options are also available.

Q5. What is the process for placing an order? First, let us know your requirements. Second, we provide a quote. Third, the customer confirms samples and places a deposit. Finally, we arrange production.

Q6. Is it possible to print a custom logo on the product? Yes. Please inform us formally before production and confirm the design based on our sample.
