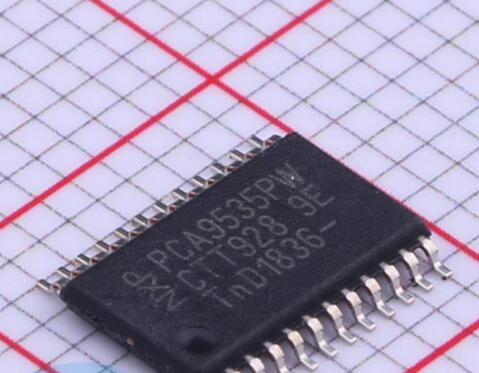

PCA9535PW,118: I/O Expander 16 I²C, SMBus 400 kHz 24-TSSOP
Mfr. Part#: PCA9535PW,118
Quality: 100% Original | Warranty: ONE YEAR
Datasheet available (Contact for PDF)
| Product Status | Active |
| Number of I/O | 16 |
| Interface | I²C, SMBus |
| Interrupt Output | Yes |
| Features | POR (Power-On Reset) |
| Output Type | Push-Pull |
| Current - Output Source/Sink | 10mA, 25mA |
| Clock Frequency | 400 kHz |
| Voltage - Supply | 2.3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Base Product Number | PCA9535 |
The PCA9535 and PCA9535C are 24-pin CMOS devices that provide 16 bits of General Purpose parallel Input/Output (GPIO) expansion for I2C-bus/SMBus applications. These devices enhance the family of I2C-bus I/O expanders with higher drive capability, 5V I/O tolerance, and lower supply current.
They consist of two 8-bit Configuration registers, Input, Output and Polarity Inversion registers. The system master can enable I/Os as either inputs or outputs by writing to the configuration bits. The PCA9535 is identical to the PCA9555 except for the removal of internal I/O pull-up resistors, which reduces power consumption when I/Os are held LOW.
