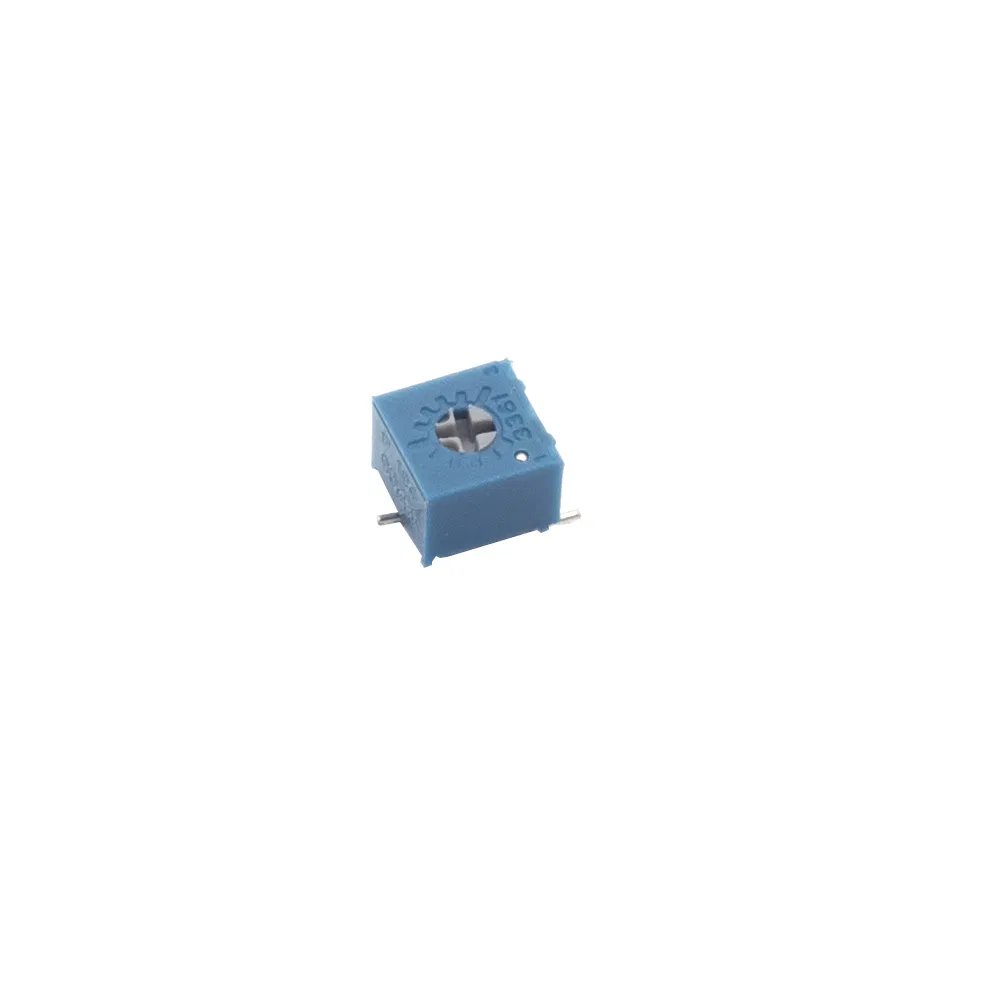

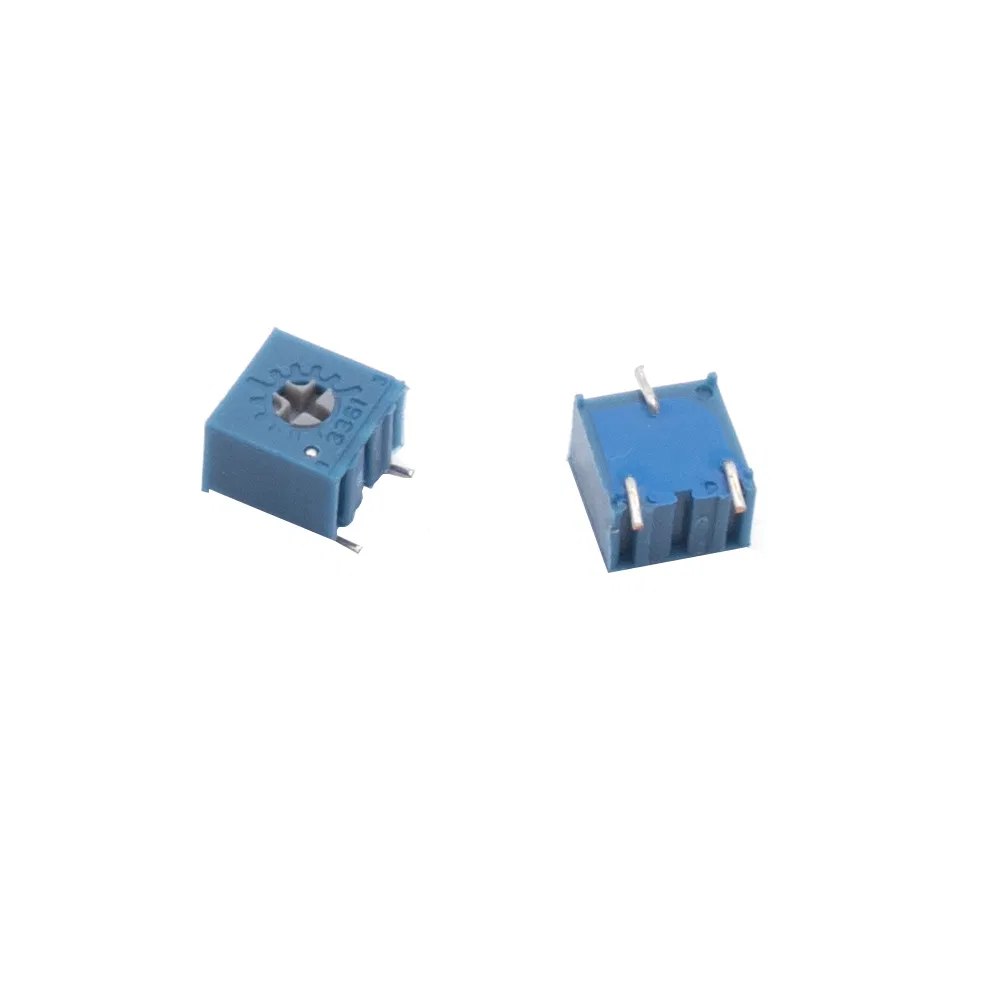

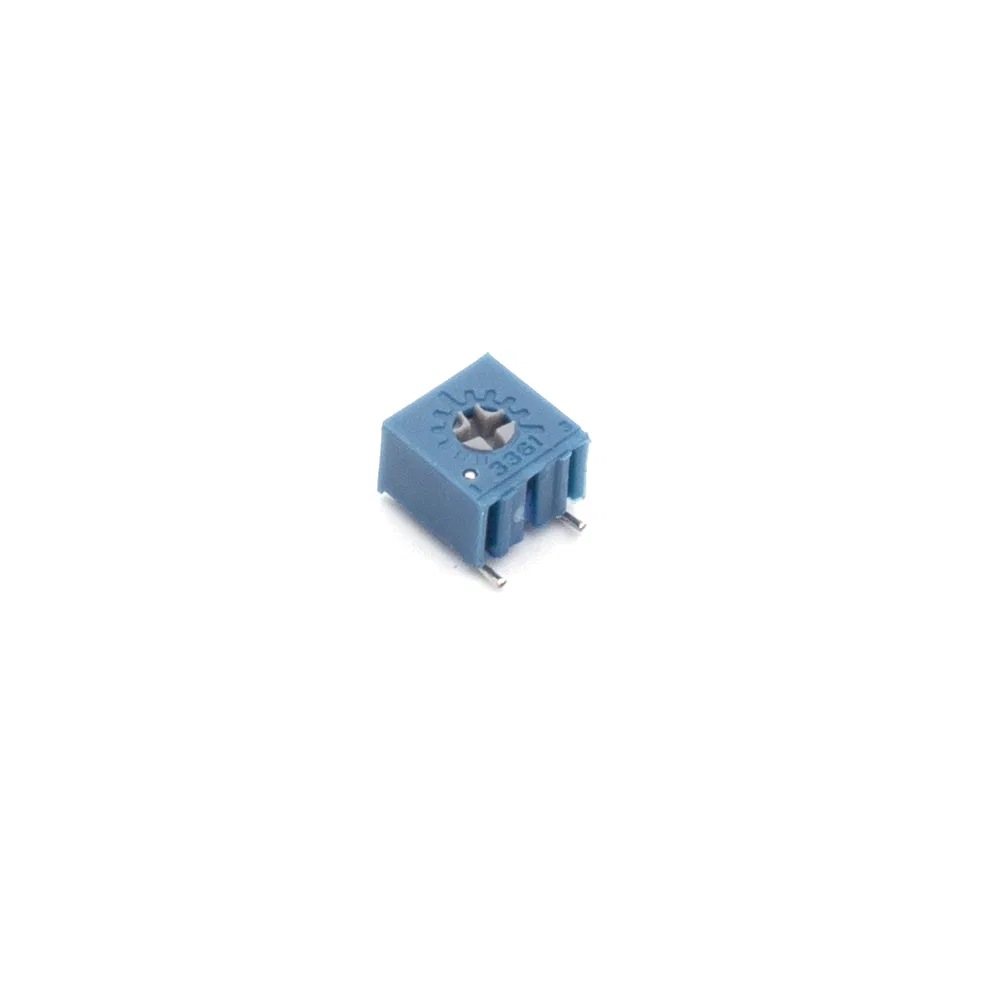

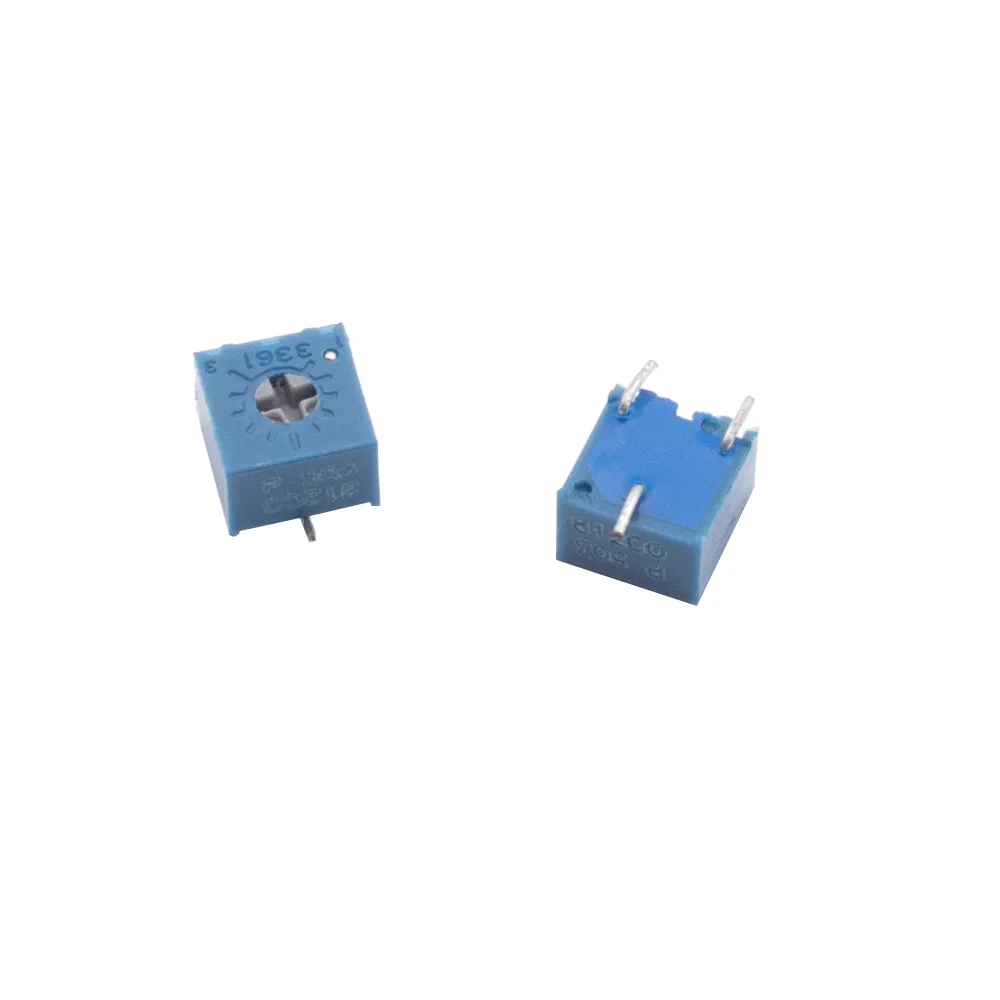

OEM SMD Square Trimming Potentiometer

Customization:	Available
Resistance:	Variable Resistor
Installation:	SMD Resistor

Send Inquiry

Product Description

Basic Info.

Model NO.

TMRV

Material

Ceramic and Metal

Packaging

Surface Mount

Type

Trimming Potentiometer

Shape

Square

Application

Lamps and Lanterns

Transport Package

T&R

Specification

3296

Origin

China

HS Code

8533400000

Production Capacity

100000PCS/Month

Packaging & Delivery

Package Size

39.00cm * 34.00cm * 20.00cm

Package Gross Weight

8.000kg

Product Description

SMD Trimming Potentiometer

Key Features:

✔ Single turn cermet construction with industrial sealed design for harsh working conditions
✔ SMD mounting with 2 terminal styles, suitable for various surface mount processes
✔ High adjustability precision and infinite resolution for precise adjustment requirements
✔ Vibration and shock resistant with strong environmental adaptability
✔ Custom resistance available

Characteristics:

Characteristic	Parameter
Absolute Minimum Resistance	1% or 2 ohms (whichever is greater)
Contact Resistance Variation	Max. 3% or 3 ohms (whichever is greater)
Insulation Resistance	Min. 1000 megohms @ 500 VDC
Voltage Adjustability	±0.05%
Resistance Adjustability	±0.15%
Resolution	Infinite

Frequently Asked Questions

What are the primary materials used in the TMRV trimming potentiometer?

The TMRV model is constructed using high-quality Ceramic and Metal materials, ensuring durability and stable performance.

What kind of mounting is supported by this product?

This is a Surface Mount (SMD) trimming potentiometer, designed for modern PCB assembly processes with two terminal styles available.

Is the resolution of this potentiometer limited?

No, it features infinite resolution, allowing for extremely precise resistance adjustments.

Can this component withstand harsh industrial environments?

Yes, it features an industrial sealed design that makes it resistant to vibration and shock, providing strong environmental adaptability.

What is the standard production capacity for this model?

The current production capacity is approximately 100,000 pieces per month to meet large-scale industrial demands.

What are the typical applications for the TMRV series?

It is widely used in various electronic devices, specifically optimized for applications in lamps, lanterns, and other precision lighting equipment.
