Product Description

Basic Information

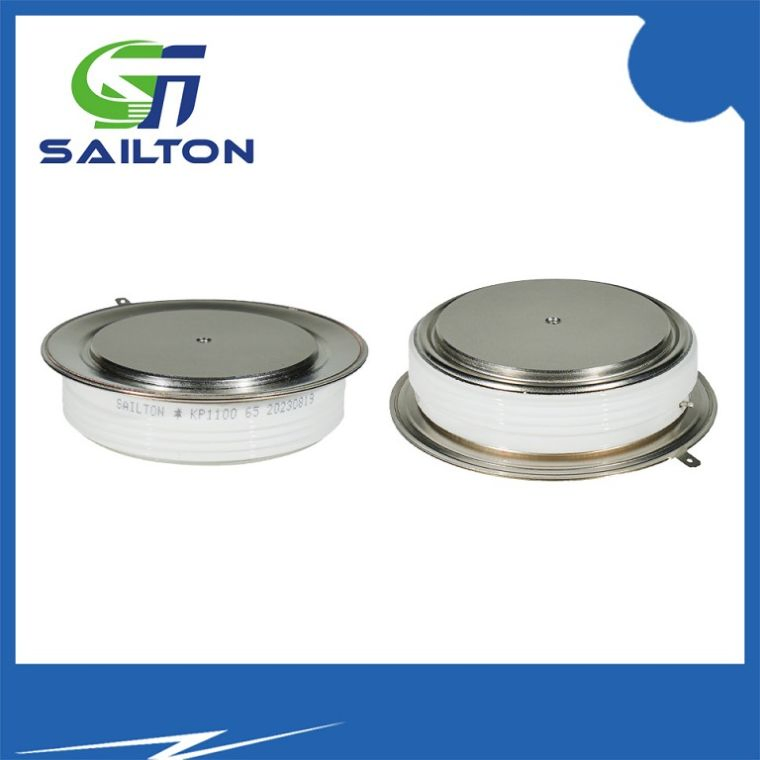

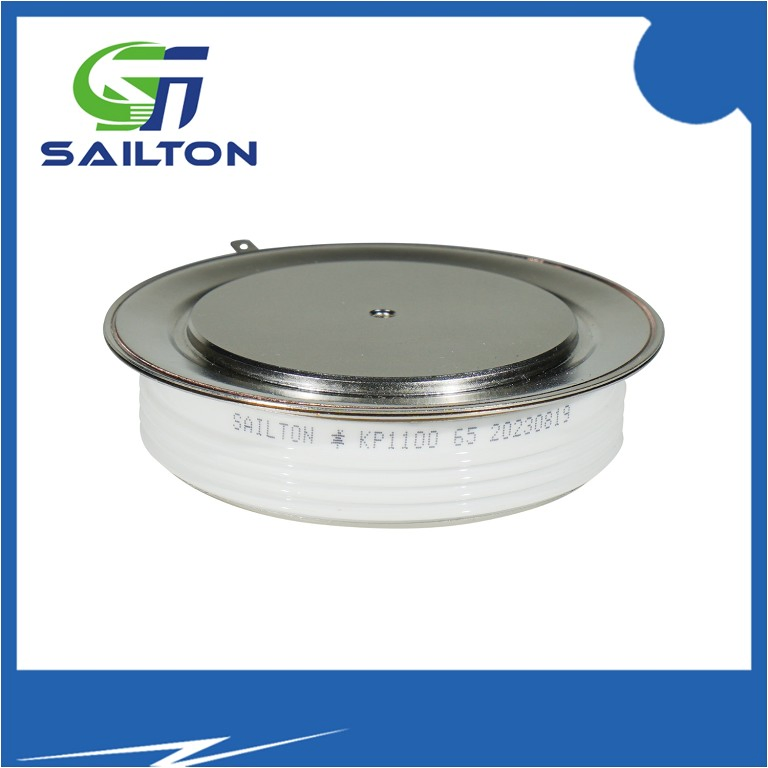

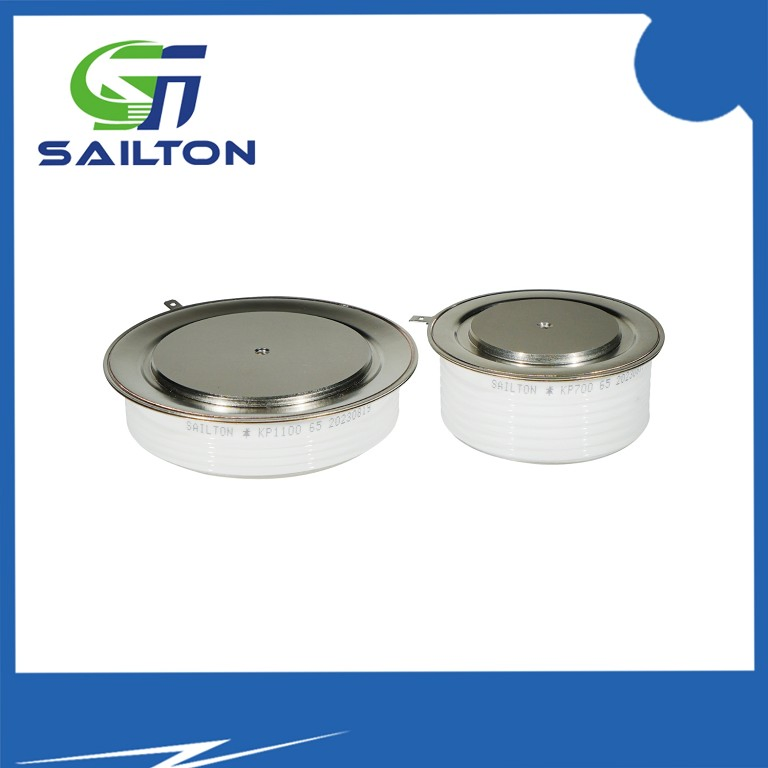

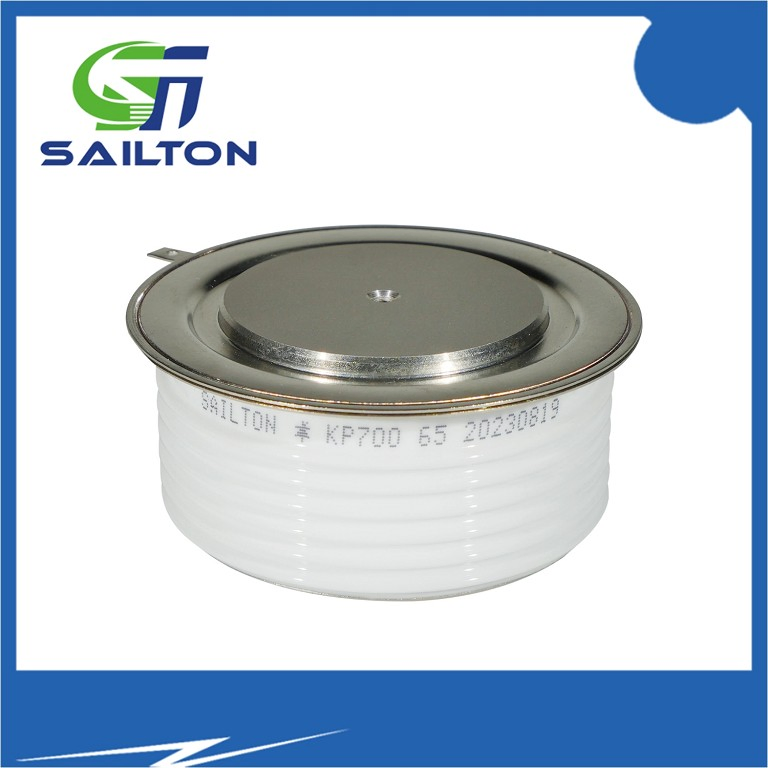

Model NO.:Kp1100A 6500V

Technology:Optoelectronic Semiconductor

Material:Element Semiconductor

Package Type:Presser / Capsule

Signal Processing:Analog Digital Composite

Type:N-Type Semiconductor

Cooling:Double-Side Cooling

Installation:Parallel, Series

Chip Type:Silicon Controlled Chip

Feature:High Current Density

Operating Temp:-40 C (Min)

Application:High Power Converter, Motor Control

Product Description

High Voltage Phase Control Thyristor SCR

This series is designed for high power industrial and power transmission applications. It is optimized for low on-state voltage and features matched Qrr and VT available for series or parallel connections. We provide a comprehensive range of standard phase control thyristors.

Key Features & Applications

Main Applications:

High-power inversion
AC and DC motor control
AC/DC switching
Phase-controlled rectification
Active and passive inverter
Soft starters

Technical Classifications:

Ordinary Thyristor (SCR)
Fast Switch Thyristor (KK Series)
High Voltage Phase Control (KP Series)
Ceramic or Metal Packaging

Technical Parameters

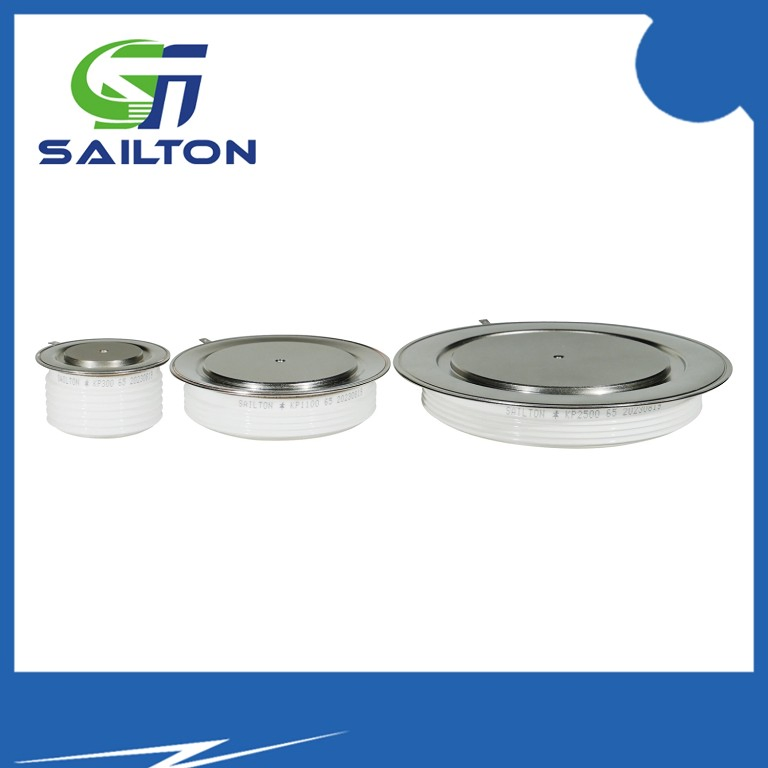

Part No.	IT(AV) (A)	VDSM (V)	VDRM (V)	ITSM (A)	VTO (V)	rT (mΩ)	RthJC	RthCH	F (KN)	Outline
Up to 5200 V
KP800/45-52	800	4500-5500	4200-4600	12000	1.15	1.000	0.022	0.006	25	T11
KP1200/45-52	1200	4500-5200	4200-4600	19000	1.15	0.600	0.015	0.005	32	T13
KP2200/45-52	2200	4500-5200	4200-4600	45000	1.10	0.350	0.009	0.002	70	T16
Up to 6500 V
KP300/55-65	350	5500-6500	4500-5600	4500	1.20	2.600	0.045	0.008	16	T9
KP1000/55-65	1100	5500-6500	4500-5600	14300	1.18	0.800	0.015	0.004	32	T13
KP2500/55-65	2500	5500-6500	4500-5600	43000	1.20	0.330	0.007	0.002	90	T17

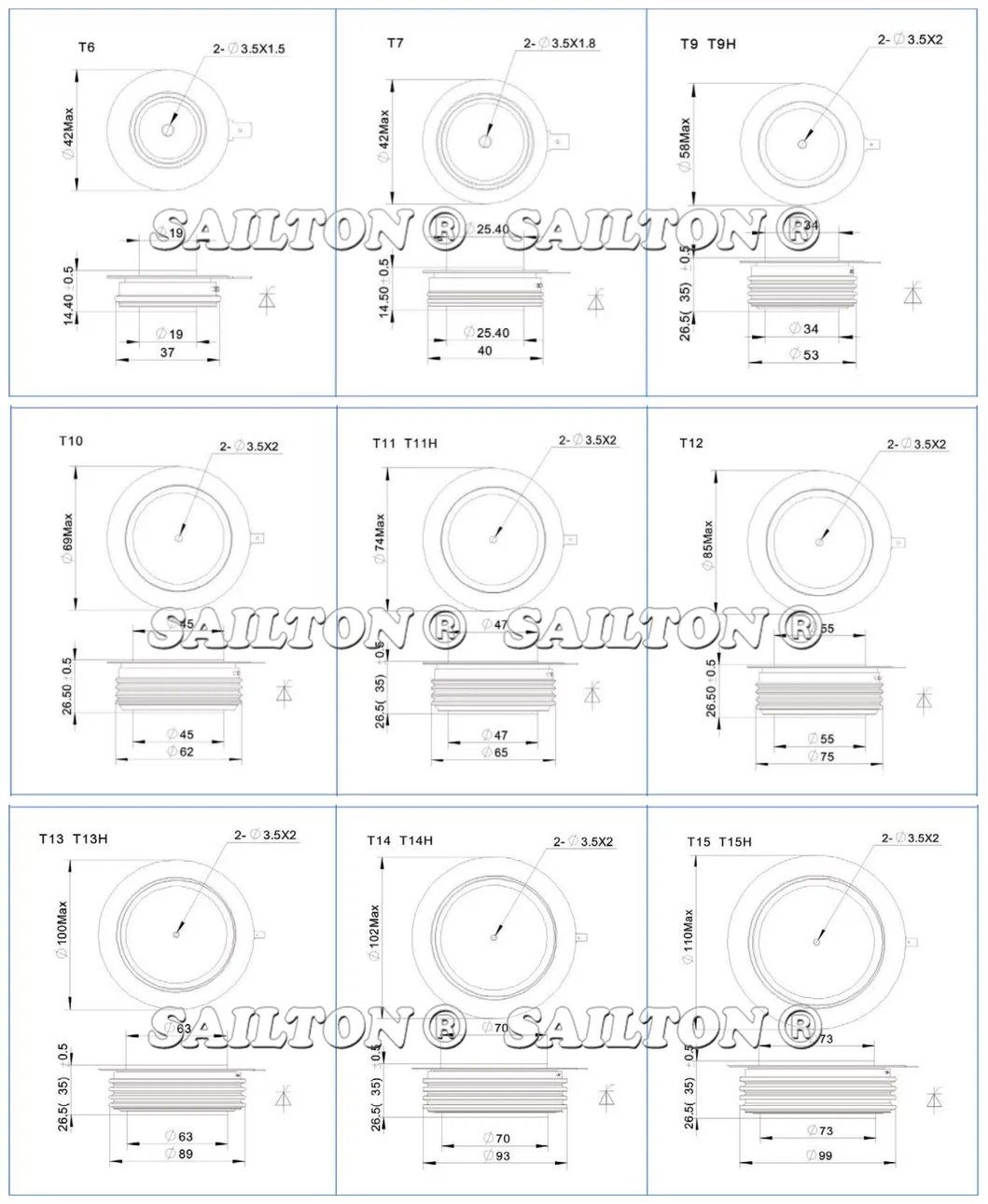

Technical Dimensions & Accessories

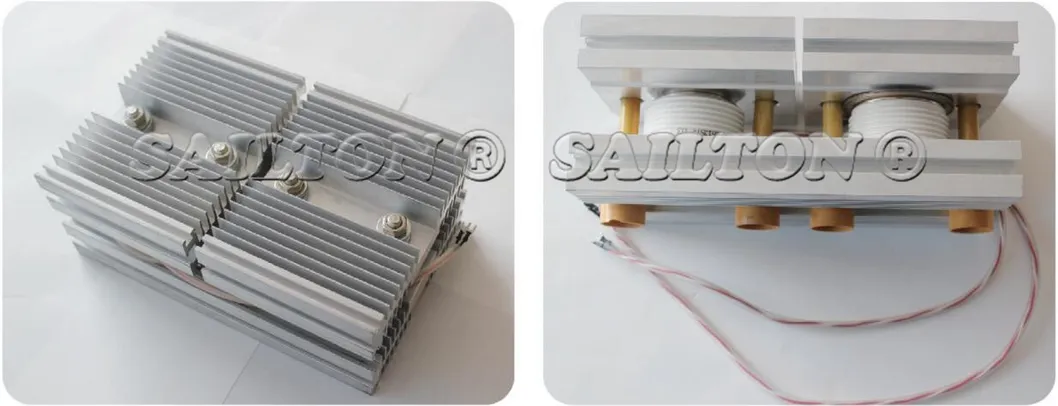

High Voltage Water Cooling Systems

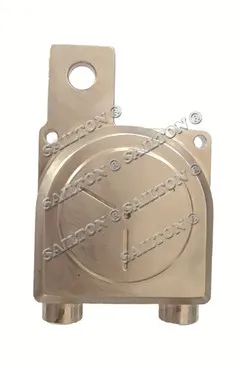

Specifically designed for 6500V thyristors. Essential for static var compensators (SVC) and compatible with models such as KP300 6500, KP800 6500, and various international equivalents.

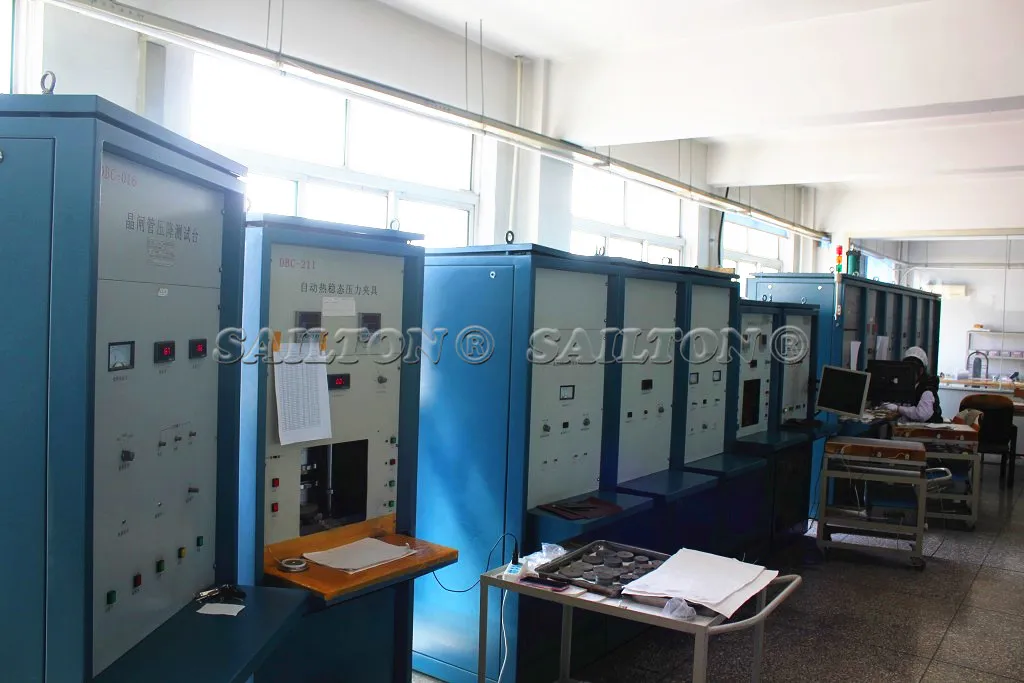

Certificates & Production Environment

Frequently Asked Questions

1. What is a Phase Control Thyristor (SCR)? A thyristor or Silicon Controlled Rectifier (SCR) is a solid-state semiconductor device with four layers of alternating P and N-type materials. It acts as a bistable switch, conducting when the gate receives a current trigger and continuing until the voltage is reversed.

2. What are the main applications for the KP series? The KP series high voltage phase control thyristors are widely used in high-power inversion, AC/DC motor control, soft starters, phase-controlled rectification, and active/passive inverters.

3. What cooling methods are recommended for high-power thyristors? Due to the high current density, double-side cooling is standard. For extremely high voltage applications like 6500V, dedicated high-voltage water coolers are often utilized to maintain optimal operating temperatures.

4. How are thyristors classified? They can be classified by shutoff methods (SCR, TRIAC, GTO), packaging (metal, plastic, ceramic), or power capacity (high, medium, small power). High-power models typically use ceramic capsule packaging.

5. Can these components be used in series or parallel? Yes, the KP series is optimized with matched Qrr (Reverse Recovery Charge) and VT (On-state Voltage) to allow for reliable performance in both series and parallel circuit configurations.

6. What is the difference between fast thyristors and ordinary thyristors? Ordinary thyristors (KP series) are used for phase control, while fast thyristors (KK series) are designed for rapid switching applications such as induction heating and high-frequency inverters (400Hz to 10kHz).
