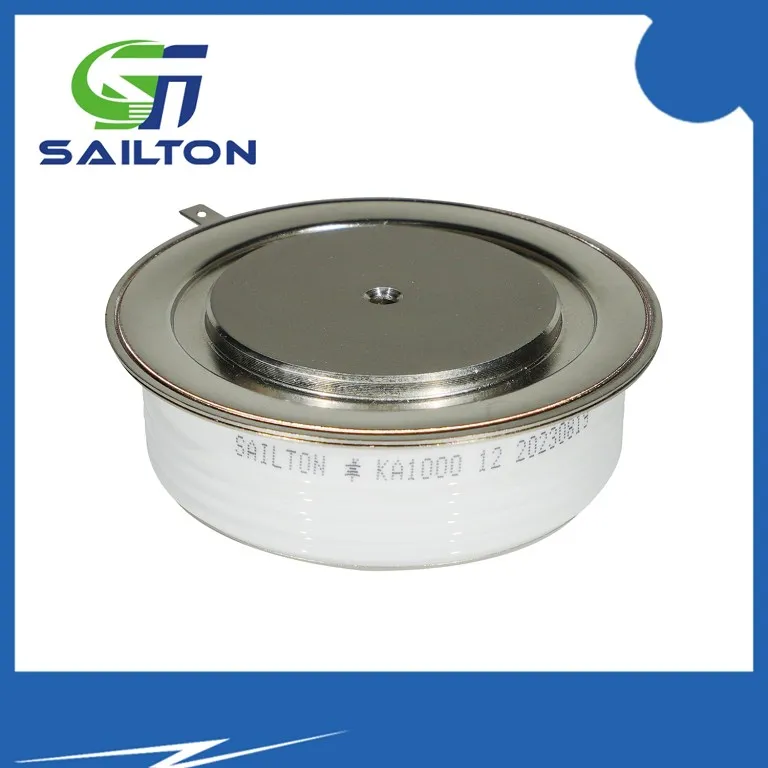

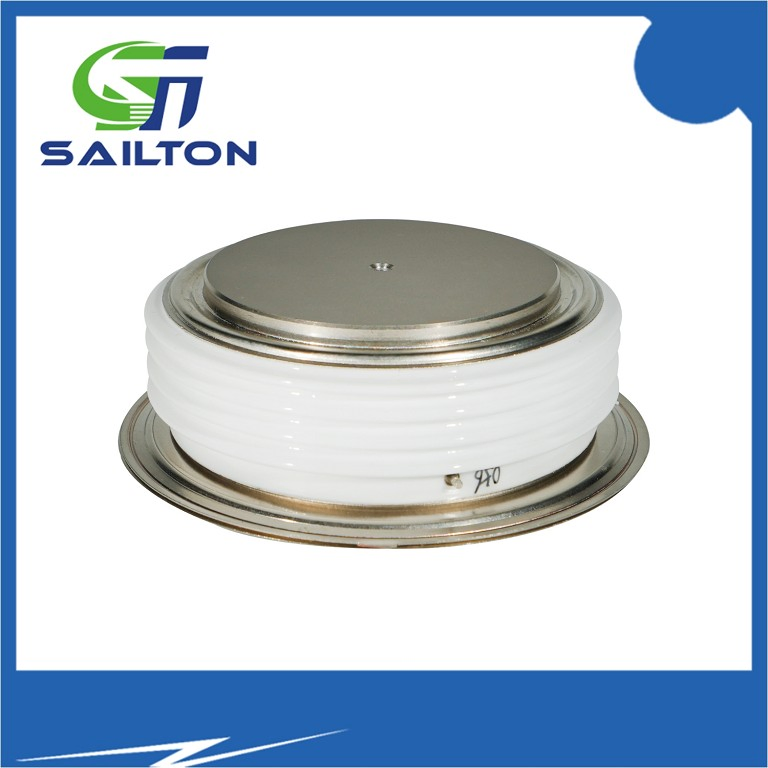

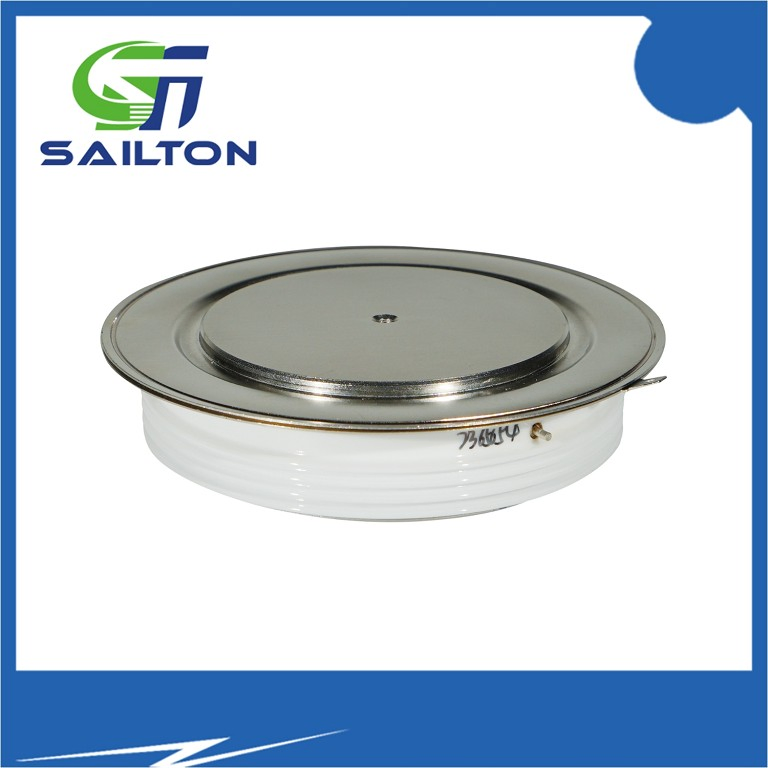

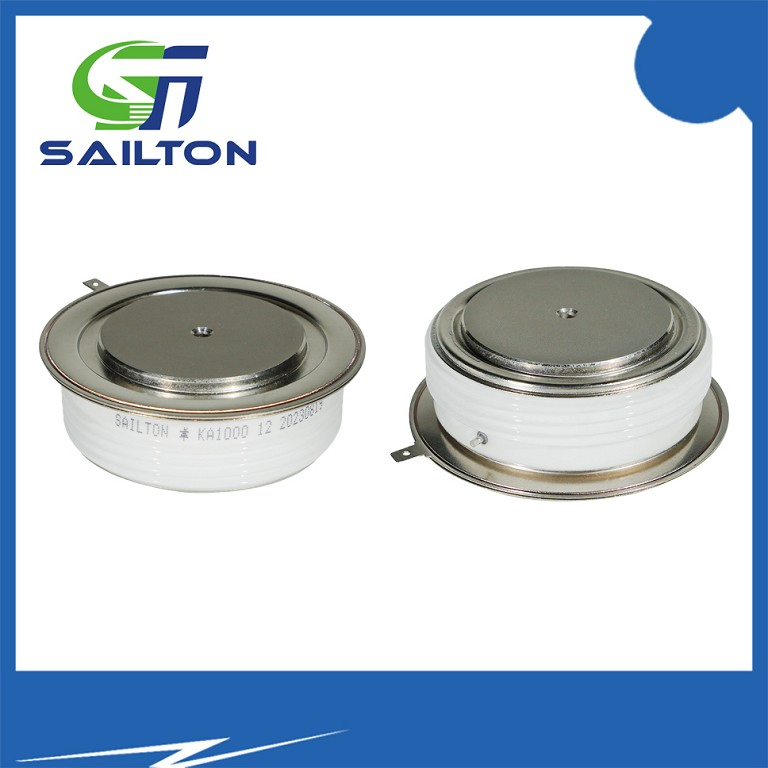

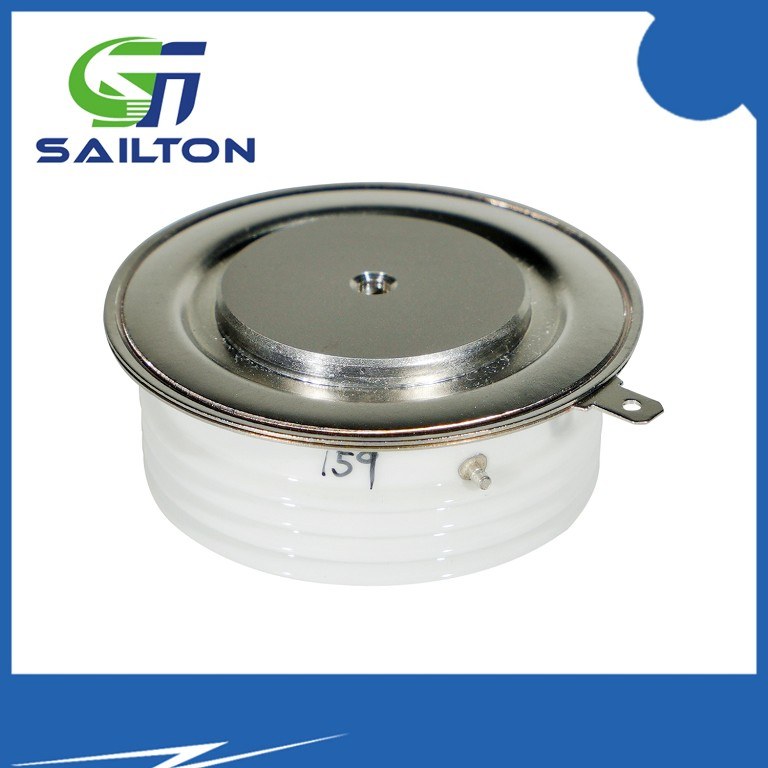

High Frequency Thyristor KA/KG Series
The vacuum closed tube process is utilized for aluminum diffusion. Featuring an advanced gate electrode structure, these components offer excellent dynamic characteristics suitable for frequencies between 2.5kHz and 20kHz.
Fast Switching Thyristors (also known as Inverter Thyristors) are critical components for furnace power supplies, induction heating, and frequency converters. Our range covers currents from 500A to 4000A and voltages from 1000V to 4500V.
| Part No. | IT(AV) (A) | VDRM/VRRM (V) | ITSM 50Hz (KA) | VTM (V) | ITM (A) | VGT/IGT | tq (µs) | Rthjc (ºC/W) | Outline |
|---|---|---|---|---|---|---|---|---|---|
| KA200/1200 | 200 | 1200 | 3.8 | 2.4 | 600 | 3/200 | 8~15 | 0.08 | T6 |
| KA500/1200 | 500 | 1200 | 9 | 2.4 | 1500 | 3/200 | 8~15 | 0.031 | T9 |
| KA800/1200 | 800 | 1200 | 15 | 2.4 | 2000 | 3/250 | 8~15 | 0.026 | T10 |
| KA1000/1200 | 1000 | 1200 | 19 | 2.4 | 3000 | 3.5/300 | 8~15 | 0.021 | T11 |

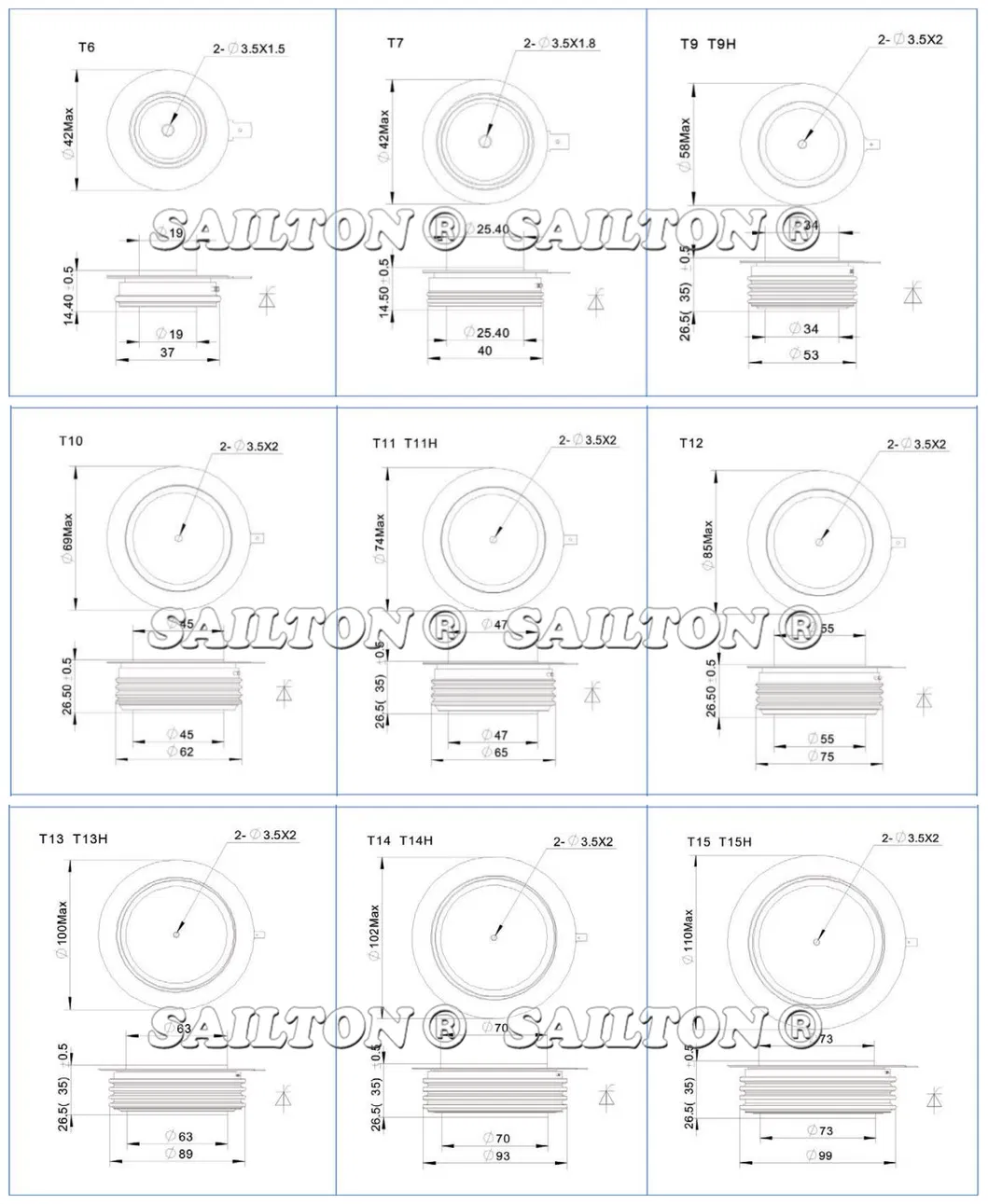

Outline Dimension & Diagrams:

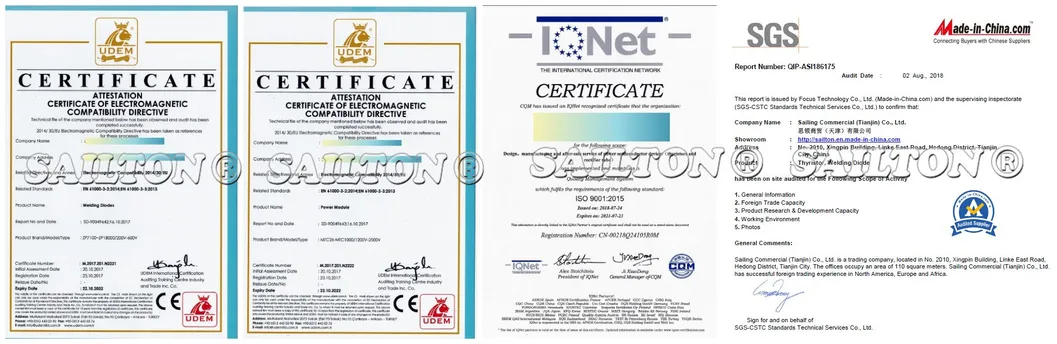

Quality Certificates:

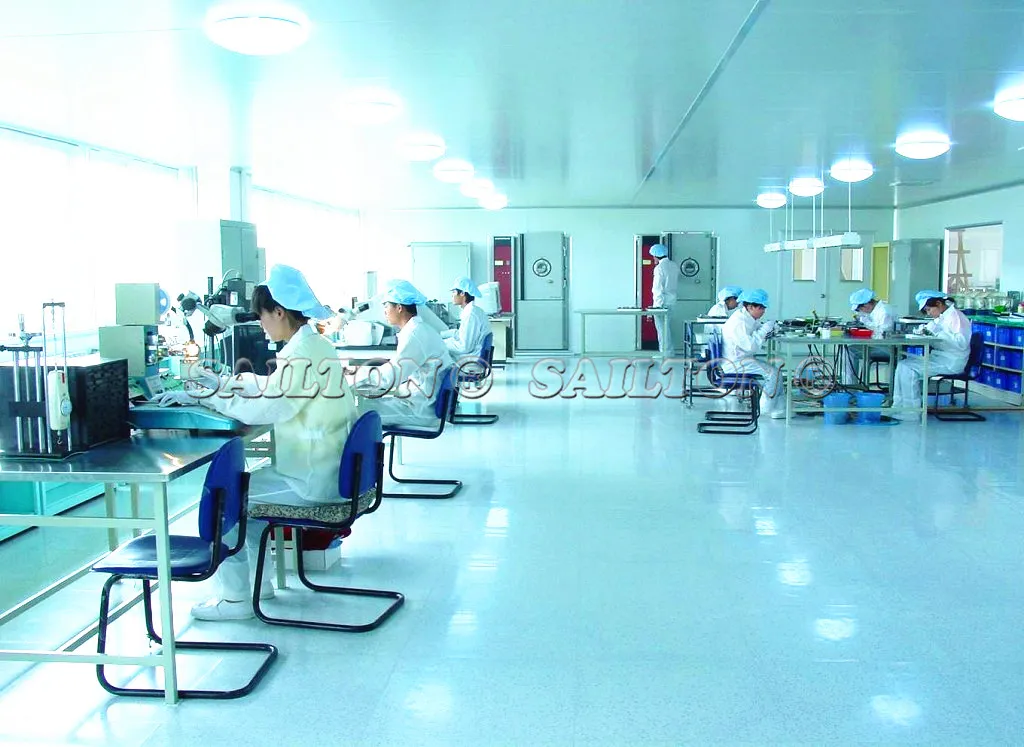

Factory Environment:
