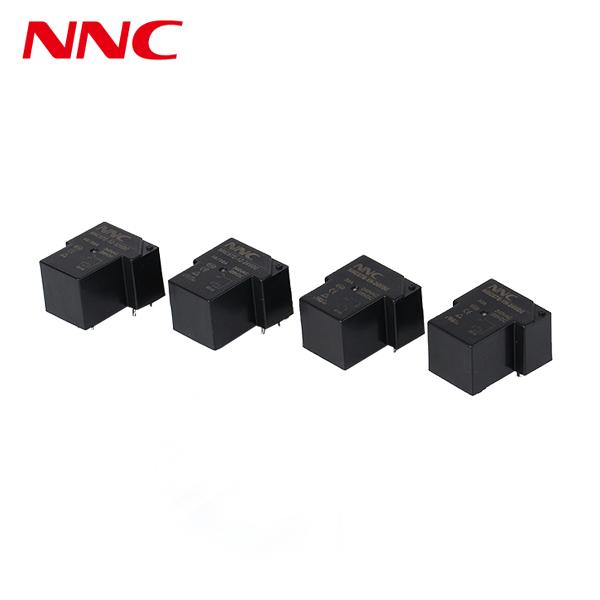

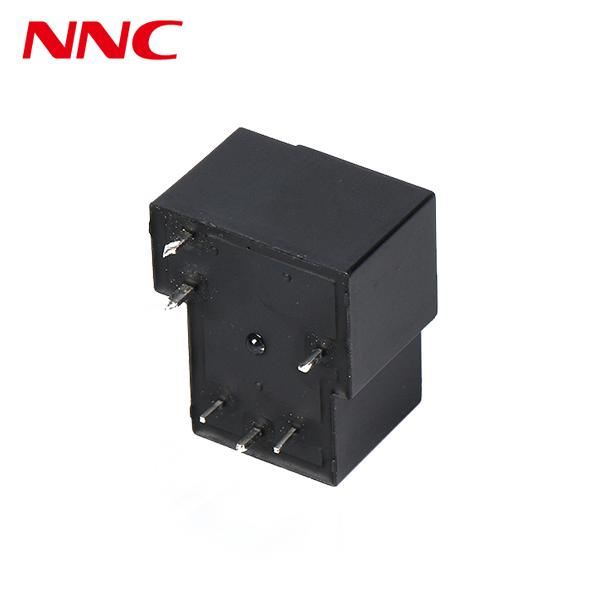

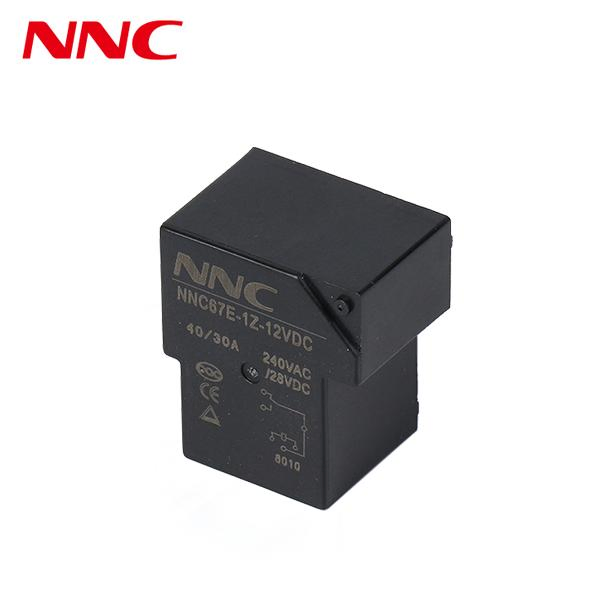

Miniature PCB Relay NNC67E-Z (T90) 30A 40A 4/5 Pins

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.
Model NO. NNC67E(T90)
Load Low Power
Action Principle Electromagnetic Type
Rated Contact Load 30A, 40A
Contact Material AG Alloy (Agsno2; Agcdo)
Certifications CQC, UL, CE, TUV, CCC
Specification 32mm*27.5mm*19.8mm
Production Capacity 500,000 PCS/Week
Product Description
Product Title Bar

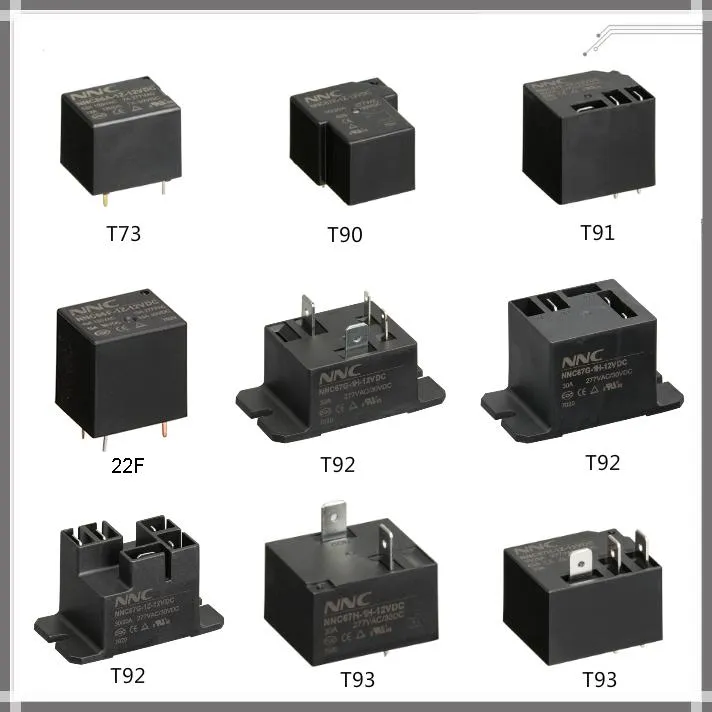

Miniature PCB Relay
Product Parameters
Dimension 32mm * 27.5mm * 19.8mm
Contact Form 1Z(SPDT); 1H(SPST-NO); 1D(SPST-NC)
Rated Load 30A / 40A
Max Switching Voltage 277VAC / 30VDC
Contact Resistance ≤100mΩ
Electrical Life ≥1*10⁵
Mechanical Life ≥1*10⁷
Coil Voltage DC3-110V, AC6-240V
Dielectric Strength 2500VAC/4500VAC (Contacts), 1800VAC (Coil)
Ambient Temperature -55ºC ~ 70ºC

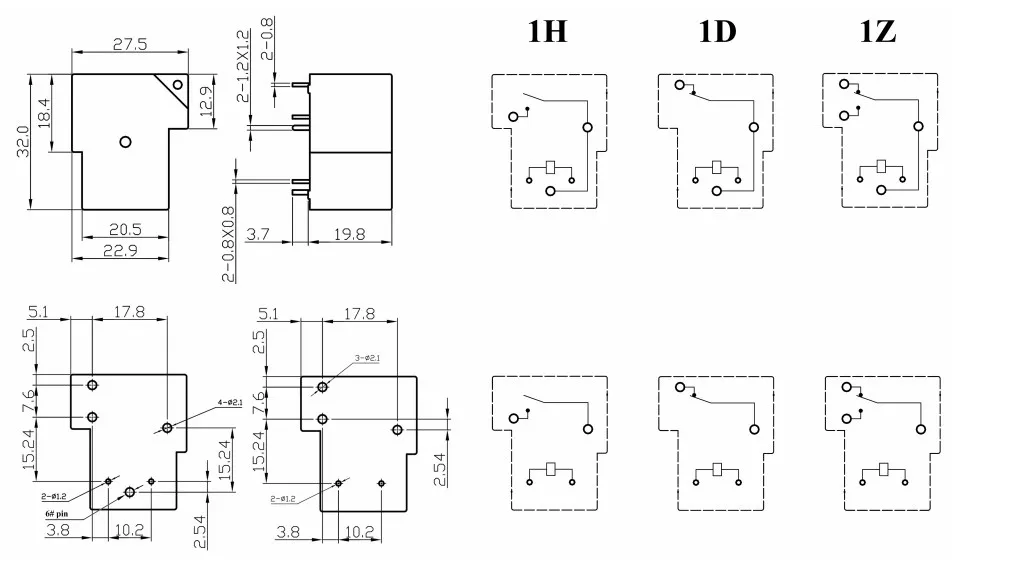

Wiring Diagram
Wiring diagram
Company Profile
Banner

Established in 2003, we are one of the leading industrial control component manufacturers in China. We provide a wide variety of industrial control components including: numerous types of relays (such as time relay, electromagnetic relay, solid state relay etc.), sensors, rotary encoders, switches (micro switch, limit switch, push button switch etc.) and other distribution control products.

We imported the most advanced production technology and equipment from around the world. We provide high quality products with an annual output reaching 80 million units. Under the ISO9001:2000, ISO 14001:2004, and OHSAS18001 management systems, our products have obtained CCC, CQC, CE, UL, and TUV certificates and passed ROHS testing.

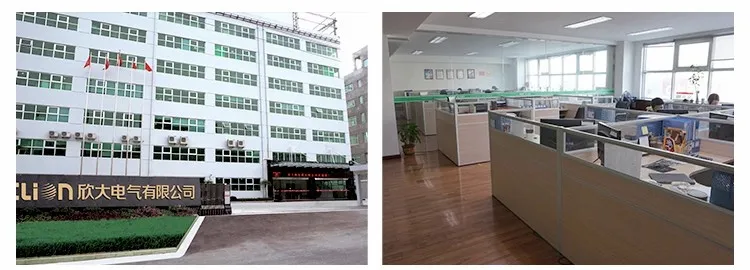

Factory Overview

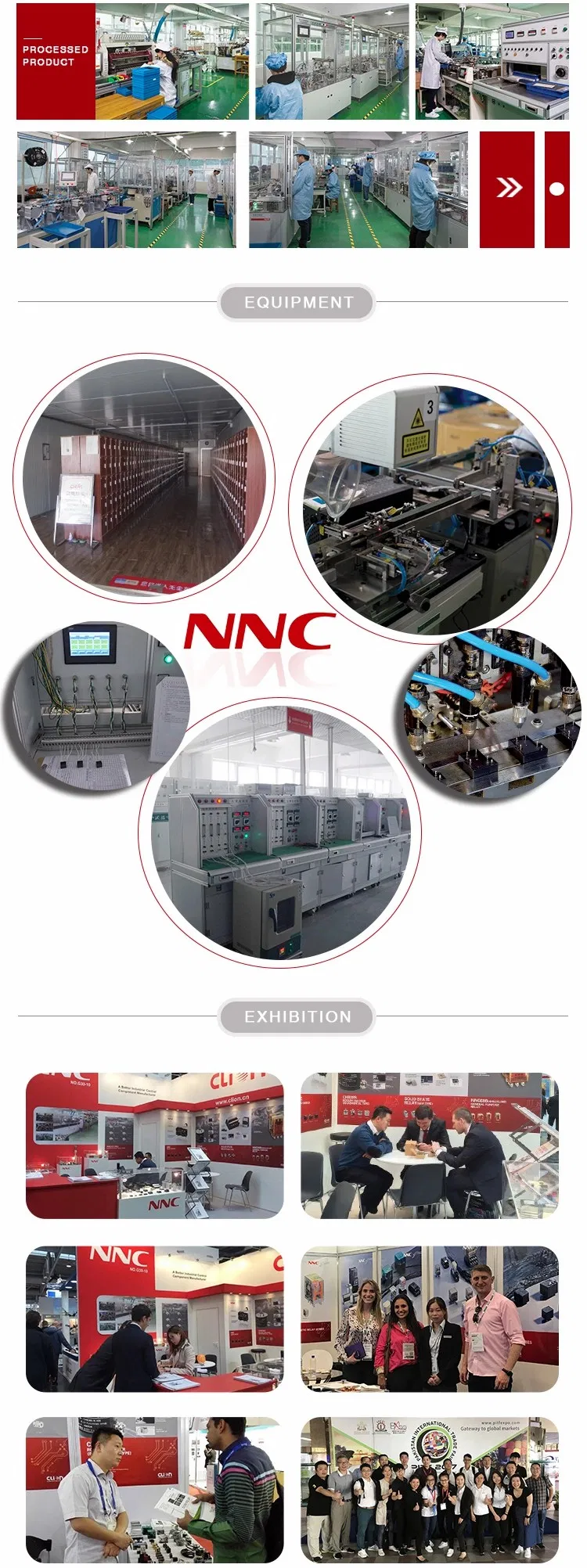

Production Line
Certifications
Certification Banner

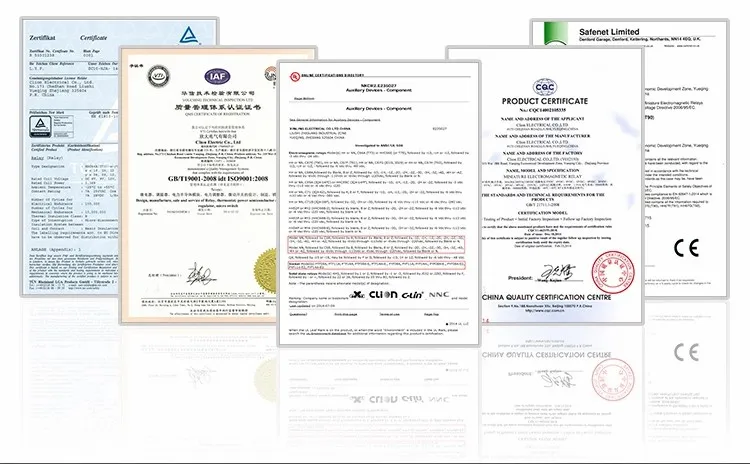

Certificate List
Packaging & Shipping
Packaging Banner
Shipping Details
Frequently Asked Questions
Q1: Are you a factory?
Yes, we have focused on relays and micro switches for more than 13 years.
Q2: How do you control the products' quality?
We utilize auto inspection machines and manual testing together before final packing.
Q3: What's your payment term?
We usually accept T/T (30% deposit, and the balance before delivery).
Q4: Would you accept to use our logo?
If you have a sufficient order quantity, we can provide OEM services for you.
Q5: Can I get a sample for reference?
We provide free samples for testing; you only need to cover the express shipping cost.
Q6: What is your delivery time?
Usually, production takes 20-35 working days depending on order volume.
