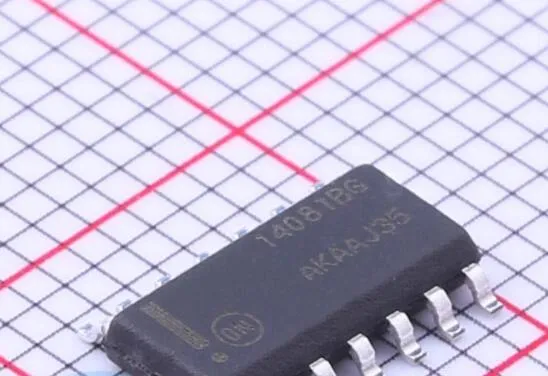

Electronic Components Mc14081bdr2g and Gate 4-Element 2-in CMOS

1 / 5

Electronic Components Mc14081bdr2g and Gate 4-Element 2-in CMOS

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

MC14081BDR2G

Operating Temp.

-55℃ - 125℃

Shape

SMD / SOIC-14

Technics

Thin Film IC

D/C

21+

Origin

China

Package Size

20.00cm * 20.00cm * 5.00cm

Gross Weight

0.500kg

Product Description

The B Series logic are constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). Their primary use is where low power dissipation and/or high noise immunity is desired.

Key Features:
Supply Voltage Range = 3.0 Vdc to 18 Vdc
All Outputs Buffered
Capable of Driving Two Low-power TTL Loads
Double Diode Protection on All Inputs
Pin-for-Pin Replacements for CD4000 Series
Pb−Free and RoHS Compliant

Technical Specifications

Attribute	Details
Model NO.	MC14081BDR2G
Product Category	Audio Amplifiers / Logic Gates
Switching Frequency	380 kHz
Package Shape	DIP (Dual In-line Package) / SOIC
Series	MC14081BDR2G
Function	Speaker Driver / AND Gate 4-Element 2-IN CMOS
Trademark	STMicroelectronics

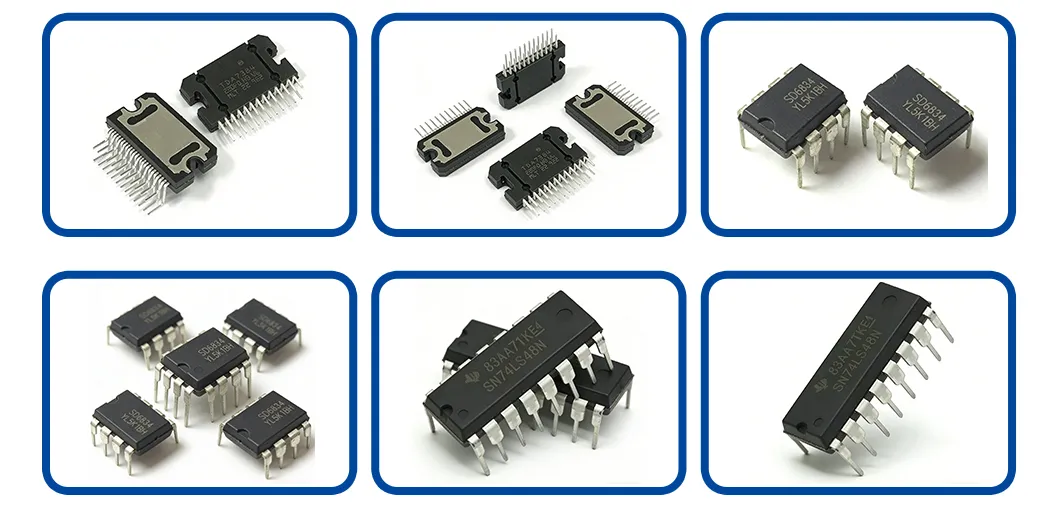

Main Product Display

About Our Expertise

Established in 2008, we have become a leader in Computer Hardware & Electronic Components distribution with global print. We focus on transparency, quality and traceability, operating as a professional distributor in the Industry.
