📋 Basic Information
Installation
DIP Resistor
Material
Carbon Film Resistor
Type
Rotary Potentiometer
Resistance Scale
Linear Scale
Application
Commercial Steam Oven
Capacity
10,000 pieces/Day
⭐ Key Features
Robust Construction
Designed for industrial durability.
500,000 Cycle Life
Extended operational longevity.
IP67 Water Resistant
High protection against dust and water.
Precision Linear
10% precision linearity for accurate control.
Wide Temp Range
Operates from -40°C to 125°C.
Multiple Terminals
Solder Lug, Faston, and PC Terminal options.

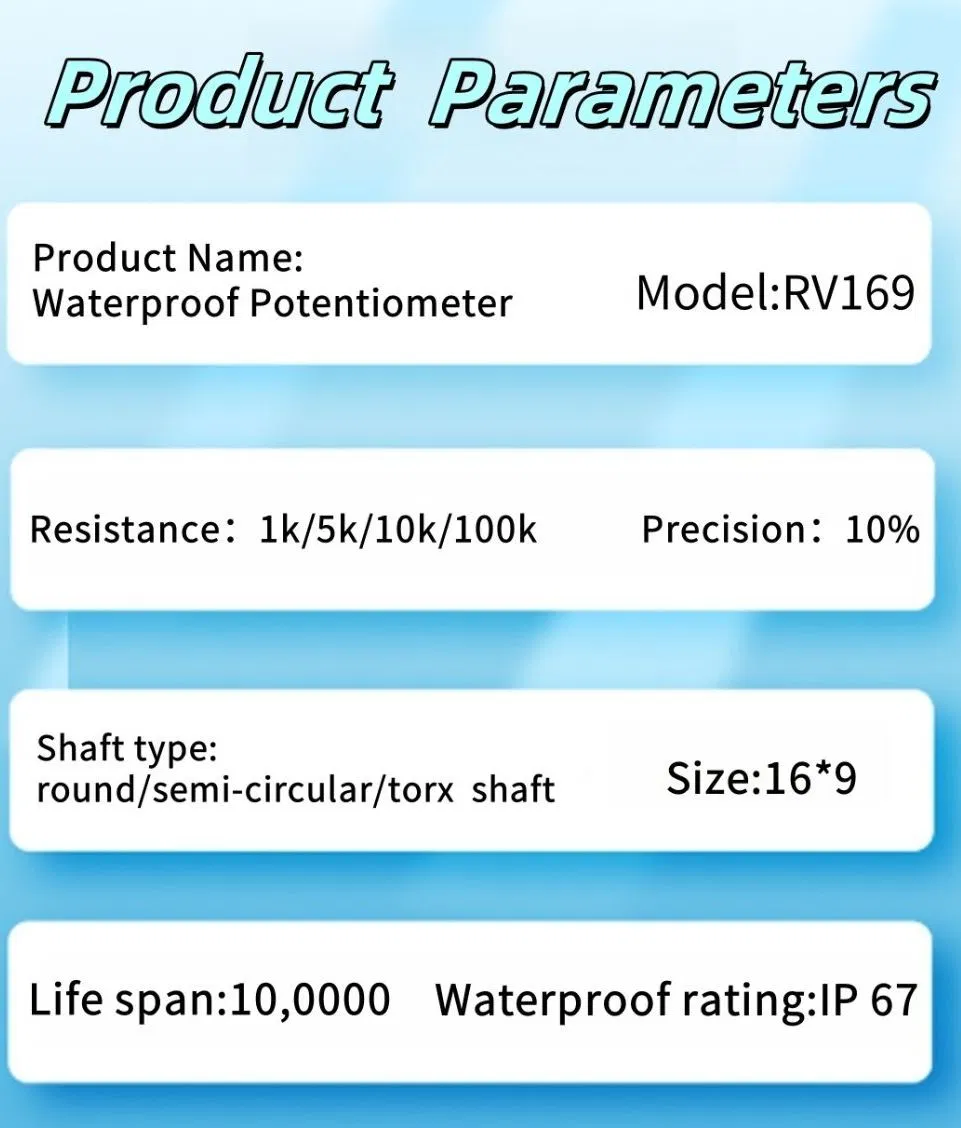

⚙️ Product Parameters
| Resistance Range |
1 K through 500 K ohms, linear |
Push-Pull Strength |
13.6 kg for 10 seconds |
| Resistance Tolerance |
± 10%, ± 20% |
Mounting Info |
Bushing Mount |
| Power Rating |
0.25 watts @ 55°C |
Rotational Life |
500,000 cycles |
| Dielectric Strength |
750 VDC for 1 minute |
Linearity |
± 2% |
| Max Voltage |
500 VDC |
Operating Temp |
-40°C to 125°C |
| Insulation Resistance |
1000 Megohms min @ 500 VDC |
Storage Temp |
-55°C to 150°C |

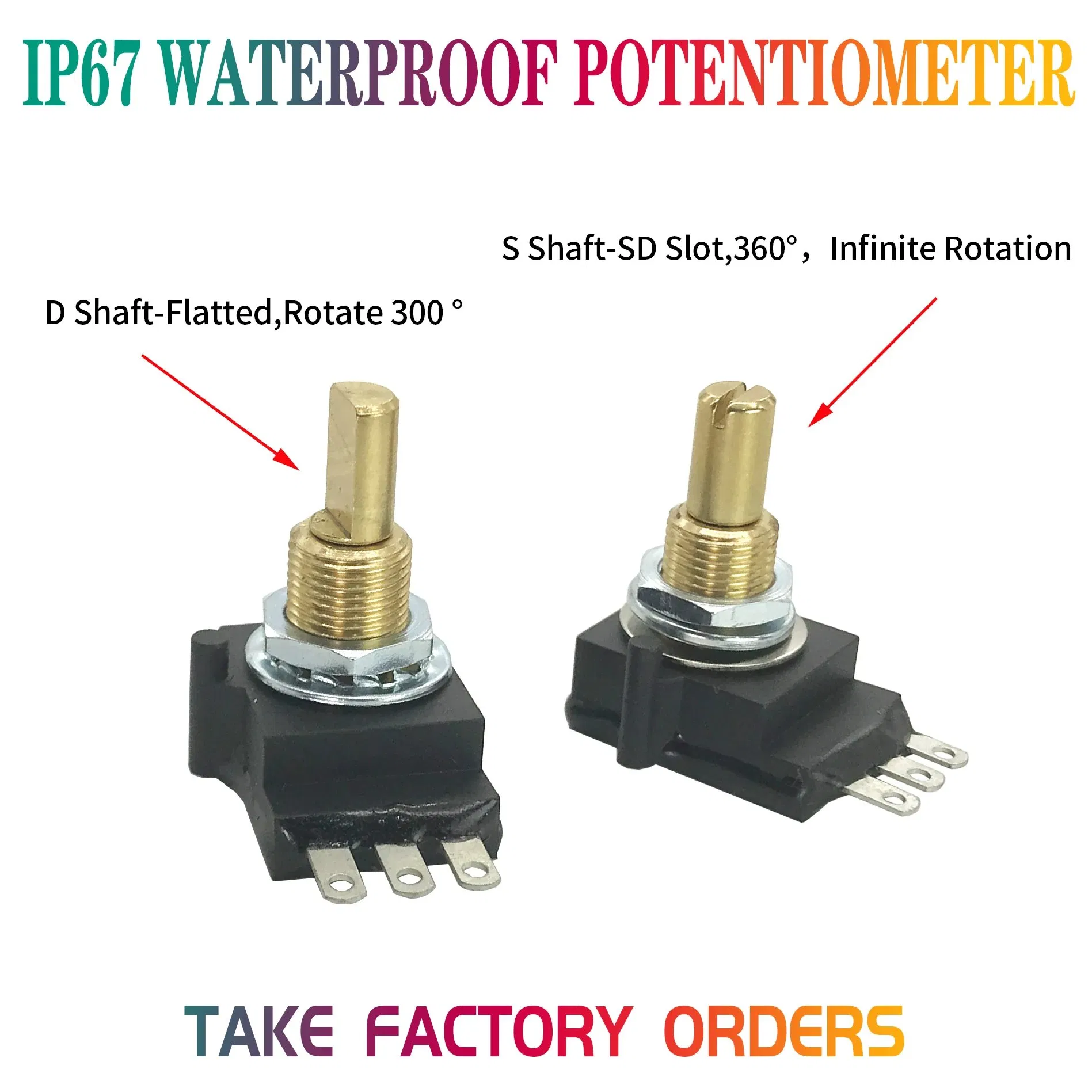

| Angle of Rotation |
300°, 360° |
IP Rating |
IP54, IP67 |
| Rotational Torque |
20 - 180 gf-cm |
Vibration |
15G, 10 to 2000 Hz |
🖼️ Product Gallery & Details
❓ Frequently Asked Questions

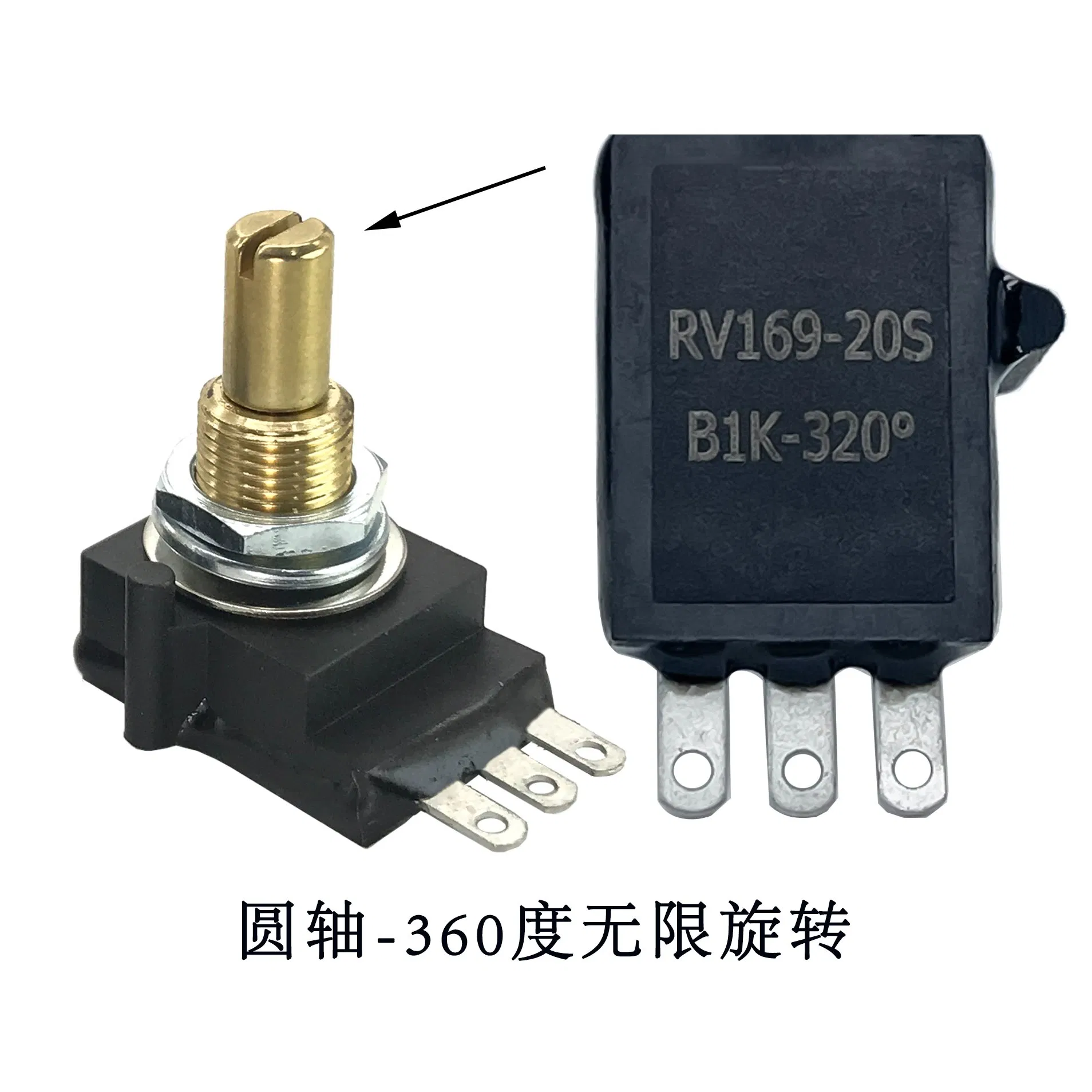

What is the expected rotational life of the RV169 potentiometer?
The RV169 is designed for high endurance with a rotational life of up to 500,000 cycles.
Is this potentiometer waterproof?
Yes, it features water-resistant options with Ingress Protection ratings of IP54 or IP67, depending on the specific model requirements.
What temperature range can this device withstand?
It has a wide operating temperature range from -40°C to 125°C, making it suitable for extreme industrial environments.
In what applications is the RV169 typically used?
It is commonly applied in commercial steam ovens and other industrial or commercial equipment requiring high-precision rotary sensing.
What are the available resistance options?
The resistance range spans from 1 K through 500 K ohms with a linear scale.
What are the terminal mounting options?
The product supports Solder Lug, Faston, and PC Terminal connections to accommodate different installation needs.
