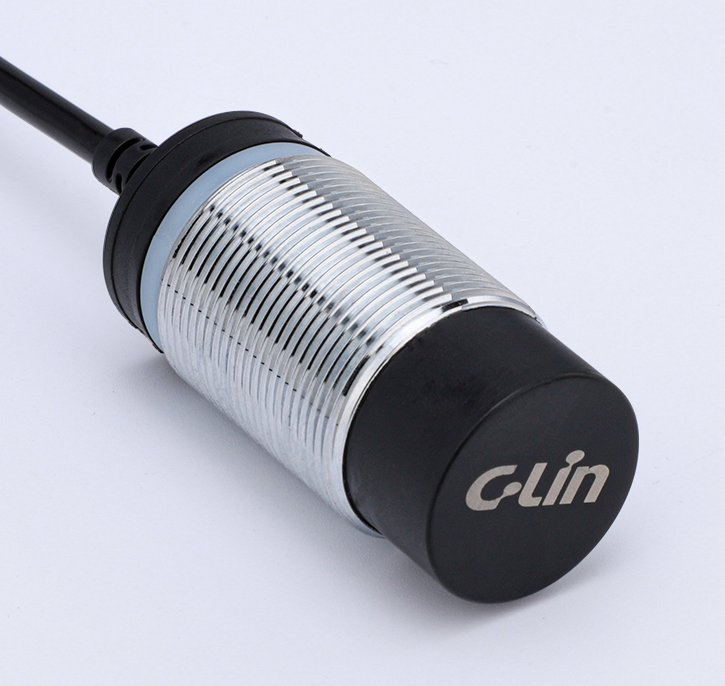

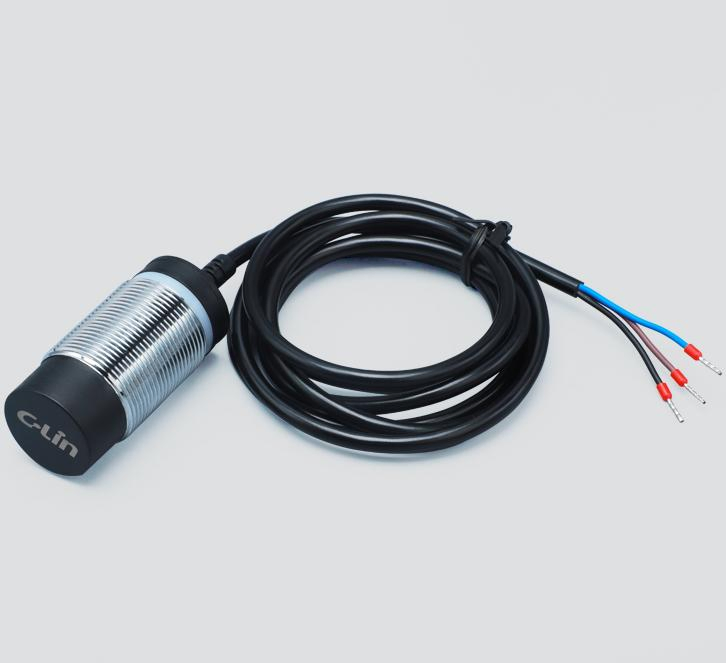

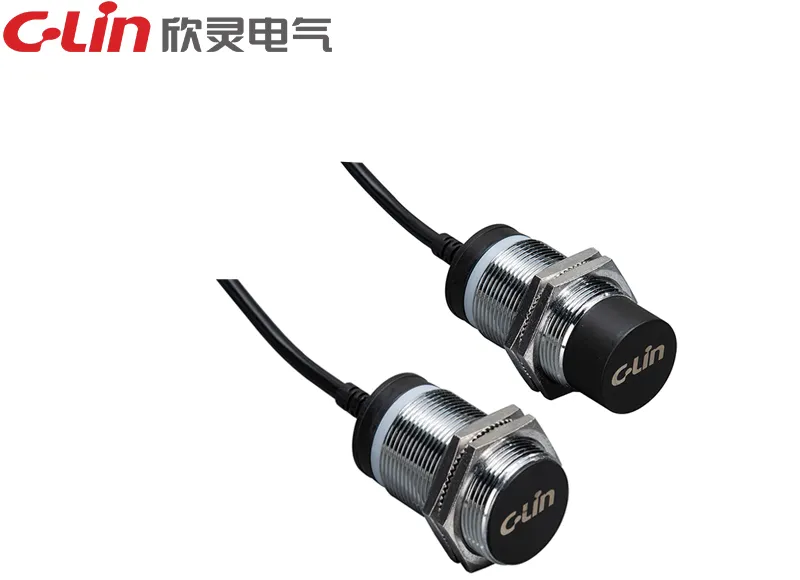

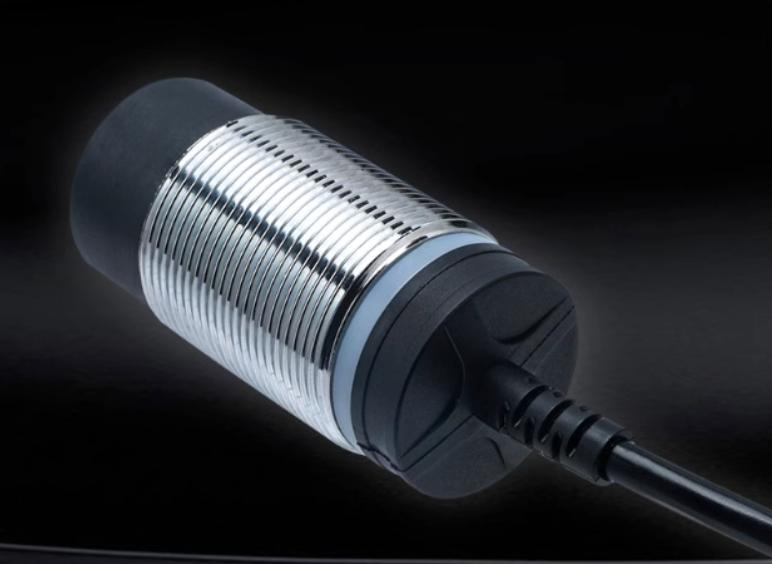

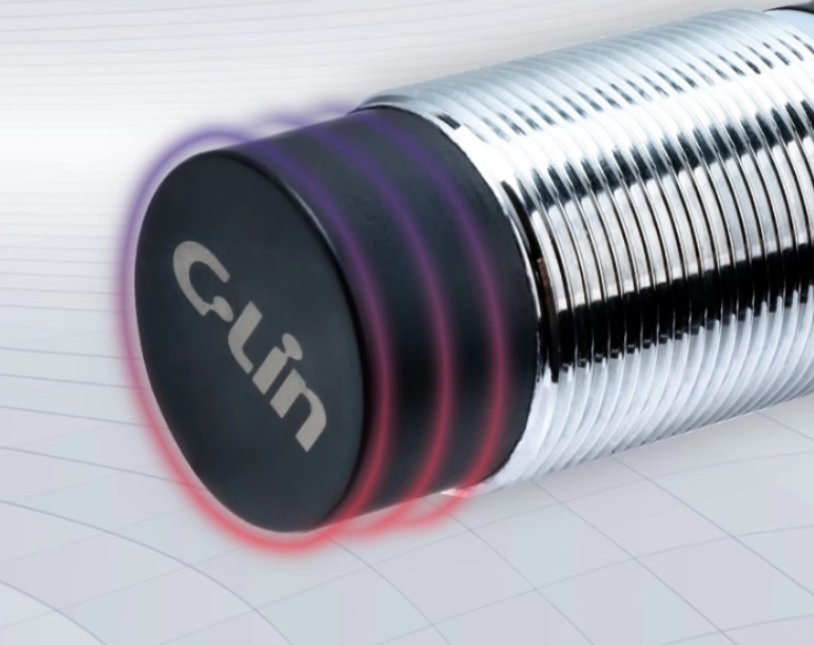

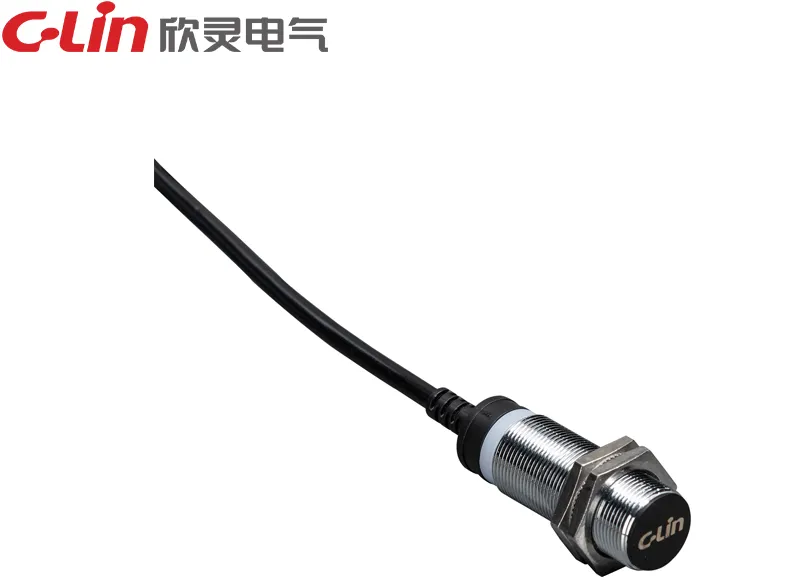

LJAS Series Upgraded Inductive Proximity Sensor/ Displacement Sensors

1 / 4

LJAS Series Upgraded Inductive Proximity Sensor/ Displacement Sensors

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

■ Basic Information

Model NO.

LJAS

Wires

NPN/PNP

Standard

Application

Corridor

Certification

ISO, CE, CCC

Detection Distance

5mm±10%

Standard Test Objects

18*18*1mm Iron / 25*25*1mm Iron

Sensor Head

Flush-Mounted

Protection Level

IP67

Material

Brass with Chrome Plating

Specification

8mm/12mm/18mm/30mm

Origin

China

Production Capacity

5000PCS/Month

■ Product Description

Proximity switch is a displacement sensor with switching output, including NPN, PNP, normally open, normally closed, and relay options. It detects transparent and opaque objects such as metal (iron, steel, copper), plastic, glass, wood, water, paper, and magnets. It integrates seamlessly with PLC, servo controllers, frequency converters, counters, and controllers for automated signal input across machinery, textile, light industry, papermaking, printing, and packaging industries.

Inductive proximity switch: Detects metal objects (iron, steel, copper, etc.).
Capacitive proximity switch: Detects any object (glass, metal, plastic, water, oil, paper, etc.).
Hall proximity switch: Detects magnetic metal (magnets).
This series implements the GB/T14048.10 standard.

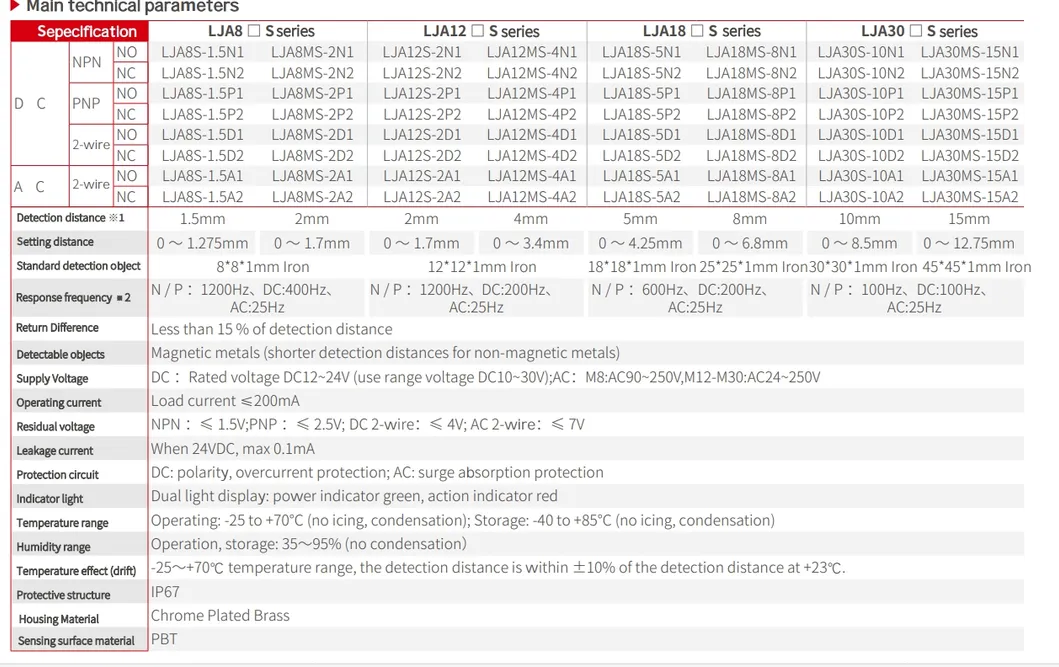

■ Detailed Model Specifications

Output Form		Mode	Model
NPN	NPN	Normal Open	LJA18S-5N1
NPN	NPN	Normal Close	LJA18S-5N2
PNP	PNP	Normal Open	LJA18S-5P1
PNP	PNP	Normal Close	LJA18S-5P2
Detection Distance	5mm
Setting Distance	0 ~ 4.25mm
Standard Object	18181mm Iron
Response Frequency	N/P type: 600Hz, DC: 200Hz, AC: 25Hz
Working Power	DC: 12~24V (Range 10~30V); AC: M8: 90~250V, M12-M30: 24~250V
Temperature	Operating: -25 to +70°C; Storage: -40 to +85°C

■ Product Features

✔ Easy Installation: Simple connection design for rapid application.
✔ Multi-Protection: Integrated polarity protection and over-current protection.
✔ Dual Light Indicator: Green LED for power status, Red LED for action confirmation.

■ Our Advantages

✦ Industry Leadership

39 Years of professional manufacturing experience in industrial control components.

✦ Quality Standards

Advanced technology applications aligned with international quality standards.

✦ High Capacity

Annual production capacity in the tens of millions, leading the manufacturing industry.

✦ Custom Solutions

Providing custom services and delivering tailored application solutions.

■ Testing & Production

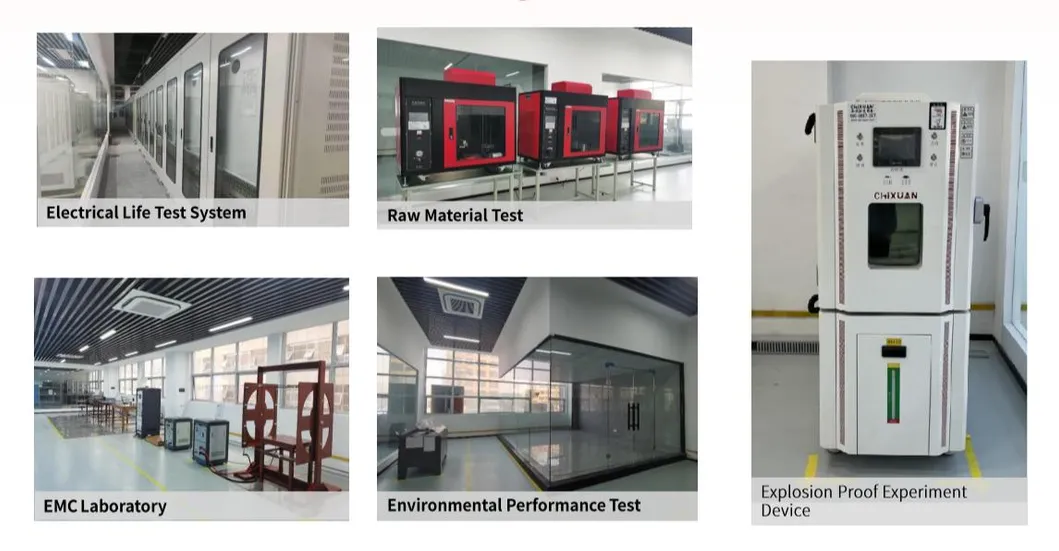

Experimental Center Testing Device

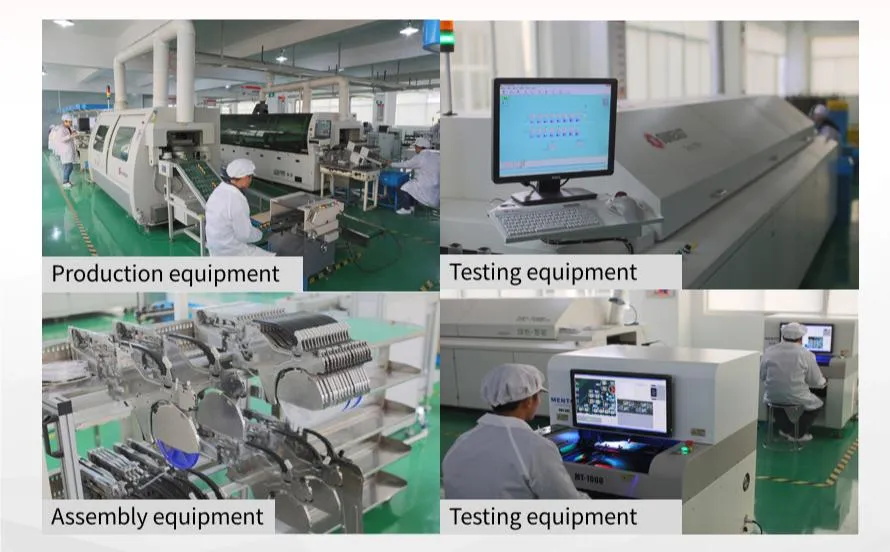

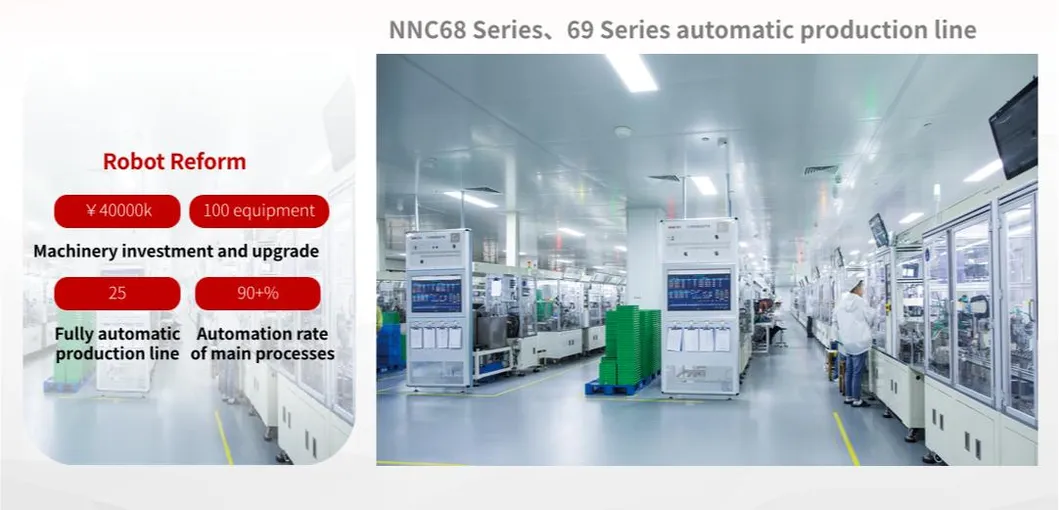

Automatic Production Line

Frequently Asked Questions

Q1: What materials can the LJAS series inductive proximity switch detect? A1: The inductive proximity switch is specifically designed to detect metal objects such as iron, steel, and copper.

Q2: What is the protection rating for these sensors? A2: These sensors feature an IP67 protection level, making them resistant to dust and water immersion.

Q3: How do the dual light indicators help during operation? A3: The green indicator shows that the power is on, while the red indicator lights up when the sensor detects an object and performs an action.

Q4: Can these sensors be used with a PLC? A4: Yes, they are widely used with PLCs, servo controllers, frequency converters, and counters for automated signal processing.

Q5: What is the standard detection distance for the LJA18S model? A5: The standard detection distance is 5mm with a ±10% tolerance range.

Q6: What is the operating temperature range? A6: The operating temperature range is -25 to +70°C, provided there is no icing or condensation.
