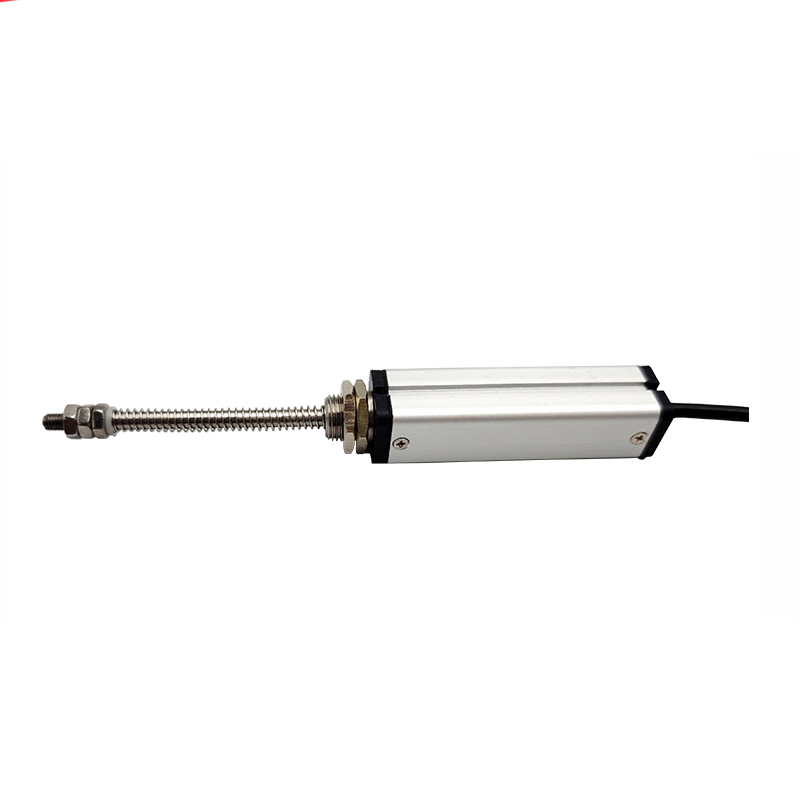

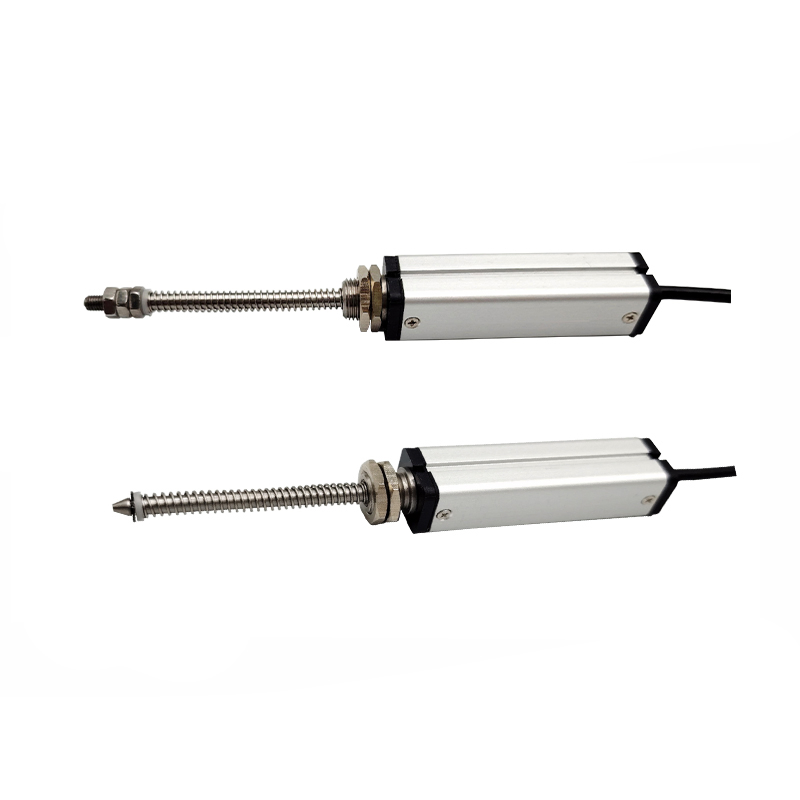

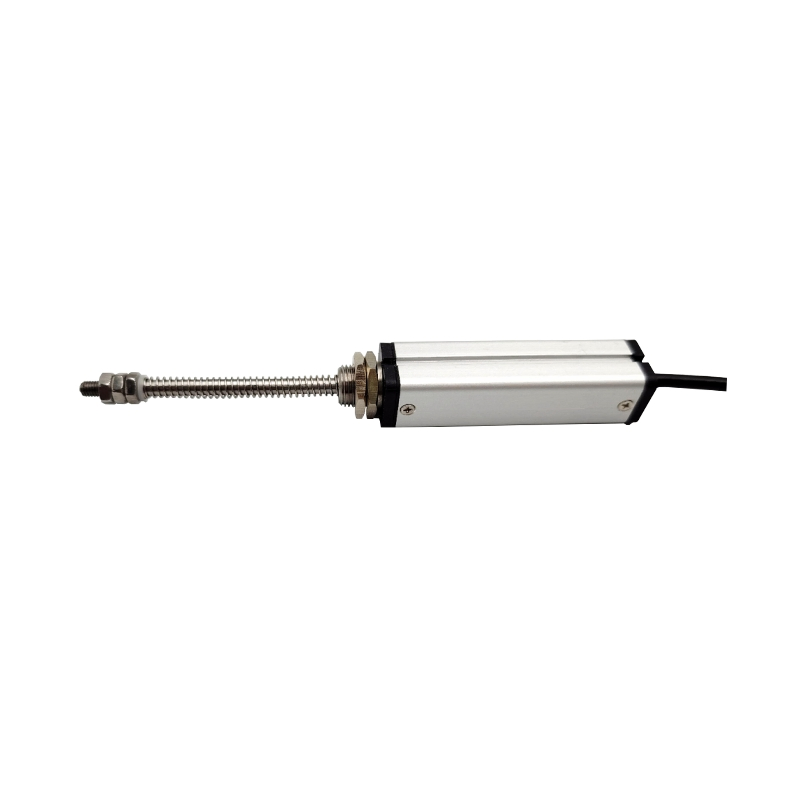

Ksc Mini-Type Self-Return Linear Position Potentiometer Transducer
Ksc Mini-Type Self-Return Linear Position Potentiometer Transducer
Ksc Mini-Type Self-Return Linear Position Potentiometer Transducer
Ksc Mini-Type Self-Return Linear Position Potentiometer Transducer
Ksc Mini-Type Self-Return Linear Position Potentiometer Transducer
1 / 5
Ksc Mini-Type Self-Return Linear Position Potentiometer Transducer
Ksc Mini-Type Self-Return Linear Position Potentiometer Transducer
Ksc Mini-Type Self-Return Linear Position Potentiometer Transducer
Ksc Mini-Type Self-Return Linear Position Potentiometer Transducer
Ksc Mini-Type Self-Return Linear Position Potentiometer Transducer

Ksc Mini-Type Self-Return Linear Position Potentiometer Transducer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
KSC-25mm
Movement
Linear Displacement
Material
Aluminium
Accuracy Grade
0.05%Fs
IP Rating
IP65
Resistance
5K
Stroke Length
10-200mm
Repeatability
0.01mm
Operating Speed
10m/S
Temperature Range
-60 ℃~ +150 ℃
Service Life
Over 100*10^6
Max Voltage
36VDC
Product Description

The KSC micro self-resetting linear displacement sensor has a measurement range of 0-50mm. It operates on the principle of a potentiometer and outputs a DC voltage signal. It can be equipped with an internal or external transmitter module to convert the signal into standard 0-5V, 0-10V, 4-20mA analog signals or RS485 digital signals.

Product Parameters
Range 0-25mm 50mm
Linear accuracy 0.25%FS 0.1%FS
Resistance value (10%) 1K Ω/2K Ω 5K Ω
Repeatability accuracy 0.01mm
Mechanical stroke Range + 4mm
Resolution Infinite uninterrupted analysis
Maximum allowable working voltage 24V DC
Construction current ≤10 mA
Output signal 0-100% given input operating voltage (varies with displacement)
Maximum working speed 10m/s
Operating temperature Range -60 ºC ~ 150 ºC
Impact coefficient IEC68-2-29 : 1968 50g
Detailed Photos

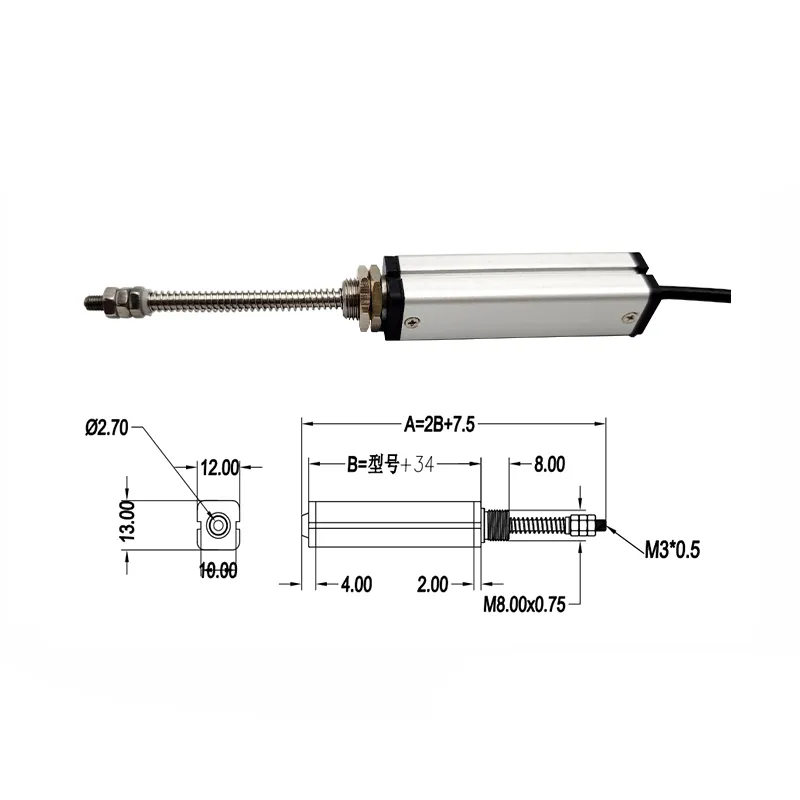

Linear Position Potentiometer

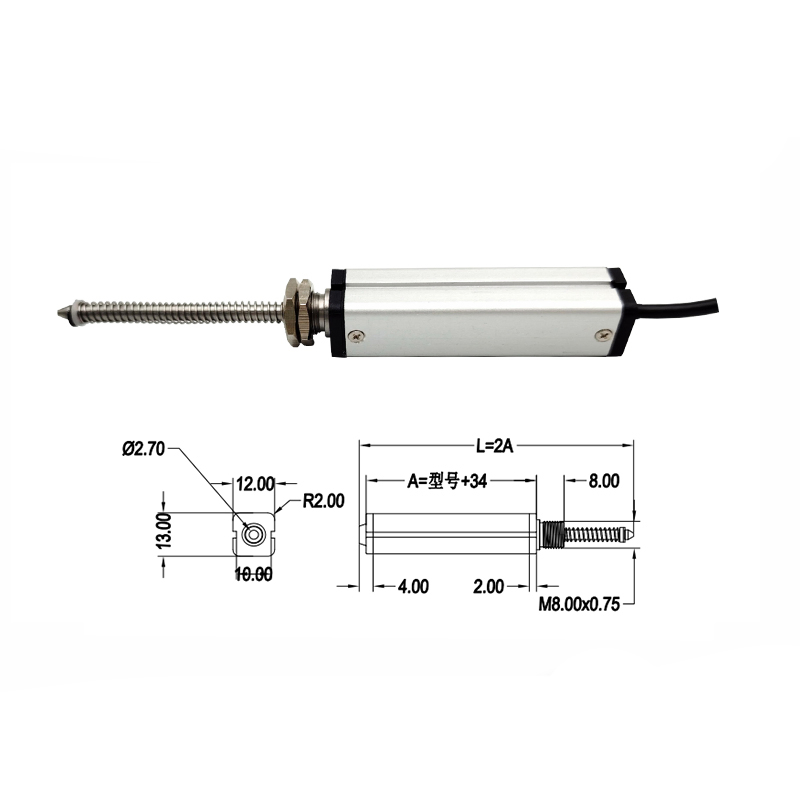

Linear Position Potentiometer Detail
Installation Instructions

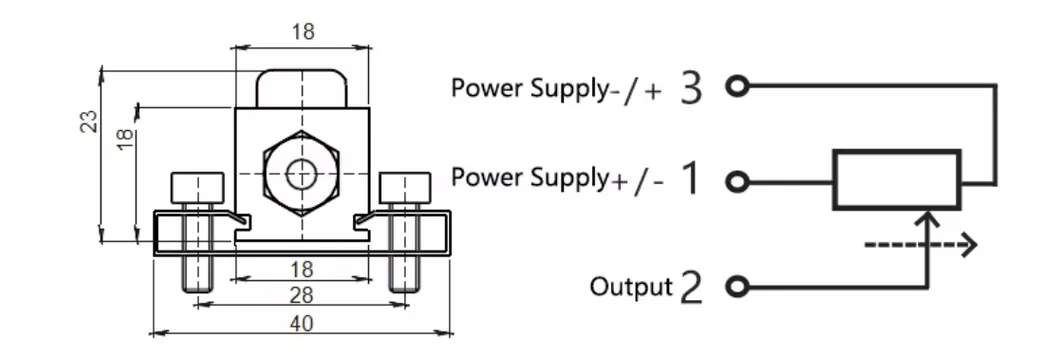

Installation Diagram
Production & Packaging
Production Facility
Testing Equipment

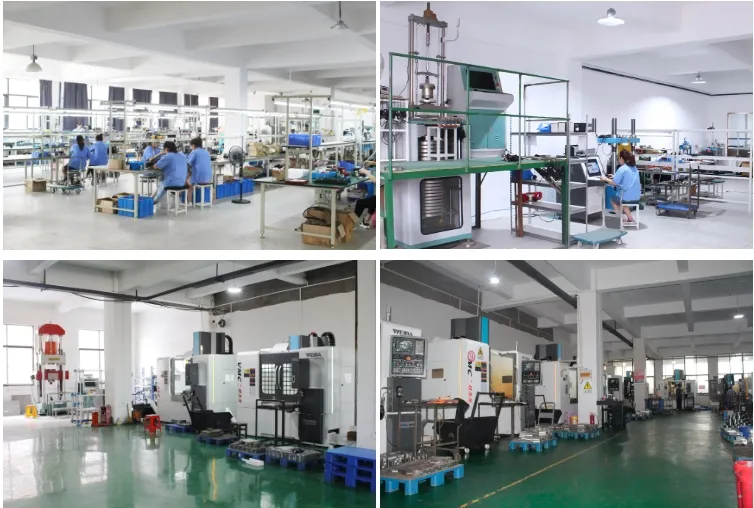

Workshop
Quality Control
Packaging & Shipping
Packaging Details
Frequently Asked Questions
What are the available output signals for this sensor?
There are four primary output signals: analog resistance (0-5/0-10KΩ), analog voltage (0-5/0-10 VDC), analog current (4-20 mA), and digital RS485.
How can I request a formal quotation?
Please send your inquiry with specific requirements. You can submit your needs through the inquiry form or contact our sales team directly via the provided platform tools.
What information is required to place an order?
To process your order accurately, we need to know the required stroke length, the specific signal output type, and the intended application environment.
Are samples available for testing?
Yes, we can provide samples for evaluation. Depending on the potential for follow-up orders, we may offer standard samples or even free samples for your project.
Is there a discount for bulk purchases?
Yes, we support bulk orders. If you are purchasing a large quantity, please contact us to discuss volume-based pricing and discounts.
When does production begin after an order is placed?
Production is typically arranged immediately following the confirmation and receipt of your payment to ensure the fastest possible delivery.
