| Model NO. | VSU-MR12.10.2 |
| Function | APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer, Voice Control |
| Material | Plastic |
| Bus Voltage | 21-30 VDC |
| Static Current | ≤12mA |
| Charging Current | ≤20mA |
| Static Power Consumption | ≤360MW |
| Charging Power Consumption | 600MW |
| Shell Material | PA66 |
| Installation Method | DIN Rail Installation |
| Working Temperature | -5°to+45°C |
| Storage Temperature | -25°CTO+55°C |
| Relative Humidity | Max 90% |
| Specification | Max 10A (resistive load) |
| HS Code | 8517699000 |
| Package Size | 25.00cm * 20.00cm * 18.00cm |
| Package Gross Weight | 5.000kg |
| Lead Time | 3 days (1 - 100 Pieces) To be negotiated ( > 100 Pieces) |

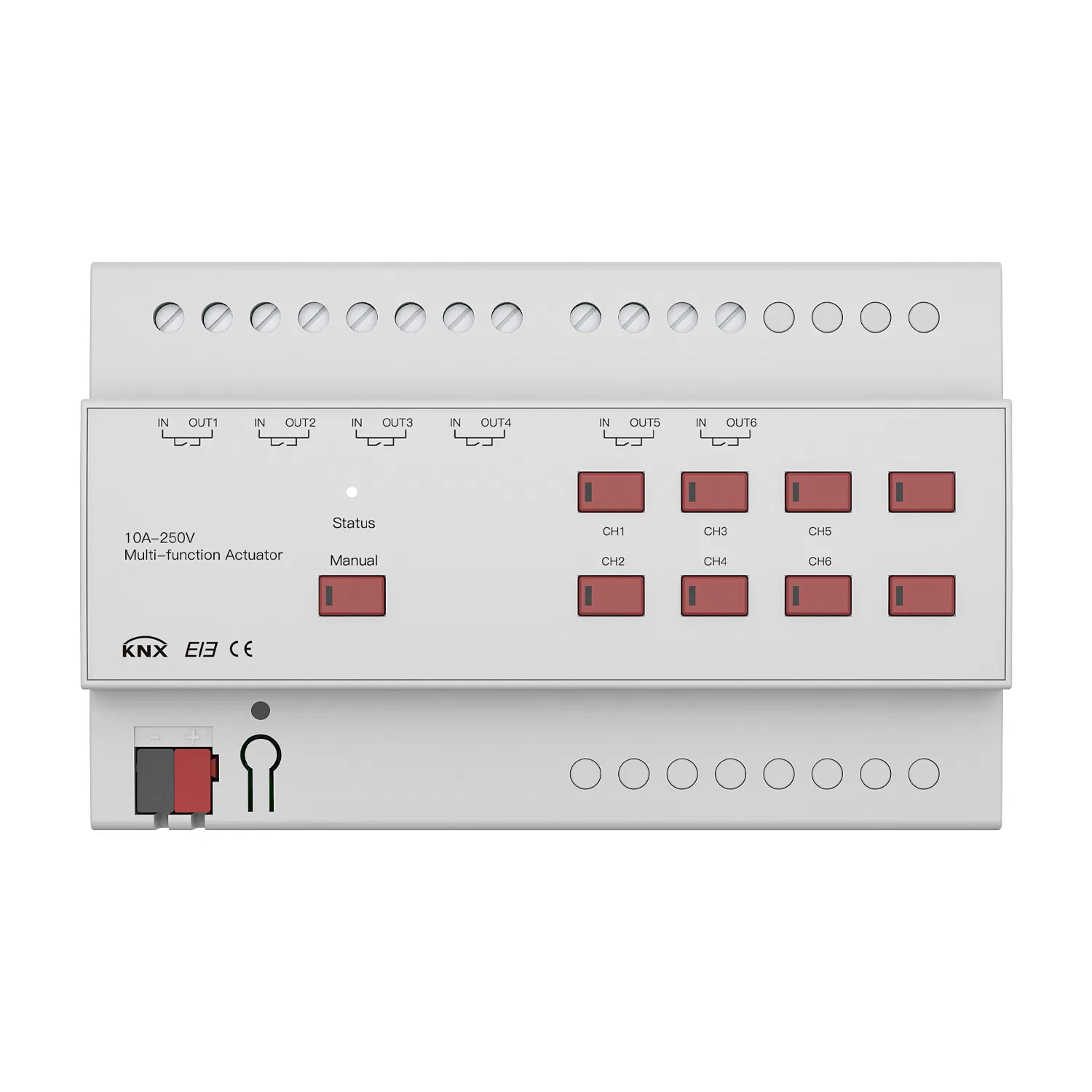

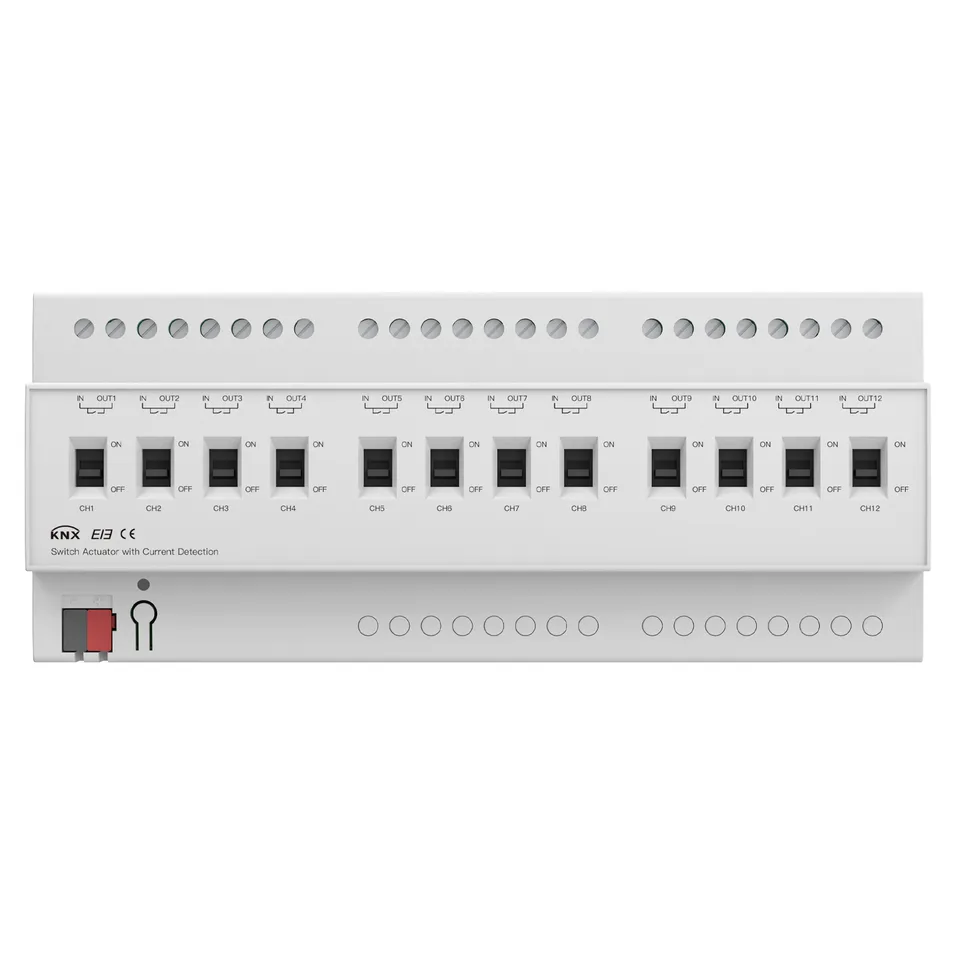

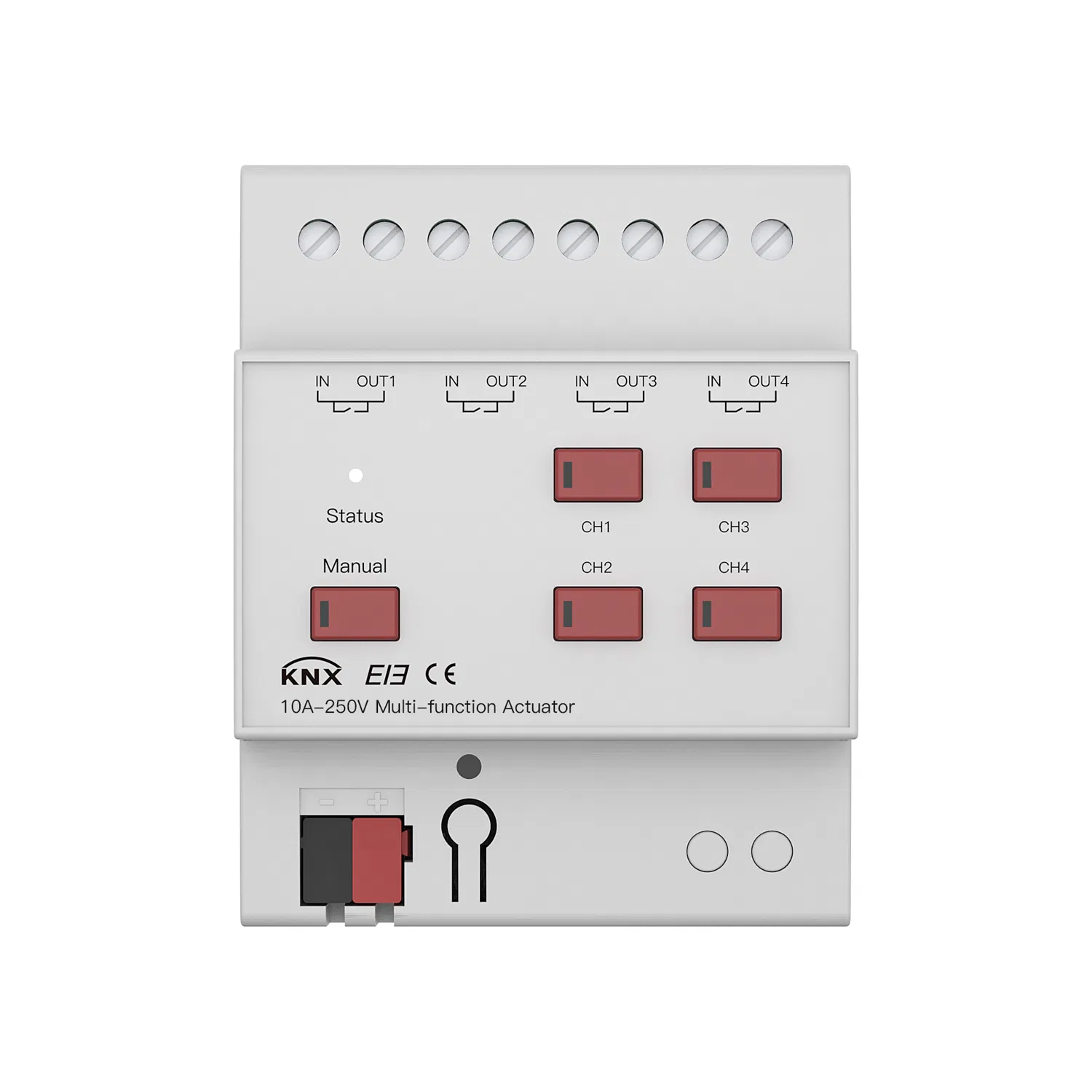

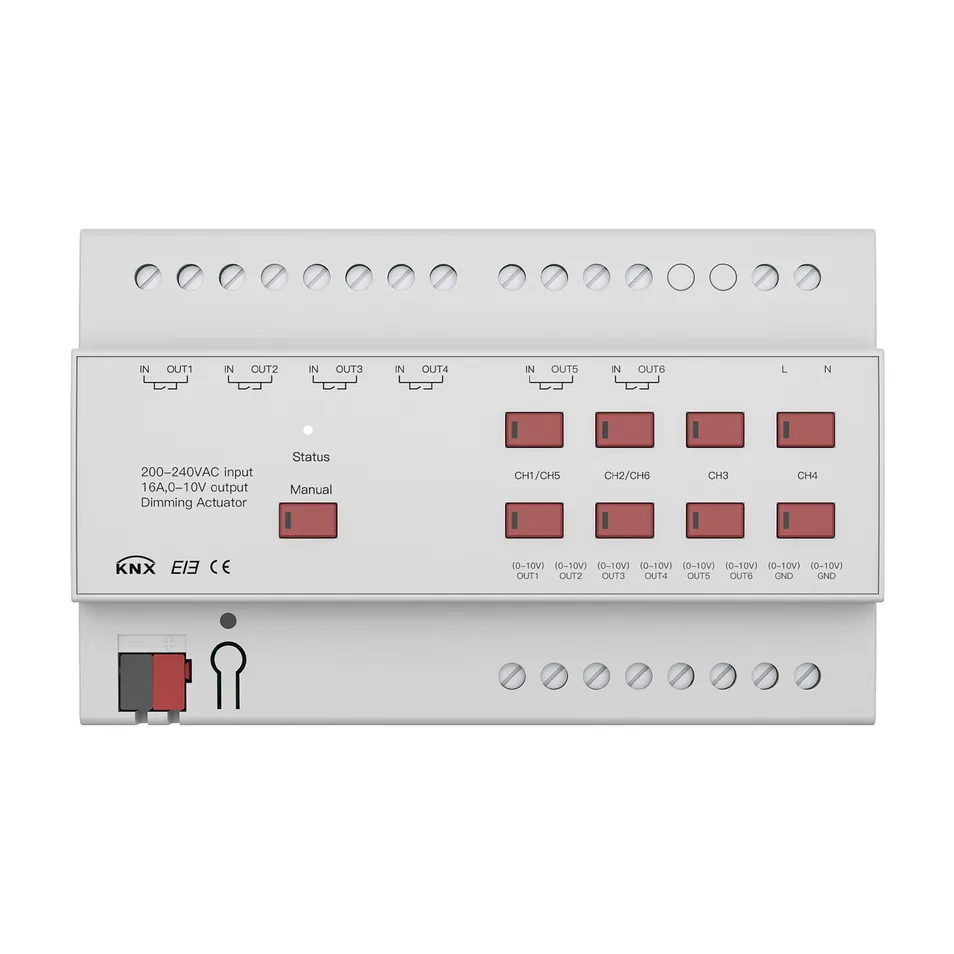

The 10A series switch execution module is a modular installation device with 4, 6, 8, 12, 16, 20, and 24 outputs. Wiring through EIB bus connects the terminals to the EIB/KNX system and use the engineering design tool software ETS (version ETS4.0 or above) to allocate physical addresses and set parameters.
The maximum load current output of each 10A series switch execution module is 10A, including multiple intelligent relays, each of which can be independently controlled. The switch for 2000W lamps is only applicable to resistive load lamps. For inductive and capacitive loads, it is generally advisable to use 1/5 or 1/6 of the maximum current.
The module is equipped with manual control buttons and LED indicators to indicate the status of each circuit switch. The communication distance of dry contact (I/O) wiring is less than 10m.
| Bus voltage | 21-30 VDC, obtained through KNX bus |
| Static current | ≤ 12mA |
| Charging current | ≤ 20mA |
| Static power consumption | ≤ 360mW |
| Charging power consumption | ≤ 600mW |
| Main output | 4/6/8/12/16/20/24 circuit design, each circuit 250VAC (50/60Hz), Max 10A (resistive load) |
| Dimensions (Lx W x H) | 72mm x 90mm x 64mm (4 channels) up to 218mm x 90mm x 64mm (24 channels) |
| Shell material | PA66 |
| Installation method | DIN rail installation |
| Working temperature | -5 ° C...+45 ° C |

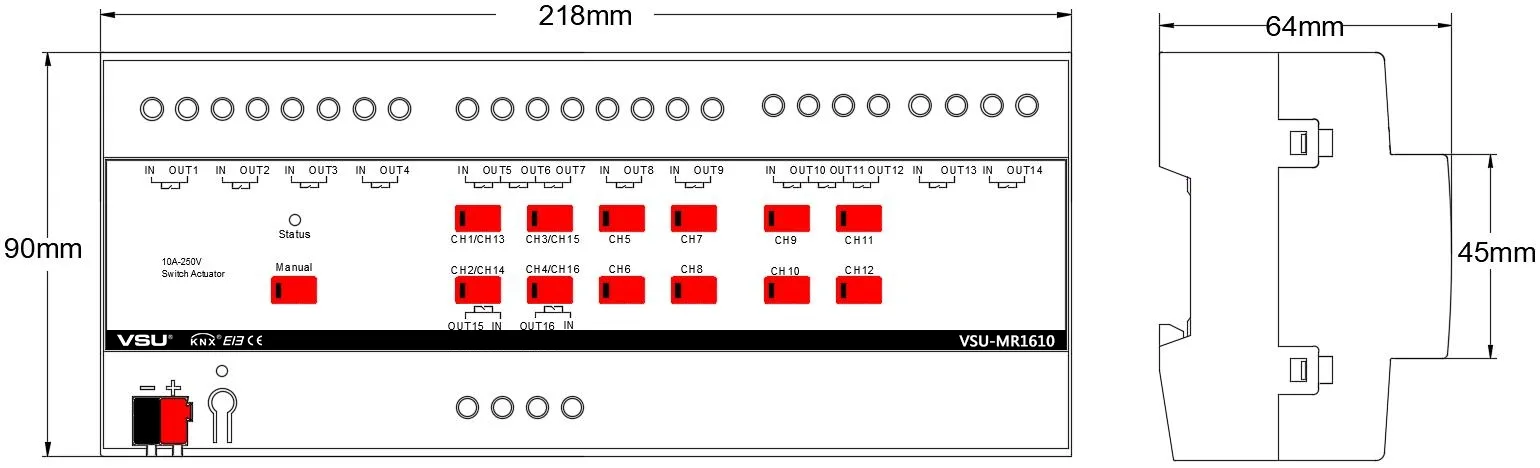

Dimension Reference

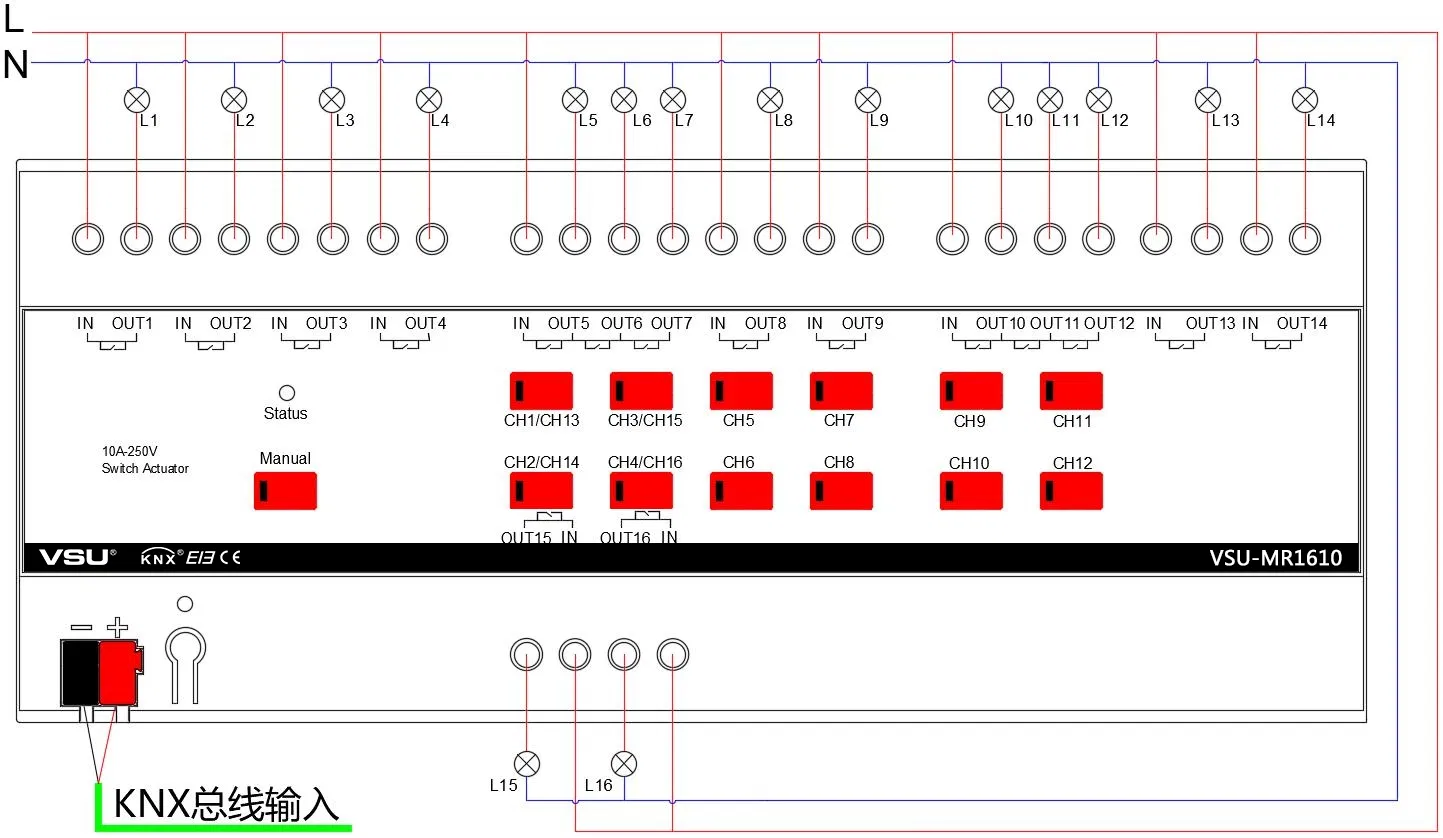

Wiring Diagram
