Overview & Basic Info
Protective Characteristics
Sealed Relay
Action Principle
Electronic Type
Type
Electric Parameter Relay
Mounting
DIN Rail or Screws
Ambient Temperature
-30℃ ~+75℃
Product Description
📏
Compact Size
Space-saving slim design
⚡
High Efficiency
Low input power consumption
🔇
Silent Operation
No sparks and no noise
⏳
Long Life
Exceptional vibration resistance

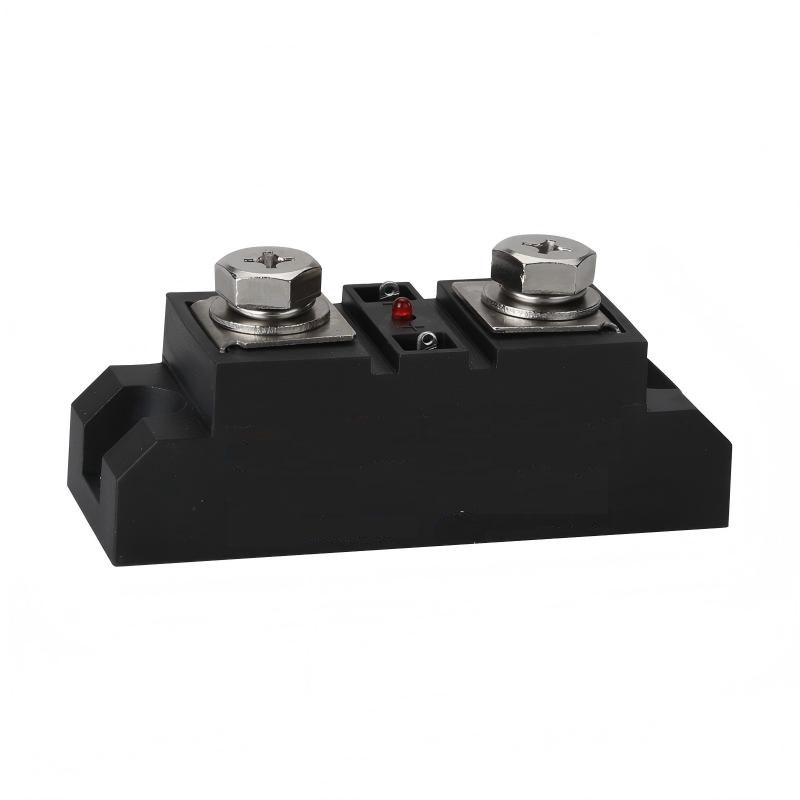

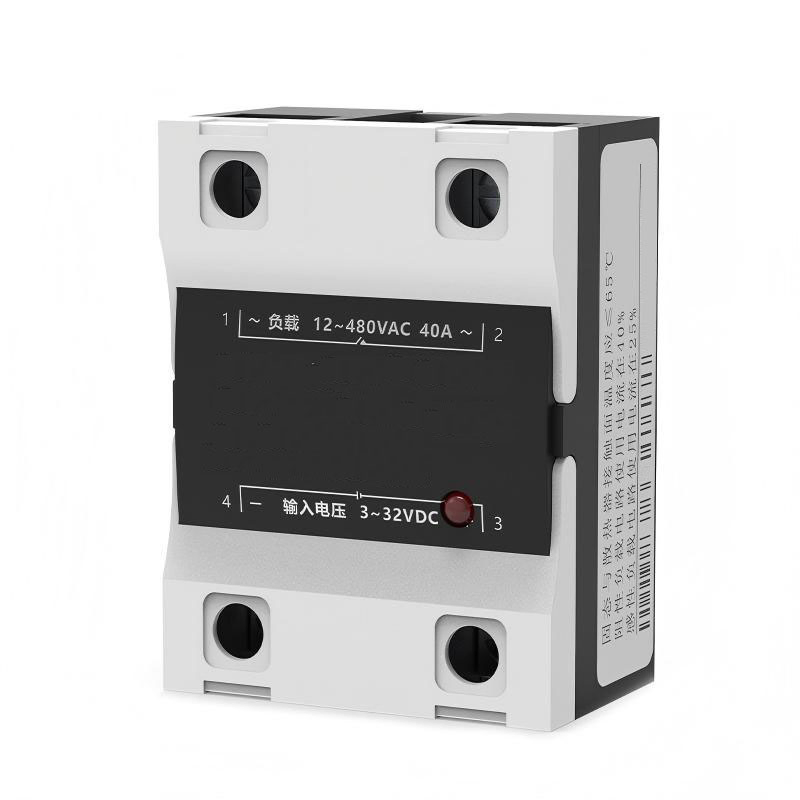

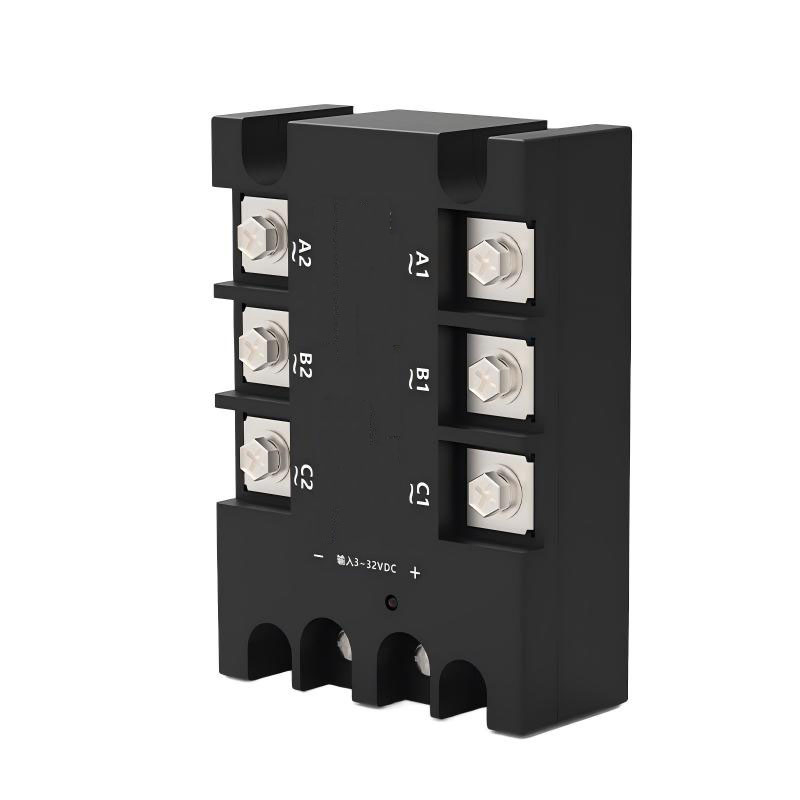

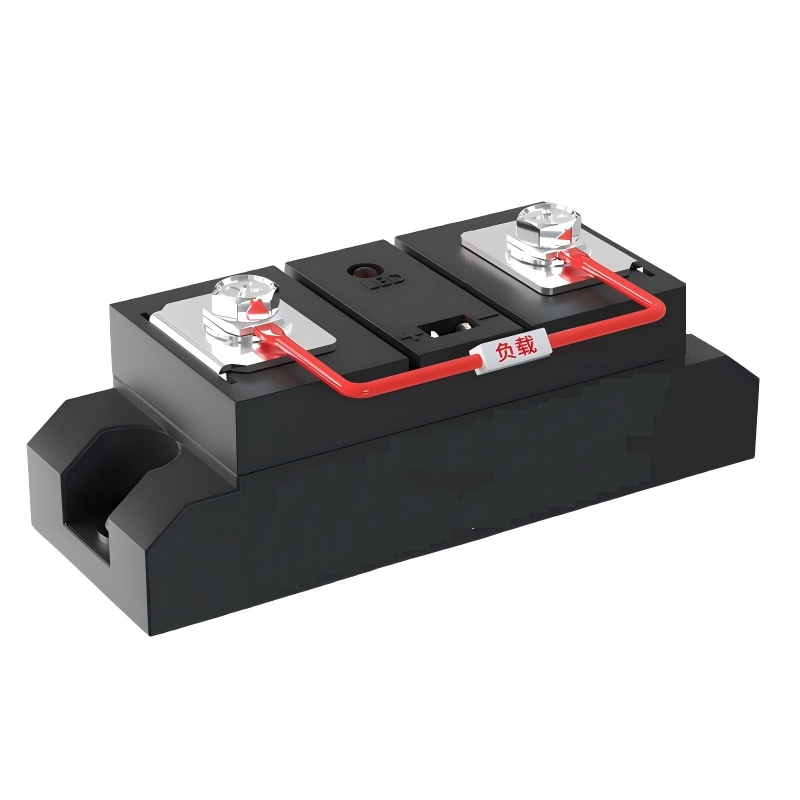

Solid state relays (SSRs) feature a compact size, low input power consumption, contactless operation, no sparks, no noise, no mechanical wear, excellent vibration resistance, and an exceptionally long service life. Solid state relays (SSRs) should be installed in a well-ventilated location away from heat sources. If the ambient temperature is excessively high or heat dissipation conditions are poor, the operating current margin should be increased to ensure uniform and effective heat dissipation for the solid state relay.

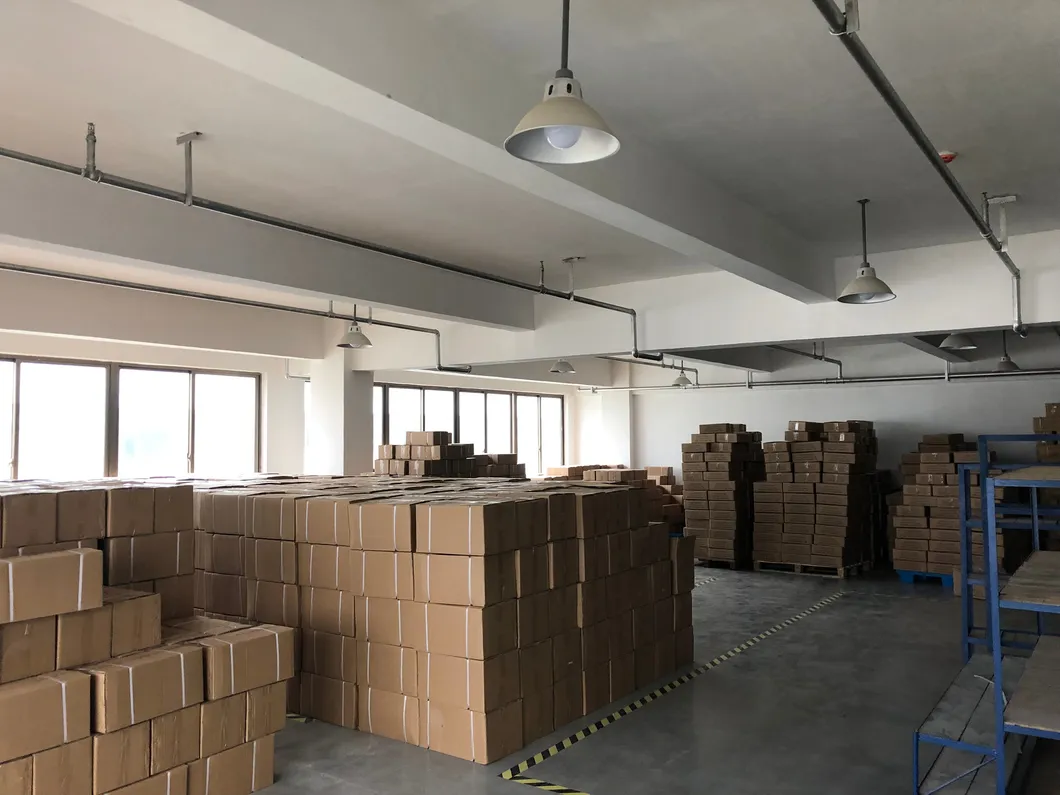

Packaging & Delivery
Package Size
10.00cm * 6.00cm * 10.00cm
Package Gross Weight
0.400kg

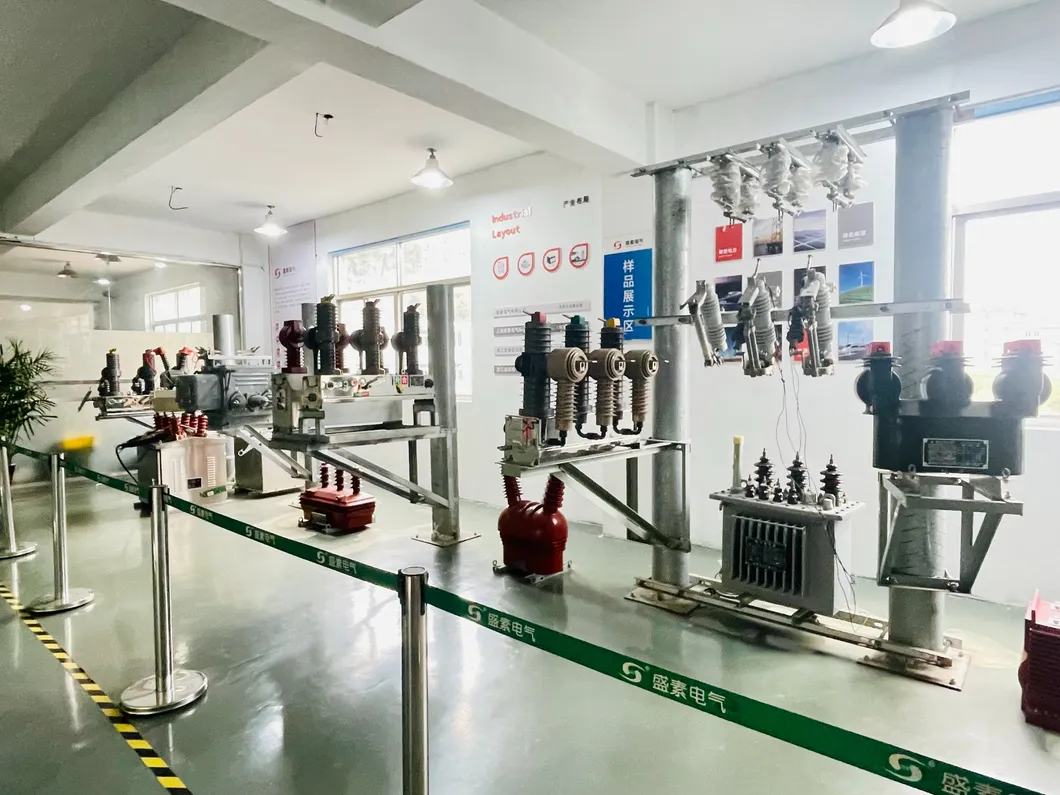

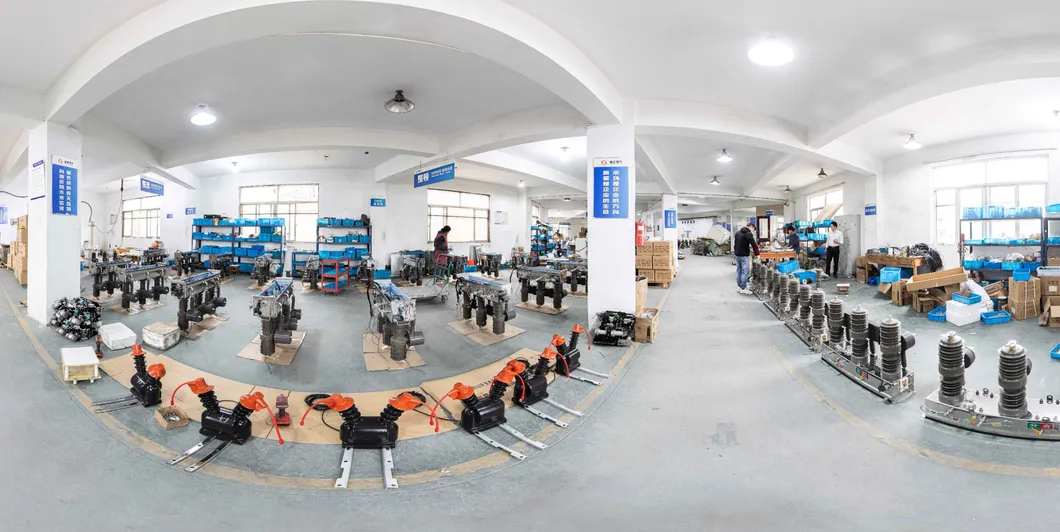

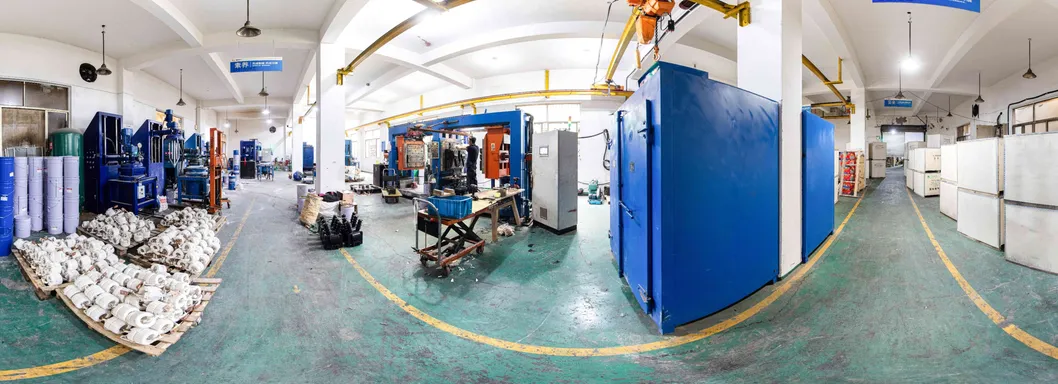

Showroom & Workshop
Frequently Asked Questions
What are the main advantages of using a Solid State Relay (SSR)?
SSRs offer contactless operation, which means no mechanical wear, no sparks, and completely silent switching. They also have a much longer lifespan and better vibration resistance compared to traditional electromagnetic relays.
How should the SSR be installed for optimal performance?
It should be installed in a well-ventilated area away from direct heat sources. For high-current applications, ensuring proper heat dissipation through heatsinks or airflow is critical to maintain reliability.
What is the input and load voltage range for this model?
This SSR supports an input voltage of 70-280V and is designed to handle load voltages between 24-480V with a load current of up to 40A.
Is the SSR compatible with DIN rail mounting?
Yes, this model is versatile and can be mounted using either standard DIN rails or screws, making it suitable for various industrial control panels.
What is the response time for switching?
The on-off response time is extremely fast, typically ≤10ms, allowing for precise control in electronic applications.
Does this product come with any certifications?
Yes, the product is CE certified and supports OEM/ODM customization to meet specific project requirements.
