High Voltage Multilayer Ceramic Capacitor for 50V and 100V Electronics

1 / 5

High Voltage Multilayer Ceramic Capacitor for 50V and 100V Electronics

Customization:	Available
Lead Time:	10days
Type:	Multi-Layer Ceramic Capacitor

Send Inquiry

Product Description

Basic Information

Model NO.

tmcc03

Application

General Purpose

Packaging Type

Through Hole

Structure

Fixed Capacitor

Manufacturing Material

Ceramic

Electrolyte

Ceramic Disc Capacitor

Usage

Low Frequency Coupling

Tuning

Ceramic Capacitor

Filter

Ceramic Disc Capacitor

Transport Package

Bulk or Tape

Specification

CE RoHS UL SGS

Origin

China

HS Code

85322410

Production Capacity

500, 000, 000PCS/Year

Product Description

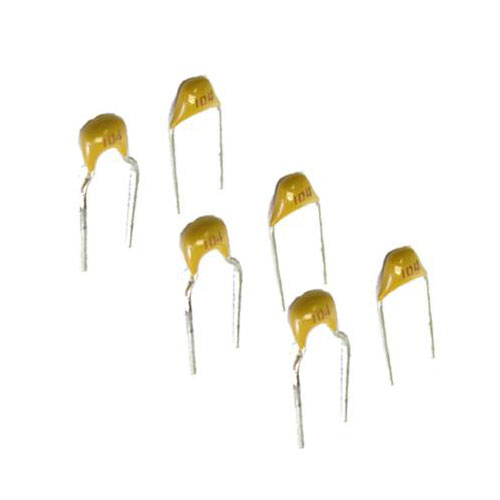

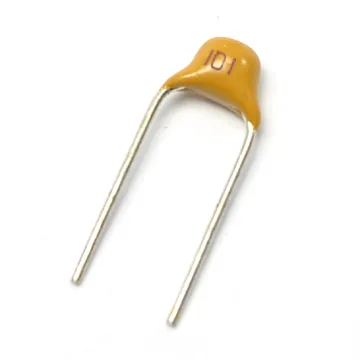

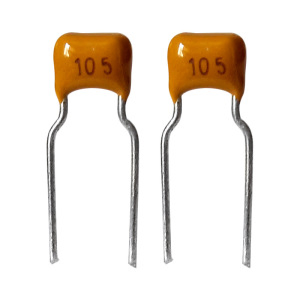

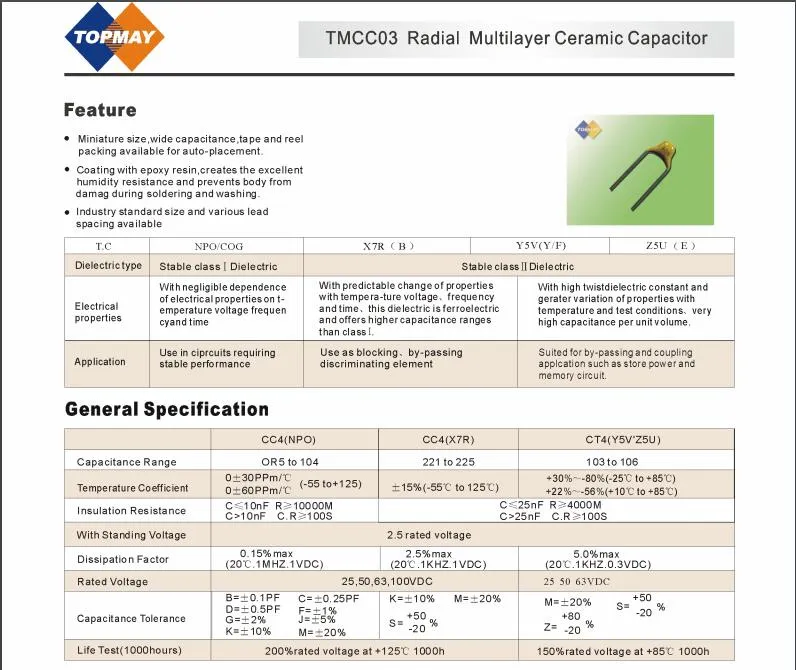

Radial multilayer ceramic capacitor MLC TMCC03

1. Features and Uses:

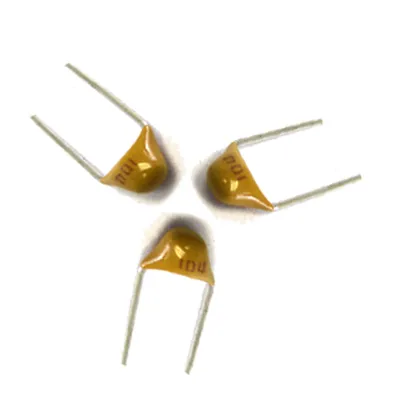

Radial direction lead monolithic ceramic capacitor is a product that assembles the radial direction leads on the multilayer ceramic capacitor (MLCC). It features large capacitance (10pf~10uf), small size, high reliability, stable capacitance, high temperature withstanding, good insulation, and low cost compared with normal disc ceramic capacitors.

2. Characteristics:

Excellent temperature characteristic and frequency characteristic.
Stable and smaller drop of capacitance while frequency rises.
Can replace mica capacitors, paper capacitors, and some tantalum capacitors.

3. Application:

Small and micro electronic devices (such as liquid crystal watches and micro-equipment).
Electronic precision instruments.
Mainly used in circuits for bypass, filter, coupling, etc.

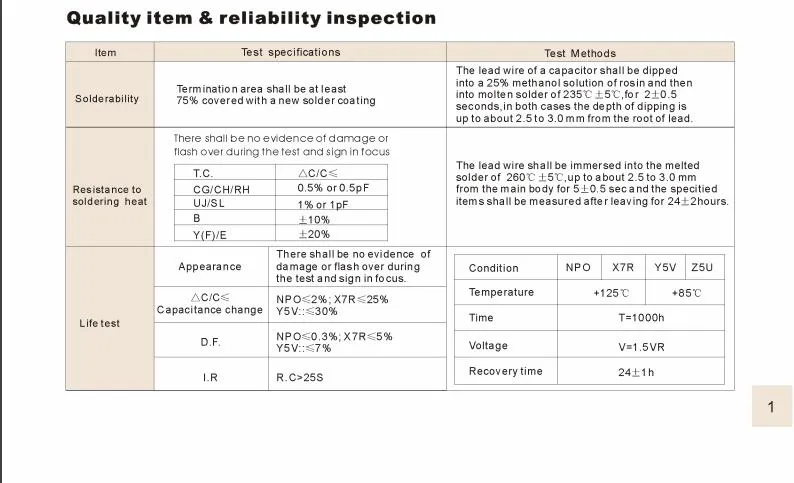

4. Specifications:

Item	Test Standard
	NP0(CH)	X7R(B)	Z5U(E)	Y5V(F)
Capacitance(C)	25ºC, 1MHz, 1.0Vrms	25ºC, 1KHz, 1.0Vrms, C≥10uF, 120Hz, 0.5Vrms
	Within the tolerance
Dissipation Factor(DF)	C≥30P, Q≥1000; C<30P, Q≥400+20*C	C<0.033uF, DF≤3.5%, C≥0.033uF, DF≤5.0%	≤5%	C≥220NF<7.0%; C<220NF, ≤5.0%
Insulation Resistance(IR)	Ur<500V, TV=Ur; Ur≥500V, TV=500V;
	C≤10nF, IR≥10000MΩ, C>10nF, R*C≥100S	C≤25nF, IR≥4000MΩ; C>25nF, R*C≥100S
Withstanding Voltage	Ur≤100V, TV=2.5Ur; 200V≤Ur≤1000V, TV=1.5Ur; Ur>1000V, TV=1.2Ur;

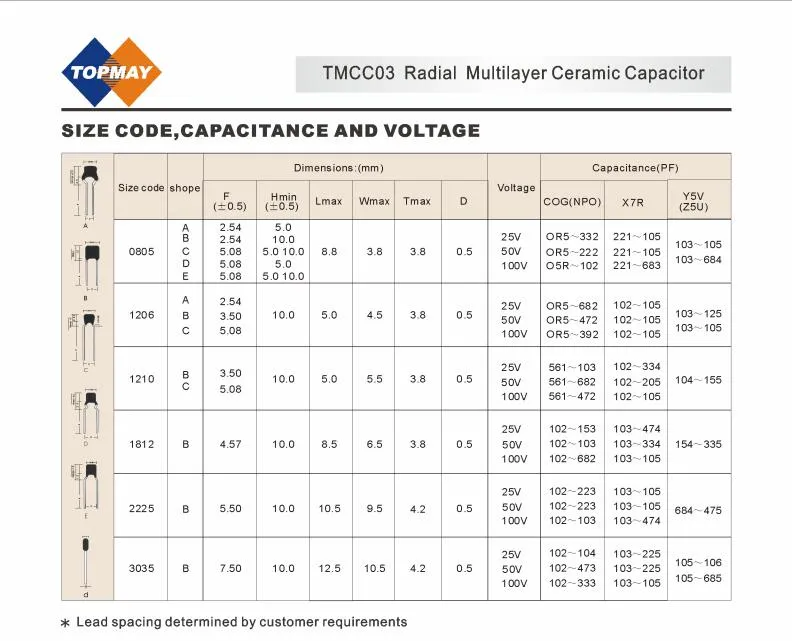

5. Dimensions:

Spec	Type	Dimensions(mm)				Voltage	Capacitance(pf)
		F(±0.5)	L MAX	W MAX	T MAX		NP0	X7R	Z5U(E)
		F(±0.5)	L MAX	W MAX	T MAX		CH	R	Y5V(F)
0603	L	2.54 5.08	4.2	3.8	3.2	16V-50V	0.5~511	221~473	102~224
0805		2.54 5.08	4.2	3.8	3.8	25V-100V	0.5~332	221~105	103~105
1206		2.54 5.08	4.5	4.5	3.8	25V-100V	0.5~682	102~105	103~105
1210		2.54 5.08	5	5.5	3.8	25V-100V	561~103	102~205	104~155

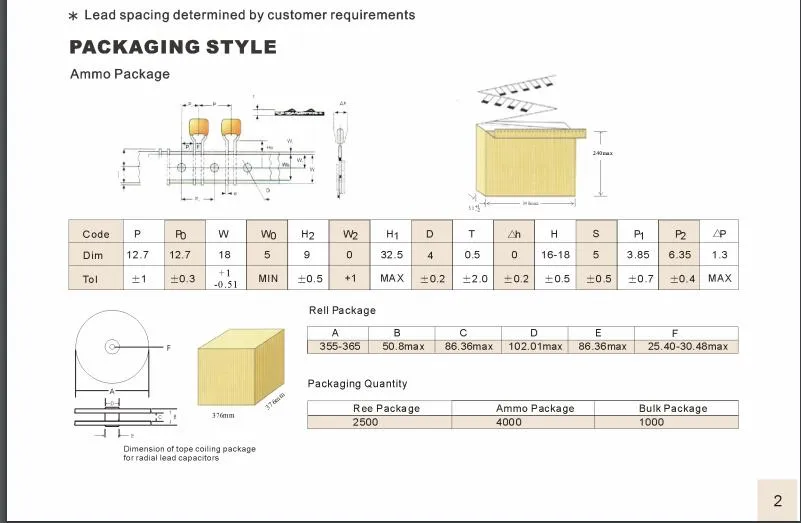

Packing Style				Bulk, Taping

Frequently Asked Questions (FAQ)

What are the primary advantages of the TMCC03 radial multilayer ceramic capacitor?

The TMCC03 offers large capacitance (10pf to 10uf) in a compact size, high reliability, stable performance across temperatures, and excellent insulation, all at a lower cost compared to standard disc capacitors.

What types of electronic devices use these capacitors?

They are ideal for small and micro electronic devices such as liquid crystal watches, micro-equipment, and electronic precision instruments, specifically for bypass, filtering, and coupling circuits.

Can the TMCC03 replace other capacitor types?

Yes, due to its excellent frequency and temperature characteristics, it can effectively replace mica capacitors, paper capacitors, and certain tantalum capacitors in many applications.

What is the annual production capacity for this model?

The production capacity is approximately 500,000,000 pieces per year, ensuring a stable and large-scale supply for industrial needs.

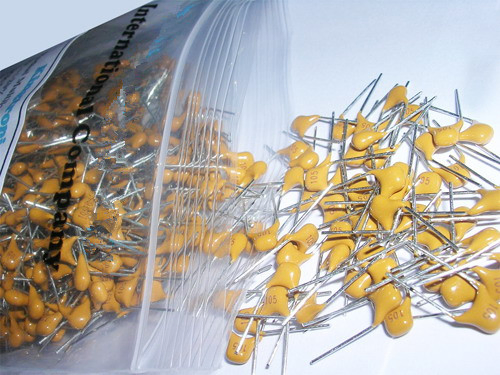

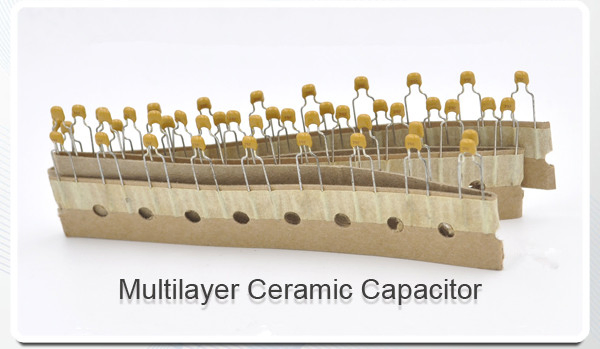

What packaging options are available for shipping?

The capacitors can be supplied in either bulk or tape-and-reel packaging to accommodate different assembly processes, including manual and automated through-hole mounting.

Does the product comply with international environmental standards?

Yes, the TMCC03 series meets CE, RoHS, UL, and SGS specifications, ensuring compliance with global safety and environmental regulations.
