Product Specifications
Key Specifications/Special Features:
| No |
Item |
Specification |
| 1 | Operating temperature | -25 ~ 85ºC |
| 2 | Capacitance/DF Testing | 25ºC, 1Vrms, Class I: 1MHz; Class II: 1KHz |
| 3 | Dissipation factor(tgδ) | Y5P/Y5U/Z5U/Y5V: ≤2.0%; Y5P(Low Diss): ≤0.5%; YR: ≤0.3%; SL: Cr<30pf, Q≥400+20Cr; Cr≥30pf, Q≥1000 |
| 4 | Rated voltage(Ur) | 1KVDC, 2KVDC, 3KVDC |
| 5 | Voltage proof | 2Ur |
| 6 | Insulation resistance(IR) | IR≥10000MΩ (500VDC) |
| 7 | Temperature characteristic | Y5P, Y5U, Z5U, Y5V, YR, CO, SL |
⚡
Voltage Range
DC 1, 2, 3, 6.3, 10 and 15kV
🌡️
Temp Range
-25 to +85 degrees Celsius
🛡️
Tolerance
K: ±10%, M: ±20%, Z: +80%-20%
🏆
Competitive Advantages
We believe product quality is the life of a company. Our products meet CCC, CE, MIC, SA, UL, FCC, TuV and SGS standards. We are ISO 9001:2000-, ISO 14001- and ISO/TS 16949-certified.
"Green" Product
Environmentally friendly materials
Prompt Delivery
Efficient lead times for all orders
Quality Approvals
Certified to international standards
Frequently Asked Questions

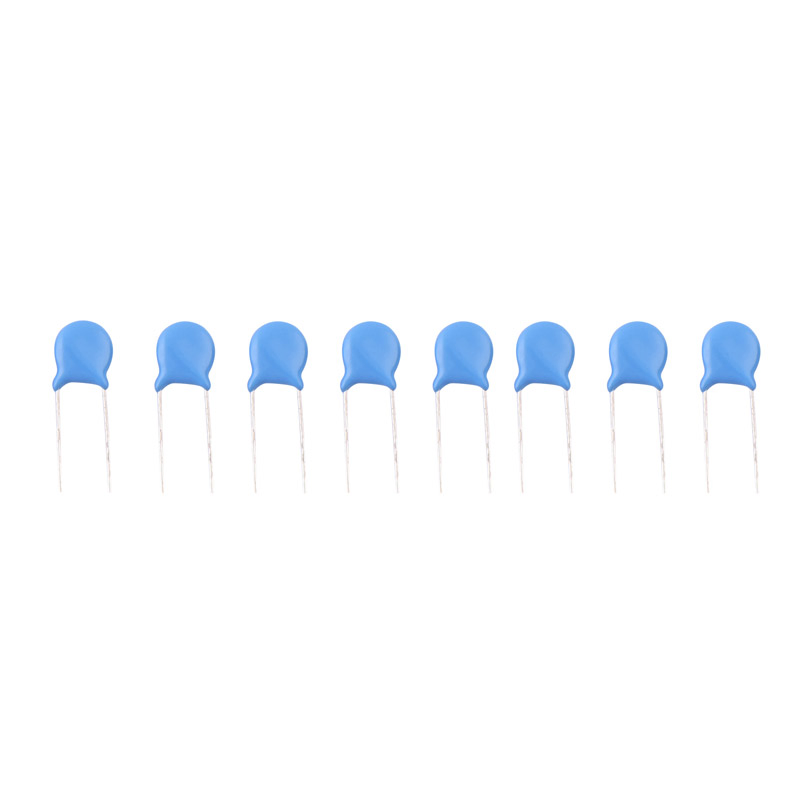

What is the operating temperature range for the TMCC02 capacitor?
The TMCC02 ceramic disc capacitor operates efficiently within a temperature range of -25 to +85 degrees Celsius.
What rated voltages are available for this series?
We offer multiple rated voltage options including DC 1kV, 2kV, 3kV, 6.3kV, 10kV, and 15kV to suit various application needs.
How long is the delivery lead time for orders?
Lead times vary by order type: in-stock items take 3-5 days, regular orders take 7-10 days, and OEM orders typically require 15 days.
What quality certifications do your capacitors hold?
Our products are manufactured to meet global standards including CCC, CE, UL, FCC, TuV, and SGS, and our facilities are ISO 9001 and ISO 14001 certified.
What is the minimum order quantity (MOQ)?
The minimum order quantity for these ceramic disc capacitors ranges from 1,000 to 1,999 pieces.
What are the primary applications for the TMCC02 model?
This model is designed for general purpose use, specifically in lighting, filtering, and tuning applications.
