Model NO.TMCC04
TypeCeramic Trimming Capacitor
ApplicationGeneral Purpose
Packaging TypeThrough Hole
CapacitanceCeramic Disc Capacitor
StructureFixed Capacitor
Manufacturing MaterialCeramic
ElectrolyteCeramic Disc Capacitor
UsageLow Frequency Coupling
TuningCeramic Capacitor
FilterCeramic Disc Capacitor
Transport PackageBulk & Tape
SpecificationRoHS
OriginChina
HS Code8532241000
Production Capacity10,000,000

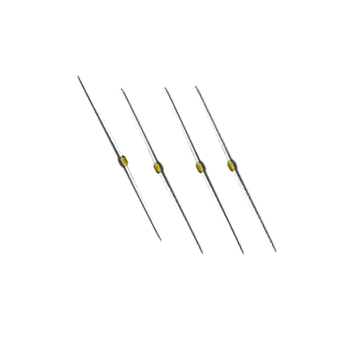

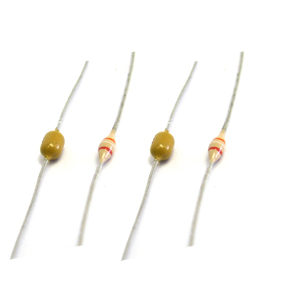

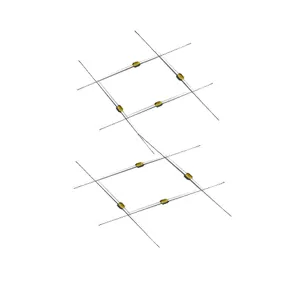

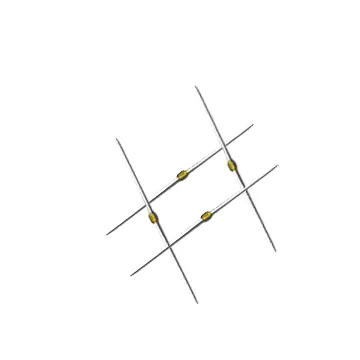

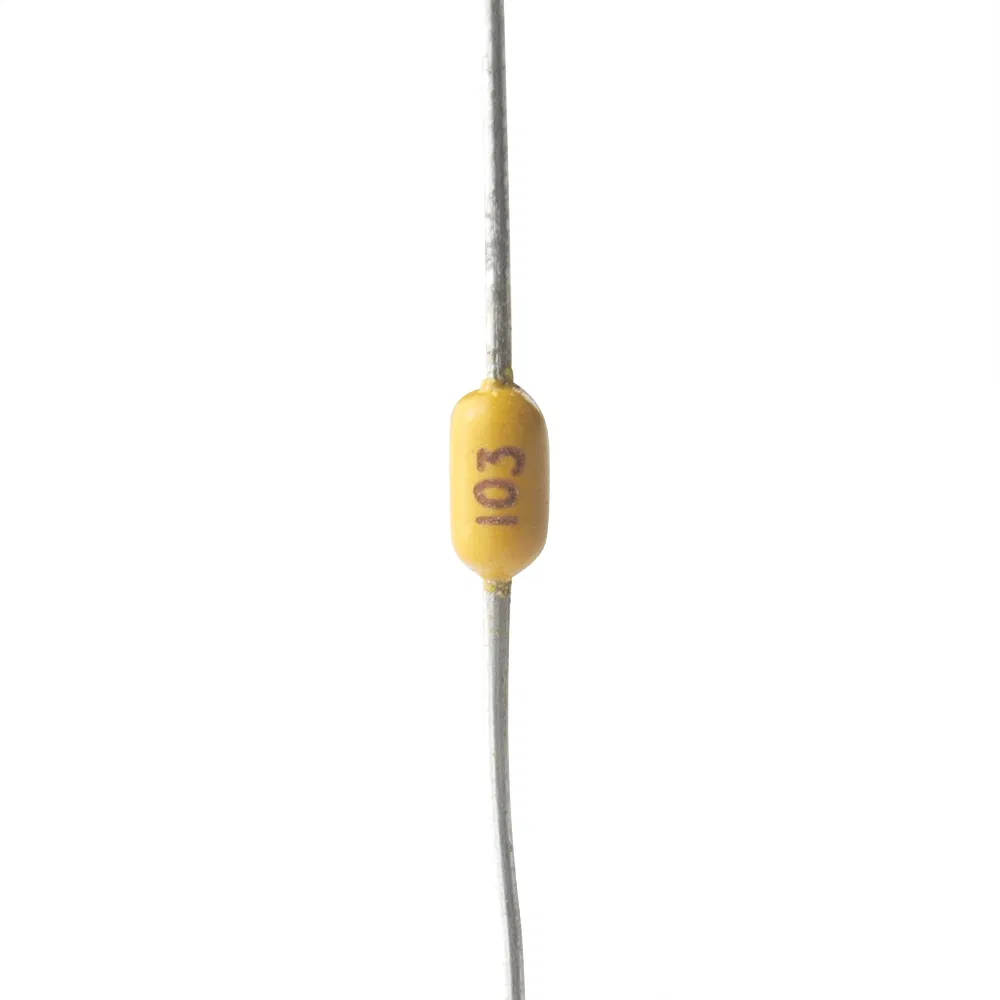

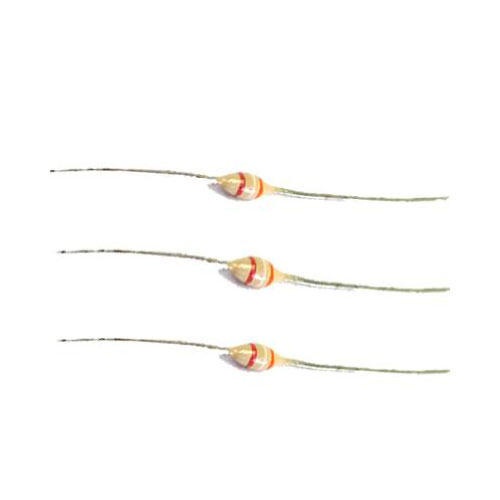

Axial Multilayer Ceramic Capacitor (TMCC04)
| ITEM |
TEST STANDARD |
| Material |
NPO(N) |
X7R(B) |
Y5U,Y5V(Y) |
| Capacitance |
Within Tolerance |
Within Tolerance |
Within Tolerance |
| Dissipation Factor |
≤0.15% |
≤3.5% |
≤7% (<220nF) / ≤10% (220~470nF) / ≤15% (470~1000nF) |
| Insulation Resistance |
C≤10NF IR>10000MΩ |
C≤25NF IR>4000MΩ; C>25NF R.C>100S |
| Voltage Test |
Test voltage: 2.5 * rated voltage. Charging current ≤ 50 mA. Duration: 5 seconds. |
| Frequency |
1MHz (C>1000PF, 1KHz) |
1KHz |
Key Characteristics
✔Wide capacitance range available.
✔Industry standard sizes for universal compatibility.

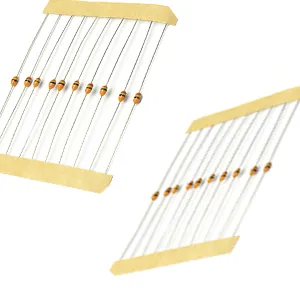

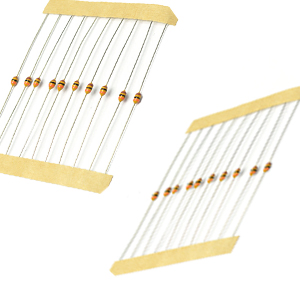

✔Tape and Reel packaging available for automatic placement.
✔Various lead spacing options to meet design needs.
NPO General Specification
Capacitance Range: 0R5 - 104
Temperature Coefficient: 0±30PPm/°C (-55°C to +125°C)
Insulation Resistance: C<=10nF R>=10000MΩ; C>=10nF C.R>=100S
Rated Voltage: 25, 50, 63, 100VDC
Capacitance Tolerance: B=±0.1PF, C=±0.25PF, D=±0.5PF, F=±1%, G=±2%, J=±5%, K=±10%, M=±20%
Environmental Testing: SJ/T10211-91 4.13
Wide Product Range
- Multilayer ceramic capacitors (radial, axial, and SMD)
- Ceramic disc capacitors (low and high voltage)
- Aluminum electrolytic capacitors (radial, axial and SMD)
- Film capacitors (polyester, polypropylene and metallized)
- Tantalum capacitors (radial, SMD, axial)
- Mica and Super capacitors
Frequently Asked Questions
Q: What is the primary application for the TMCC04 capacitor?
A: It is designed for general-purpose applications, specifically for low-frequency coupling and filtering in electronic circuits.
Q: What are the available packaging options for these capacitors?
A: These capacitors are available in both Bulk and Tape & Reel packaging, making them suitable for manual or automated placement.
Q: What is the operating temperature range for NPO and X7R materials?
A: The operating temperature range for both NPO and X7R materials is -55°C to +125°C.
Q: Does this product comply with environmental standards?
A: Yes, the TMCC04 axial multilayer ceramic capacitor is RoHS compliant.
Q: What is the test voltage for the insulation resistance?
A: The measuring voltage is equal to the rated voltage, with a charging current not exceeding 50 mA.
Q: What is the standard atmospheric condition for testing?
A: Standard testing is conducted at an ambient temperature of 15°C to 35°C, relative humidity of 45% to 75%, and air pressure of 86Kpa to 106Kpa.
