High-Performance 30A PCB Relay Nrp15-12VDC for Smart Automation

1 / 5

High-Performance 30A PCB Relay Nrp15-12VDC for Smart Automation

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

NRP15-24VDC

Phase

Electricity Type

Number of Pole

Load

Micro Power Relay

Size

Miniature

Type

DC Contactors

Contact Rating

30A, 40A

Dimension(mm)

20.2X16.5X20.2

Contact Form

1A(Open), 1b(Close), 1c(Switch)

Contact Material

Agsno2

Coil Power

0.93W

Electrical Life

100,000

Coil Voltage

DC3~48VDC, AC6V-240V

Switching Voltage

277VAC/30VDC

Terminal Type

PCB

📍 Product Description

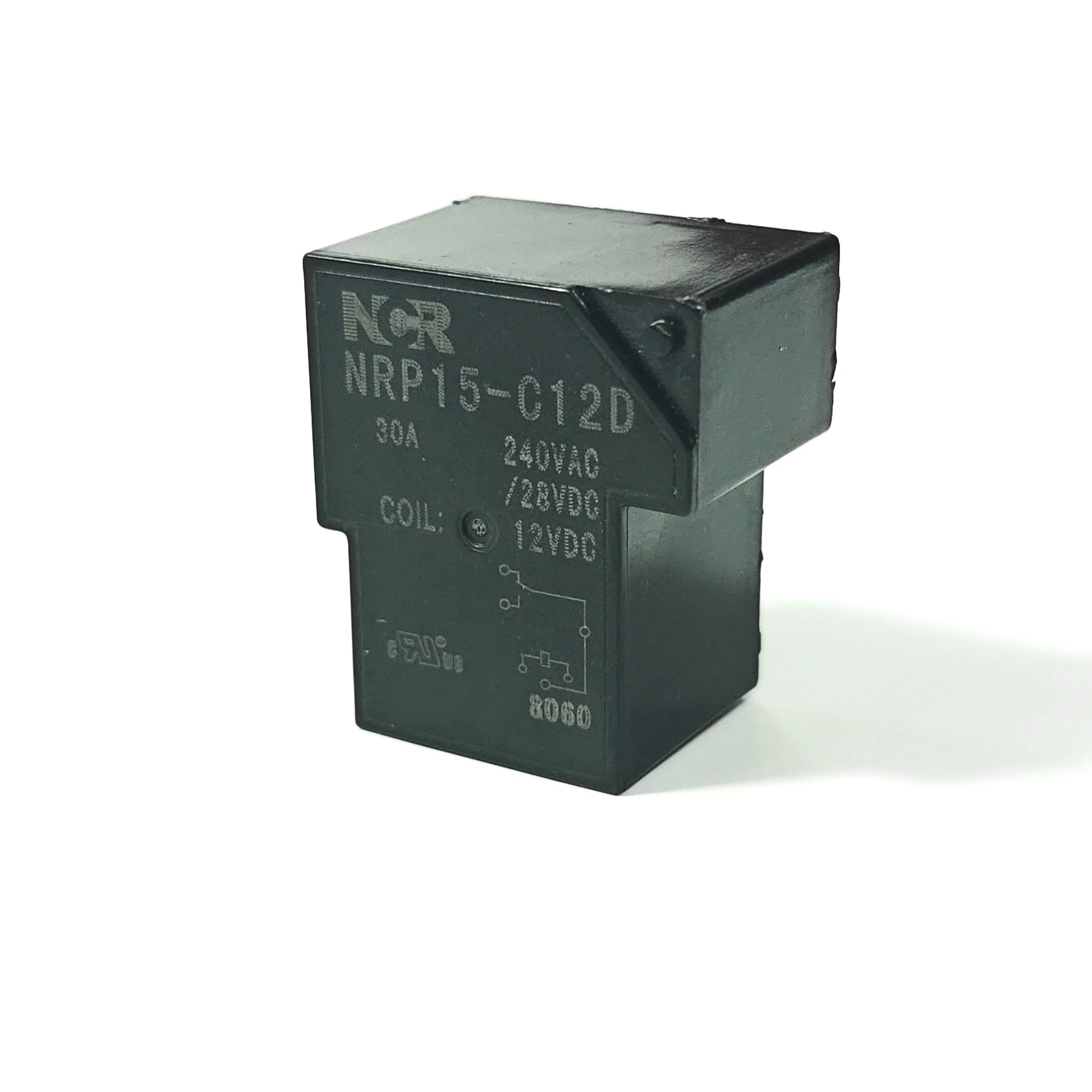

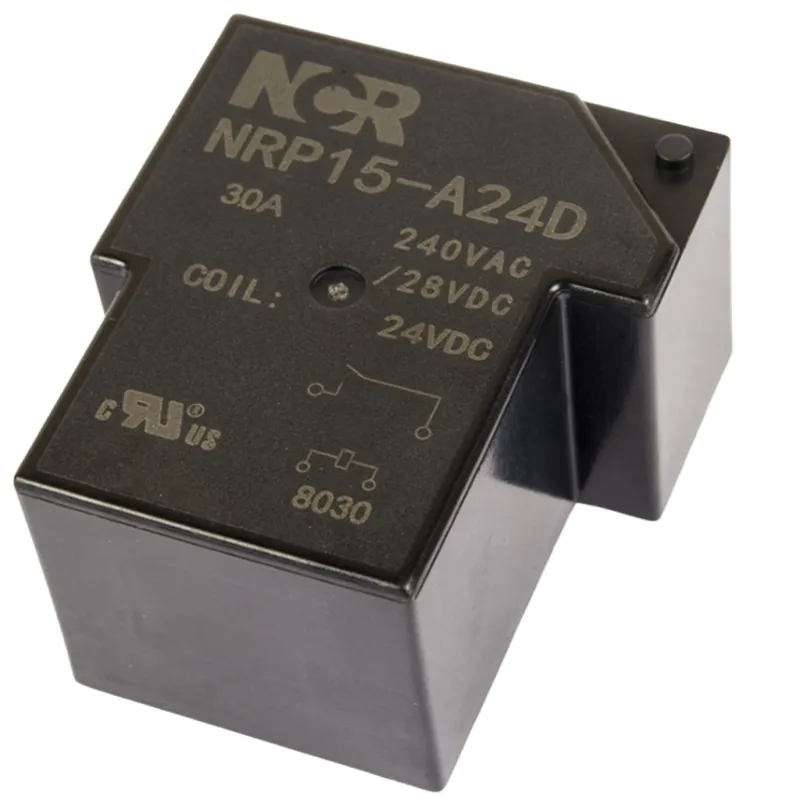

Compact 30A PCB Relay Nrp15-12VDC for Smart Automation

High-performance relay designed for reliability in smart automation systems and PCB applications.

Key Characteristics

✔ High switching capacity - 30A for 1 Form A
✔ Reliable Contacting
✔ Sealed type available
✔ UL/C-UL recognized

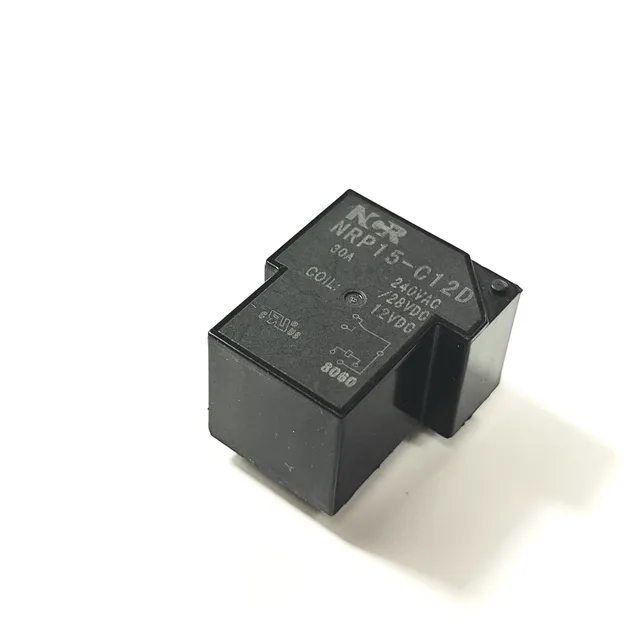

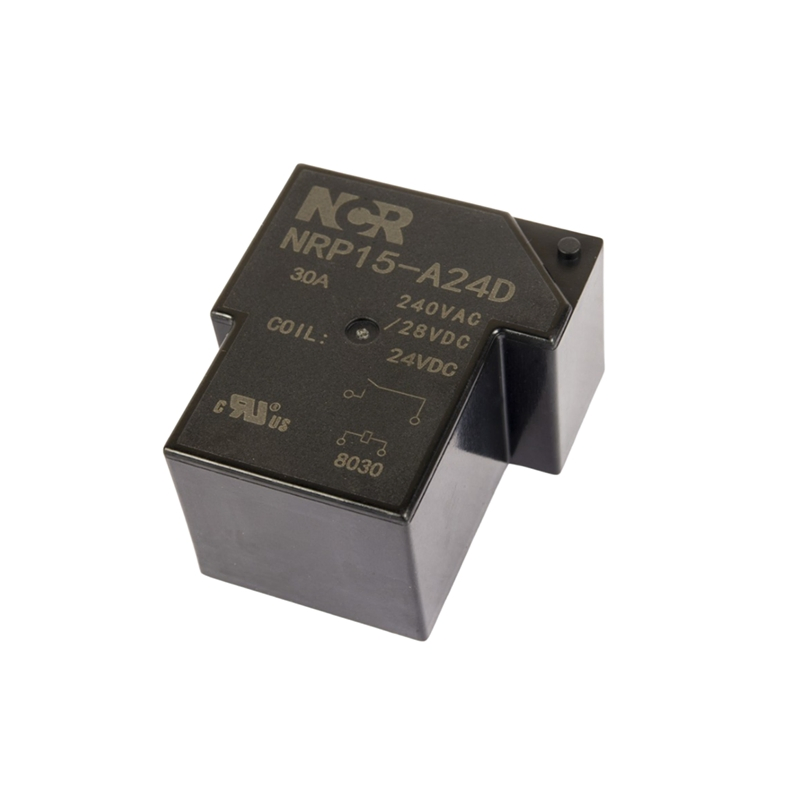

Front Elevation

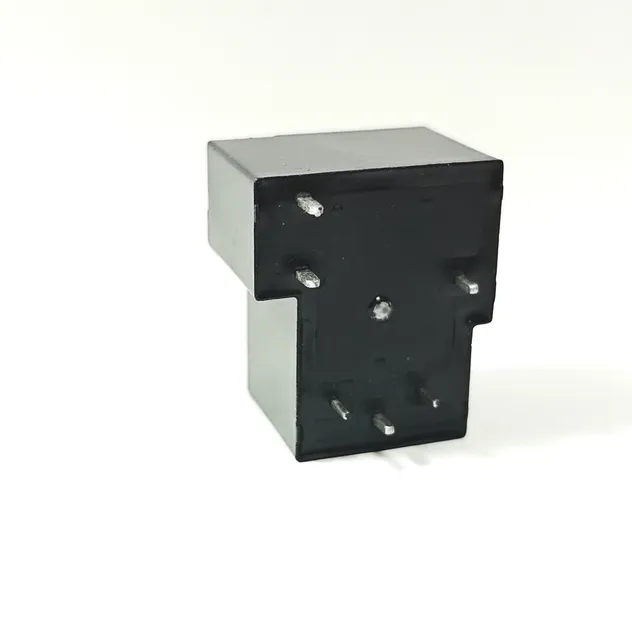

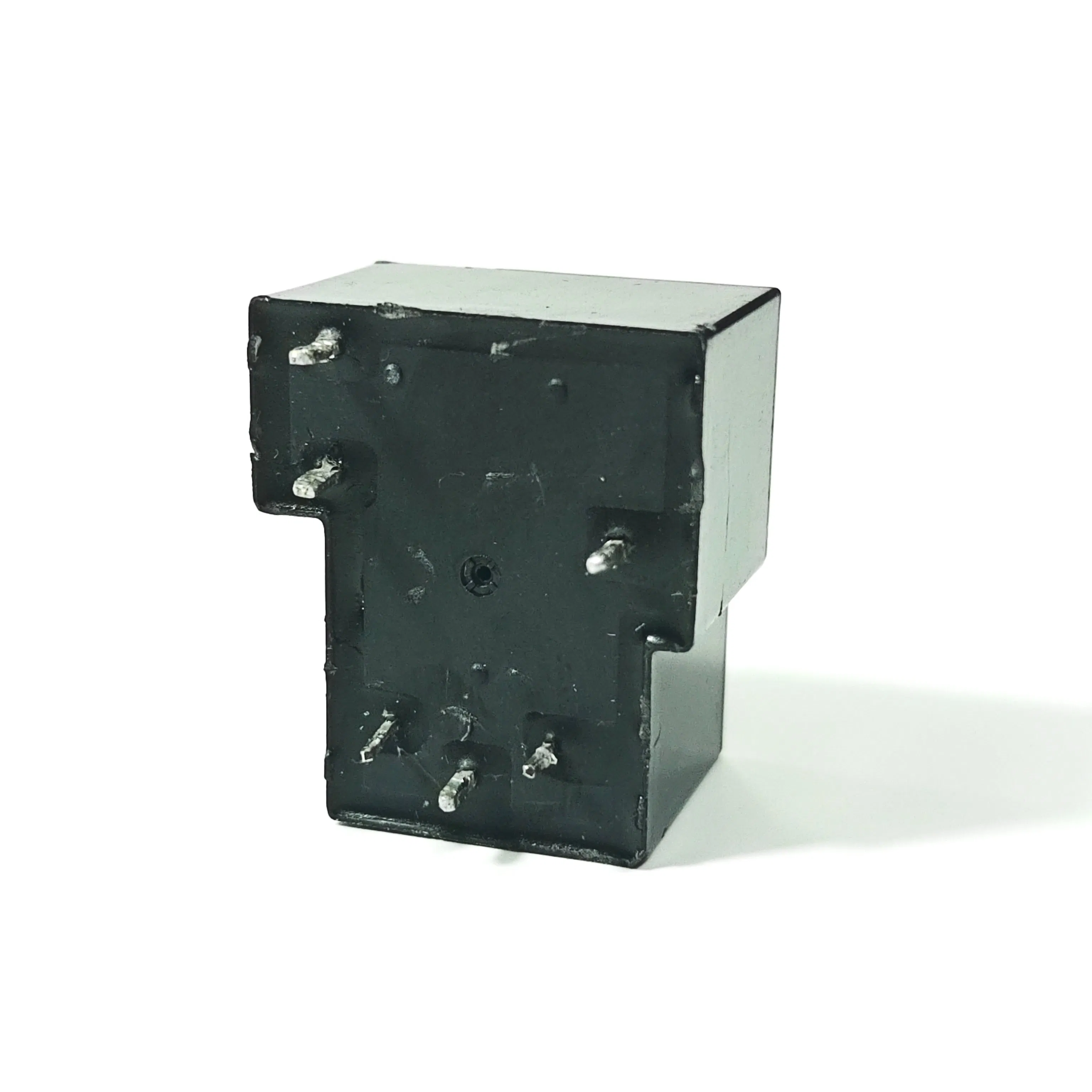

Back Elevation

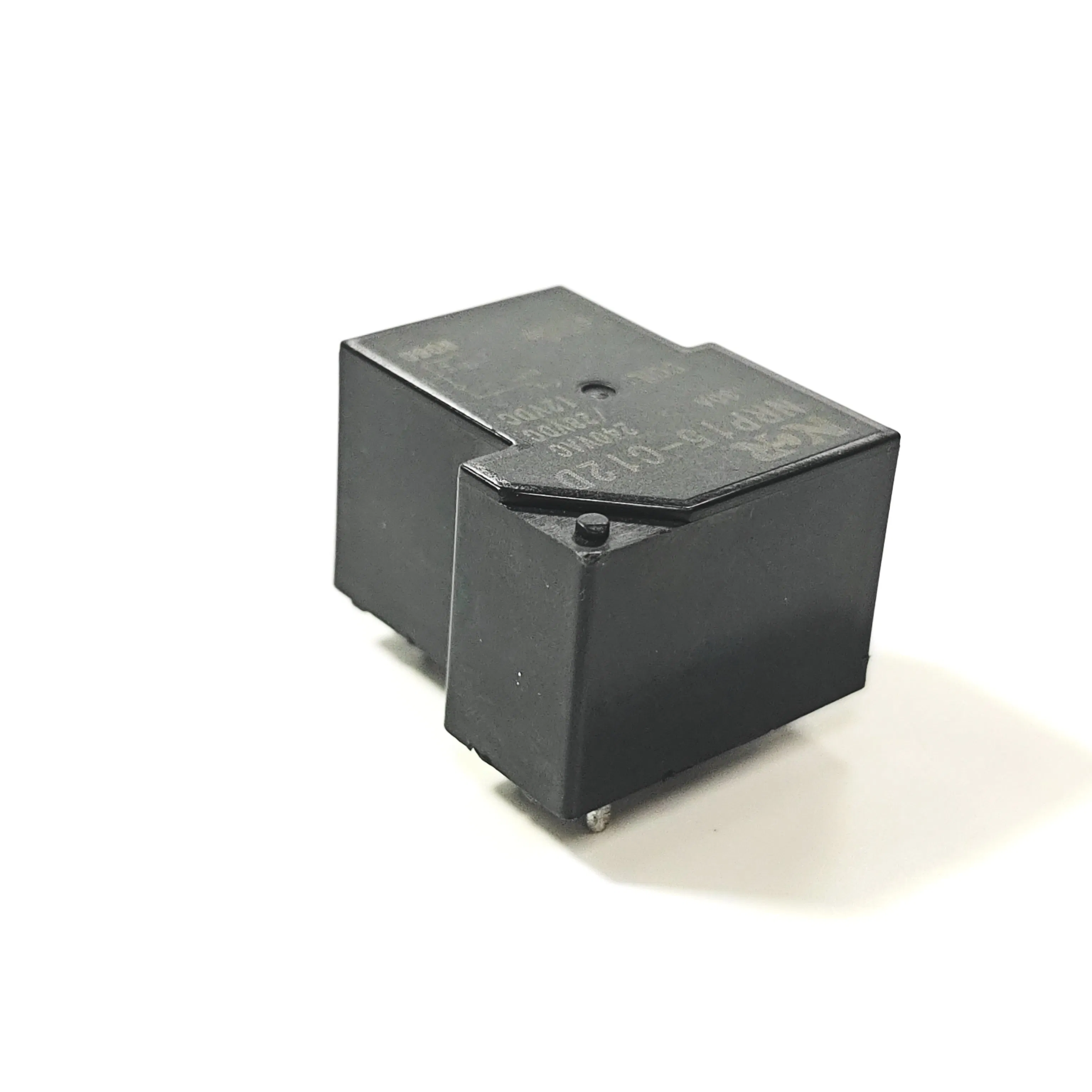

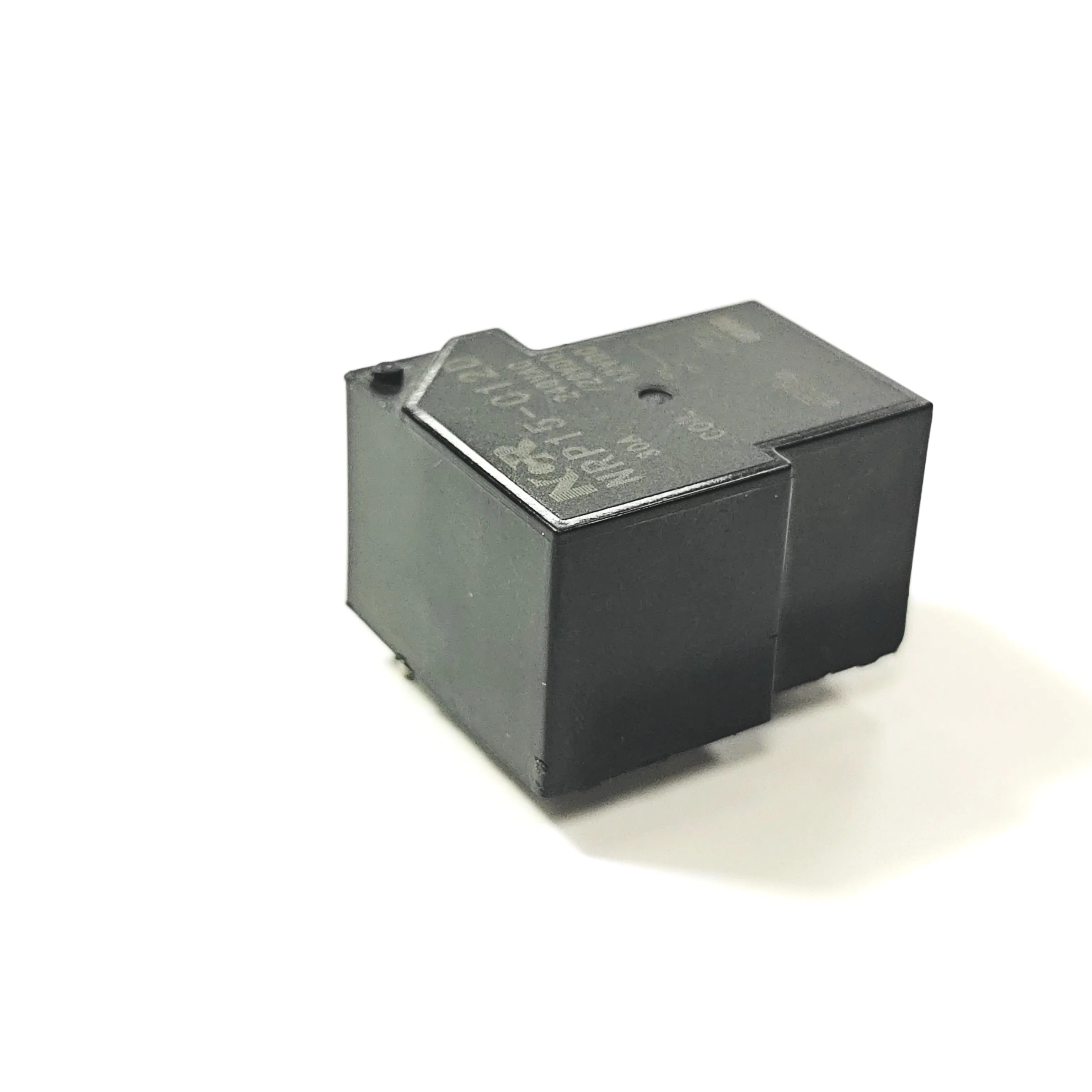

Side Elevation

⚙ Technical Specifications

Model	NRP15	Max. Switching Current	30A
Insulation Resistance	Min.100MΩ (500 VDC)	Max. Switching Voltage	240VAC 28VDC
Contact Form	1A / 1B / 1C	Max. Switching Power	7200VA / 840W
Contact Material	Silver Alloy	Unit Weight	24g
Contact Rating	30A 240VAC/28VDC	Certificate	UL

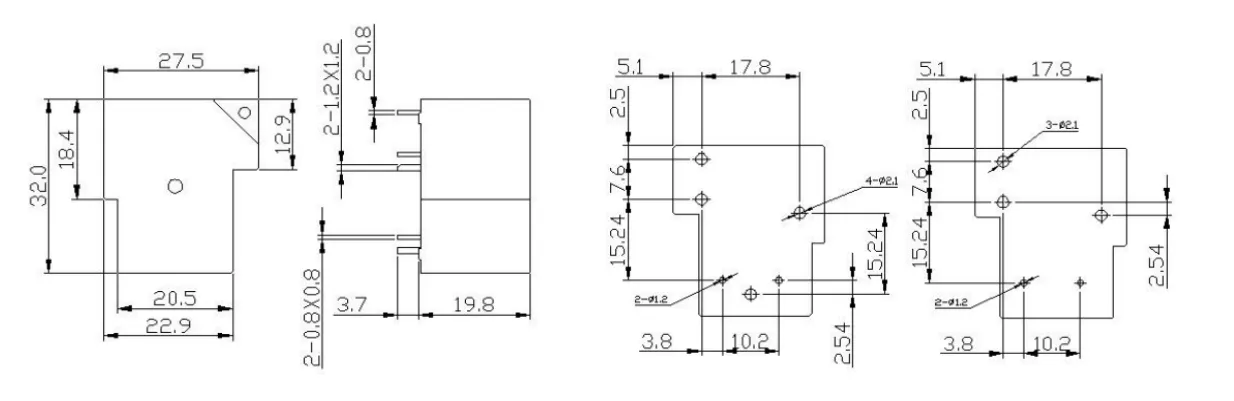

📐 Drawings & Dimensions

🏭 Manufacturing Capabilities

As a national hi-tech enterprise and professional manufacturer, we offer key components including Latching Relays, Shunts, and Current Transformers. Our lean manufacturing system covers everything from R&D to after-service, utilizing automatic production lines for electro-beam welding, stamping, coil winding, and testing.

Why Choose Our Solutions?

1. OEM/ODM capabilities
2. Competitive pricing & bulk discounts
3. Fast shipping & customs support

🎖 Certifications

📦 Packaging & Shipping

Package Size

36.00cm * 21.00cm * 32.50cm

Package Gross Weight

13.500kg

Transport Package

Standard Export Cartons

❓ Frequently Asked Questions

What is the maximum switching current for the NRP15 relay?

The NRP15 series offers a high switching capacity of up to 30A for the 1 Form A contact configuration.

Which quality certifications do these relays hold?

Our manufacturing processes and products are verified by ISO9001, ISO14001, ISO45001, UL, UC2, and UC3 standards.

Can the contact form be customized?

Yes, we provide multiple contact forms including 1A (Normally Open), 1B (Normally Closed), and 1C (Changeover) to suit different circuit requirements.

What is the expected electrical life of this miniature relay?

The NRP15 relay is designed for durability with an electrical life of approximately 100,000 cycles under rated load conditions.

What are the available coil voltage options?

We offer a wide range of coil voltages from DC 3V to 48V, as well as AC options from 6V to 240V.

Do you provide technical drawings for PCB integration?

Detailed dimensional drawings and PCB layout diagrams are available for download or can be provided by our engineering team upon request.
