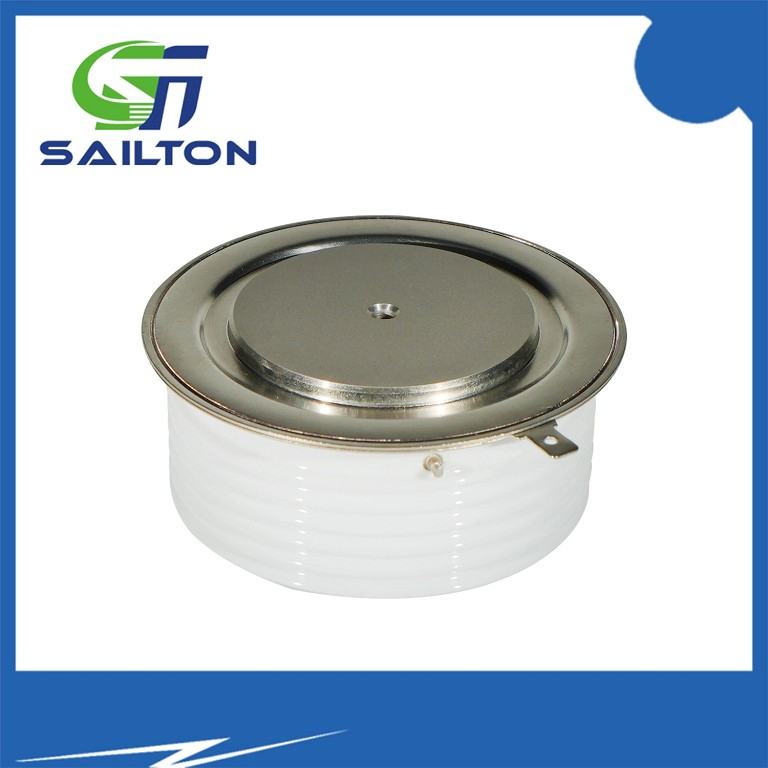

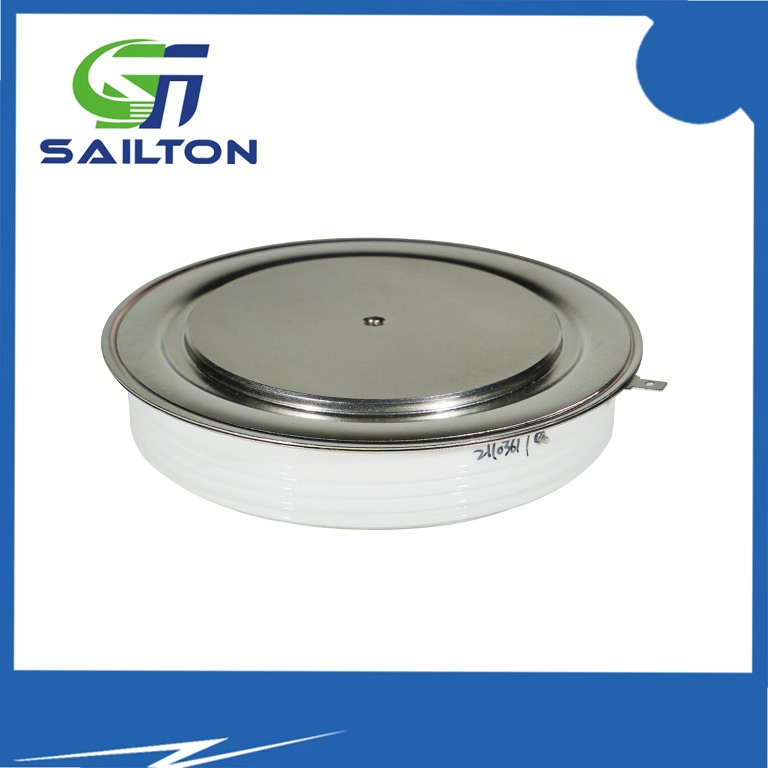

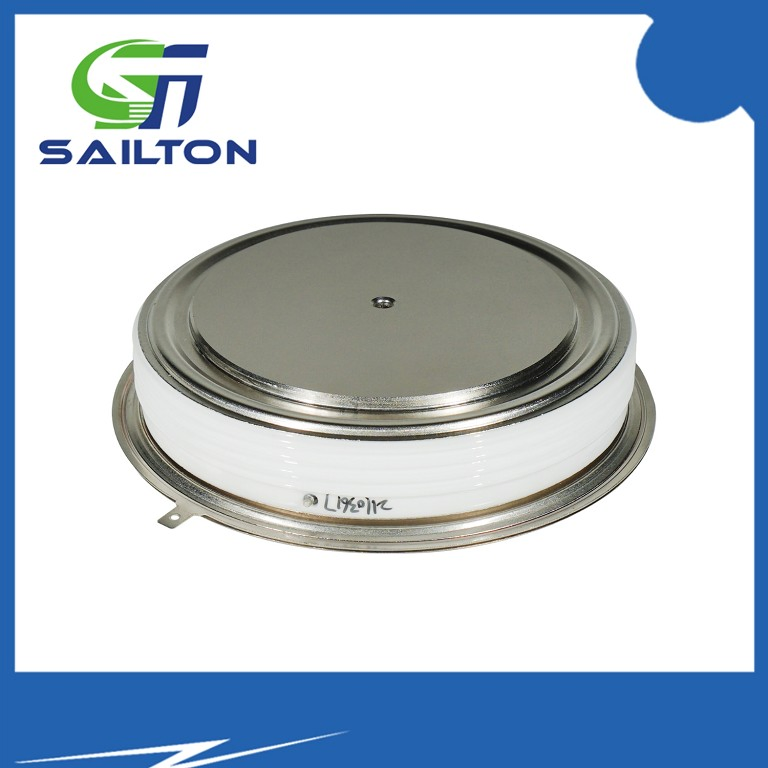

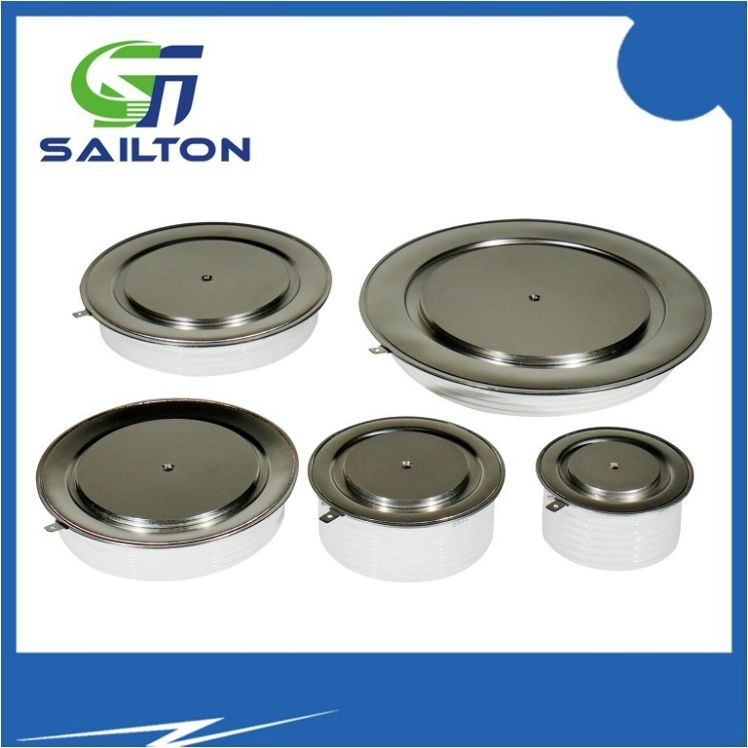

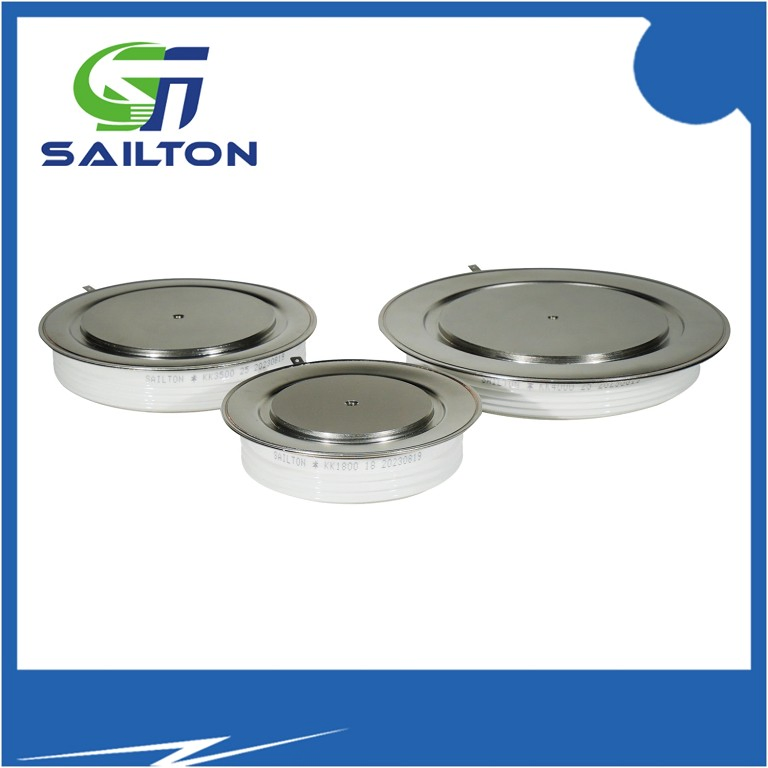

New Capsule Type High Frequency Thyristors Electronic Components KG800A/1600V
New Capsule Type High Frequency Thyristors Electronic Components KG800A/1600V
New Capsule Type High Frequency Thyristors Electronic Components KG800A/1600V
New Capsule Type High Frequency Thyristors Electronic Components KG800A/1600V
New Capsule Type High Frequency Thyristors Electronic Components KG800A/1600V
1 / 5
New Capsule Type High Frequency Thyristors Electronic Components KG800A/1600V
New Capsule Type High Frequency Thyristors Electronic Components KG800A/1600V
New Capsule Type High Frequency Thyristors Electronic Components KG800A/1600V
New Capsule Type High Frequency Thyristors Electronic Components KG800A/1600V
New Capsule Type High Frequency Thyristors Electronic Components KG800A/1600V

New Capsule Type High Frequency Thyristors Electronic Components KG800A/1600V

Customization: Available
Application: Induction Heating Machine
Batch Number: 2023+
Send Inquiry

Product Description

Product Overview
Model NO.
KG800A/1600V
Technology
Optoelectronic Semiconductor
Material
Element Semiconductor
Package
Presser / Capsule
Signal Processing
Analog Digital Composite
Type
N-Type Semiconductor
Item
Thyristor
Cooling
Double Cooled
Frequency
2.5kHz-20kHz
Case
Ceramic Case
HS Code
8541300000
Specification
100*26.5
Detailed Description

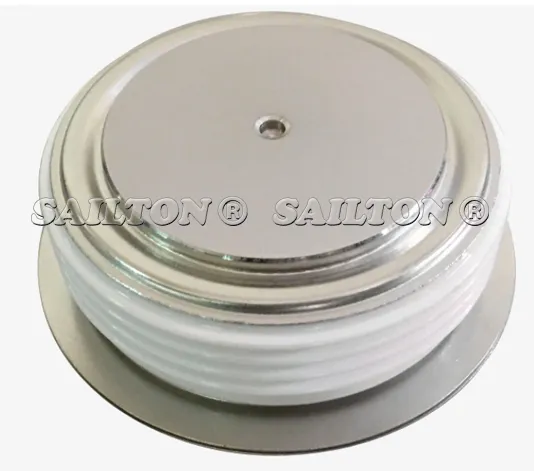

High Frequency Thyristor KG800A/1600V
High Frequency Thyristor (KA SCR) Features:
Vacuum closed tube used for the whole process of aluminum diffusion.
Advanced gate electrode structure introduction.
Excellent dynamic characteristics for 2.5kHz-20kHz applications.
Cold pressure package of flat ceramic tube shell.
Double cooling allows for series and parallel connection.
Minimum working temperature: Tjmin = -40°C.

Fast Switching Thyristors are essential semiconductor devices designed for fast turn-off performance, commonly referred to as "Inverter Thyristors". These components are critical for furnace power supplies and induction heating systems.

The current range spans from 500A to 4000A, with voltage ratings from 1000V to 4500V. Tq values are optimized (10-25us, 30-50us, and 50-70us) to meet specific inverter circuit requirements.

Technical Parameters
Part No. IT(AV) (A) VDRM/VRRM (V) ITSM 50Hz (KA) VTM (V) ITM (A) VGT (V) IGT (mA) tq (µs) Outline
KA200/120020012003.82.460032008~15T6
KA300/120030012005.72.490032008~15T7
KA500/1200500120092.4150032008~15T9
KA800/12008001200152.4200032508~15T10
KA1000/120010001200192.430003.53008~15T11
Dimensions & Technical Drawings

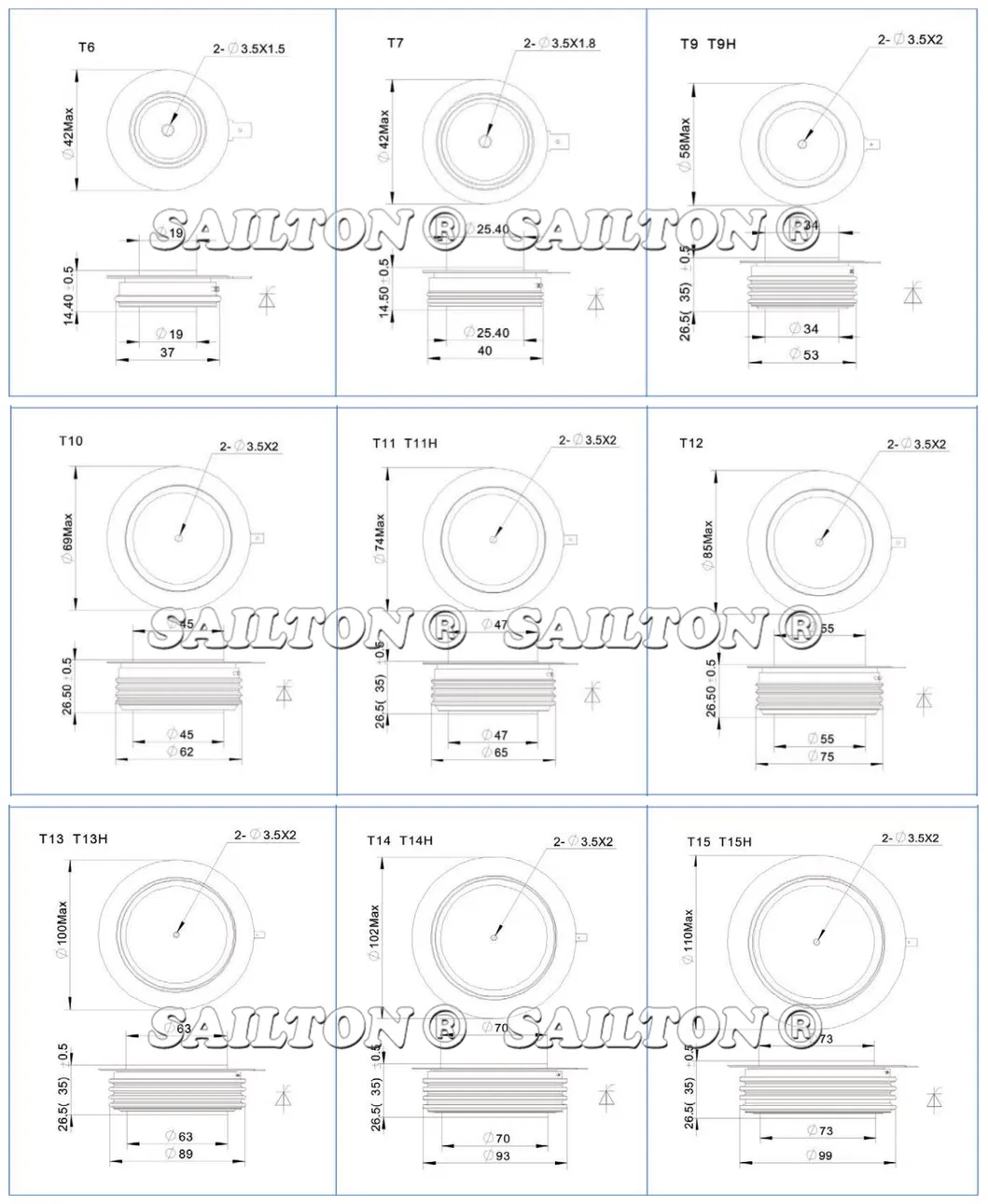

Outline Size
Technical Drawing
Manufacturing & Quality Control
Certificate
Quality Standard

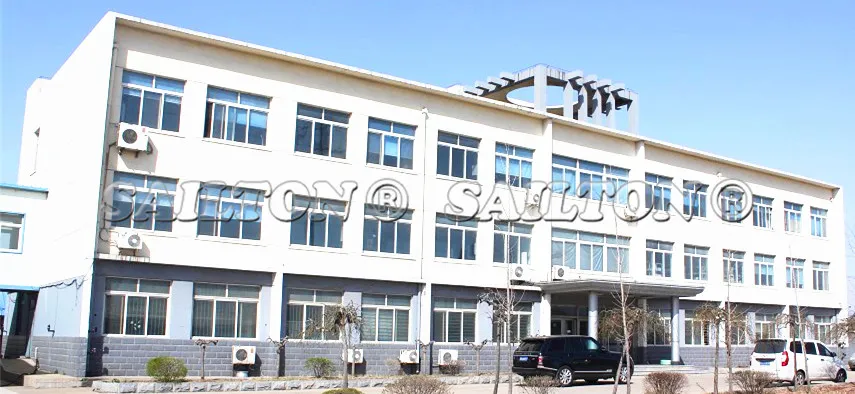

Factory Environment

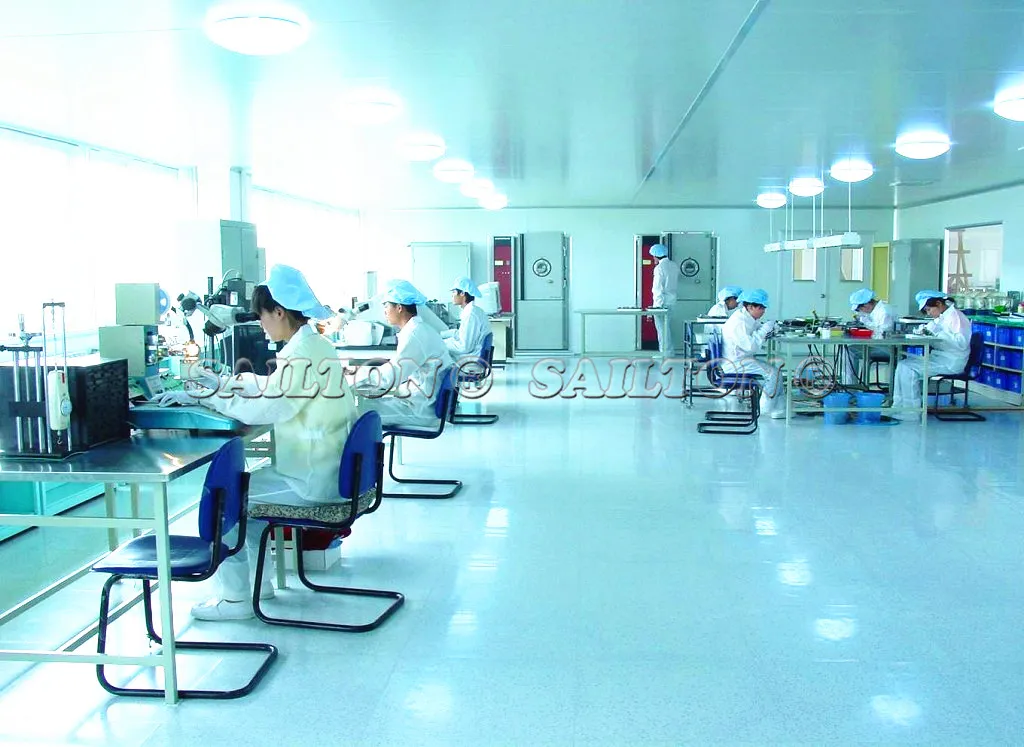

Production Line

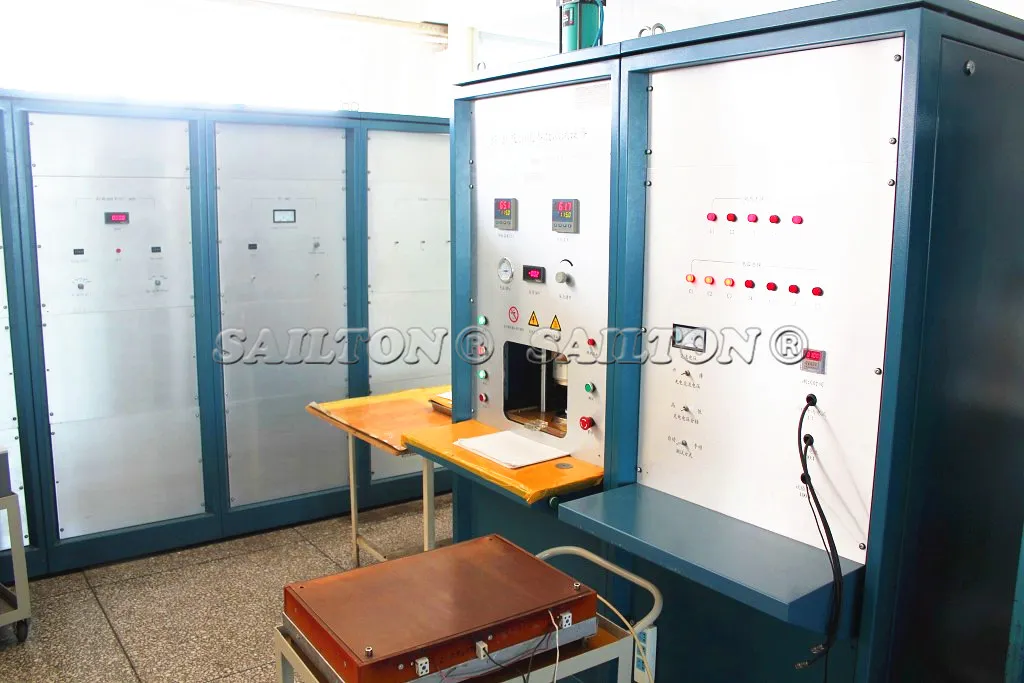

Workshop

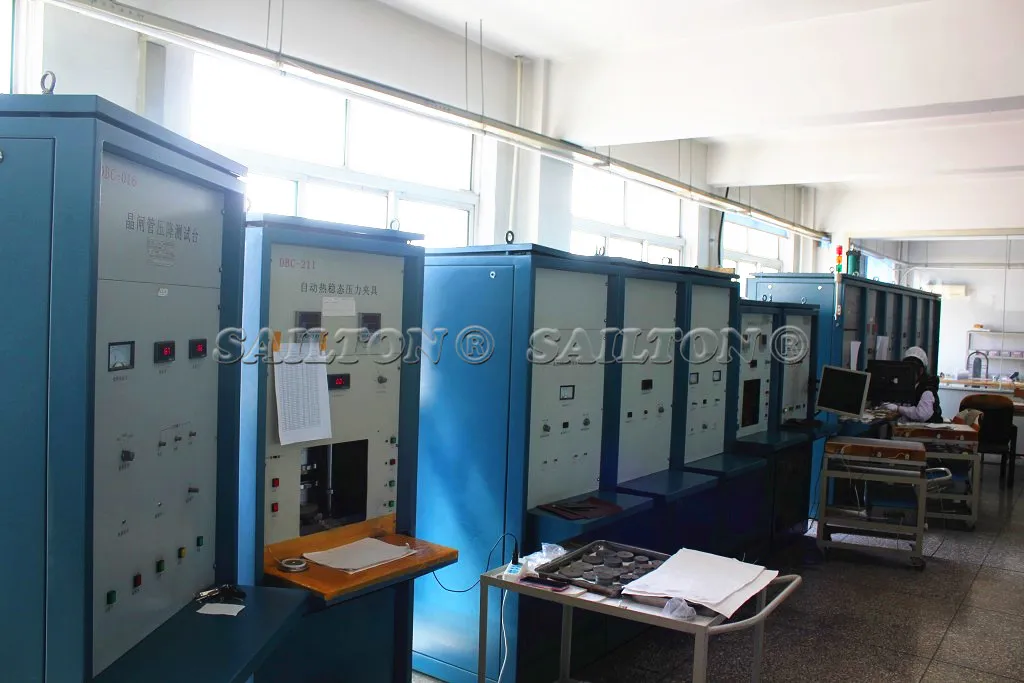

Testing Area

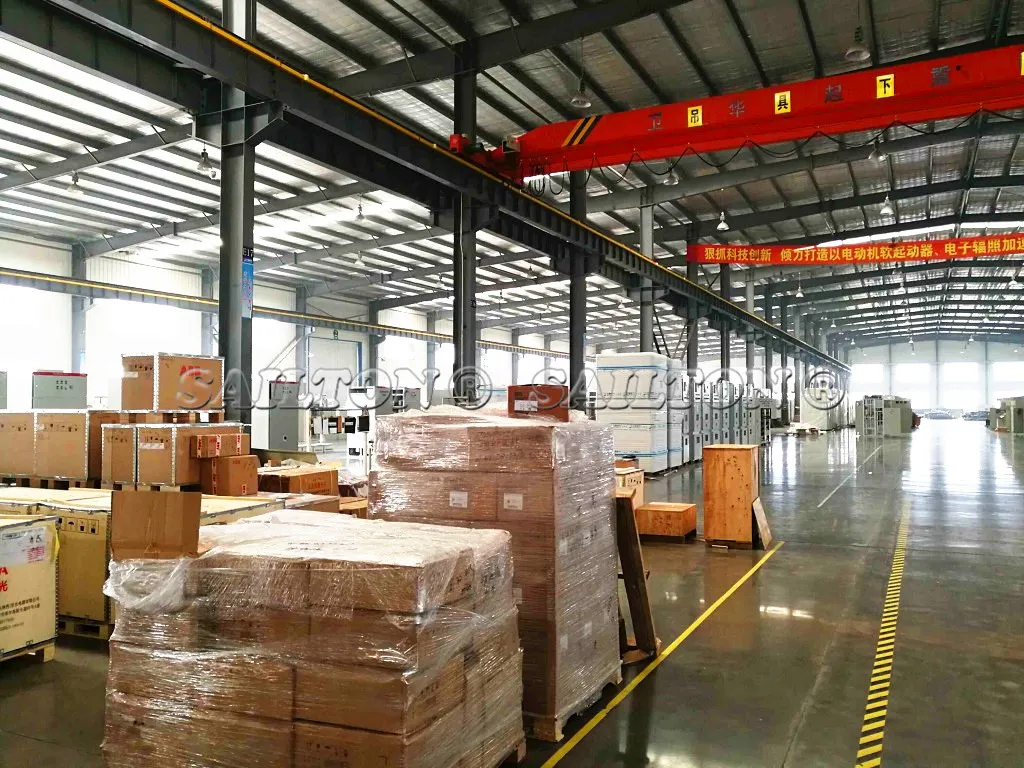

Final Inspection
Frequently Asked Questions
What is the primary use of the KG800A/1600V thyristor?
It is primarily used in high-frequency applications such as inverter welders, choppers, induction heating furnaces, and frequency converters.
What is the applicable frequency range for this device?
This high-frequency thyristor is designed to operate efficiently within a frequency range of 2.5kHz to 20kHz.
What are the benefits of the capsule/disc type design?
The capsule design with a flat ceramic tube shell allows for double-sided cooling and supports both series and parallel connections for high-power requirements.
What does the "Fast Switching" characteristic imply?
It refers to the device's ability to turn off very quickly (low tq values), which is essential for maintaining efficiency in inverter and induction heating circuits.
Can this thyristor operate in extreme temperatures?
Yes, it has a minimum working temperature of -40°C and a maximum junction temperature of 125°C, making it suitable for demanding industrial environments.
What manufacturing process is used for these components?
The entire process involves aluminum diffusion within a vacuum closed tube, ensuring high reliability and stable dynamic characteristics.
