High-Efficiency Topmay Radial Ceramic Capacitor for Optimal Circuit Performance
High-Efficiency Topmay Radial Ceramic Capacitor for Optimal Circuit Performance
High-Efficiency Topmay Radial Ceramic Capacitor for Optimal Circuit Performance
High-Efficiency Topmay Radial Ceramic Capacitor for Optimal Circuit Performance
High-Efficiency Topmay Radial Ceramic Capacitor for Optimal Circuit Performance
1 / 5
High-Efficiency Topmay Radial Ceramic Capacitor for Optimal Circuit Performance
High-Efficiency Topmay Radial Ceramic Capacitor for Optimal Circuit Performance
High-Efficiency Topmay Radial Ceramic Capacitor for Optimal Circuit Performance
High-Efficiency Topmay Radial Ceramic Capacitor for Optimal Circuit Performance
High-Efficiency Topmay Radial Ceramic Capacitor for Optimal Circuit Performance

High-Efficiency Topmay Radial Ceramic Capacitor for Optimal Circuit Performance

Customization: Available
Type: Multi-Layer Ceramic Capacitor
Packaging Type: Through Hole
Send Inquiry

Product Description

i

Basic Information

Model NO.
TMCC03
Capacitance
50-100UF
Structure
Fixed Capacitor
Manufacturing Material
Electrolytic
Transport Package
Bulk or Tape
Specification
CE RoHS UL SGS
Trademark
TMC
Origin
China
HS Code
85322410
Production Capacity
500, 000, 000PCS/Year
⚙

Key Specifications & Features

Capacitance range: 0R 5 to 104
Insulation resistance: C ≤ 10nF R ≥ 10, 000MQC ≥ 10nF C R≥ 100S
Withstanding voltage: 2.5 times of working voltage
Dissipation factor: 0.15% maximum (20 degrees Celsius, 1MHz, 1V DC)
Rated voltage: 25, 50, 63 and 100V DC
Capacitance tolerance: B = 0.1PF, C = 0.25PF, D = 0.5PF, F = 1%, G = 2%, J = 5%, K = 10%, M = 20%
Life test: 200% rated voltage at +125 degrees Celsius 1, 000 hours
Solder ability: SJ/10211-91 4.11
Resistance to soldering heat: SJ/T10211-91 4.10
Mechanical test: SJ/T10211-91 4.9
Temperature cycling: SJ/T10211-91 4.12
Moisture resistance: SJ/T10211-91 4.14
Termination adhesion strength: SJ/T10211-91 4.9
Environment testing: SJ/T10211-91 4.13
★

Product Characteristics

• Tape and reel available for auto placement

• Various lead spacings are available to meet different circuit requirements

📦

Payment & Delivery

Minimum Order
10, 000 to 19, 999 Pieces
FOB Port
Hong Kong, Shenzhen
SGS Certificate
GZSCR041248032/LP (Issued 24-Dec-2004)
RoHS Certificate
CQC06130017473 (Issued 08-Sep-2006)
📷

Product Gallery

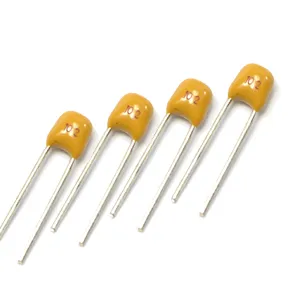

Radial Ceramic Capacitor

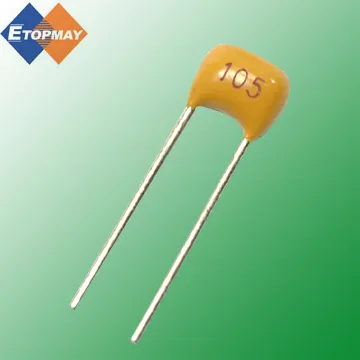

Radial Ceramic Capacitor Detail
Radial Ceramic Capacitor View
Radial Ceramic Capacitor Components

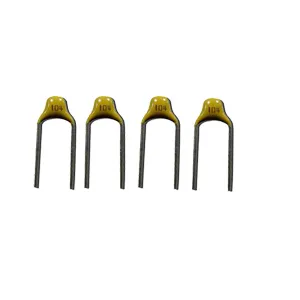

Radial Ceramic Capacitor Packaging

Frequently Asked Questions

What is the withstanding voltage of the TMCC03 model?
The TMCC03 features a withstanding voltage of 2.5 times the rated working voltage, ensuring stability during circuit fluctuations.
Is this capacitor compatible with automated assembly?
Yes, it is available in tape and reel packaging, making it ideal for high-speed automatic placement equipment.
What certifications does this product hold?
This product is fully compliant with CE, RoHS, UL, and SGS standards, meeting international safety and environmental requirements.
What is the production capacity for this series?
We maintain a high production capacity of approximately 500,000,000 pieces per year to ensure consistent supply for large-scale projects.
What are the available rated voltage options?
The standard rated voltages for this series include 25V, 50V, 63V, and 100V DC.
Can I request specific lead spacing?
Yes, various lead spacings are available to accommodate different PCB layout designs and requirements.
