| Model No. | FC915DL1000 |
|---|---|
| Wavelength | 915nm |
| Output Power | 1000W |
| Laser Type | Fiber Coupled Diode Laser |
| Fiber Core | 200um |
| Numerical Aperture | 0.22NA |
| Certification | CE |
| Key Selling Points | High Brightness, Long Service Life |

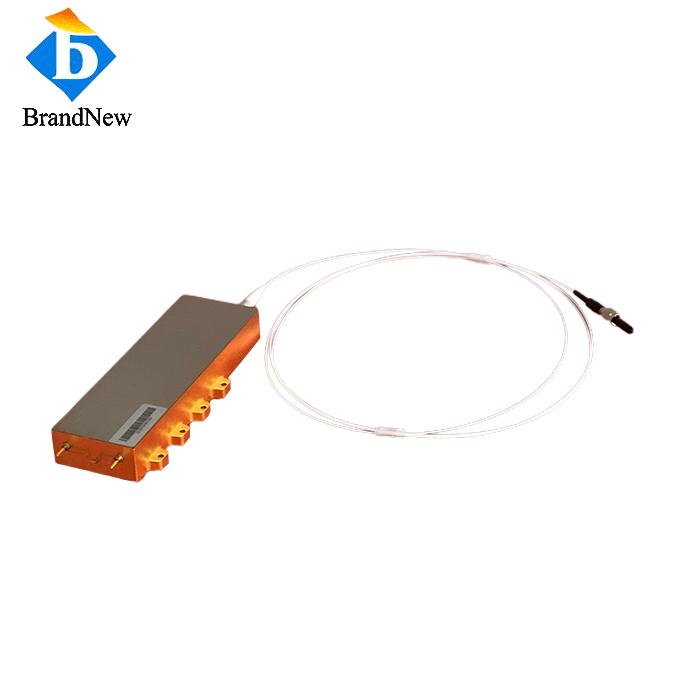

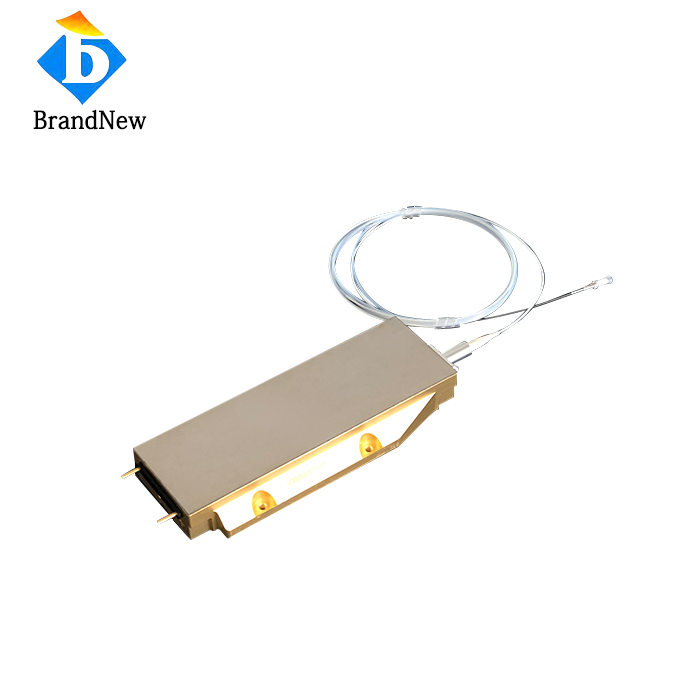

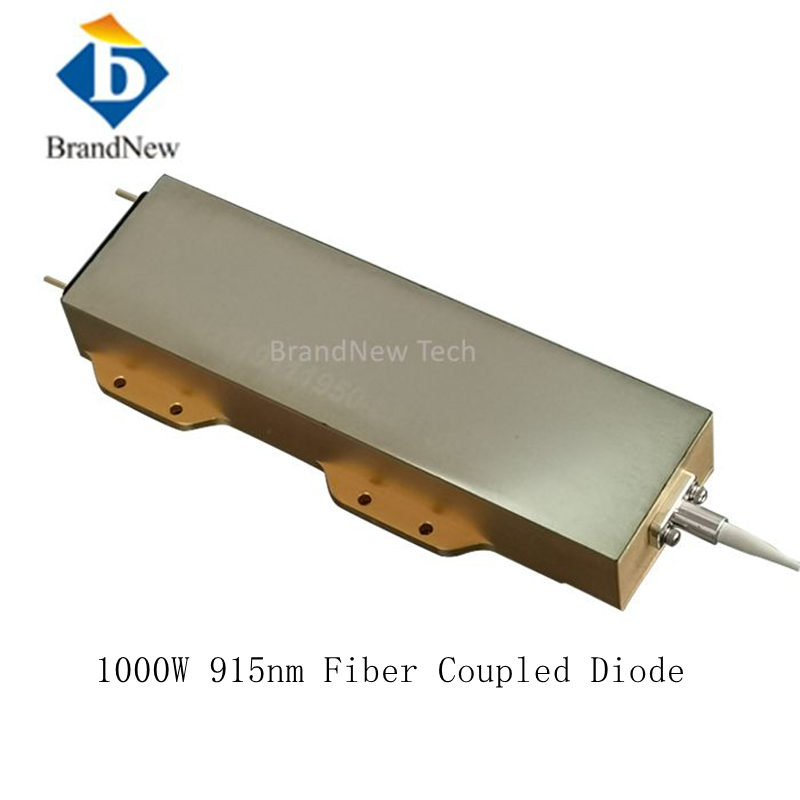

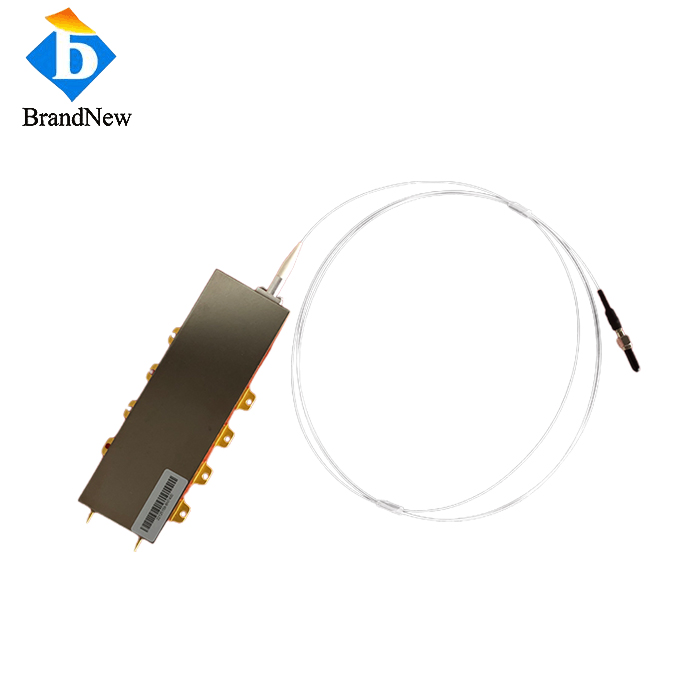

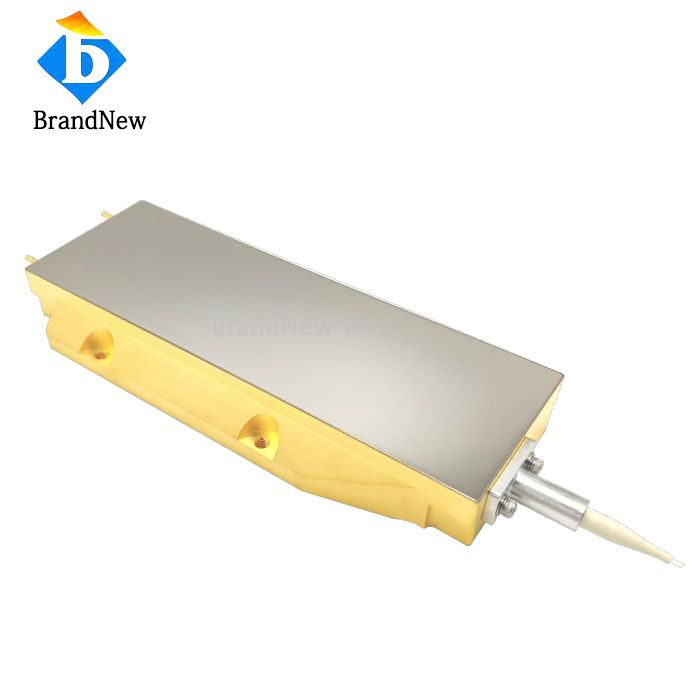

The fiber coupled diode pump module delivers up to 1000W output power through a 200um fiber. Utilizing high-power proprietary chips optimized for peak reliability, this multimode module offers high brightness and simplified thermal management. Diodes operate independently as distributed heat sources, supporting both air and water-cooled architectures.
| Optical Parameters | |
| Center Wavelength | 915nm |
|---|---|
| Wavelength Tolerance | ±10nm |
| Output Power | 1000W |
| Fiber Parameters | |
| Fiber Core | 200um |
| Numerical Aperture | 0.22NA |
| Fiber Length | 1m |
| Fiber Connector | Bare end |
| Electrical Parameters | |
| Operating Current (Iop) | 35A |
| Threshold Current (Ith) | 1A |
| Operating Voltage (Vop) | 70V |
| Thermal Parameters | |
| Operating Temperature | 25ºC |
| Storage Temperature | -30 to 70ºC |
| Temperature Coefficient | 0.3nm/ºC |
Our core competencies include diode packaging, beam shaping, reliability testing, and efficient cooling solutions. All products are processed in 10,000 Class Clean Room environments to ensure the highest industrial standards.
