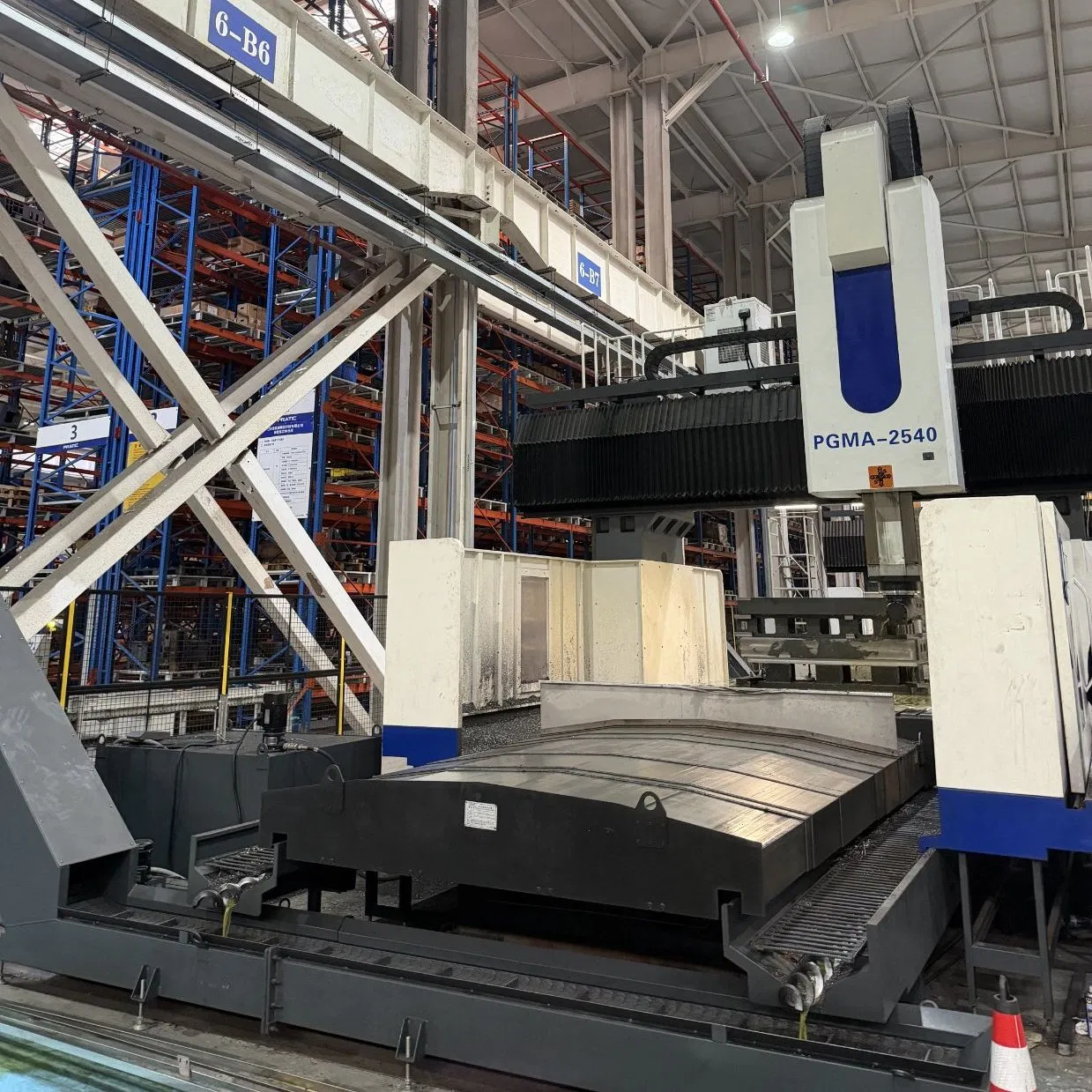

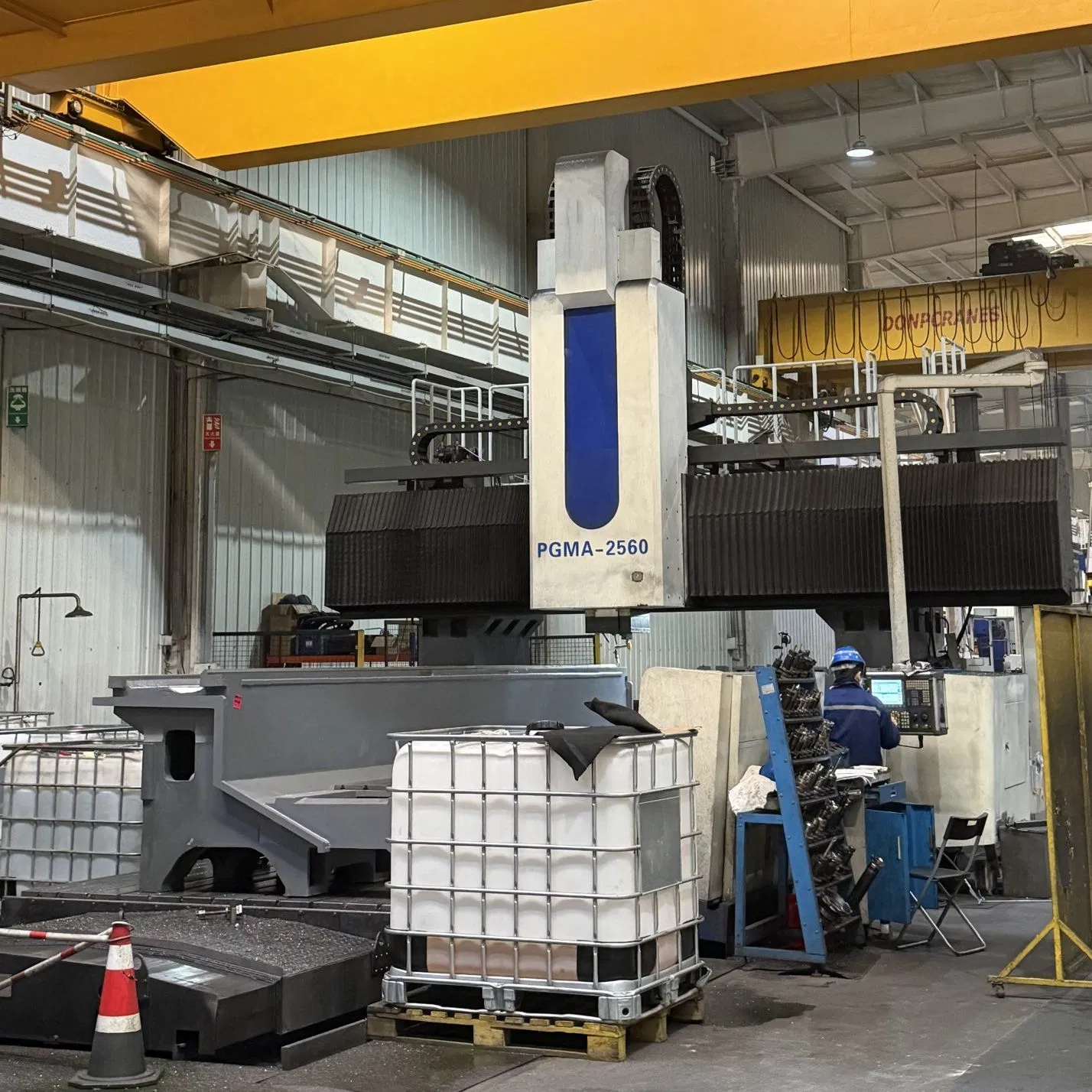

Heavy-Duty Fixed Beam Gantry Bridge Type Milling Machine Pgma-3040
Heavy-Duty Fixed Beam Gantry Bridge Type Milling Machine Pgma-3040
Heavy-Duty Fixed Beam Gantry Bridge Type Milling Machine Pgma-3040
Heavy-Duty Fixed Beam Gantry Bridge Type Milling Machine Pgma-3040
Heavy-Duty Fixed Beam Gantry Bridge Type Milling Machine Pgma-3040
1 / 5
Heavy-Duty Fixed Beam Gantry Bridge Type Milling Machine Pgma-3040
Heavy-Duty Fixed Beam Gantry Bridge Type Milling Machine Pgma-3040
Heavy-Duty Fixed Beam Gantry Bridge Type Milling Machine Pgma-3040
Heavy-Duty Fixed Beam Gantry Bridge Type Milling Machine Pgma-3040
Heavy-Duty Fixed Beam Gantry Bridge Type Milling Machine Pgma-3040

Heavy-Duty Fixed Beam Gantry Bridge Type Milling Machine Pgma-3040

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info

Model NO.
PGMA-3040
Type
Heavy-Duty Fixed Beam Gantry
Object
Hardware
Structure
Gantry
Milling Cutter Type
Angle Milling Cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Table Size
3000*4000
Max. Table Load
24t
HS Code
8458110090
Capacity
>3500 Units Per Year

Product Description

The equipment is a heavy-duty fixed beam gantry. Suitable for processing in industries such as large molds, ships, rail transit, and machinery manufacturing.

High rigidity configuration: The X-axis adopts a symmetrical structure design with four roller guides, the Z-axis adopts a 450 x 450 four sided constrained square ram structure, and the slider saddle is equipped with 7 sliders.

Precision Drive: The Z-axis feed of the machine adopts dual motor and dual screw transmission, which has better dynamic response, and improves the smoothness of the machining surface.

Product Parameters

Specification Unit PGMA-3040/60/80
Table sizemm3000×4000/6000/8000
X travelmm4200/6200/8500
Y/Z travelmm4500/1600
Max. loading of tableT24/36/48
Spindle speedr/min4500
Spindle power (S1/S6-40%)kW22/33
Rapid on X/Y/Z/Wm/min10/15/10/3
WeightT80/90/100

Visual Showcase

Gantry Milling Machine
Internal Structure
Heavy-Duty Components
Machining Process

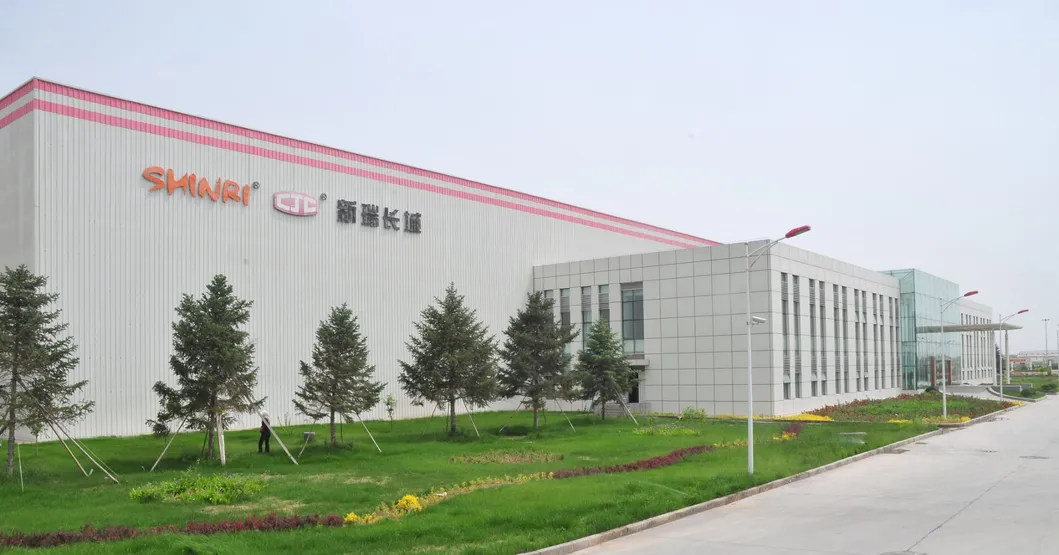

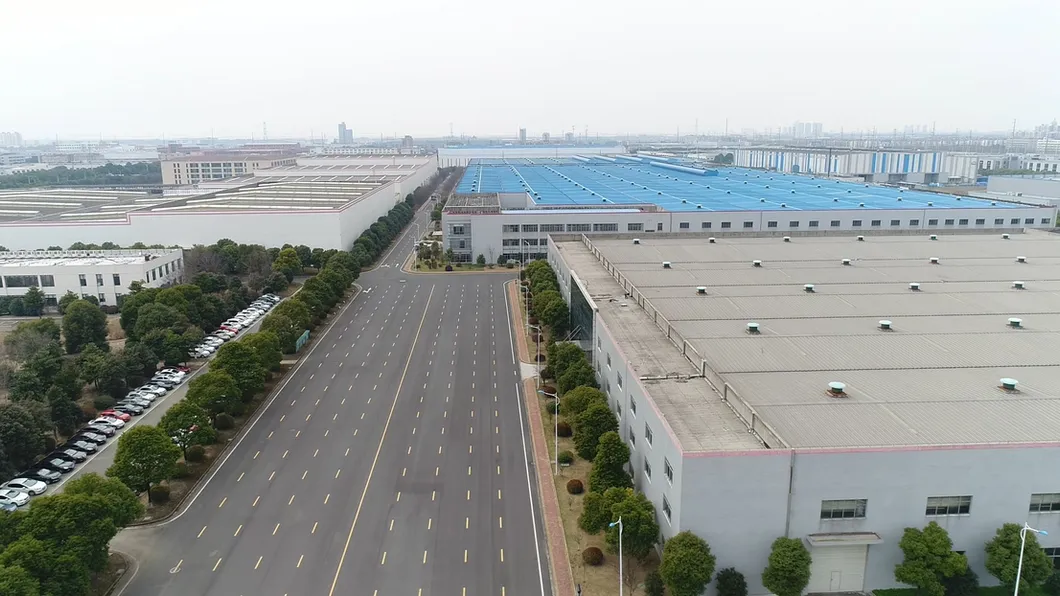

Factory Overview
Quality Control

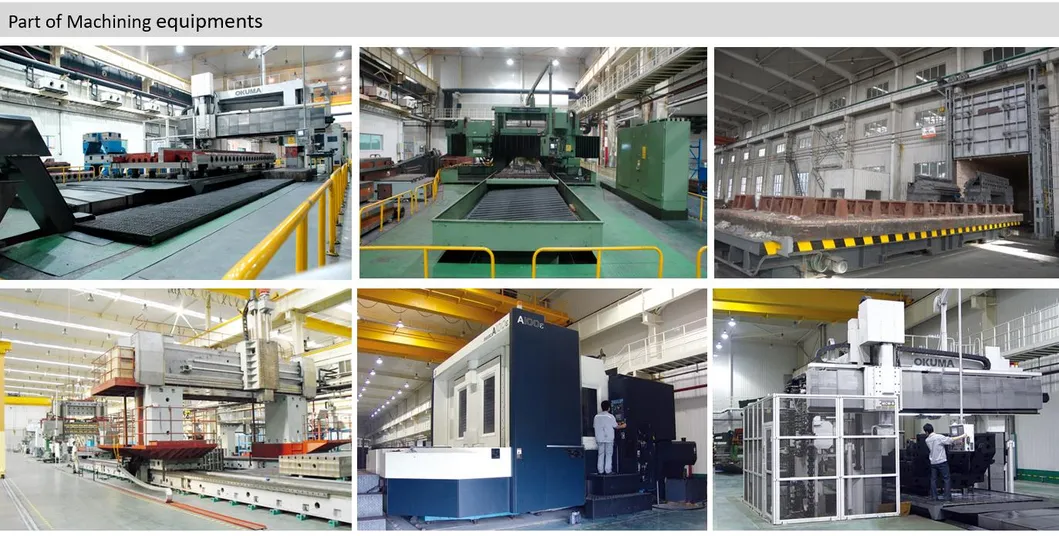

Manufacturing Capabilities

Our manufacturing group operates advanced R&D centers and extensive production bases with modernized plants covering over 1 million square meters. We have introduced high-precision mother machines from world-class makers, achieving a yearly production capacity of over 3,500 units.
Production Line

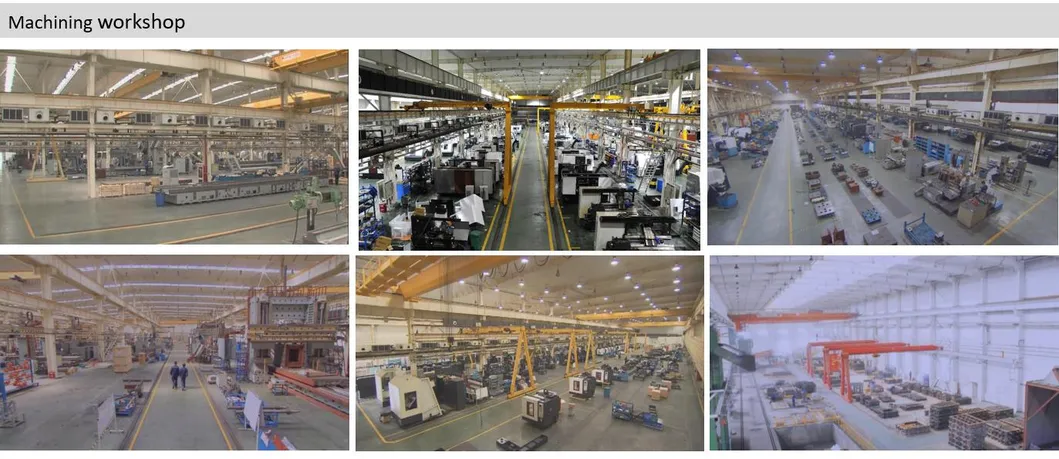

Workshop
Precision Assembly
The product range covers VMC, HMC, CNC lathe, gantry boring/milling centers, and specialized gear boxes. These solutions are broadly applicable to aerospace, automobile, shipbuilding, and energy sectors.
Technical Excellence

Frequently Asked Questions

Q1: What are the primary industries for the PGMA-3040?
It is ideal for large-scale mold manufacturing, shipbuilding, rail transit, and heavy machinery industries.
Q2: How does the machine ensure high machining stability?
Stability is achieved through a heavy-duty fixed beam design, a four-roller guide X-axis, and a four-sided constrained square ram.
Q3: What is the maximum loading capacity of the worktable?
The worktable can handle maximum loads ranging from 24 tons to 48 tons depending on the specific model configuration.
Q4: Does the machine utilize CNC technology?
Yes, the machine operates with advanced CNC controlling modes for high-precision automatic processing.
Q5: What is the spindle performance of the PGMA series?
The spindle offers a speed of 4500 r/min with power ranging from 22kW to 33kW, ensuring efficient heavy-duty milling.
Q6: What is the advantage of the dual motor Z-axis?
The dual motor and dual screw transmission provide superior dynamic response and a smoother finish on machined surfaces.
