Customization: Available
Encapsulation Structure: 4GBJ
Application: AC/DC bridge
Send Inquiry

Product Description

Basic Specifications
Model NO.
HY-4GB1010
Certification
RoHS, CE, ISO, CCC
Material
Silicon
Structure
Planar
Capacity
10000 Pieces/Day
Origin
Guangdong, China
Product Description

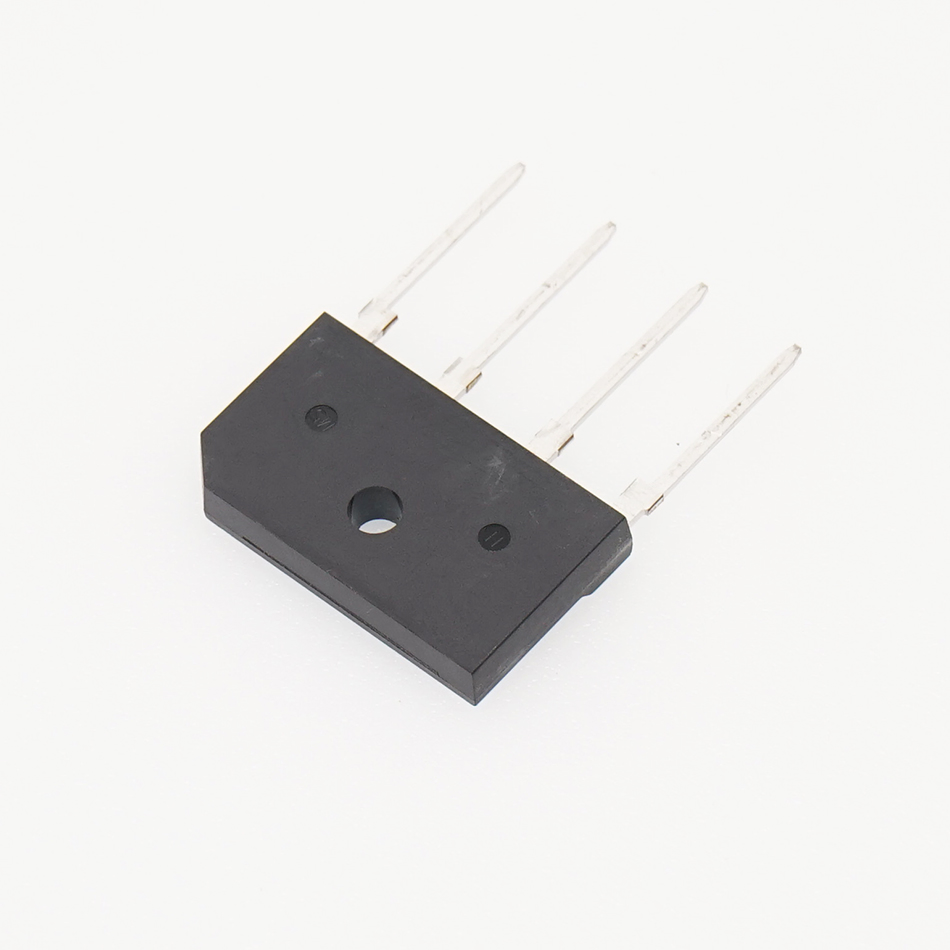

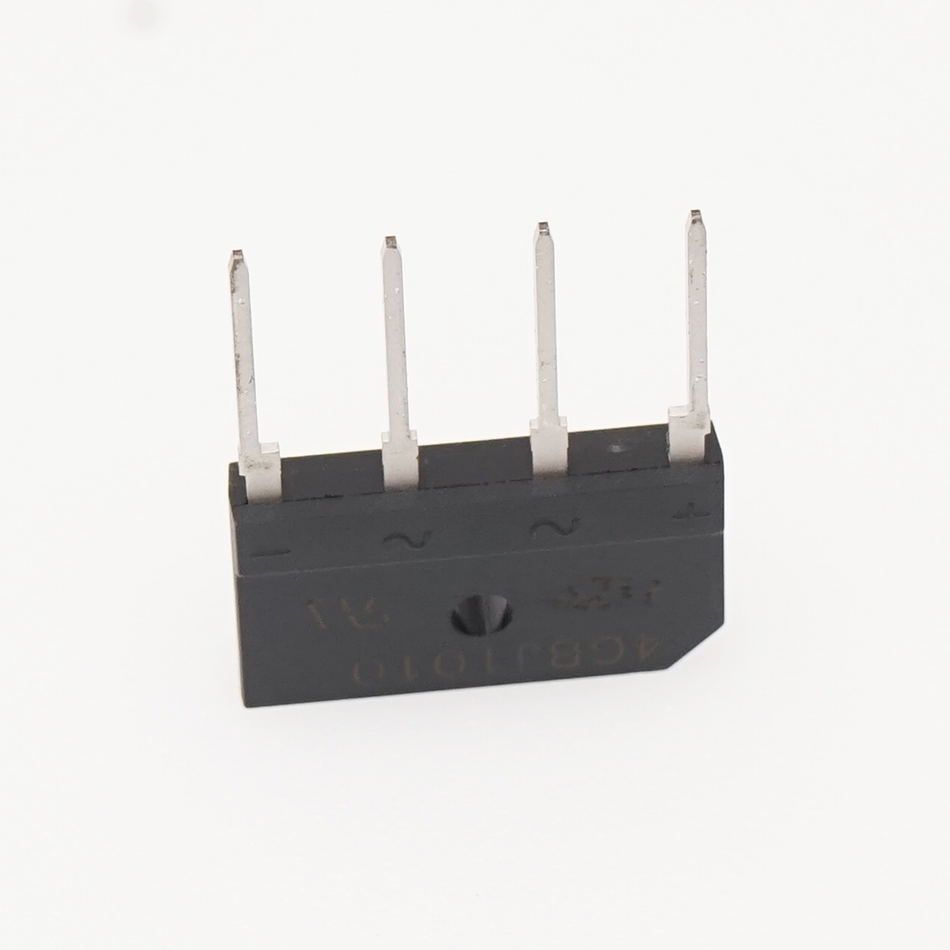

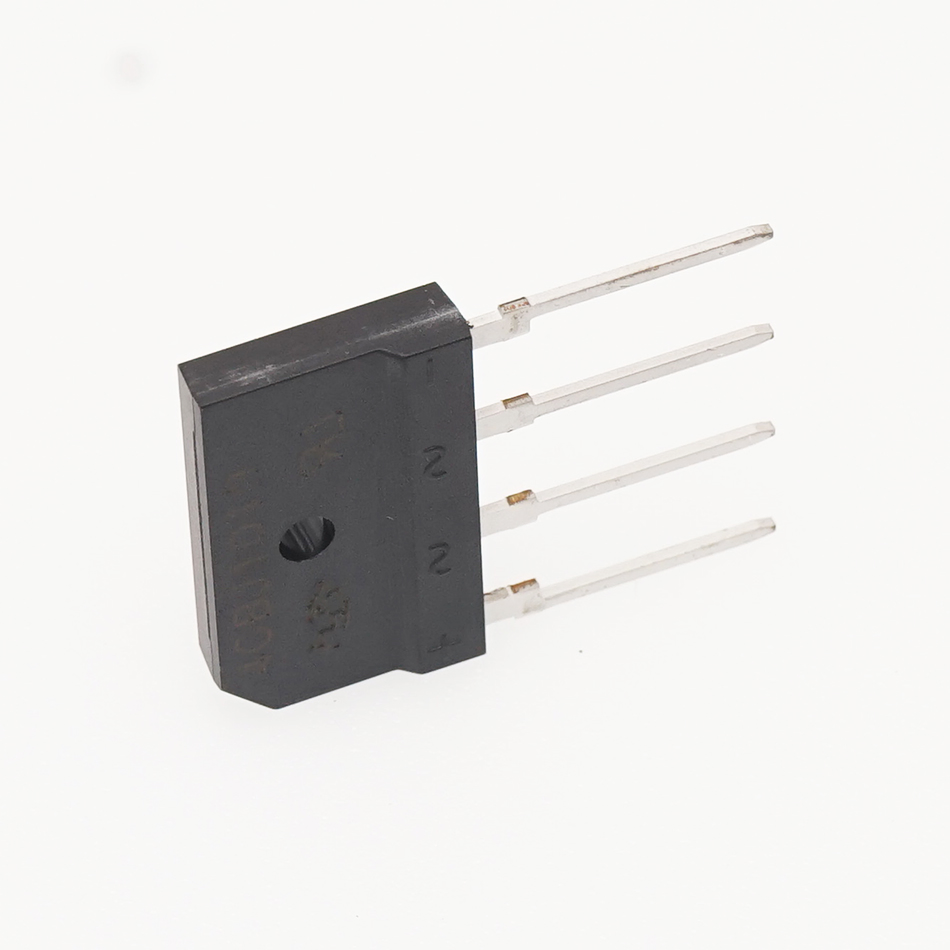

Glass Passivated Bridge Rectifiers HY-4GB1010

High-performance bridge rectifier designed for reliable power conversion. Parameters: 10A / 1000V / VF@IF:5A=>1V. Operating temperature range: -55~150ºC.

Key Features:
  • Glass passivated chip for enhanced reliability
  • Low forward voltage drop
  • Ideal for printed circuit board mounting
  • High surge current capability
  • 100% Avalanche Tested
  • Built-in ESD Diode
Technical Data
Package4GBJ
VRRM (V)1000
IO (A)10
IFSM (A)210
VF (V)1.00
IR (uA)5

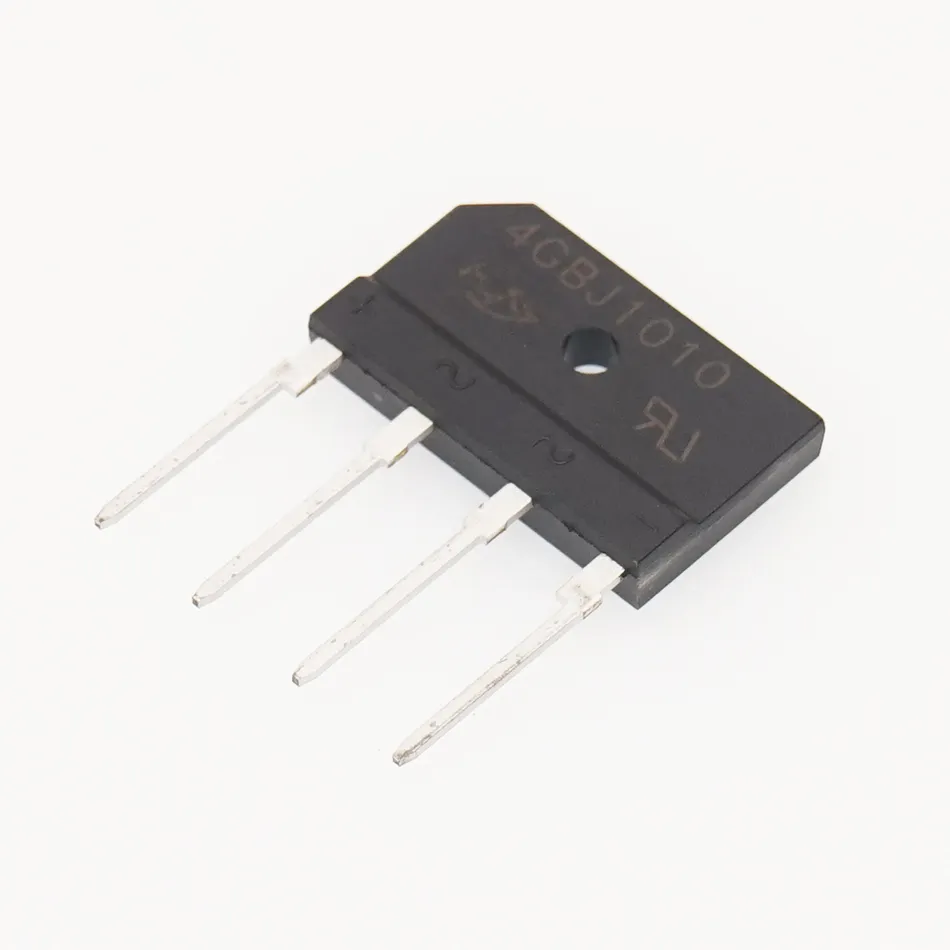

Rectifier Image 1
Rectifier Image 2

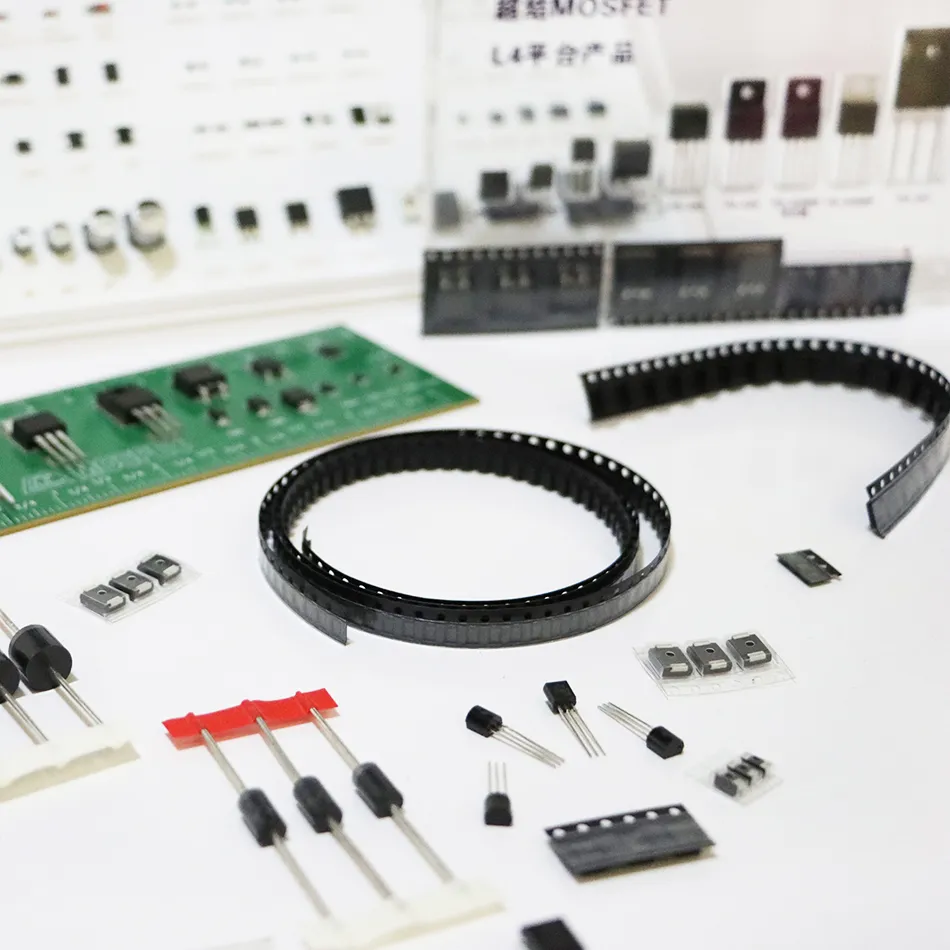

Rectifier Image 3

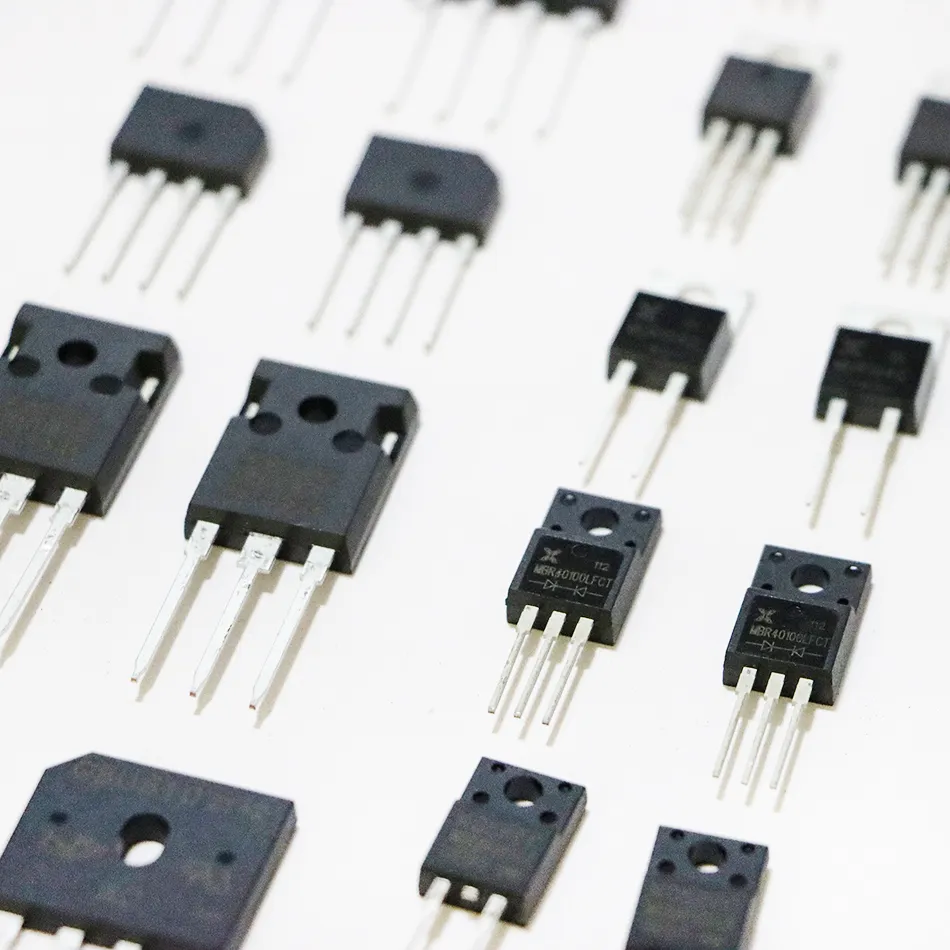

Rectifier Image 4

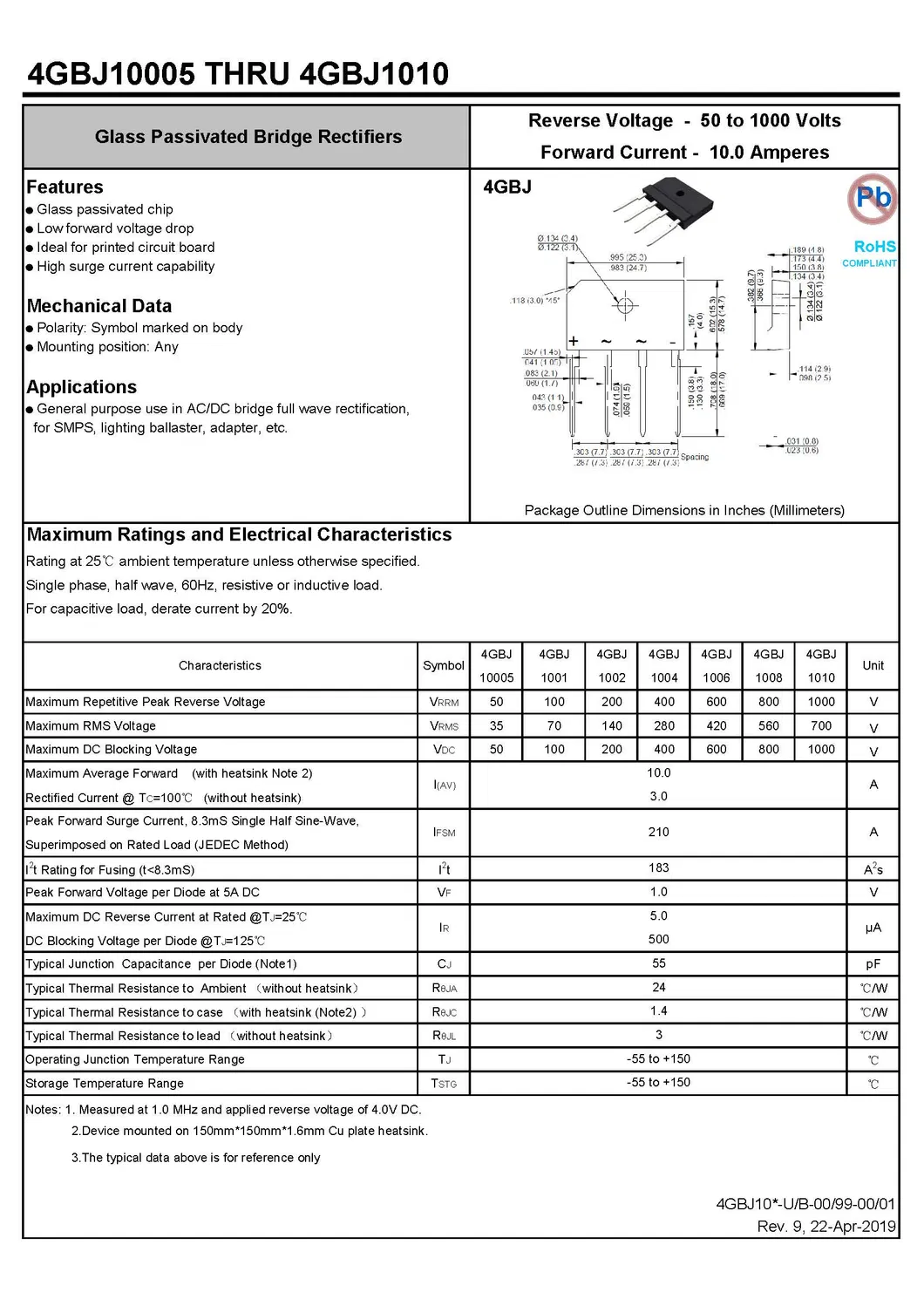

Technical Datasheet 1

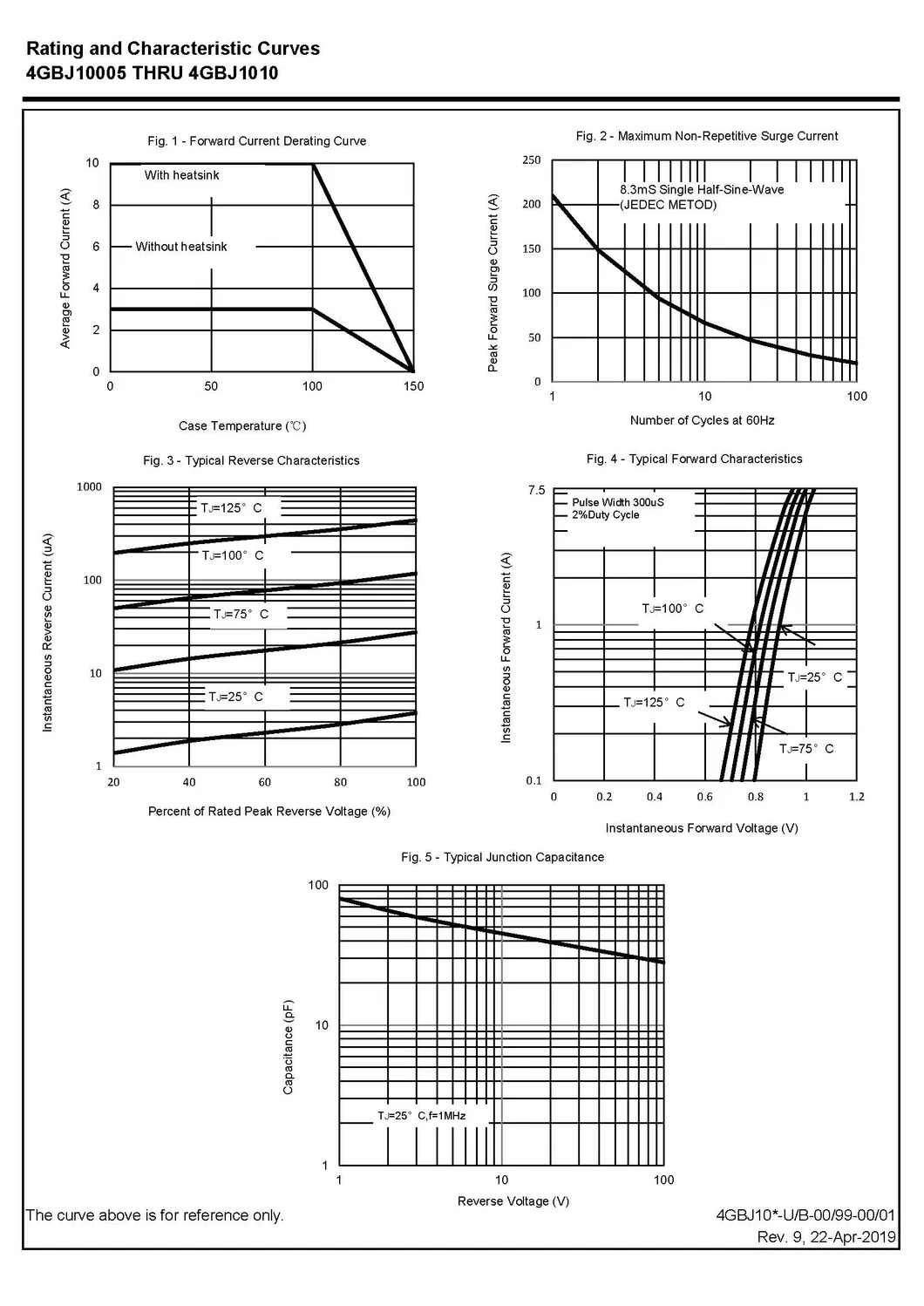

Technical Datasheet 2
Applications

General purpose use in AC/DC bridge full wave rectification, specifically optimized for:

  • Switch Mode Power Supply (SMPS)
  • Power Factor Correction (PFC)
  • Uninterruptible Power Supply (UPS)
  • LED Lighting Power & TV Power
  • Telecom & Adapters
Professional Manufacturing

Established as a professional supplier of semiconductor discrete devices and technical services. Our core product lines include Rectification, Ultra-fast recovery, Schottky, Zener diodes, Bridge rectifiers, and advanced SIC MOSFET solutions.

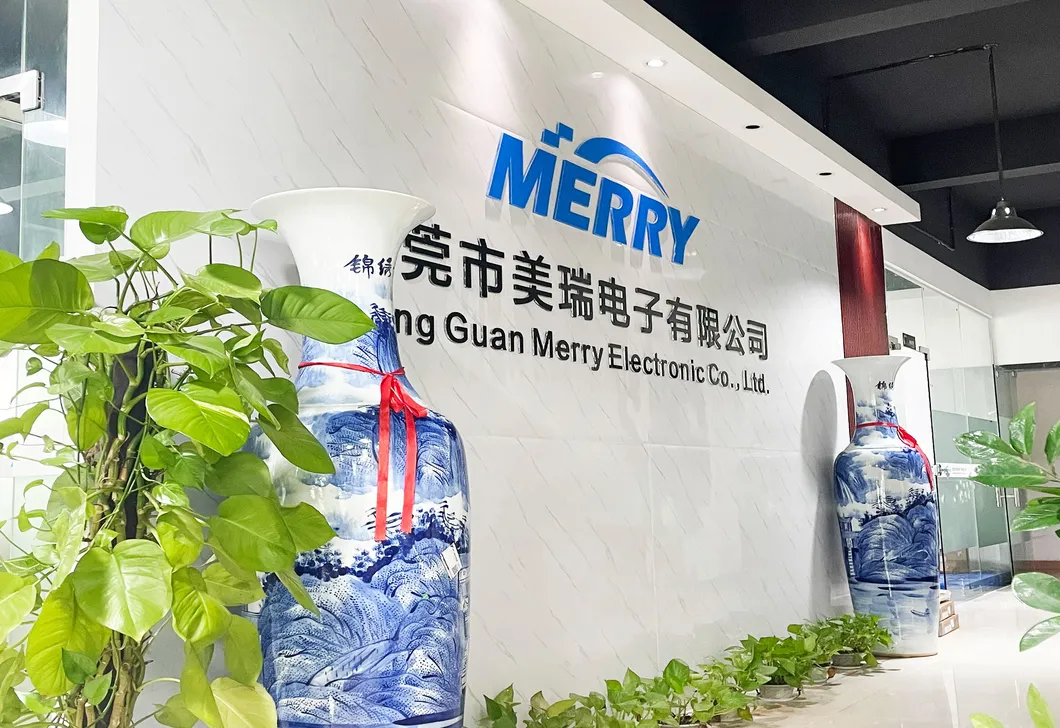

Production Facility 1

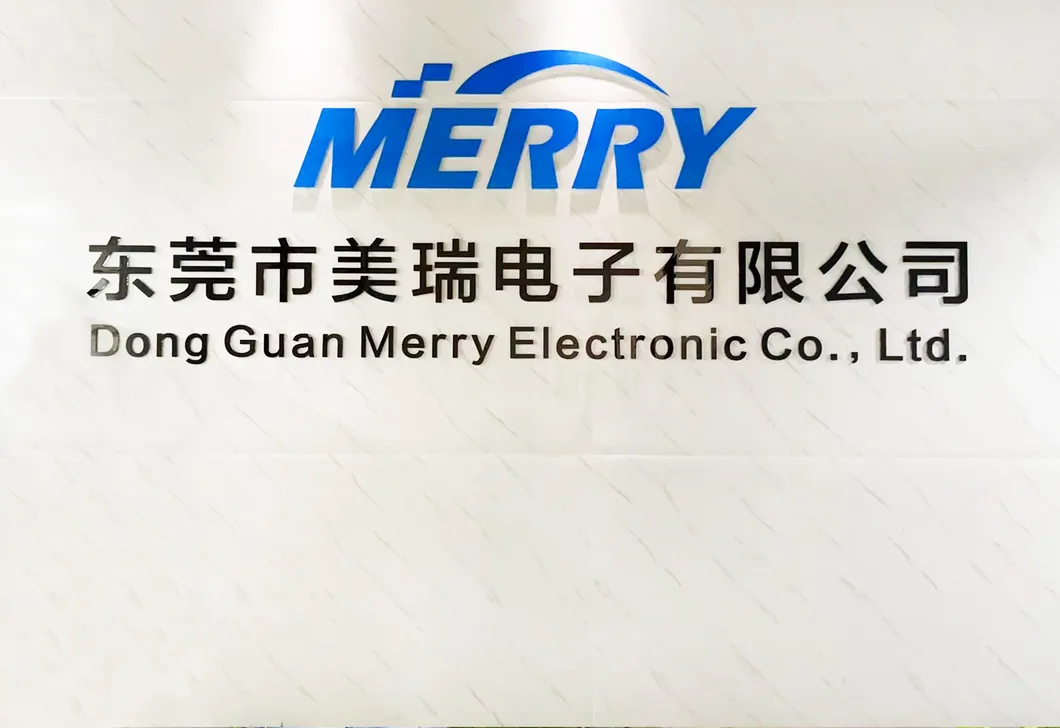

Production Facility 2
Certifications
Cert 1
Cert 2
Cert 3
Frequently Asked Questions
What services do you provide?
We provide turnkey solutions including RD, PCB fabrication, SMT, testing, and other value-added semiconductor services.
What are the main industries for your services?
Our services mainly cater to the Medical, Automotive, Energy, Metering/Measurements, and Consumer Electronics industries.
Can we inspect quality during production?
Yes, we maintain an open and transparent production process. Customers are welcome to inspect our production and check in-house.
How do you ensure design confidentiality?
We are willing to sign NDAs governed by local laws to ensure all customer data and designs remain highly confidential.
What files are required for a quotation?
For PCB/PCBA, please provide Gerber files, technical requirements, and a Bill of Materials (BOM).
Do you have a minimum order quantity (MOQ)?
No, we do not have a strict MOQ requirement. We support projects ranging from prototypes to mass production.
