📋 Basic Specifications
Installation
DIP Resistor
Material
Ceramic and Metal
Type
Rotary Potentiometer
Resistance Change
Variable Resistor
Production Capacity
50000PCS/Day
Packaging
Plastic Tube + Carton + Pallet

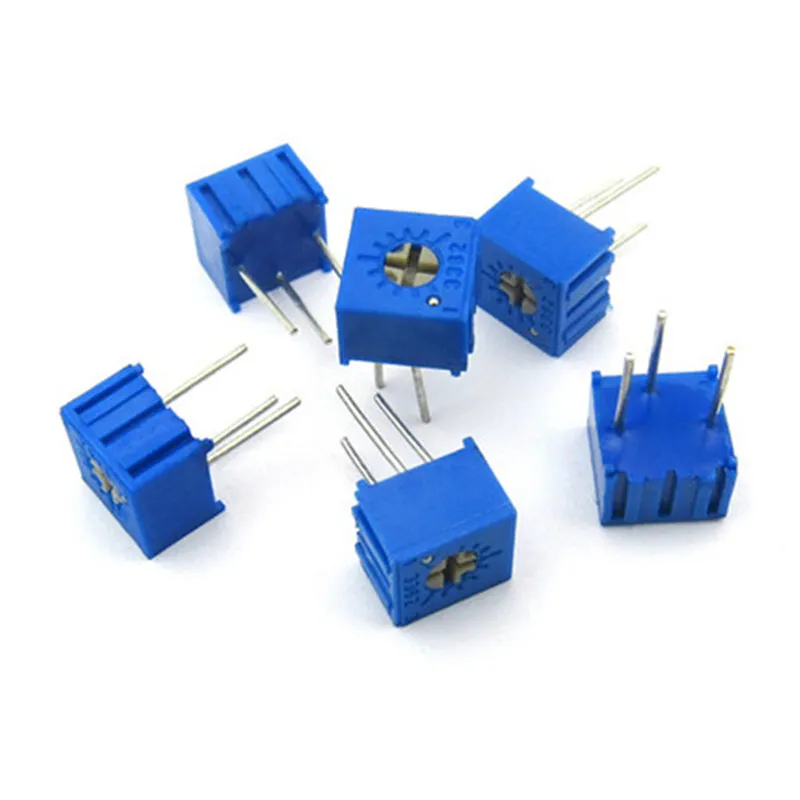

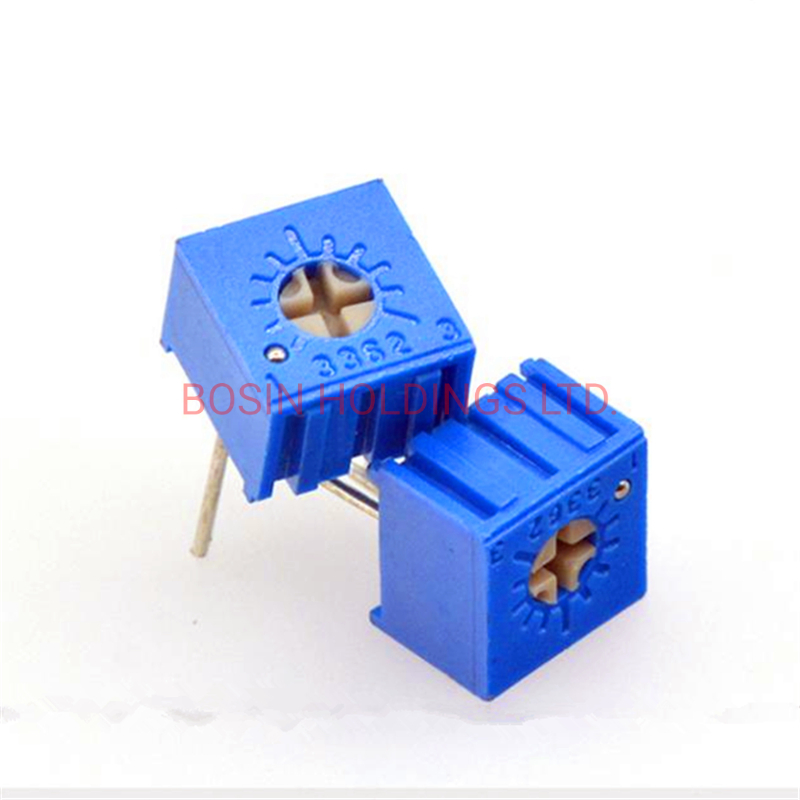

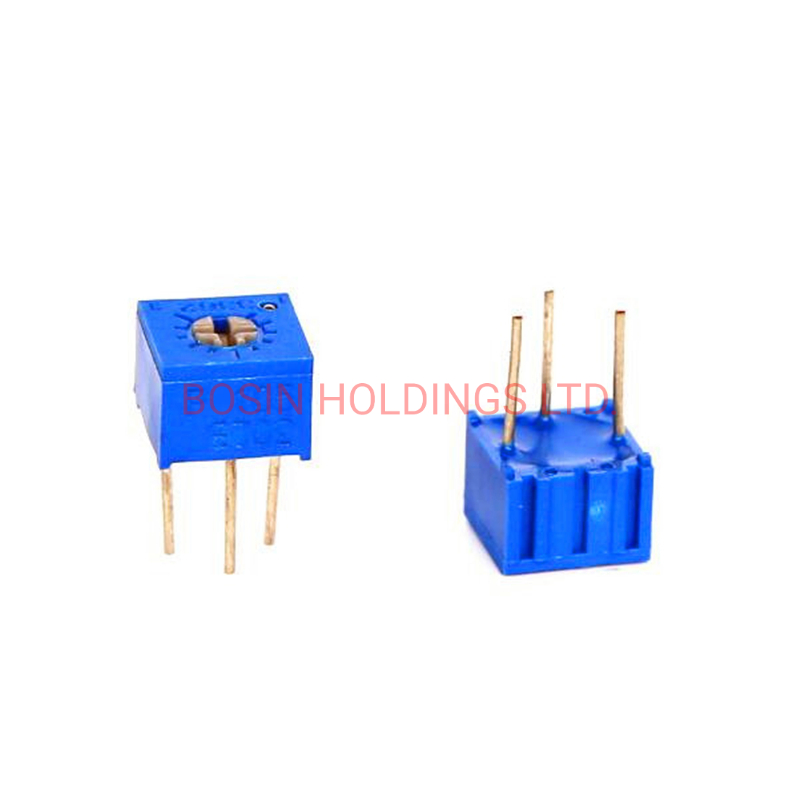

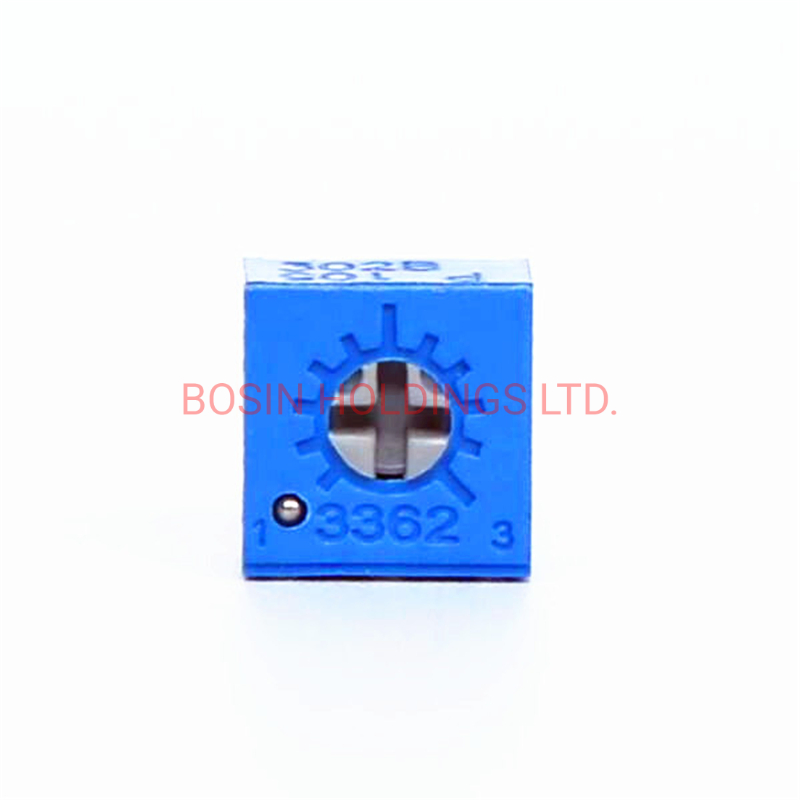

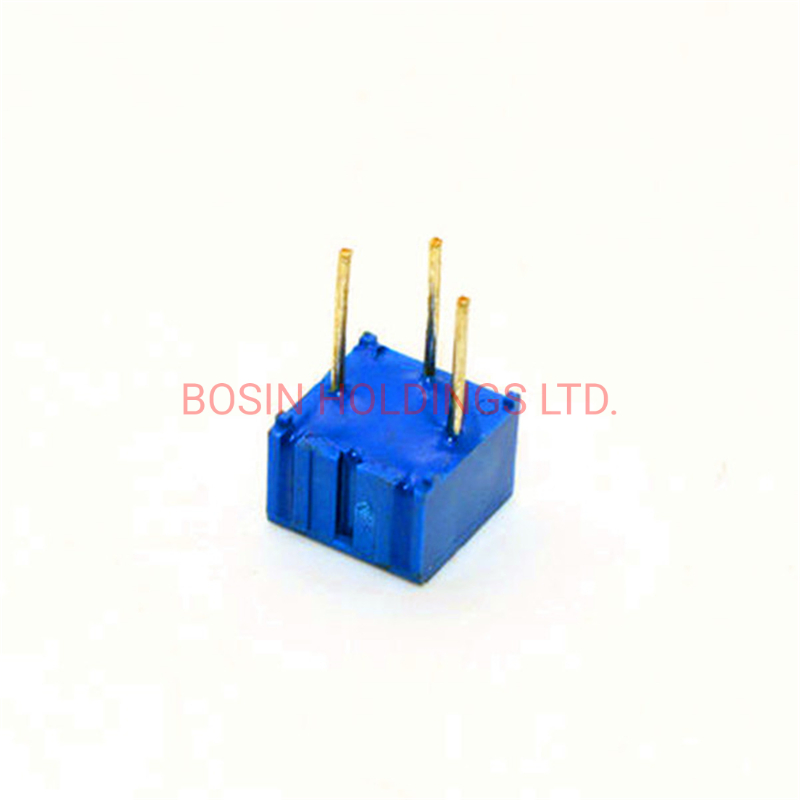

Samples available: 3362 10K ohm trimmer potentiometer 3362P
⚡ Electrical Characteristics
| Range of nominal resistance | 10KΩ |
| Resistance tolerance | ±10% |
| Terminal resistance | ≤±1%R or 2Ω |
| Contact resistance variation (CRV) | ≤±1%R or 3Ω |
| Insulation resistance | ≥ 1GΩ (100V AC) |
| Withstand voltage | 500V (DC or AC peak value) |
| Effective electrical travel | ≥200° |
🌍 Environment Characteristics
| Rated power | 0.25W (70°C, 300V max) |
| Temperature range | -55°C ~ +125°C |
| TCR | ±250×10-6/°C |
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
| Electrical endurance (1000h) | ΔR≤± (5%R+0.1Ω), CRV≤±3%R or 5Ω |
| Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω |

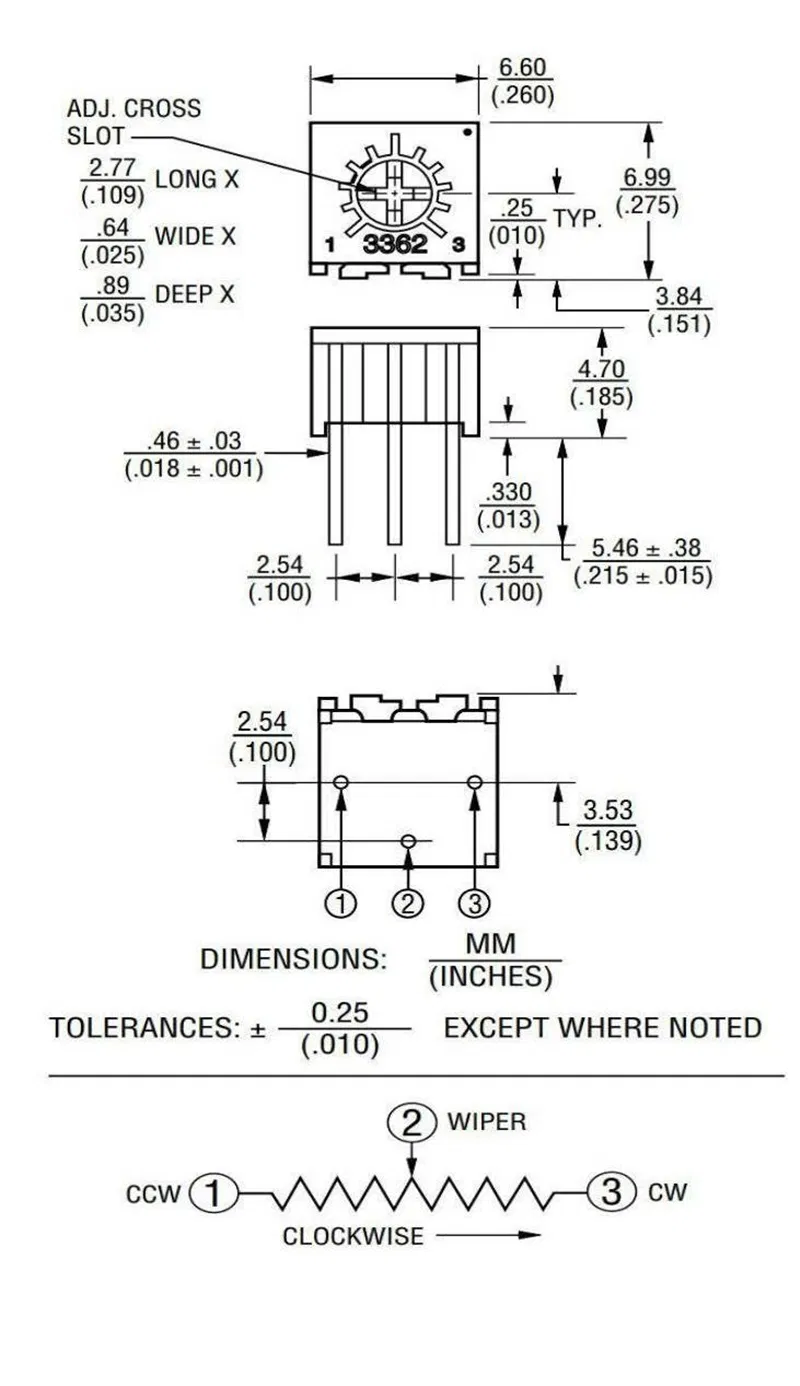

⚙️ Physical Characteristics
| Total mechanical travel | 260°±10° |
| Starting torque | ≤20mN.m |
| Stopper torque | ≥50mN.m |
| Standard package | 50 pcs / tube |
📸 Product Gallery
❓ Frequently Asked Questions
What is the nominal resistance of the 3362 model?
The standard range of nominal resistance for this 3362 trimmer potentiometer is 10KΩ with a tolerance of ±10%.
What are the power and temperature ratings for this component?
It is rated at 0.25W at 70°C and can operate effectively within a temperature range of -55°C to +125°C.
What materials are used in its construction?
The 3362 potentiometer is constructed using high-quality Ceramic and Metal materials for durability and stability.
What is the mechanical travel limit of this rotary potentiometer?
The total mechanical travel is 260°±10°, providing a wide range for precise adjustments.
How is the product typically packaged for shipping?
The standard packaging consists of 50 pieces per plastic tube, which are then placed in cartons and secured on pallets for transport.
Is this model suitable for high-vibration environments?
Yes, it is tested for vibration (10-500HZ) and collision (4000 times), ensuring minimal resistance change (ΔR≤±1%R) under physical stress.
