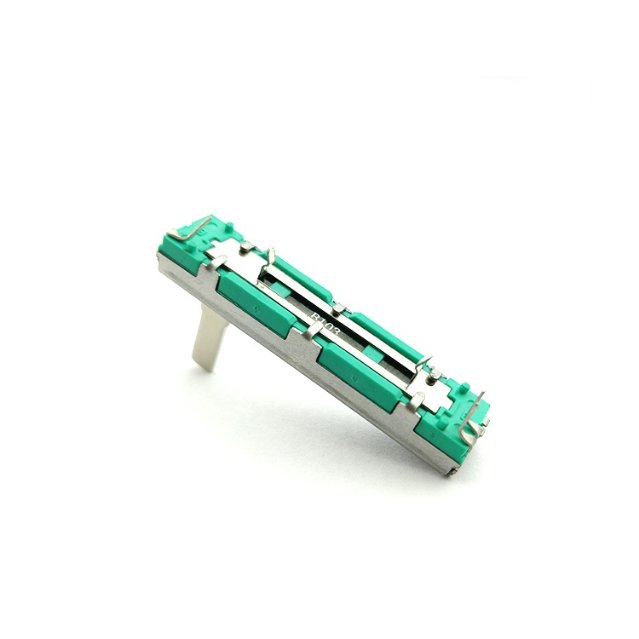

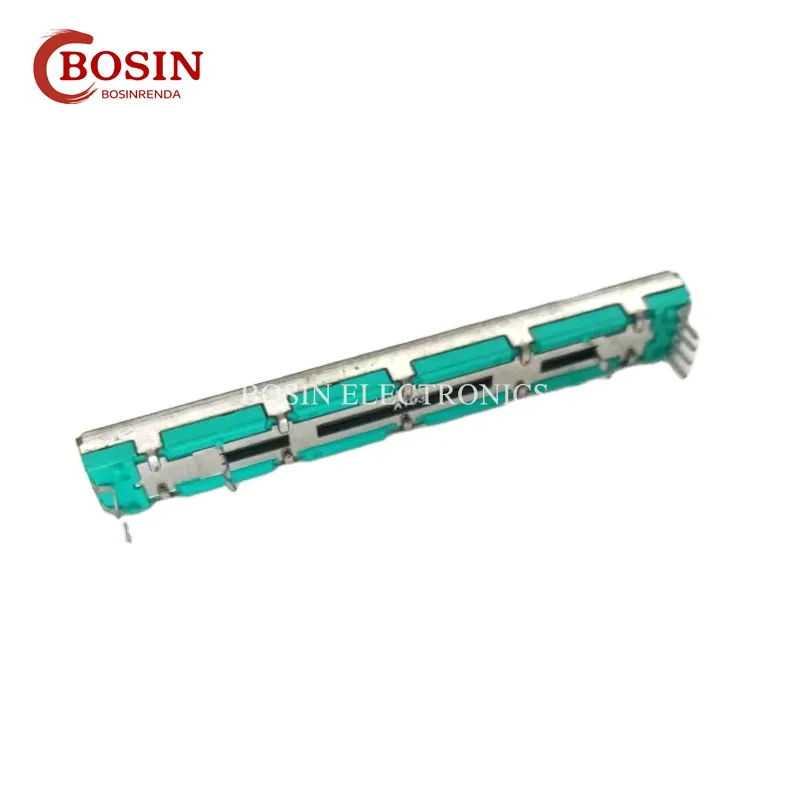

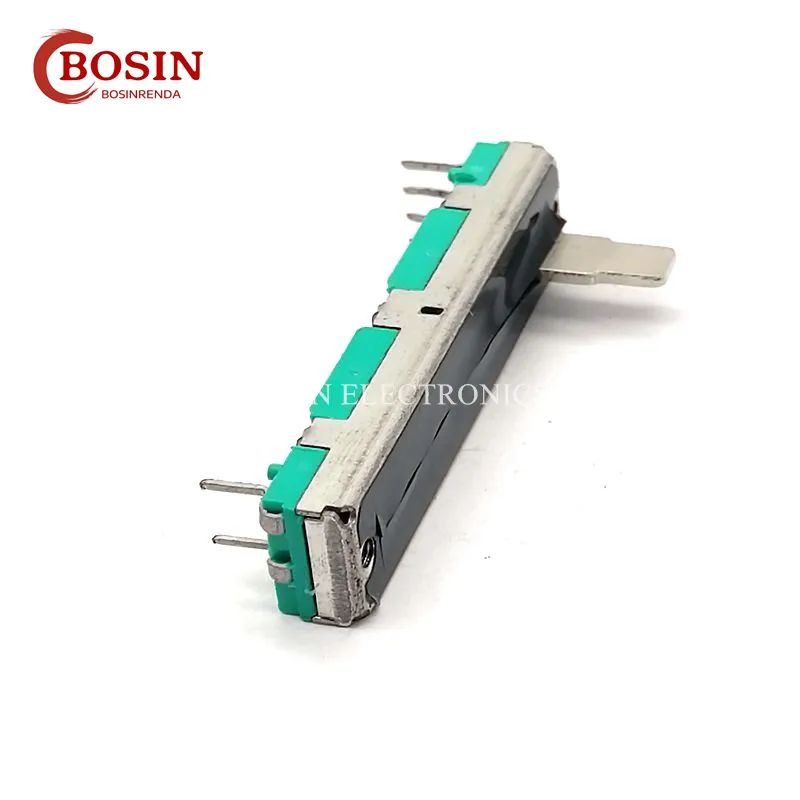

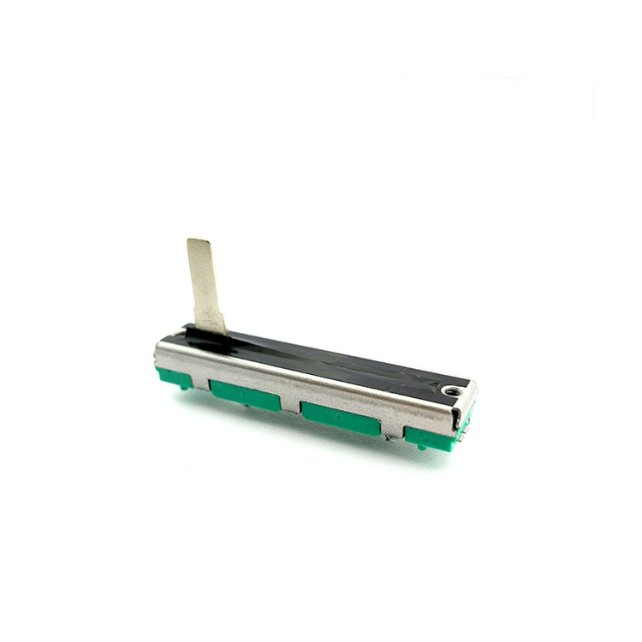

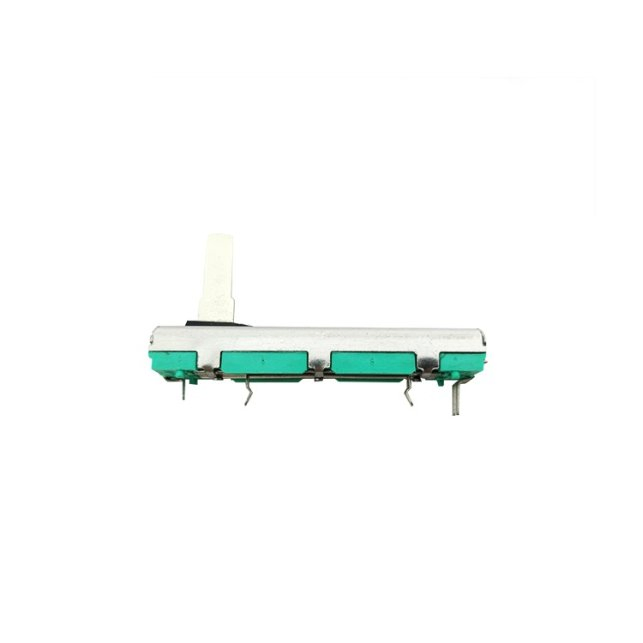

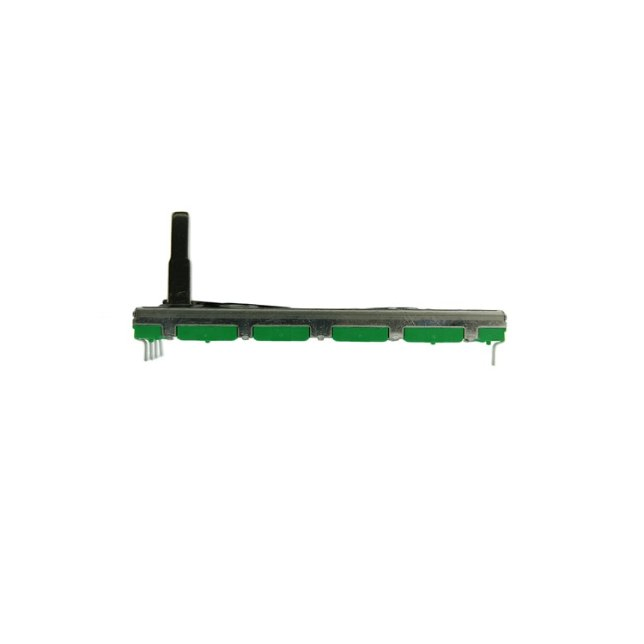

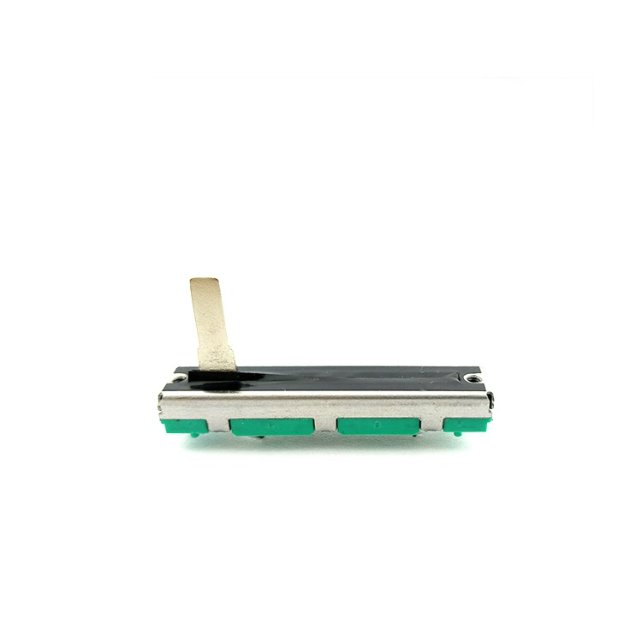

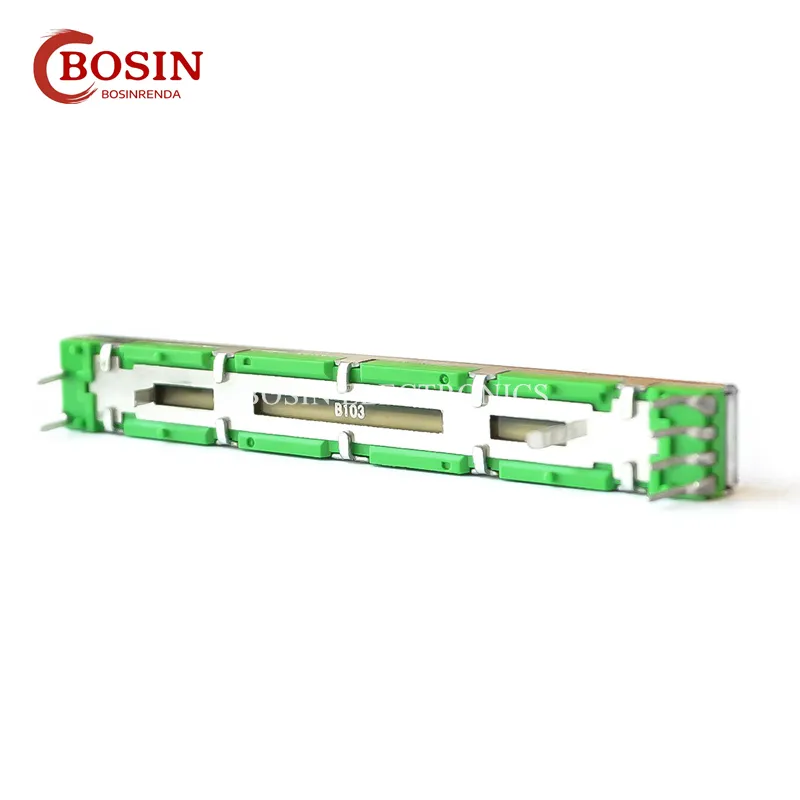

This series includes high-quality slide potentiometers and audio potentiometers designed for precision control in various electronic applications. These components are manufactured under strict quality systems.

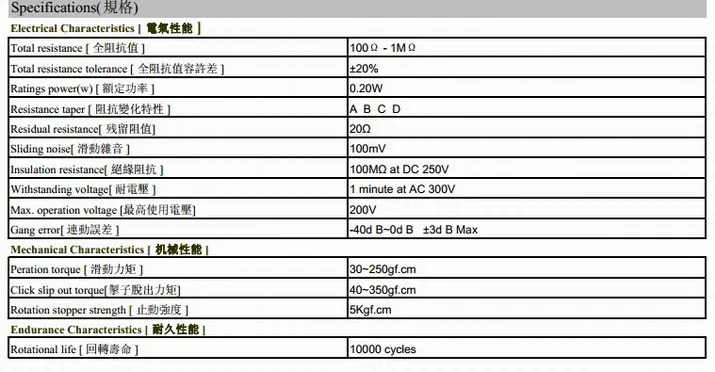

| 1. Electrical Characteristics | |
|---|---|
| Total Resistance | 1KΩ ~ 1MΩ |
| Resistance Tolerance | 500Ω < R < 1MΩ: ±20%; R < 500Ω or R > 1MΩ: ±30% |
| Resistance Taper | A, B, C |
| Withstand Voltage | 1 minute at AC 300V |
| Insulated Resistance | More than 100MΩ at DC 250V |
| Sliding Noise | Less than 100mV |
| 2. Mechanical Characteristics | |
| Level Push-Pull Strength | 3.0Kgf Min at 10 Sec |
| Slide Torque | 10gf ~ 100gf |
| Stopper Strength | 5.0Kgf Min |
| 3. Durability | |
| Sliding Life | Standard: 15,000 Cycles Min; Long Life: 100,000 Cycles Min |
