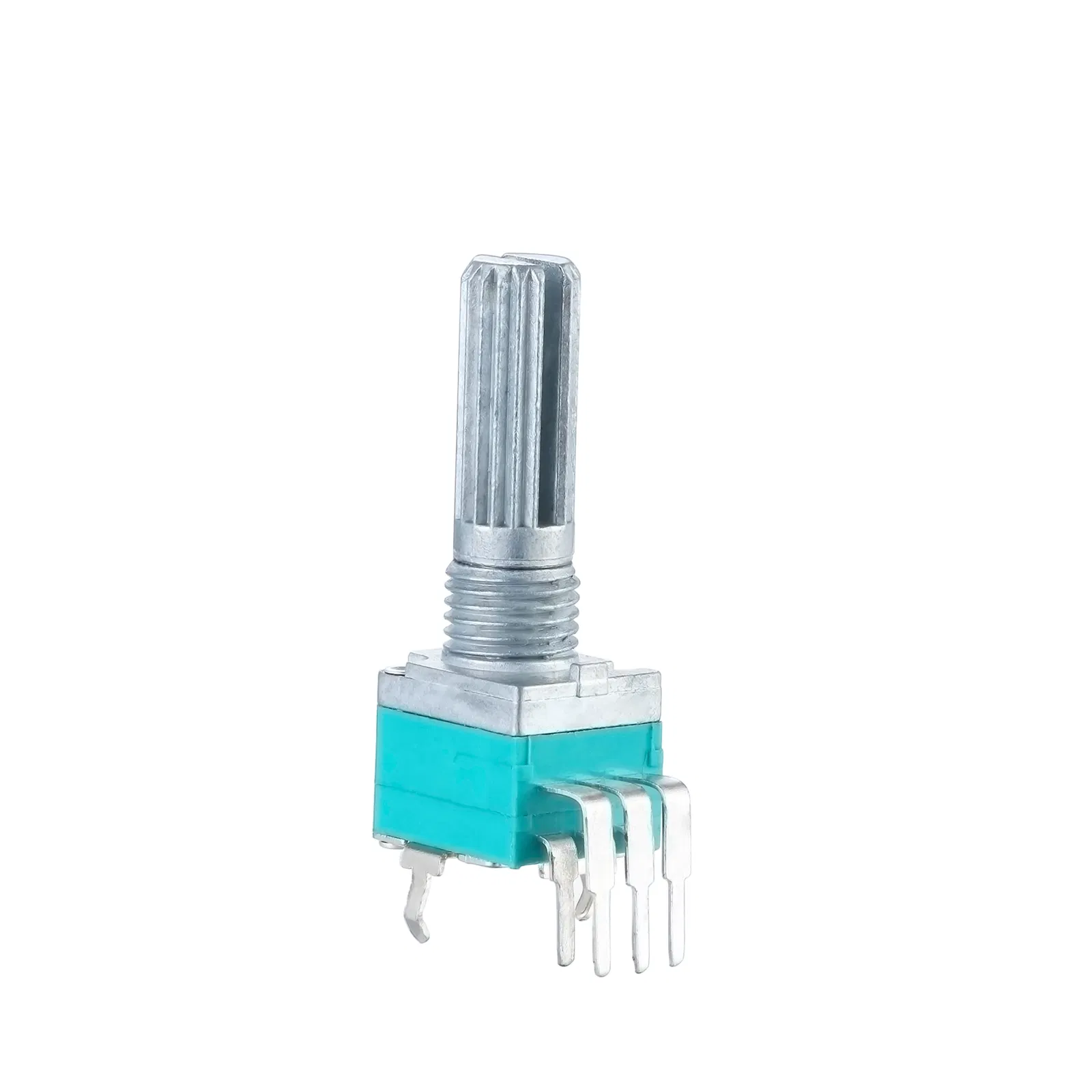

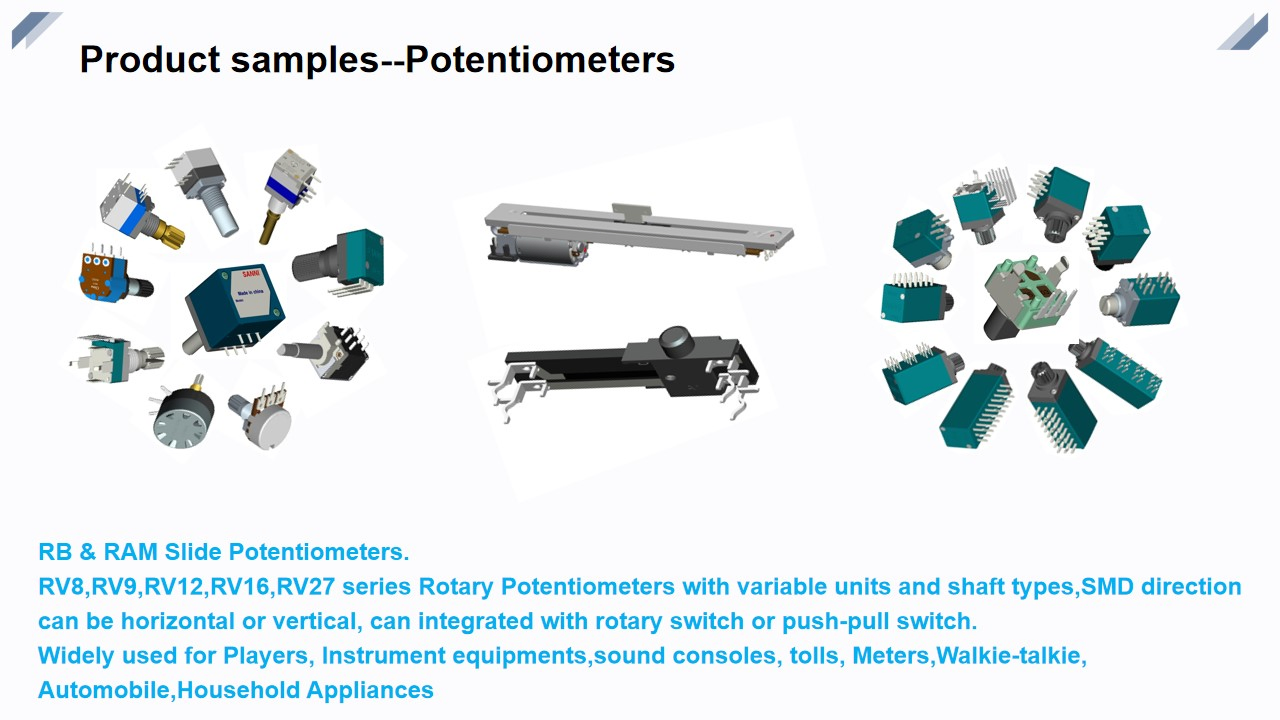

Single gang rotary potentiometer vertical mounting plastic shaft for amplifier
- 9mm Insulated shaft sealed potentiometer
- Width: 9.5mm
- Most suitable for car amplifier volume control
- Applications: Car amplifier, audio amplifier, musical instrument amplifier, guitar effector, mixer, and various instruments
Key Features
- Rohs compliant
- Seal type construction
- Small volume design
- Structural diversification
- High Quality performance

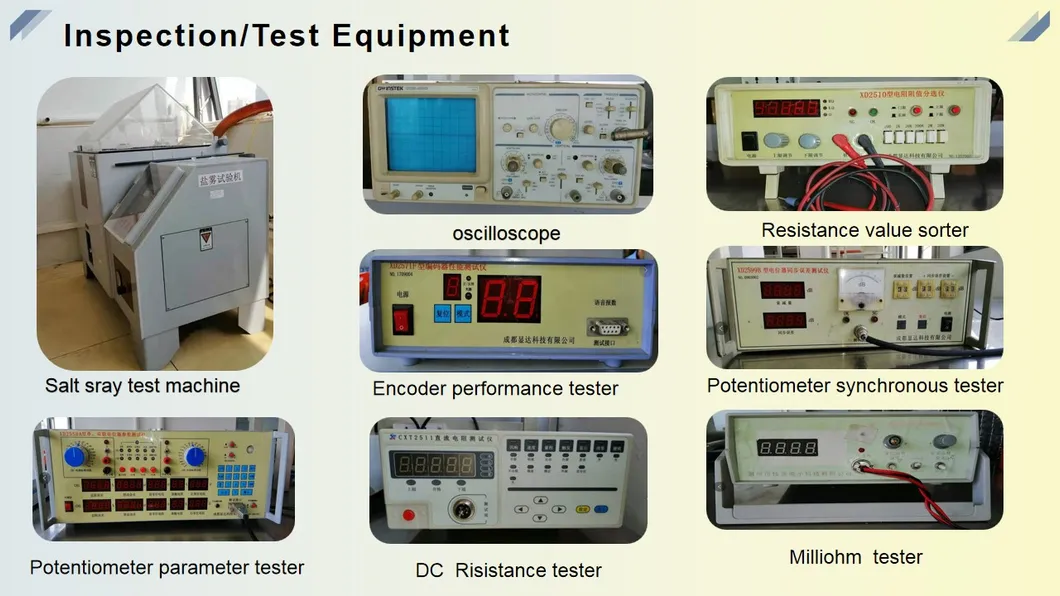

Switch Performance
| Circuit Type | SPST |
| Rated Power | 1A 16V DC |
| Switching Torque | 500gf.cm max |
| Switching Angle | 40° max |
| Operating Life (No Load) | 30,000 cycles 100mΩ max |
| Operating Life (With Load) | 30,000 cycles 200mΩ max |
| Initial Contact Resistance | 100mΩ max |
| Insulation Resistance | 100mΩ max min. 250V DC |

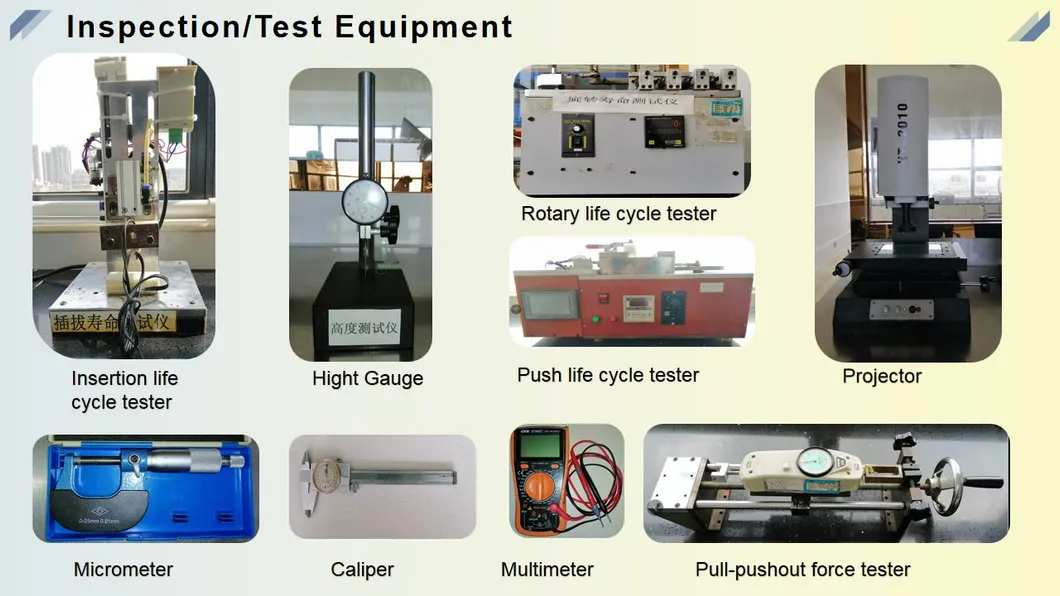

Mechanical Characteristics
| Total Rotational Angle | 300°±5° |
| Rotational Torque | 20-200gf.cm (Click torque: 40-400gf.cm) |
| Rotational Stopper Strength | Zinc alloy: 3Kgf max / Brass: 4.0Kgf. max |
| Key Push-pull Strength | 8Kgf max |
| Key Wobble | Max: 0.6*L/20mmP-P |
| Terminal Strength | 5N for 1 minute |
| Vibration Resistance | 10 to 55 to 10Hz/min, Amplitude 1.5mm (X, Y, Z directions for 2 hours) |
Electrical Characteristics
| Total Resistance | 101-305 (100Ω-3MΩ) |
| Total Resistance Tolerance | 50Ω-1KΩ: ±30%, 1KΩ-500KΩ: ±20%, 500KΩ-3MΩ: ±30% |
| Residual Resistance | R≤10KΩ: 10Ω max; R≥500KΩ: 0.1% or less |
| Gang Error (Dual-unit) | 40dB to 0dB: 3dB max. (Vehicle-compatible: -60dB to 0dB: 1.5dB max) |
| Insulation Resistance | 100KΩ min. 205V DC |
| Voltage Proof | 300V AC for 1 minute |
| Maximum Operating Voltage | 50V AC, 10V DC |
| Rated Power | 0.05W |
Frequently Asked Questions
1. What are the primary applications for this rotary potentiometer?
This 9mm insulated shaft potentiometer is ideal for car amplifiers, audio volume control, musical instruments, mixers, and guitar effectors.
2. What is the standard rotation angle for this device?
The total rotational angle is 300° with a tolerance of ±5°.
3. Is this product compliant with environmental standards?
Yes, the potentiometer is RoHS compliant and features a sealed type construction for enhanced durability.
4. What is the expected operating life of the switch?
The switch is designed to last for 30,000 cycles both with and without a load under rated conditions.
5. What is the resistance range available?
The resistance value ranges from 100Ω to 3MΩ, catering to a wide variety of electrical requirements.
6. Can it handle high-vibration environments?
Yes, it has been tested for vibration resistance from 10 to 55 Hz with an amplitude of 1.5mm across X, Y, and Z axes.
