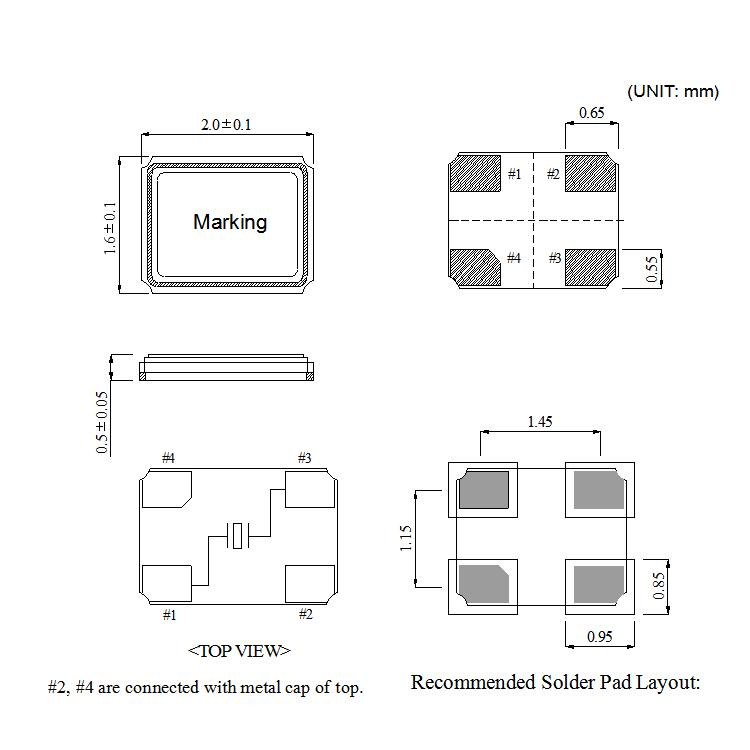

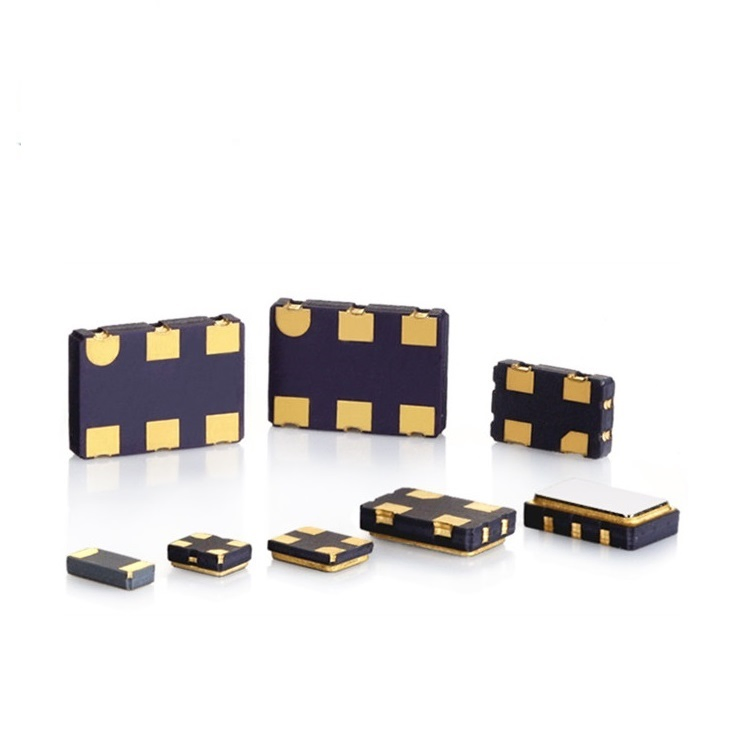

Chipsun Vctcxo Clipped Wave SMD2016 Xtal Quartz Crystal SMD2.0*1.6mm Crystal Passive Electronic Component
Chipsun Vctcxo Clipped Wave SMD2016 Xtal Quartz Crystal SMD2.0*1.6mm Crystal Passive Electronic Component
Chipsun Vctcxo Clipped Wave SMD2016 Xtal Quartz Crystal SMD2.0*1.6mm Crystal Passive Electronic Component
Chipsun Vctcxo Clipped Wave SMD2016 Xtal Quartz Crystal SMD2.0*1.6mm Crystal Passive Electronic Component
Chipsun Vctcxo Clipped Wave SMD2016 Xtal Quartz Crystal SMD2.0*1.6mm Crystal Passive Electronic Component
1 / 5
Chipsun Vctcxo Clipped Wave SMD2016 Xtal Quartz Crystal SMD2.0*1.6mm Crystal Passive Electronic Component
Chipsun Vctcxo Clipped Wave SMD2016 Xtal Quartz Crystal SMD2.0*1.6mm Crystal Passive Electronic Component
Chipsun Vctcxo Clipped Wave SMD2016 Xtal Quartz Crystal SMD2.0*1.6mm Crystal Passive Electronic Component
Chipsun Vctcxo Clipped Wave SMD2016 Xtal Quartz Crystal SMD2.0*1.6mm Crystal Passive Electronic Component
Chipsun Vctcxo Clipped Wave SMD2016 Xtal Quartz Crystal SMD2.0*1.6mm Crystal Passive Electronic Component

Chipsun Vctcxo Clipped Wave SMD2016 Xtal Quartz Crystal SMD2.0*1.6mm Crystal Passive Electronic Component

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
SMD1612, SMD2.0*1.6mm
Type
SMD
Material
Quartz Crystal
Certification
ISO19000, ISO14001, RoHS, CE
Transport Package
Carton
Specification
SMD1.6*1.2mm
Origin
Cn
HS Code
854160000
Production Capacity
60000000PCS/Month

Product Parameters

PARAMETERS SPECIFICATION
Frequency Range 24~60MHz
Operation Mode Fundamental
Loading Capacitance 9pF Std. 8 to 32pF / Series available
Drive Level 10μW(100μW Max)
Frequency Tolerance ±10ppm~±30ppm(at 25ºC)
Equivalent Resistance 150Ω Max
Frequency Stability ±10ppm~±30ppm
Operating Temp. Range: -10~+60ºC to -40~+85ºC
Storage Temp. Range: -55~+125ºC

Product Description

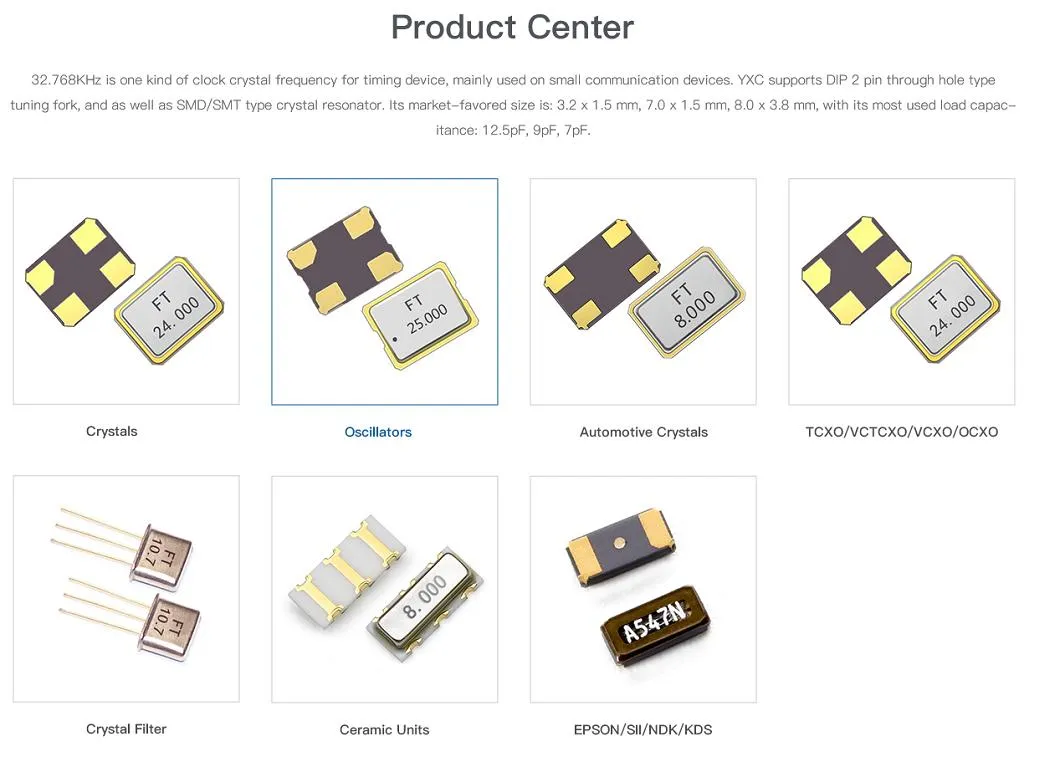

SMD Xtal Quartz Crystal Description

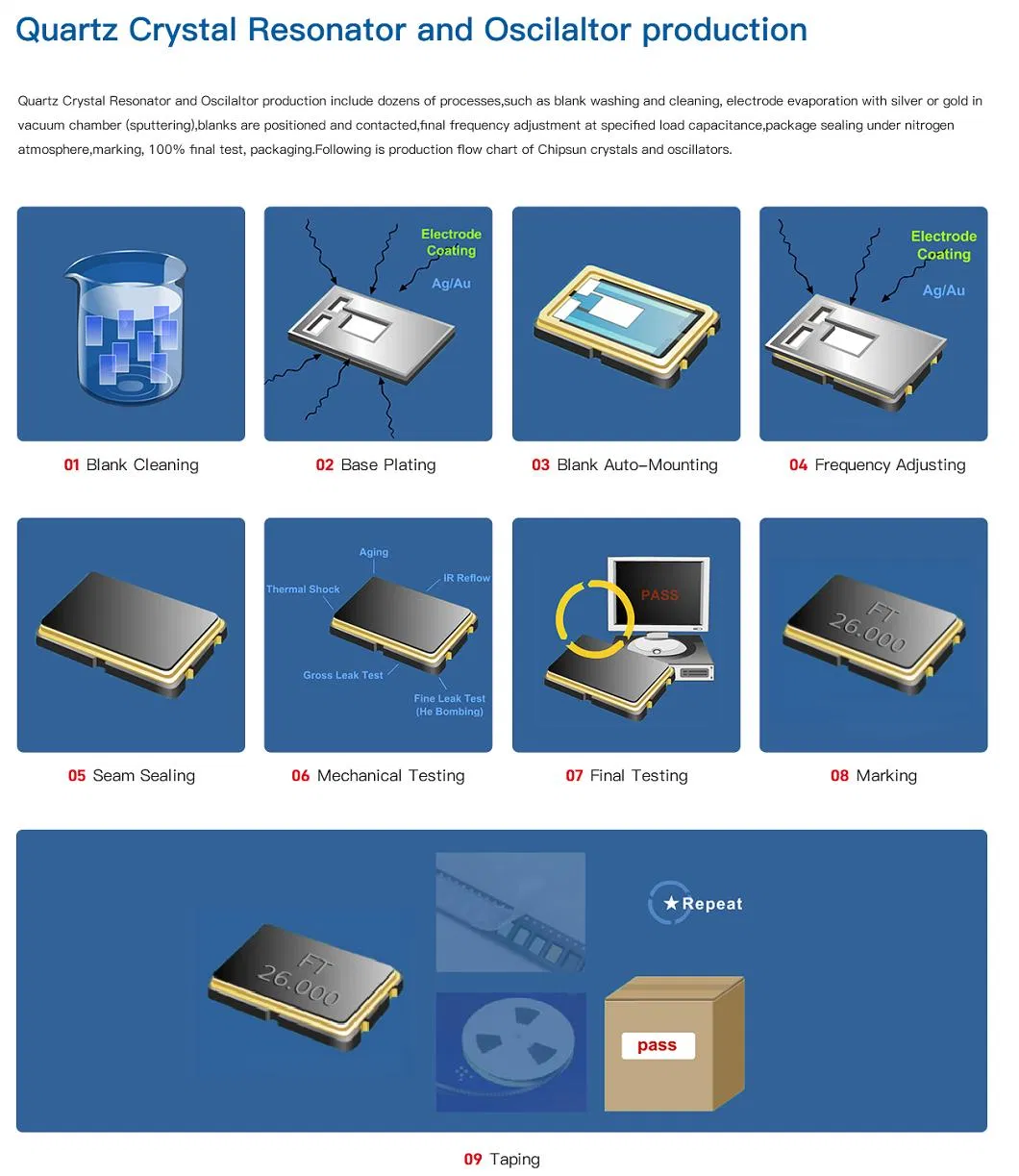

Clipped Wave SMD Crystal Component

Applications

Crystal Application Scenarios

Our Advantages

Production Advantage 1

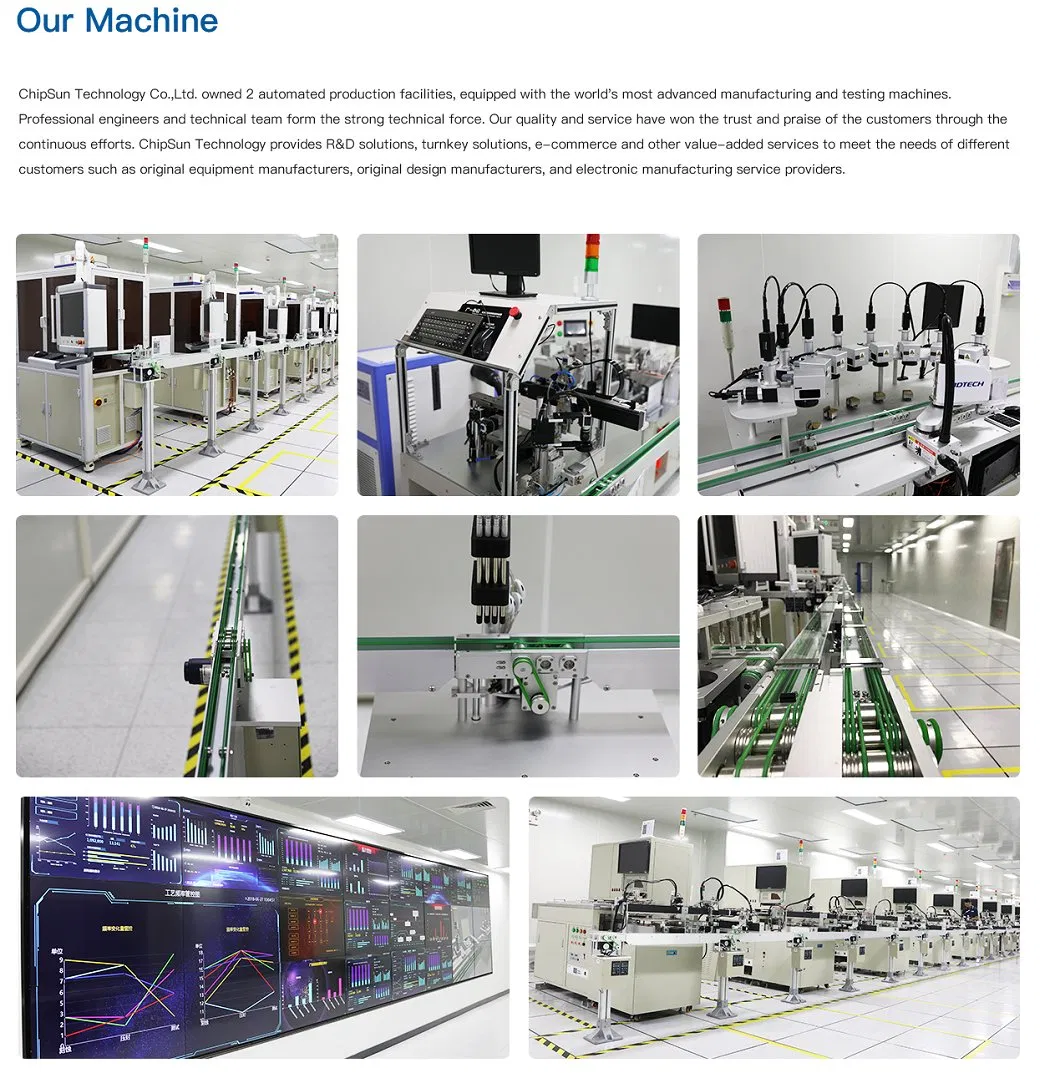

Production Advantage 2

Certifications

ISO and RoHS Certifications

Production Overview

Production Facility

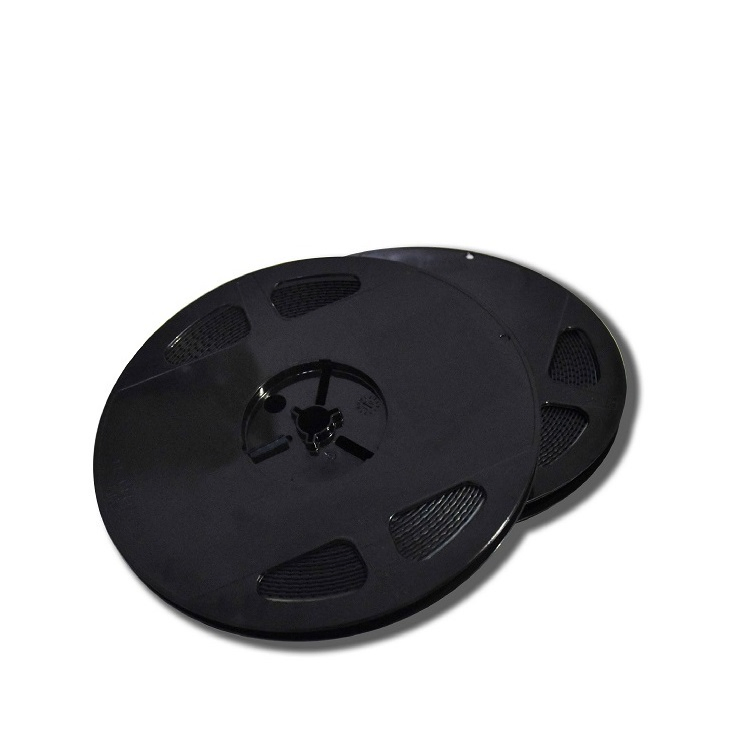

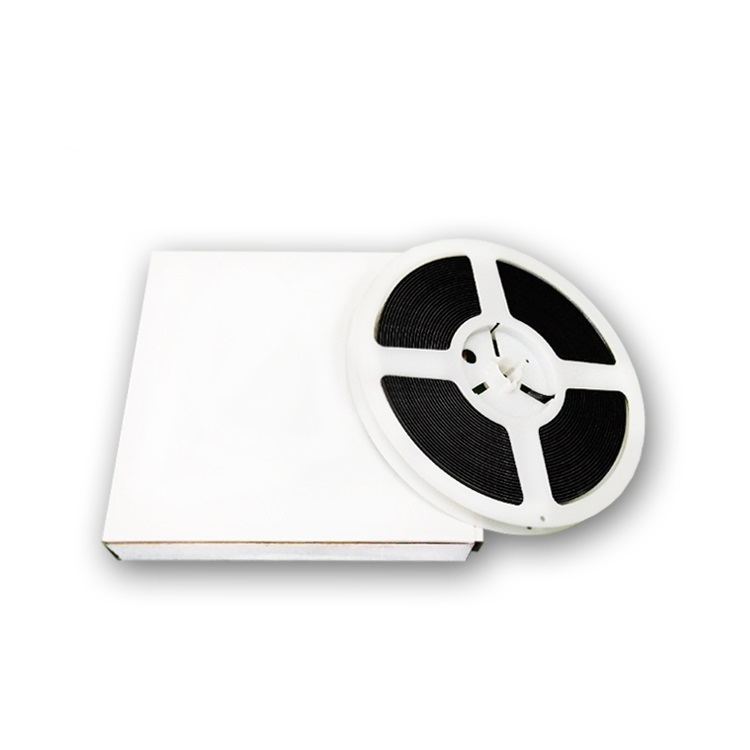

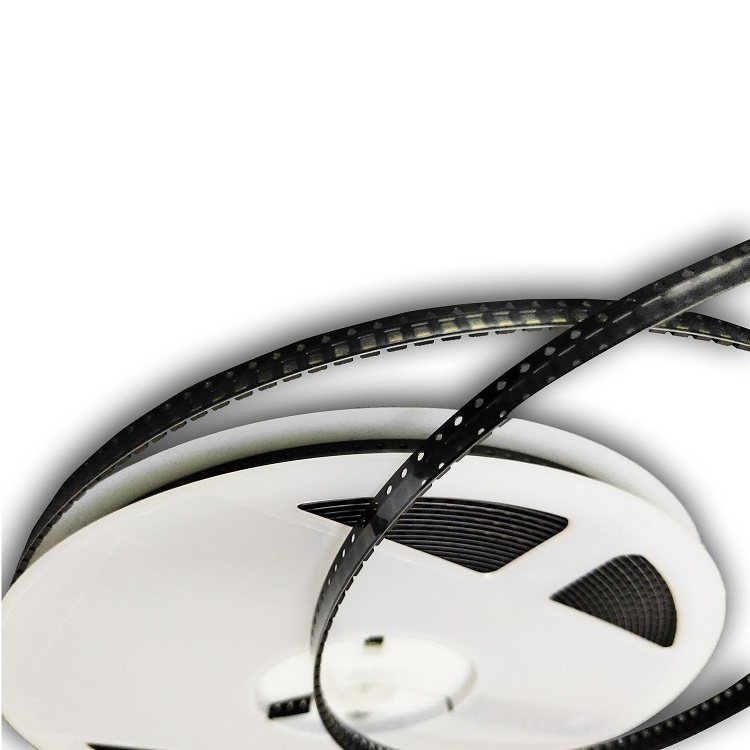

Packaging & Shipping

Standard Packaging

Frequently Asked Questions

What is the frequency range of your SMD1612 quartz crystals?
The frequency range for our SMD1612 (1.6*1.2mm) series is between 24MHz and 60MHz.
What materials are used in the manufacturing of these components?
These components are manufactured using high-quality Quartz Crystal material to ensure stability and precision.
What certifications do your products hold?
Our products are fully certified with ISO9000, ISO14001, RoHS, and CE standards, ensuring international quality compliance.
What is the standard operating temperature range?
The standard operating temperature range is -10°C to +60°C, with extended industrial ranges available from -40°C to +85°C.
What is your monthly production capacity for SMD crystals?
We have a large-scale production capability of approximately 60,000,000 pieces per month.
How are the products packaged for transport?
Products are securely packed in standard export cartons to ensure safety during international shipping.
