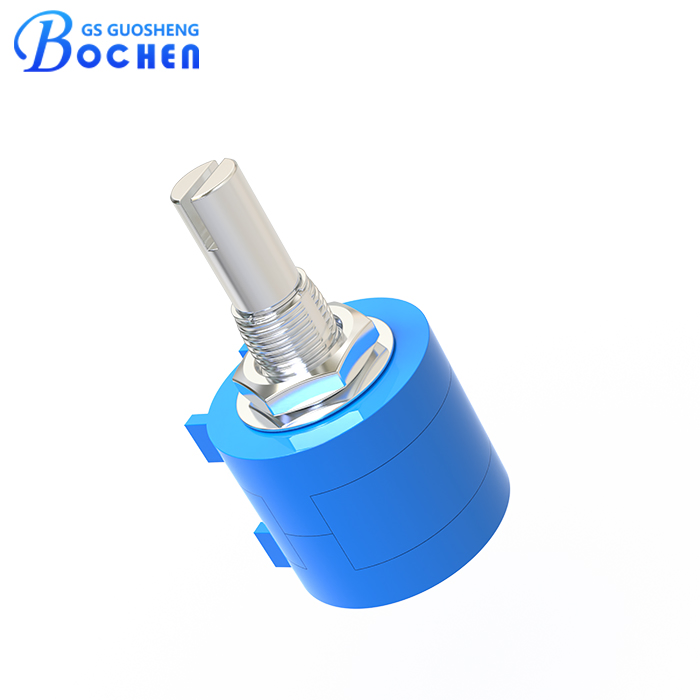

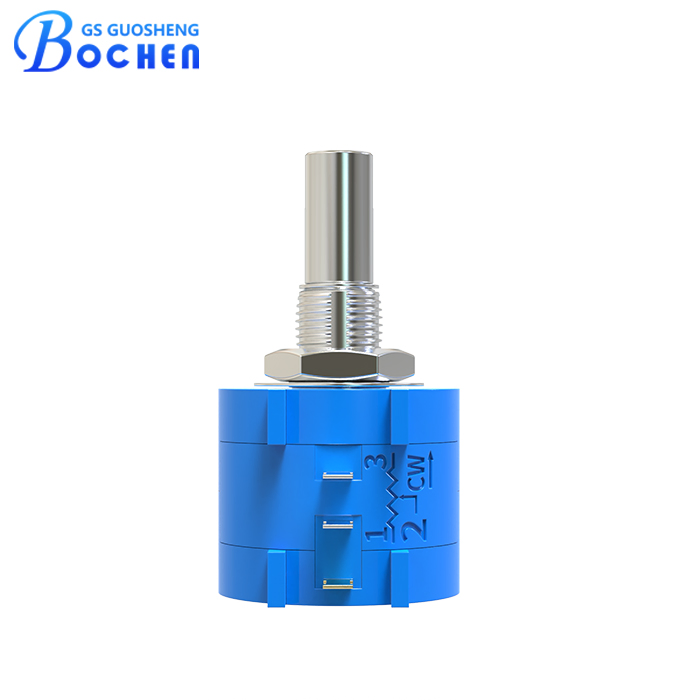

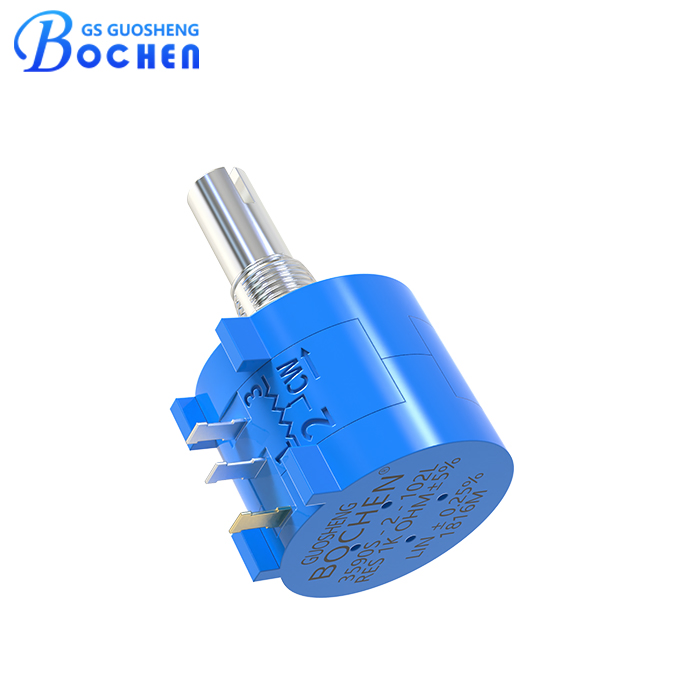

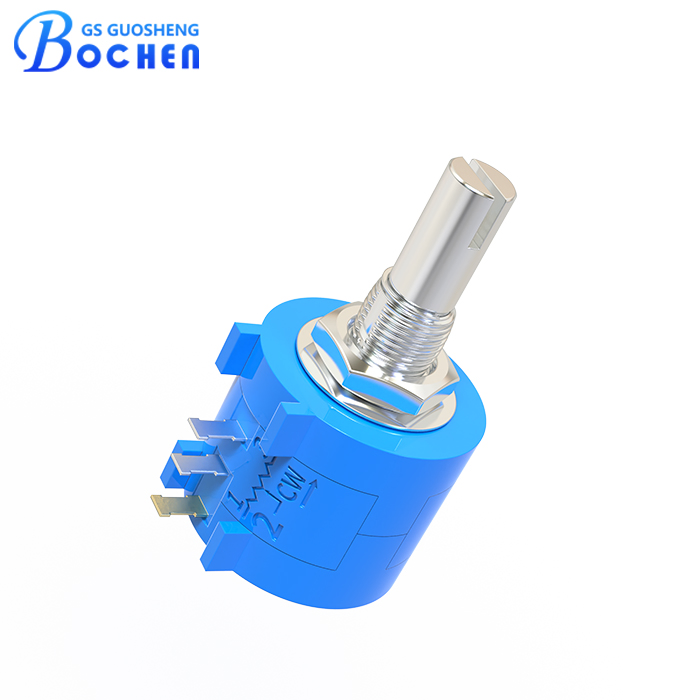

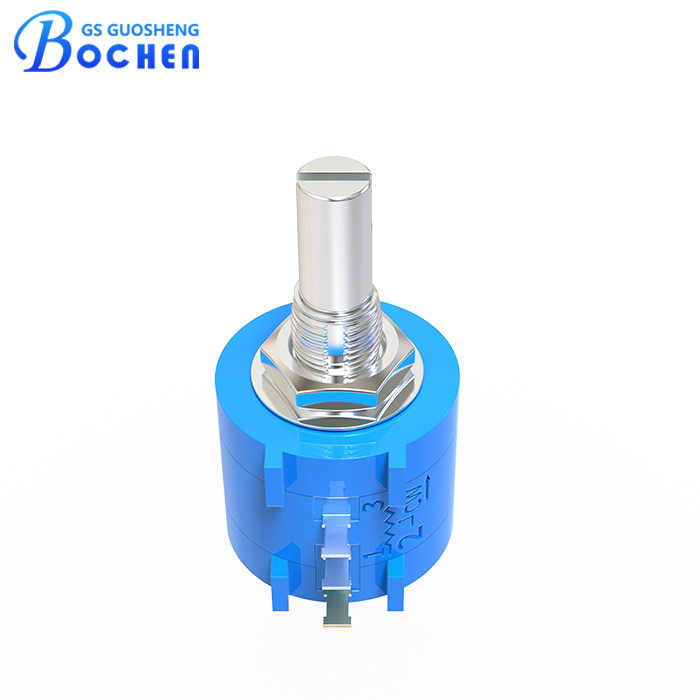

10K Potentiometer 3590s Mexico Bourns 3590S-2-103L Wirewound Potentiometer
10K Potentiometer 3590s Mexico Bourns 3590S-2-103L Wirewound Potentiometer
10K Potentiometer 3590s Mexico Bourns 3590S-2-103L Wirewound Potentiometer
10K Potentiometer 3590s Mexico Bourns 3590S-2-103L Wirewound Potentiometer
10K Potentiometer 3590s Mexico Bourns 3590S-2-103L Wirewound Potentiometer
1 / 5
10K Potentiometer 3590s Mexico Bourns 3590S-2-103L Wirewound Potentiometer
10K Potentiometer 3590s Mexico Bourns 3590S-2-103L Wirewound Potentiometer
10K Potentiometer 3590s Mexico Bourns 3590S-2-103L Wirewound Potentiometer
10K Potentiometer 3590s Mexico Bourns 3590S-2-103L Wirewound Potentiometer
10K Potentiometer 3590s Mexico Bourns 3590S-2-103L Wirewound Potentiometer

10K Potentiometer 3590s Mexico Bourns 3590S-2-103L Wirewound Potentiometer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
3590S
Installation
Panel Mount
Material
Wire-wound Resistor
Type
Rotary Potentiometer
Resistance scale
Linear Scale
Power Rating
2W
Element Type
Wirewound
Operating Temp.
-55℃~+125℃
Mechanical Angle
3600°±10°
HS Code
8533400000
Product Overview

10K Potentiometer 3590S High Precision Wirewound Potentiometer

The 3590S wirewound potentiometer is a high-quality electronic component used for precise resistance control. It features a wirewound construction that ensures accuracy and stability in resistance adjustments. With its robust design, it can handle high power levels and is suitable for various applications. The potentiometer provides smooth and precise operation, making it ideal for audio equipment, industrial controls, power supplies, and motor control systems.

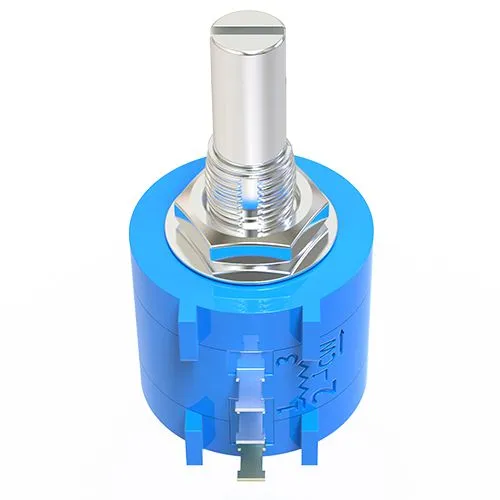

3590S Potentiometer View 1

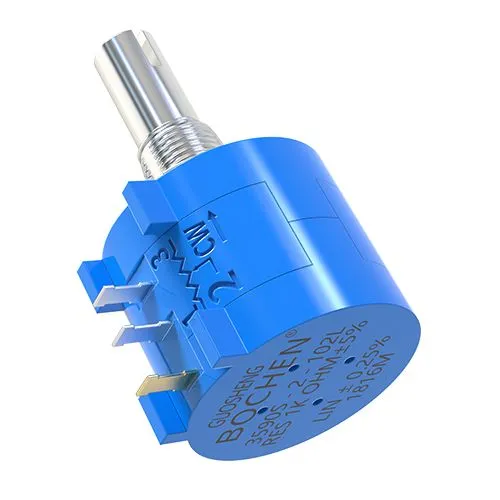

3590S Potentiometer View 2
Key Features
  • Bushing mount design for secure installation.
  • Solder lugs or PC pins available for flexible connectivity.
  • Multi-turn precision pot, 1/4" metal shaft, 3/8" metal bushing.
  • Rated power 2W at 70ºC; Nominal resistance 10k ohms with 5% tolerance.
  • High precision with independent linearity of 0.5%.
  • 10 turns wirewound standard; 3 turns and 5 turns can be customized.

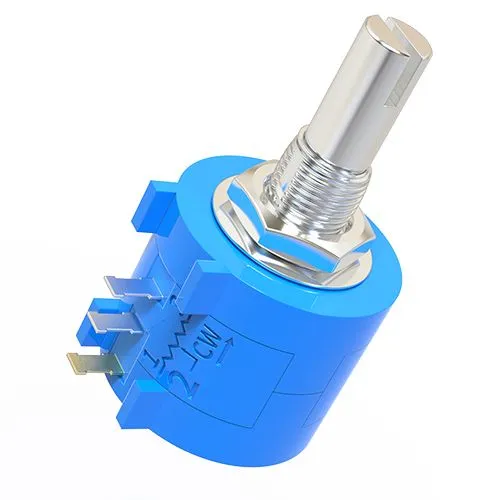

3590S Detail 1

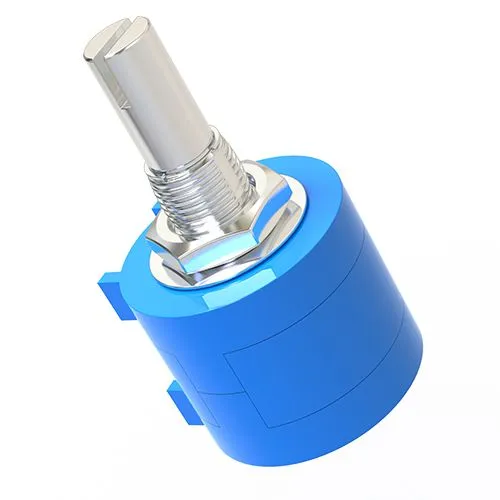

3590S Detail 2
Technical Specification
Electrical Characteristics Values
Nominal Resistance Range100Ω~100KΩ
Resistance Tolerance±5%
Independent Linearity±0.5%
Effective Travel≥3600°-10°
Rated Power2W@+70ºC, 0W@+125ºC
Temperature Range-55ºC~+125ºC
Mechanical Endurance10000 cycles
Total Mechanical Travel3600°±10°
Dimensions & Packaging

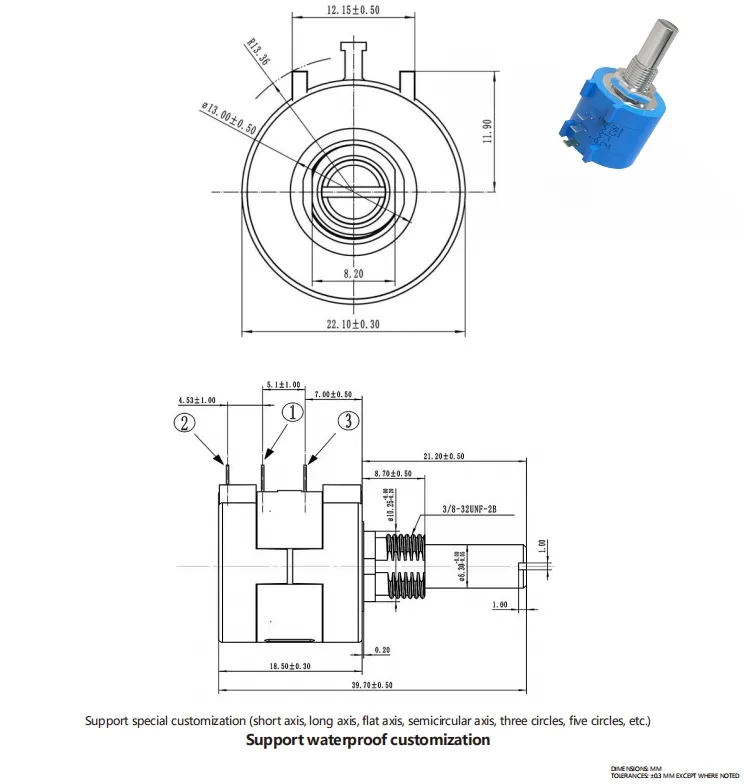

Dimension Drawing

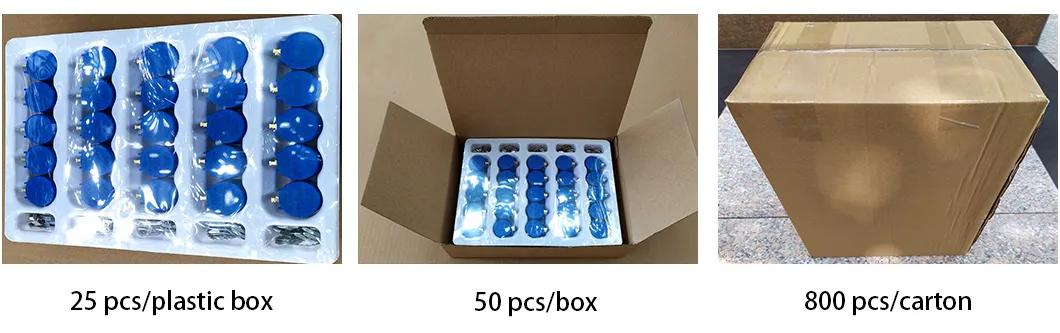

Packaging: 25 pieces/plastic box, 50 pieces/box.

Packaging Detail
Applications
  • Precision Measurement: Oscilloscopes and signal generators.
  • Audio Equipment: Mixing consoles and amplifiers.
  • Industrial Controls: Motor speed controllers and automation systems.
  • Telecommunications: Signal trimming in modems and routers.
  • Medical Devices: Patient monitoring and diagnostic systems.
  • Aerospace: Avionics and spacecraft instrumentation.
Application Scenarios
Advantages
  • Direct supply with best quality assurance.
  • Full compliance with RoHS and REACH standards.
  • High production capacity with short lead times.
  • Professional technical support.
  • OEM & ODM customization available.
Product Gallery
Category 1
Category 2
Category 3
Frequently Asked Questions
Q1: What is a 10-turn wirewound potentiometer used for?
It is used for applications requiring extremely fine and precise resistance adjustment, such as calibration in measurement instruments or tuning in industrial control systems.
Q2: Can the 3590S handle high-temperature environments?
Yes, the operating temperature range is -55ºC to +125ºC, making it suitable for demanding industrial and aerospace environments.
Q3: What is the benefit of wirewound construction?
Wirewound elements offer better stability, higher power handling (up to 2W in this model), and a lower temperature coefficient compared to carbon film alternatives.
Q4: Are different resistance values available besides 10K?
Yes, the 3590S series typically covers a range from 100Ω to 100KΩ to suit different circuit requirements.
Q5: What mounting style does this potentiometer use?
It features a standard panel mount (bushing mount) design with a metal shaft and bushing for durability.
Q6: Is it compliant with international environmental standards?
Yes, our products are manufactured to meet RoHS and REACH compliance standards for environmental safety.
