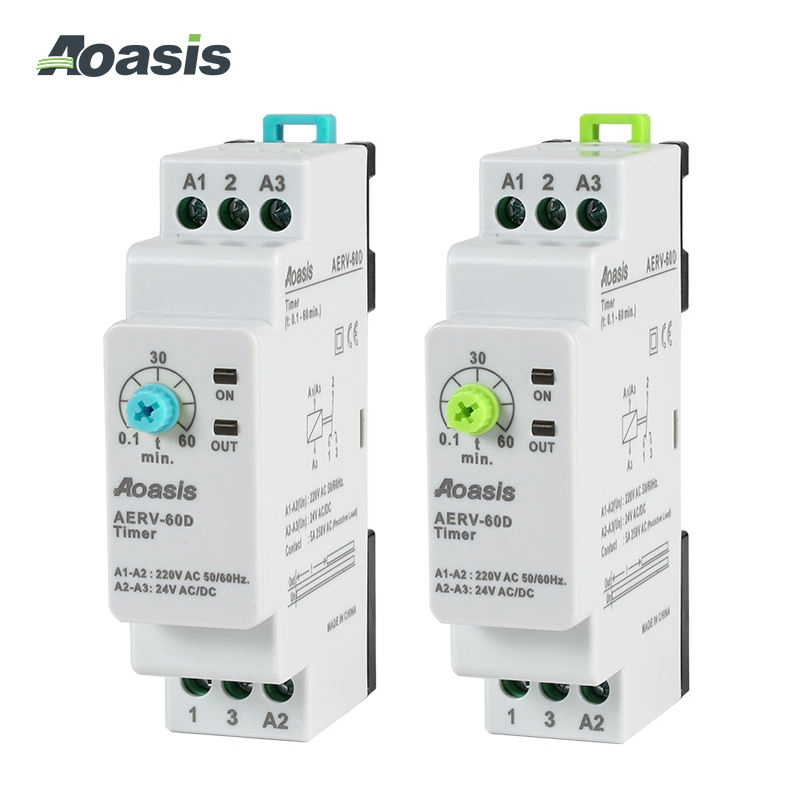

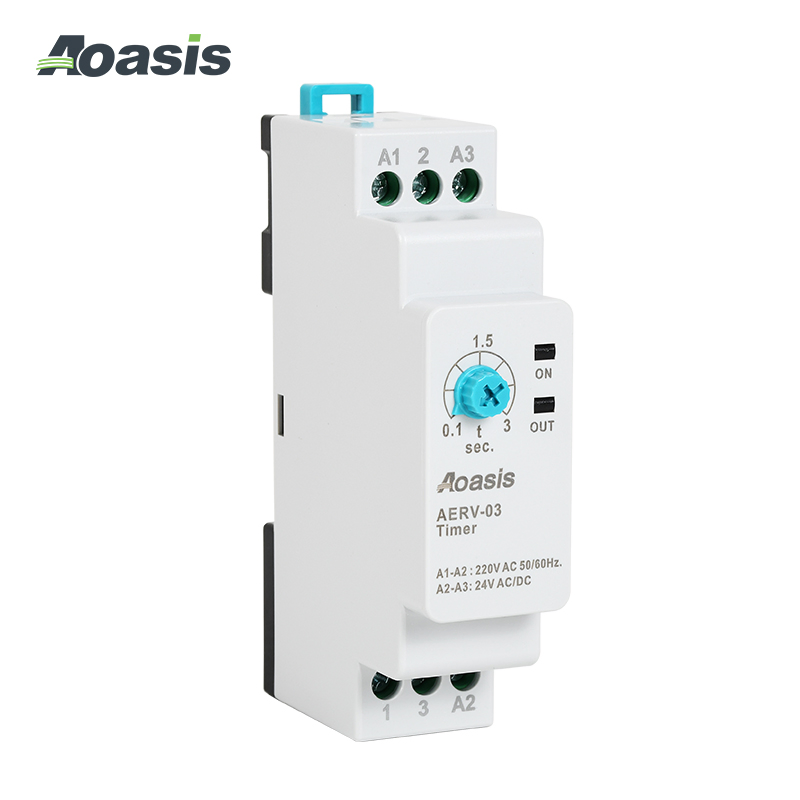

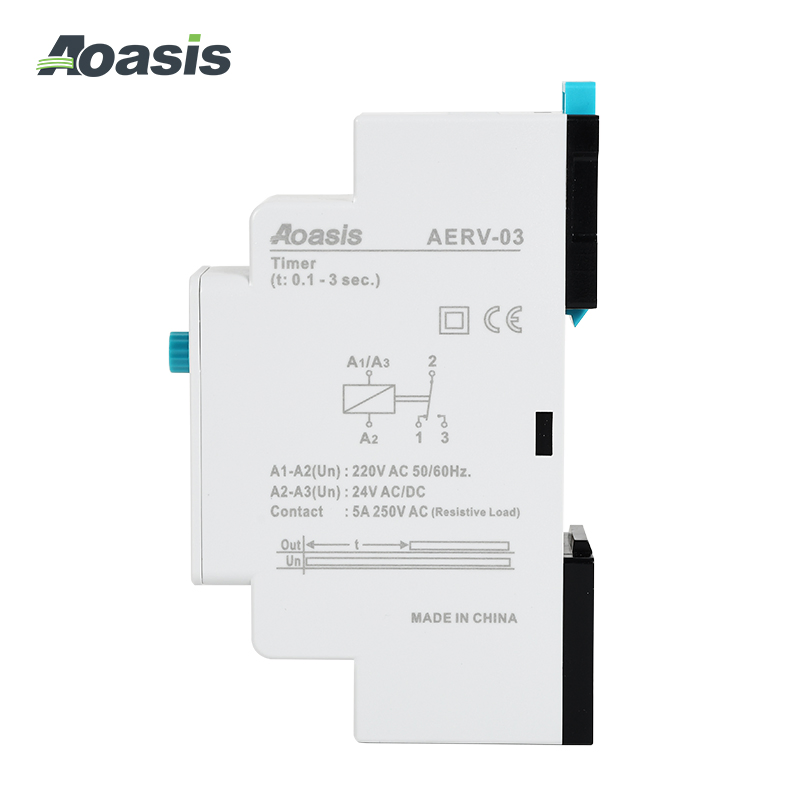

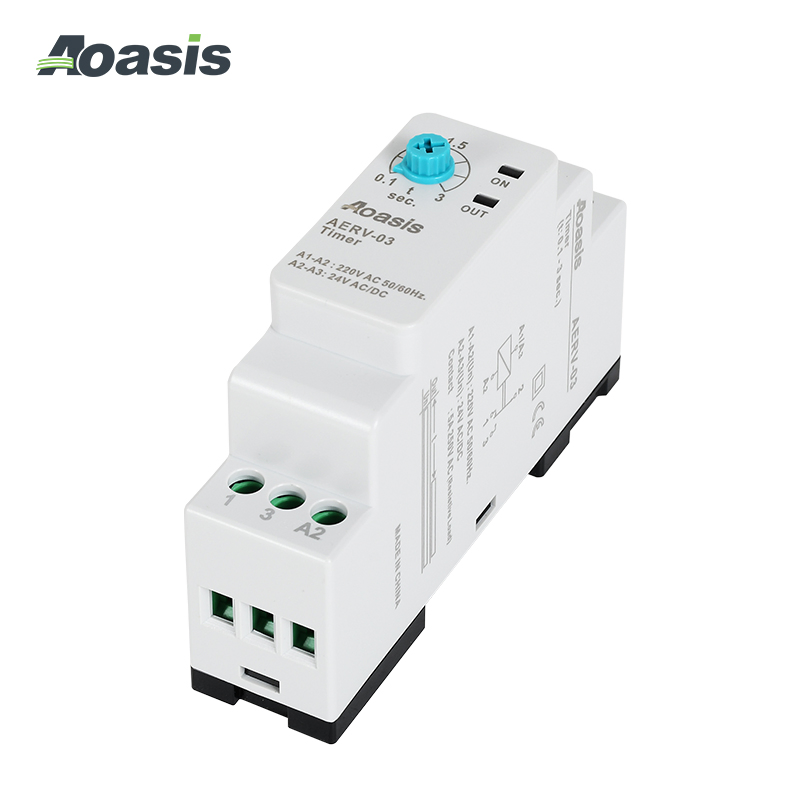

Aoasis Aerv-03 Timer Delay Relay 220V Timer 0.1s to 100 Hours Single Function Time Relay
Aoasis Aerv-03 Timer Delay Relay 220V Timer 0.1s to 100 Hours Single Function Time Relay
Aoasis Aerv-03 Timer Delay Relay 220V Timer 0.1s to 100 Hours Single Function Time Relay
Aoasis Aerv-03 Timer Delay Relay 220V Timer 0.1s to 100 Hours Single Function Time Relay
Aoasis Aerv-03 Timer Delay Relay 220V Timer 0.1s to 100 Hours Single Function Time Relay
1 / 5
Aoasis Aerv-03 Timer Delay Relay 220V Timer 0.1s to 100 Hours Single Function Time Relay
Aoasis Aerv-03 Timer Delay Relay 220V Timer 0.1s to 100 Hours Single Function Time Relay
Aoasis Aerv-03 Timer Delay Relay 220V Timer 0.1s to 100 Hours Single Function Time Relay
Aoasis Aerv-03 Timer Delay Relay 220V Timer 0.1s to 100 Hours Single Function Time Relay
Aoasis Aerv-03 Timer Delay Relay 220V Timer 0.1s to 100 Hours Single Function Time Relay

Aoasis Aerv-03 Timer Delay Relay 220V Timer 0.1s to 100 Hours Single Function Time Relay

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.
AERV-03
Phase
3
Electricity Type
Ac
Size
Miniature
Name
Time Relay
Frequency
50Hz/60Hz
Warranty
18 Months
Certifications
CCC CE
Load Current
5A
Origin
China
HS Code
8536490090

Packaging & Delivery

Package Size
39.00cm * 26.50cm * 22.50cm
Gross Weight
9.500kg
Transport Package
Standard Packing

Product Description

Time Relay Overview

AERV series time relays are widely used in industrial, residential, commercial and other fields, requiring time-related control.

Production Selection Guide:

Explanation Type Time Range On Delay 220V AC 24V AC/DC DIN-Rail Pcs.Box
Time RelaysAERV-030,1-3.sec√√√√20
Time RelaysAERV-060,1-6.sec√√√√20
Time RelaysAERV-120,1-12.sec√√√√20
Time RelaysAERV-300,1-30.sec√√√√20
Time RelaysAERV-600,1-60.sec√√√√20
Time RelaysAERV-03D0,1-3.min√√√√20
Time RelaysAERV-06D0,1-6.min√√√√20
Time RelaysAERV-12D0,1-12.min√√√√20
Time RelaysAERV-30D0,1-30.min√√√√20
Time RelaysAERV-60D0,1-60.min√√√√20
Time RelaysAERV-080,1-100.hour√√√√20
Star-DelayAERV-YU0.1-30s / 10-500ms√√√√20

Technical Parameters:

Type AERV-03/03D AERV-06/06D AERV-12/12D AERV-30/30D AERV-60/60D AERV-08 AERV-YU
Dimensions23mm
Protection ClassIP20
Weight65g/Pcs75g/Pcs
Operating Voltage220VAC/24VDC
Operating Range150-260VAC, 24VDC±10%
Power Consumption<4VA
Output Contact5A/250V AC (Resistive Load)
Ambient Conditions-20ºC.....+55ºC; 85% Humidity
MountingDIN-Rail Mounting/Screw Terminals

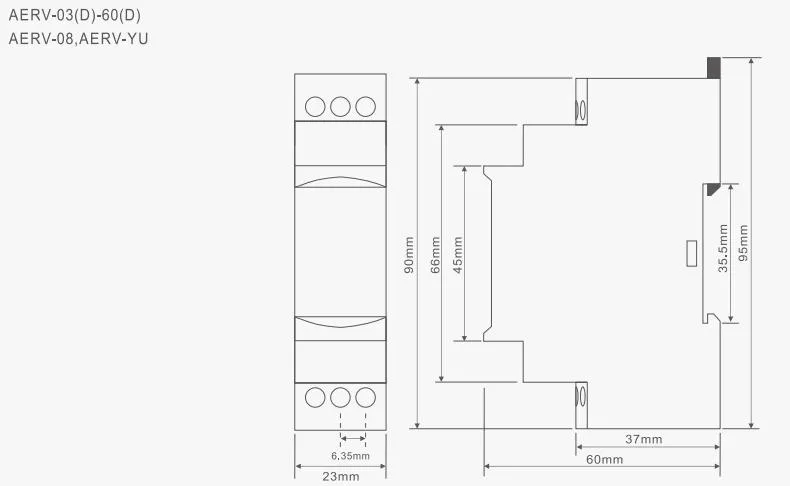

External Dimensions(mm):

External Dimensions

Product Catalog

Catalog Banner

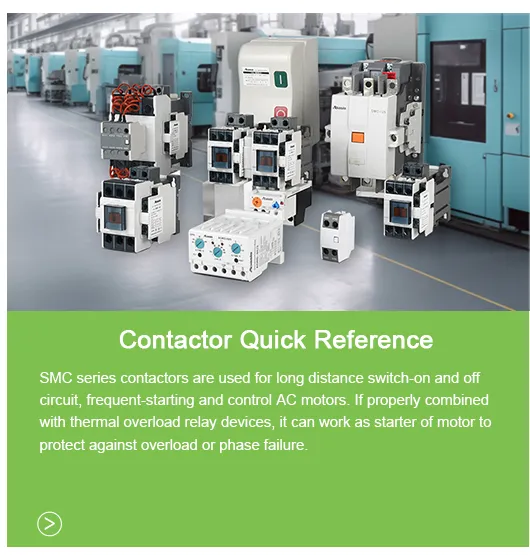

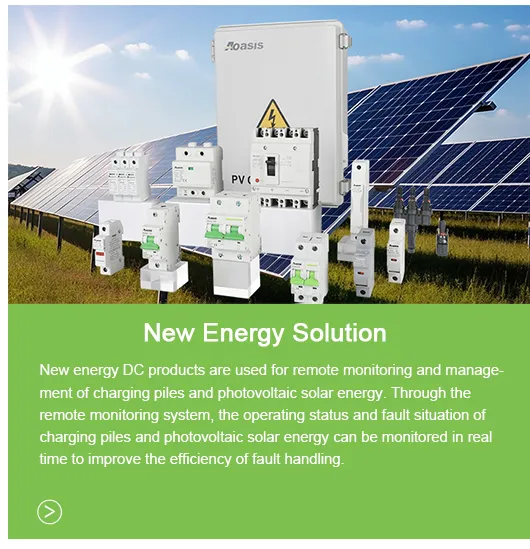

Distribution Catalog New Energy Products Control Relays Motor Control Circuit Breakers Contactors

Company Profile

Factory View 1 Factory View 2 Production Line Workshop Quality Control Warehouse
Certificates

Frequently Asked Questions

What's the payment term?
We accept TT, 30% deposit and 70% balance before shipping.
How's the delivery time?
Delivery depends on different products and quantities. Generally, it takes about 3-15 days. For very large quantities, we can negotiate the timeline.
What is the standard of package?
Normally we use standard cartons, but we can also pack items according to your specific requirements.
Could you offer Form A or C/O?
Yes, we can prepare relative documents for the foreign affairs office or other relevant offices to apply for these certificates.
Would you accept to use our logo?
If you have a sufficient order quantity, it is absolutely no problem to provide OEM services using your logo.
What is the warranty period for the products?
We provide an 18-month warranty for our time relay products to ensure reliable performance.
