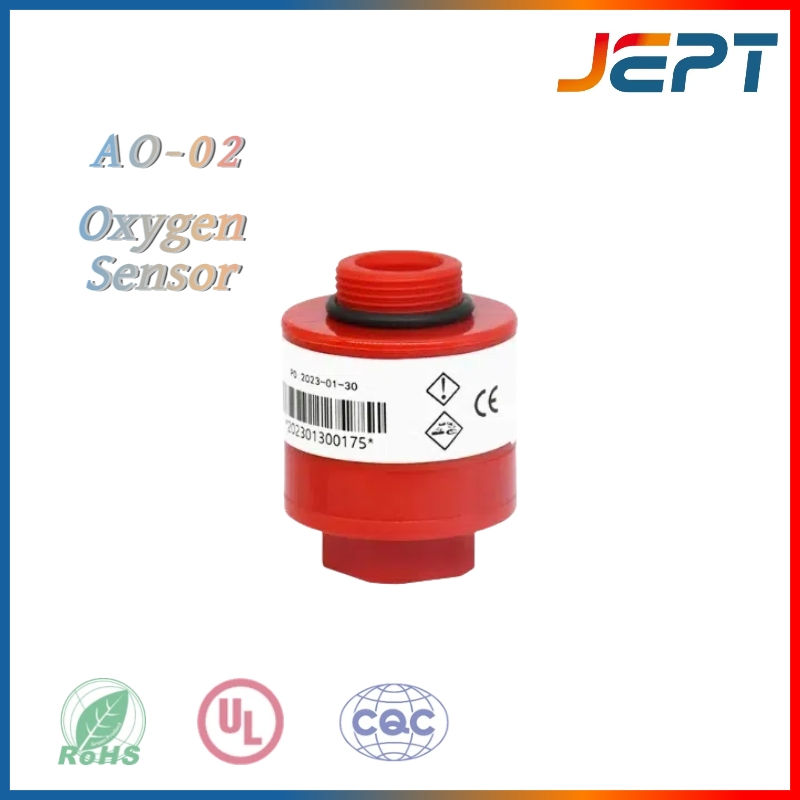

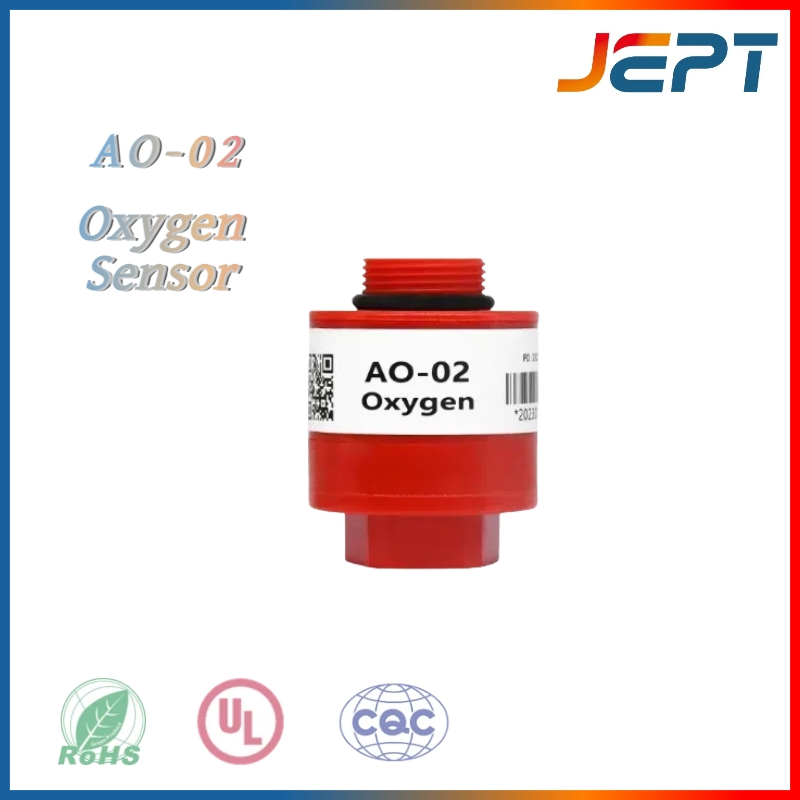

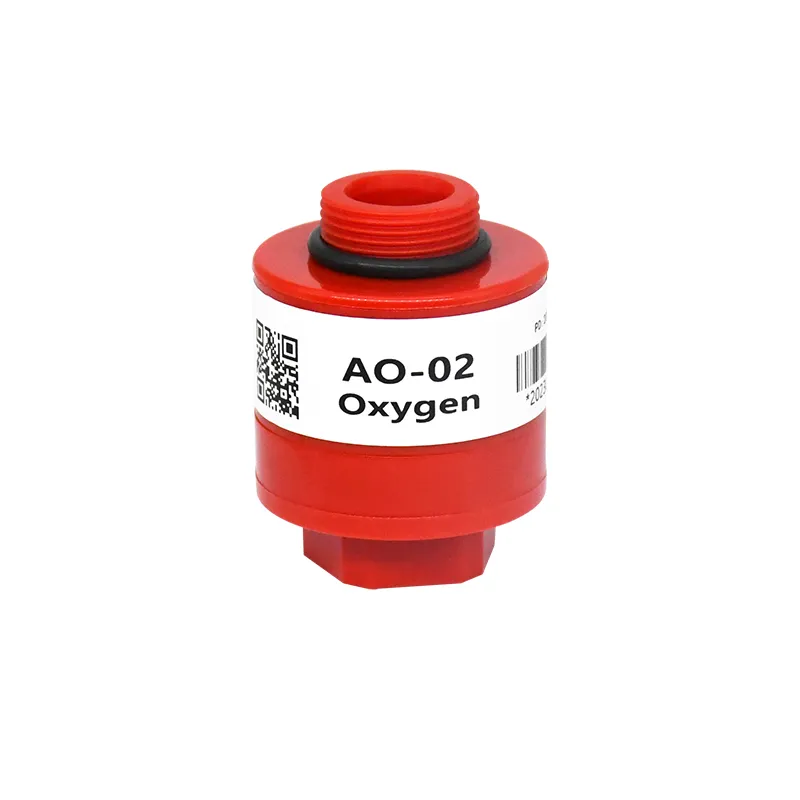

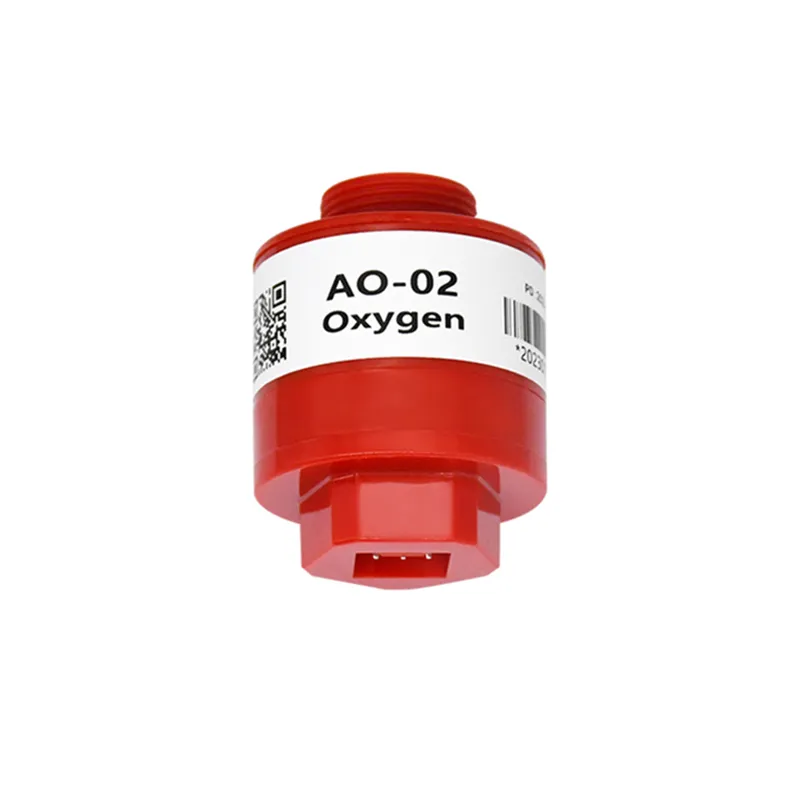

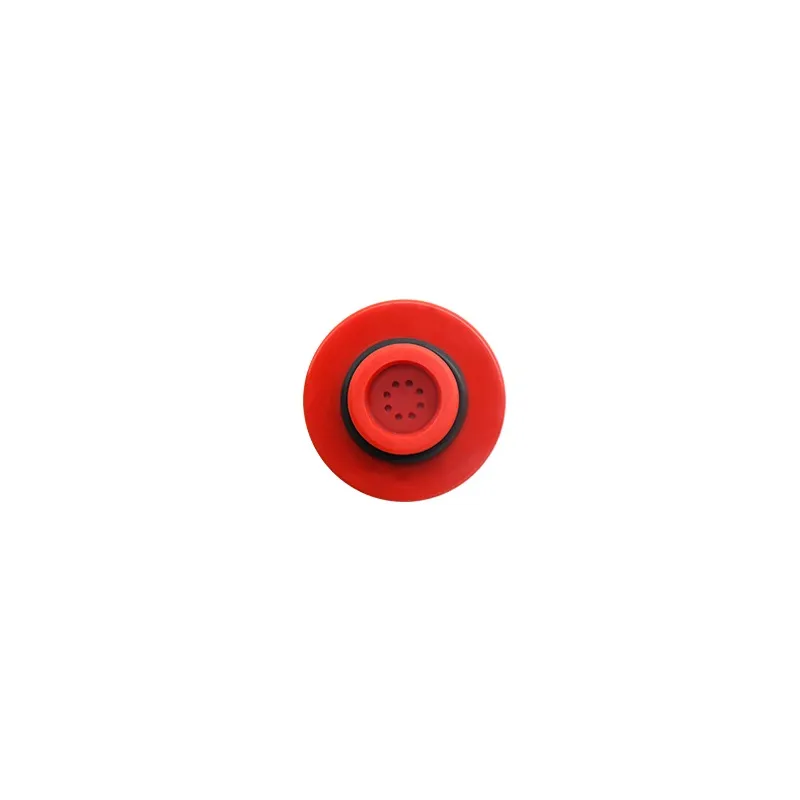

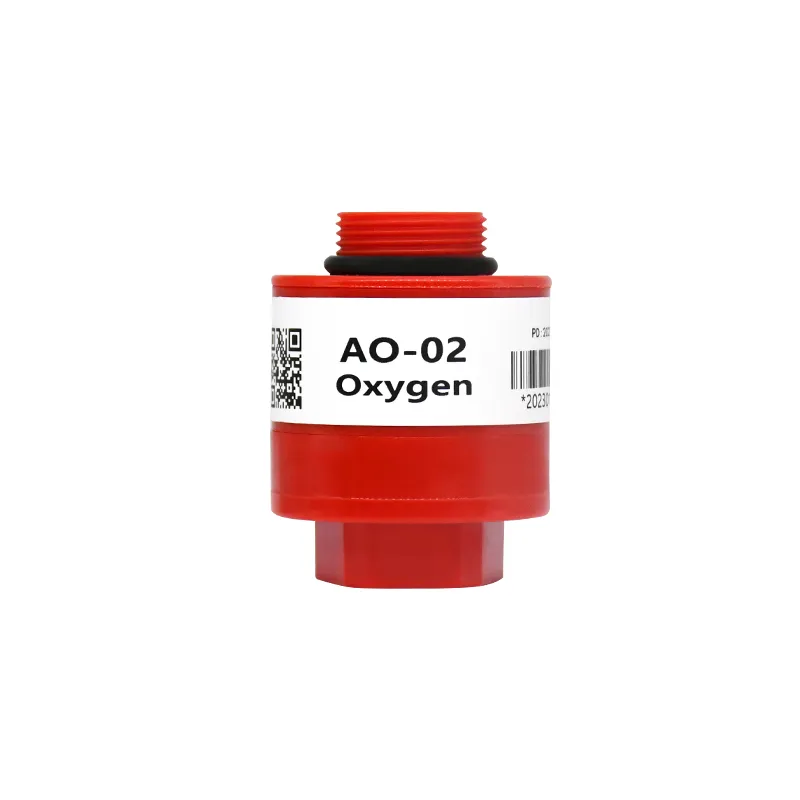

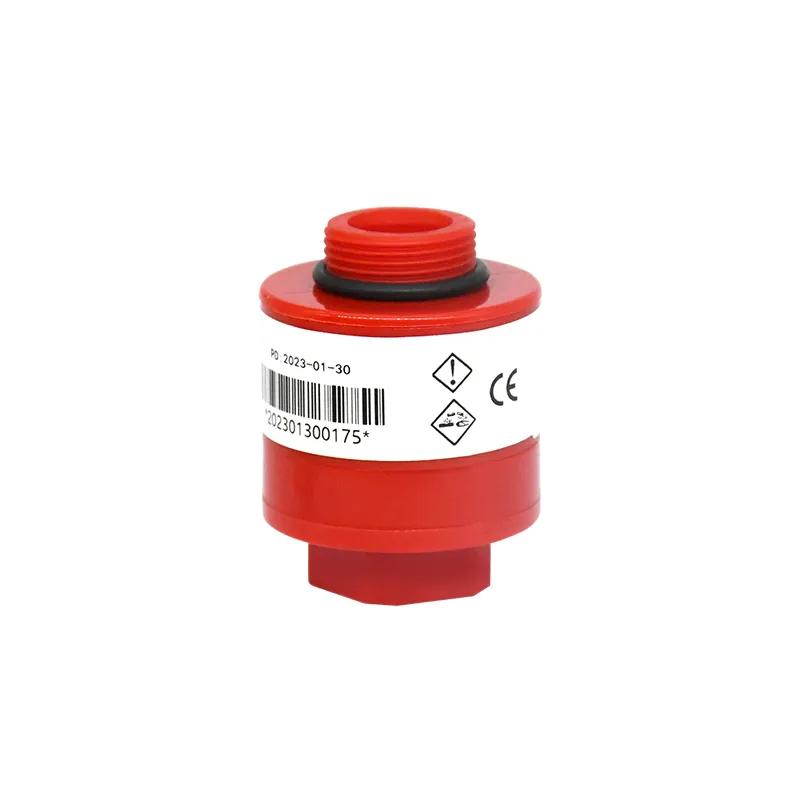

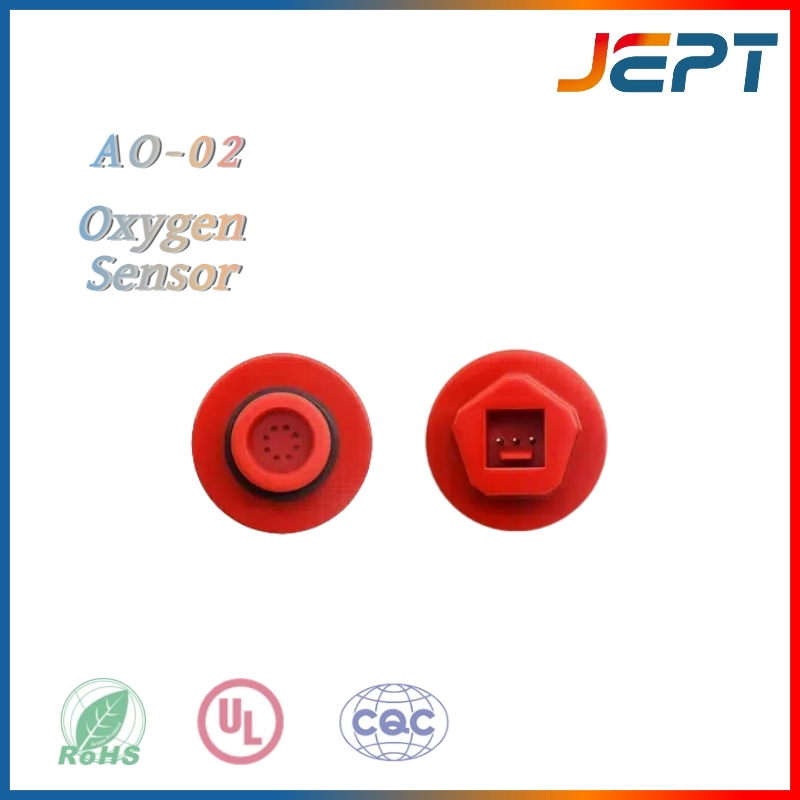

The AO-02 oxygen sensor is a type of sensor that applies the electrochemical principle to determine the oxygen concentration. It works without external power supply and is widely used in automotive, environmental protection, coal mining, petrochemical and other fields.

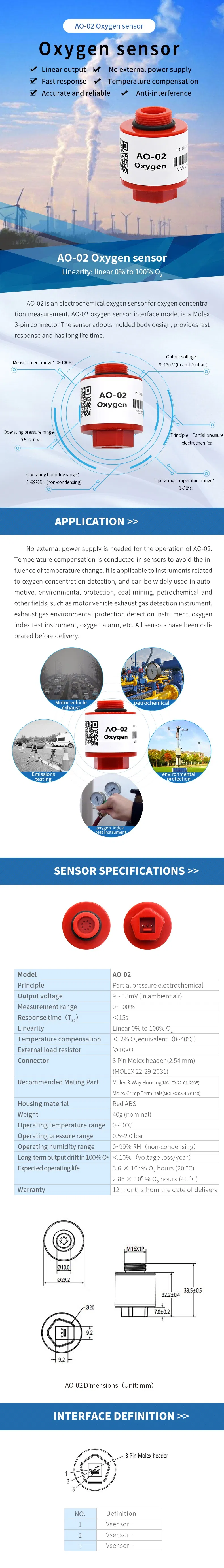

| Model NO. | AO-02 |
| Output Signal Type | Digital Type |
| Production Process | Integration |
| Material | Metal |
| IP Rating | IP68 |
| Sensitivity | High |
| Certification | RoHS |
| Measuring Range | 0-100% |
| Work Pressure | 0.5~2.0 Bar |
| Operating Temperature | 0-50℃ |
| Output Voltage | 9~13mV (In Air) |
| Measurement Range | 0~100% |
| Response Time | <15s (T90) |
| Humidity Compensation | <2% O2 (0~40ºC) |
| Differential Pressure Range | 0~500mBar |
| Operating Pressure | 0.5~2.0 Bar |
| Operating Humidity | 0-99%RH (No condensation) |
Used in ventilators and anesthesia machines to monitor patient oxygen levels, ensuring proper supply and safety alerts during treatment.
Applied in indoor air quality testing systems to identify poor ventilation or pollution areas, helping to improve air safety.
Monitors oxygen storage and delivery in industrial pipelines and tanks to prevent leaks and ensure continuous production safety.
