Product Overview

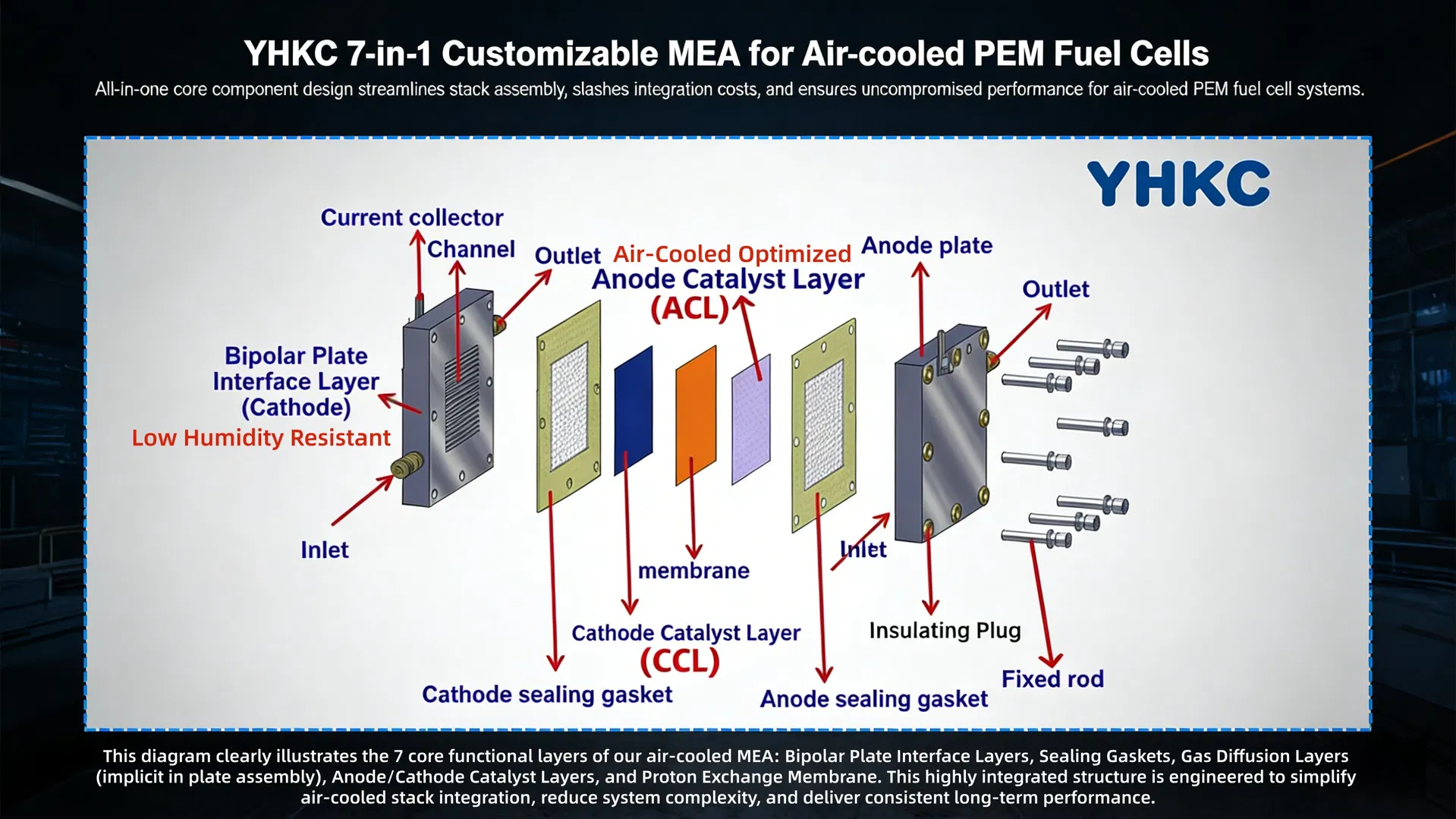

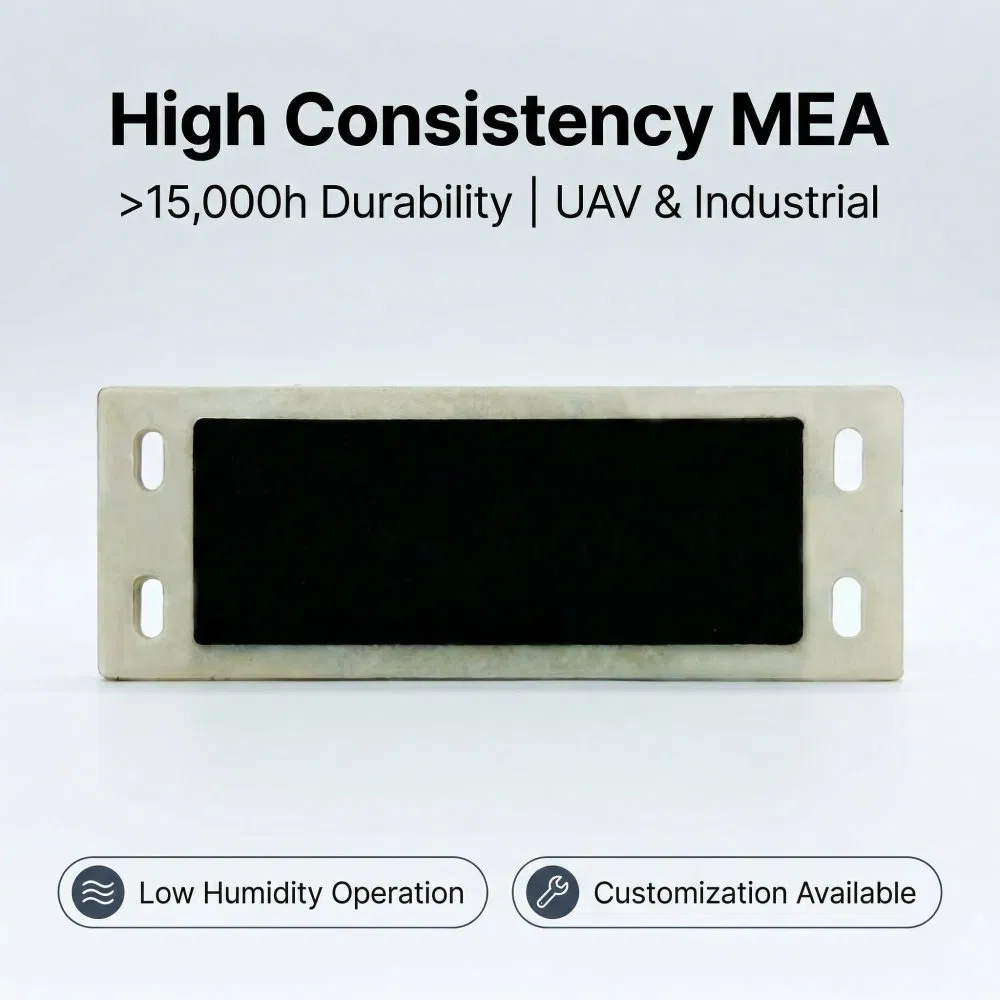

The 7-in-1 Customizable Air-Cooled Fuel Cell Membrane Electrode Assembly (MEA) is specifically optimized for open-stack, low-humidity operating environments. As the high-performance core of air-cooled PEM fuel cell systems, it integrates the proton exchange membrane, anode/cathode catalyst layers, gas diffusion layers, bipolar plate interface layers, and sealing gaskets into a single compact unit.
Key Features & Performance
▶ 7-in-1 Integrated Structure: This all-in-one design eliminates complex assembly steps, minimizes contact resistance, and ensures ultra-stable performance in low-humidity, open-air conditions.

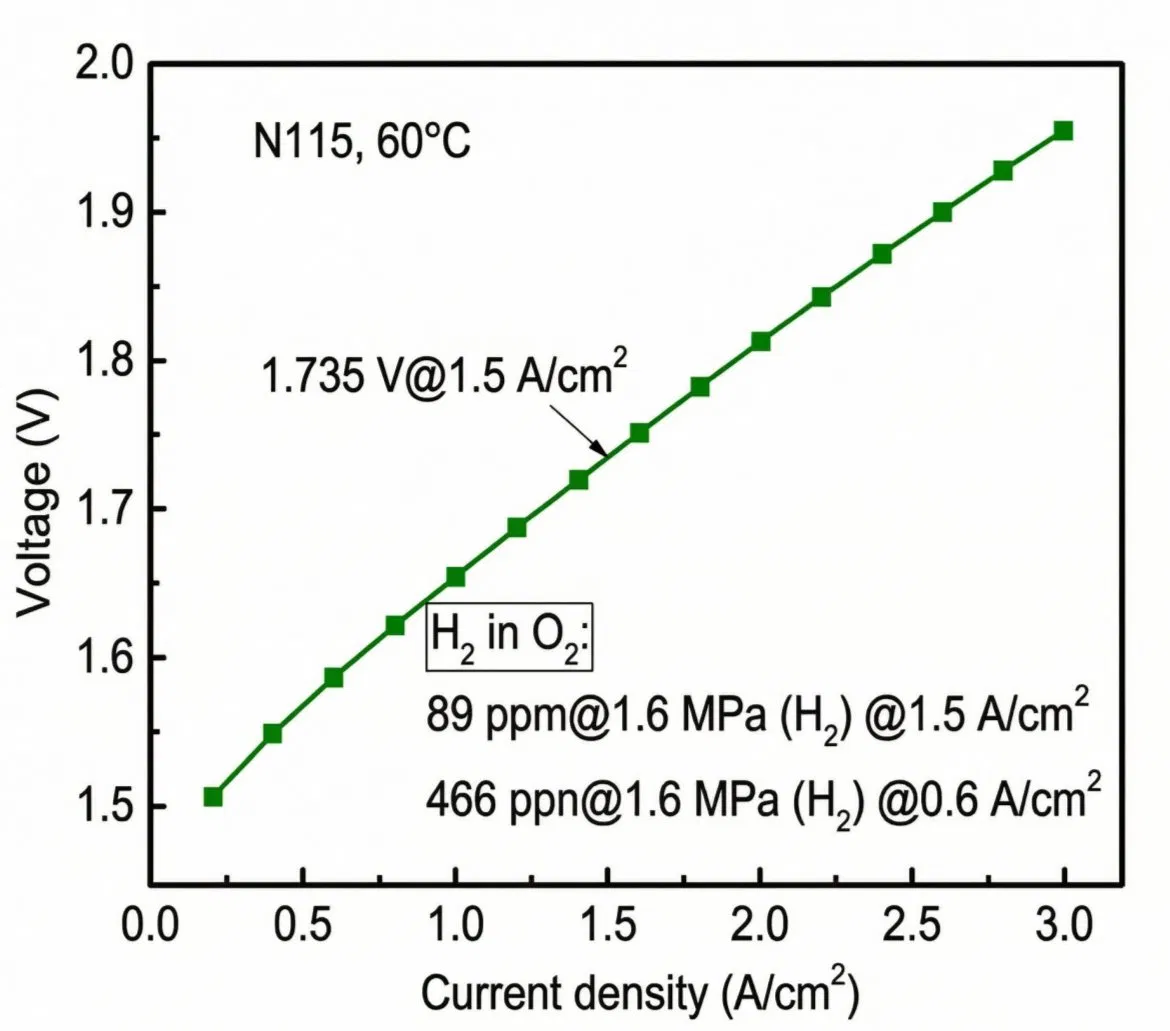

▶ Electrochemical Excellence: Leveraging high-purity Pt/C catalysts and premium membranes, it delivers a peak power density of 1.735 V @ 1.5 A/cm² with ultra-low internal resistance.

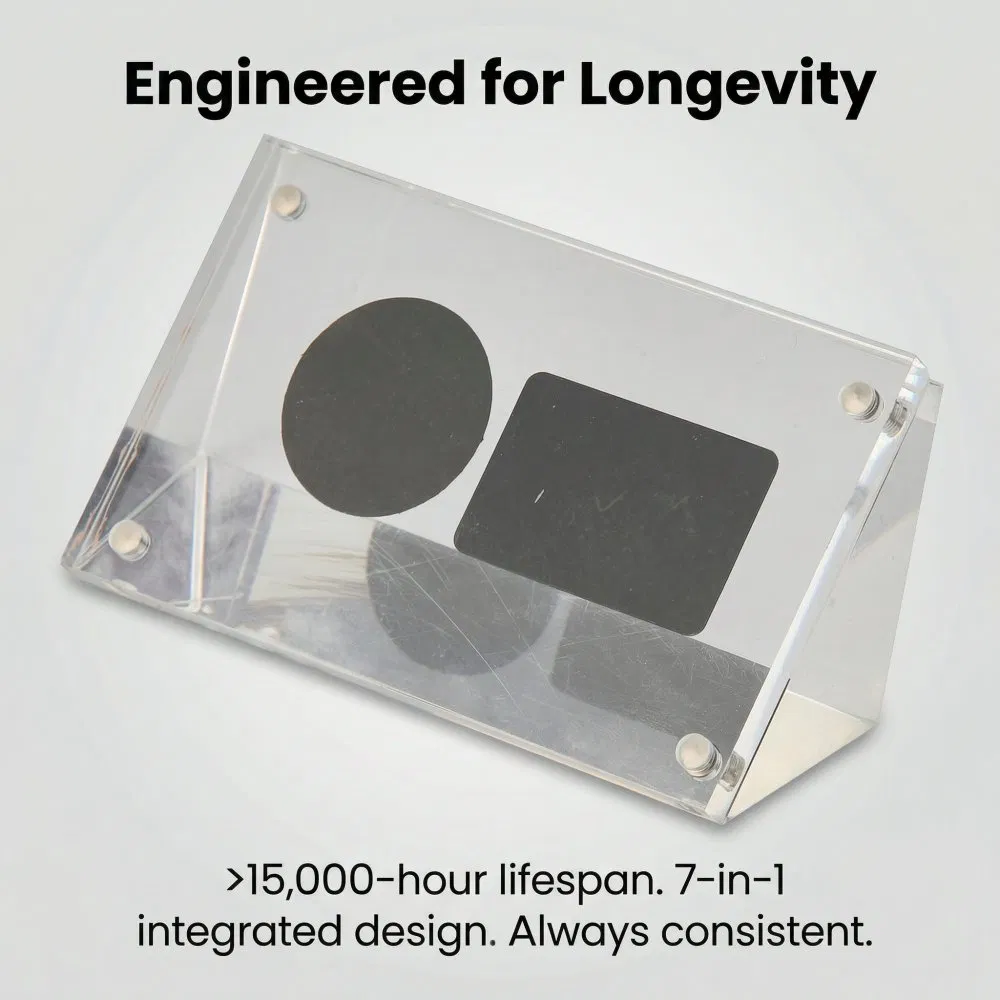

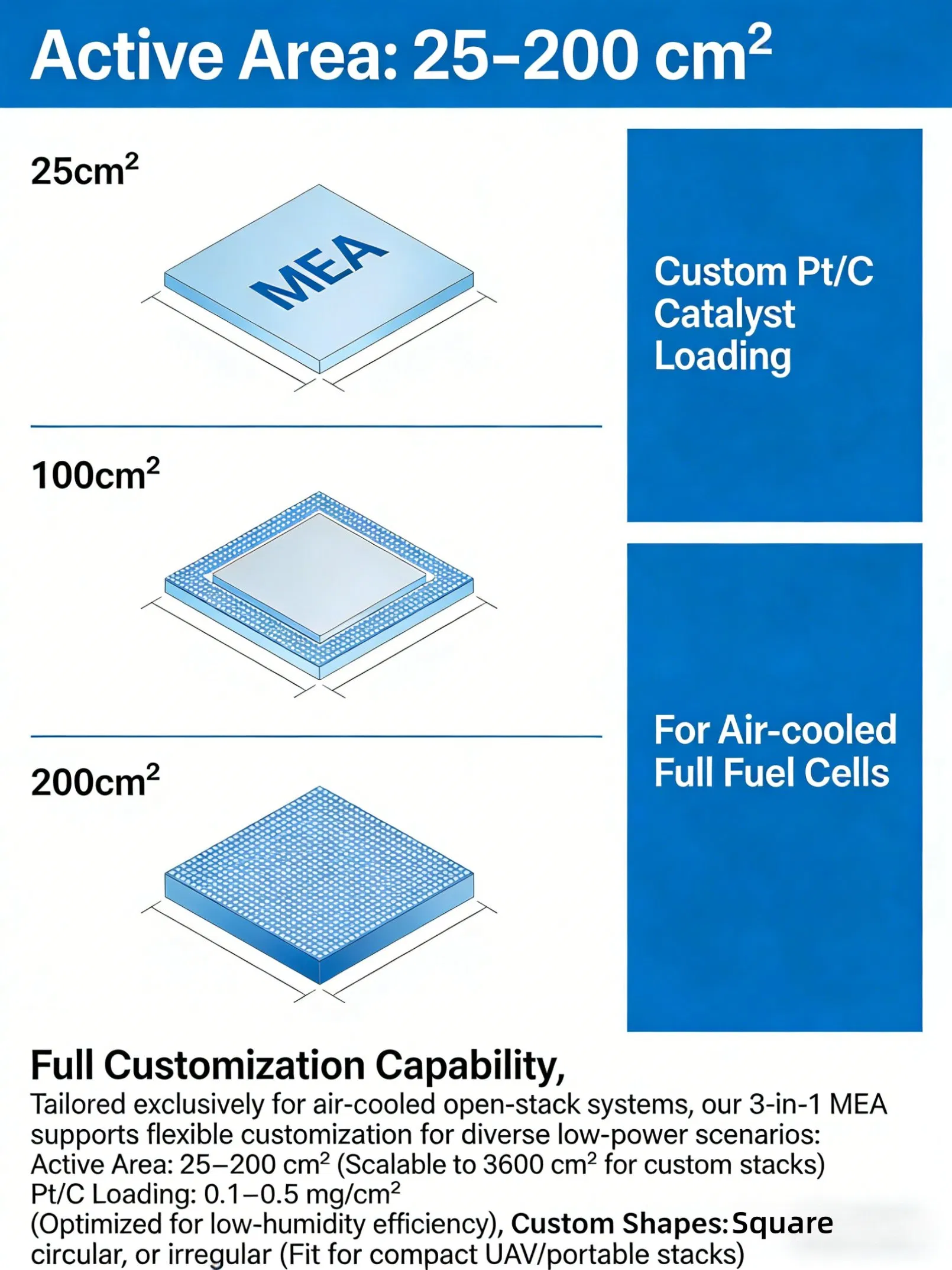

▶ Customization Flexibility: Supports active areas from 25–200 cm² (scalable to 3600 cm²), custom catalyst loadings (0.1–0.5 mg/cm²), and tailored shapes (square, circular, irregular).
Advanced Production & Quality

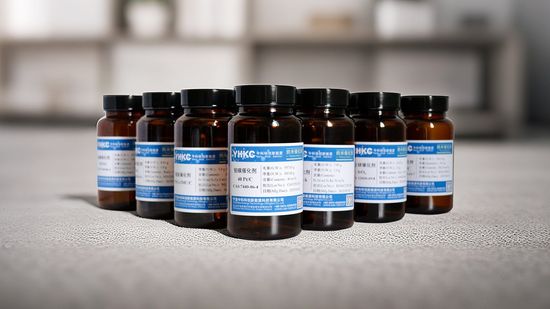

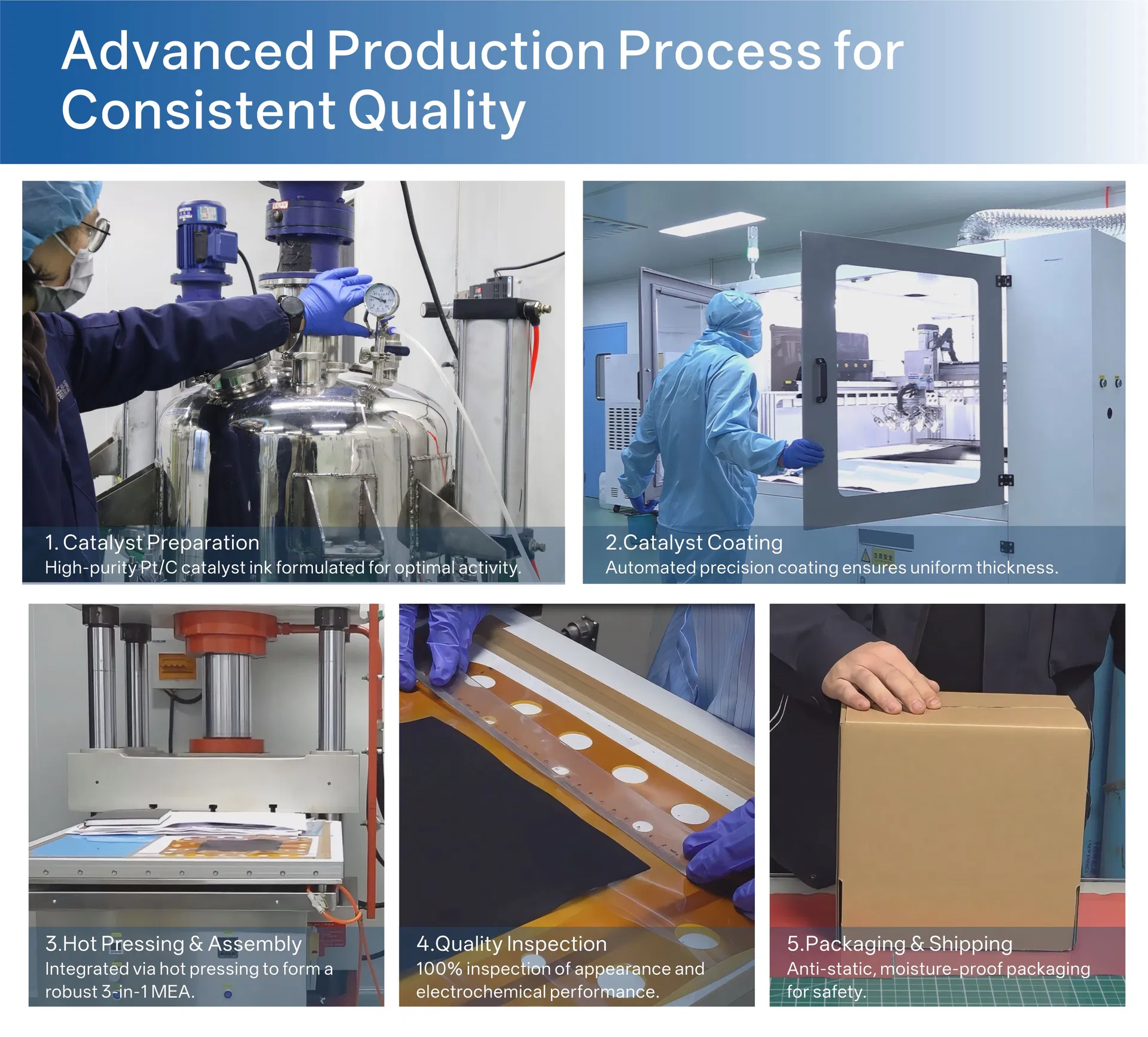

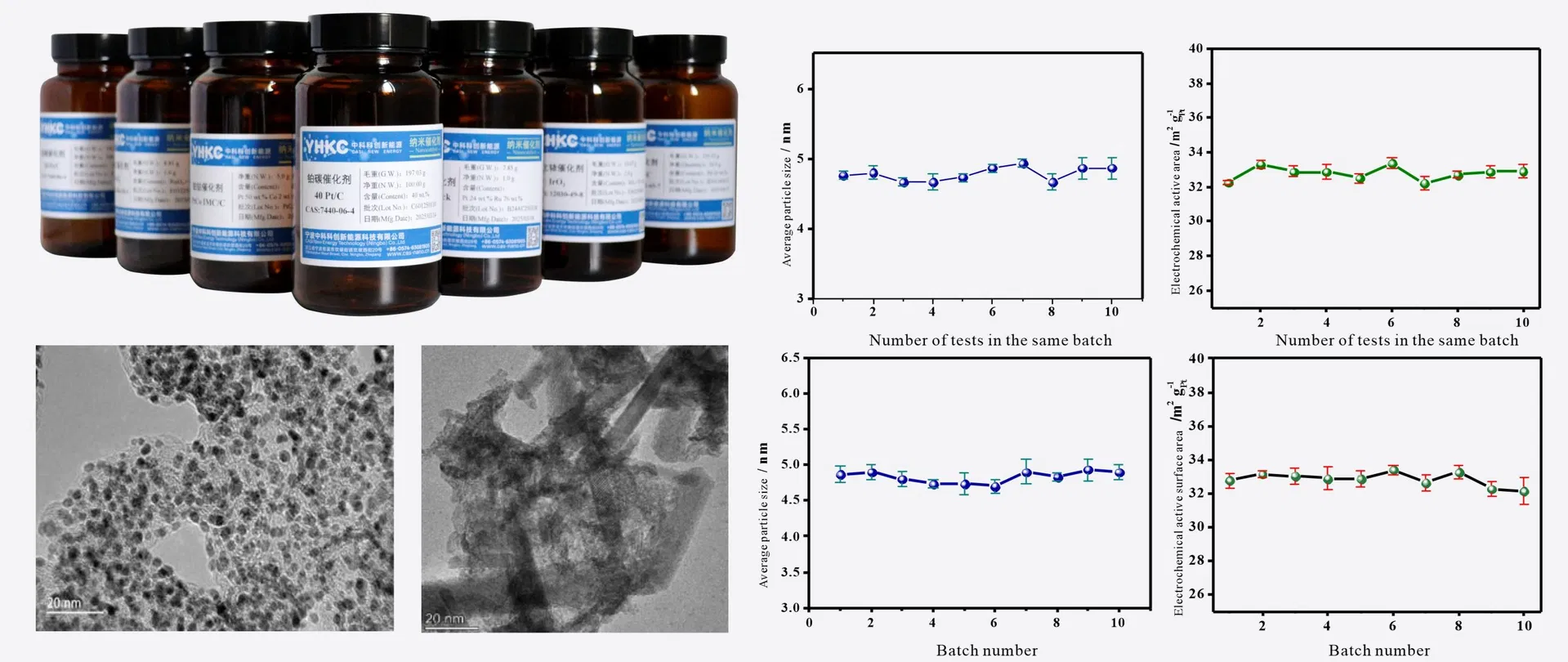

Our MEAs are manufactured under strict quality control (ISO 9001, IATF 16949), ensuring high uniformity and consistency in mass production. The kilogram-scale nano-catalyst preparation technology provides a solid foundation for superior performance.
Frequently Asked Questions
What are the primary applications for this 7-in-1 MEA?
It is optimized for air-cooled PEM fuel cell systems used in UAVs (drones), forklifts, AGVs, autonomous robots, and portable backup power stations.
Can the active area and catalyst loading be customized?
Yes, we support active areas from 25 to 200 cm² (scalable up to 3600 cm²) and catalyst loadings between 0.1 and 0.5 mg/cm² to meet specific project requirements.
How does the 7-in-1 structure improve performance?
By integrating seven layers into one unit, it simplifies assembly by 30%, reduces thermal and contact resistance, and eliminates common assembly errors in open-stack systems.
What is the expected service life of the MEA?

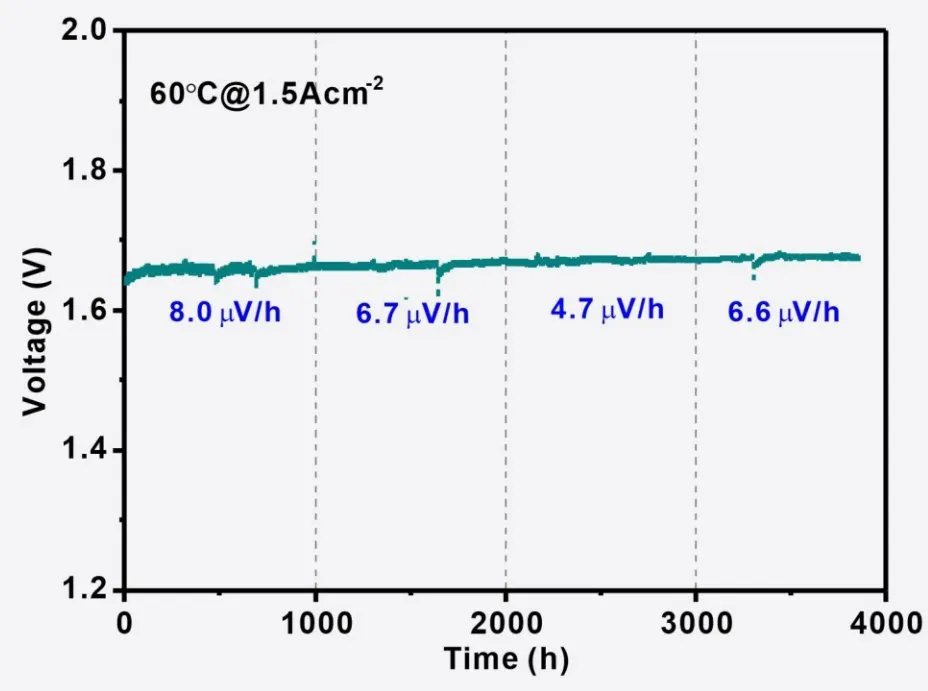

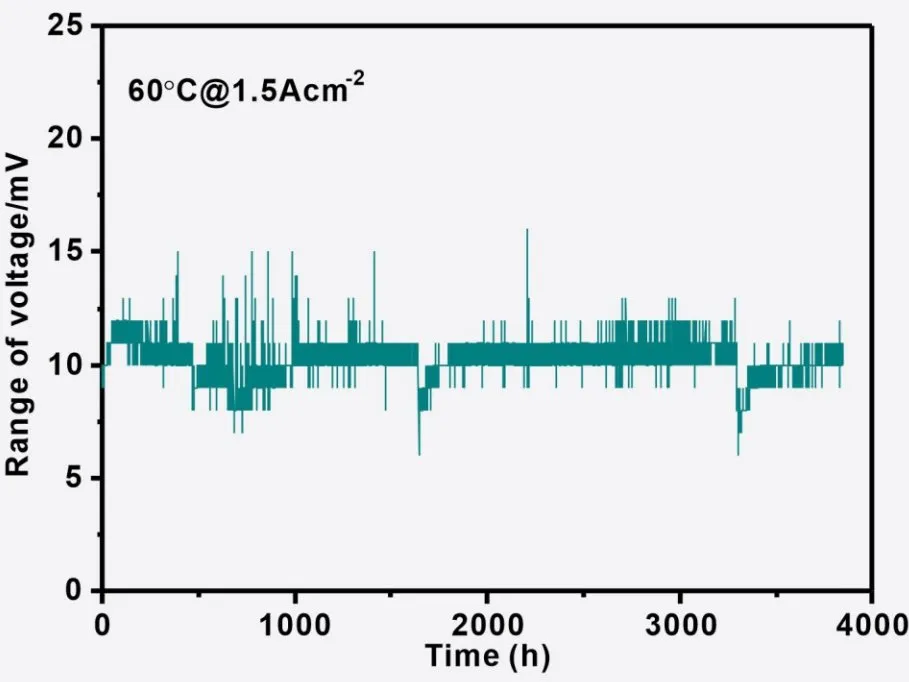

Under standard operating conditions, the service life exceeds 15,000 hours, with a very low voltage decay rate (approx. 2.65 µV/h @ 1.5 A/cm²).
Is this MEA suitable for low-humidity environments?
Absolutely. The materials and design are specifically optimized for open-stack, low-humidity air-cooled operation where traditional humidification is not available.
What quality certifications do your products hold?
Our manufacturing processes are certified under ISO 9001 and IATF 16949 management systems, ensuring consistent high performance for industrial applications.
