80A 650V Trenchstop Insulated Gate Bipolar Transistor Dgc80f65m

1 / 5

80A 650V Trenchstop Insulated Gate Bipolar Transistor Dgc80f65m

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

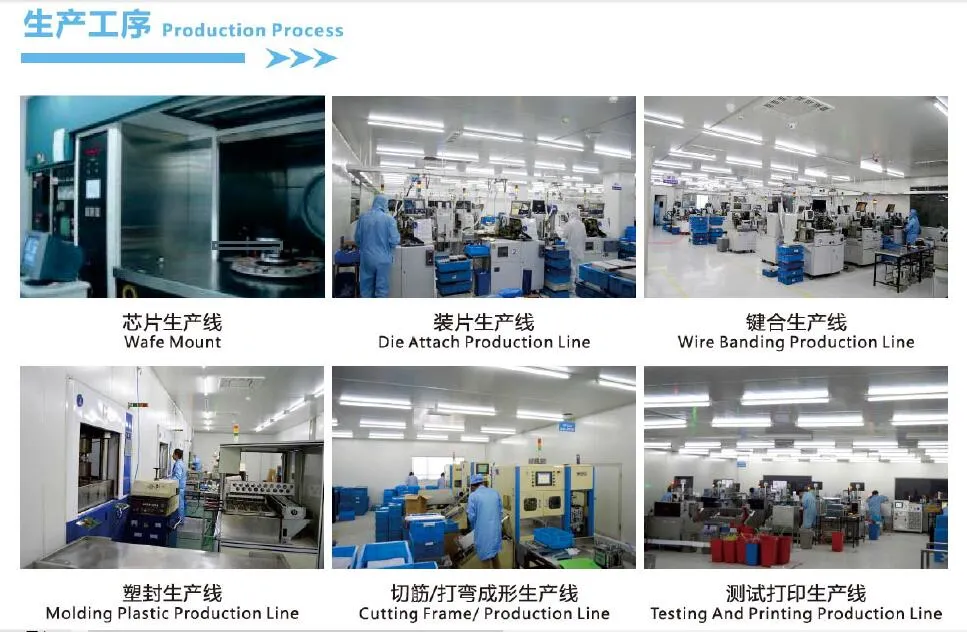

Product Description

Basic Specifications

Model NO.:DGC80F65M

Technology:Discrete Device / Trenchstop

Material:Silicon

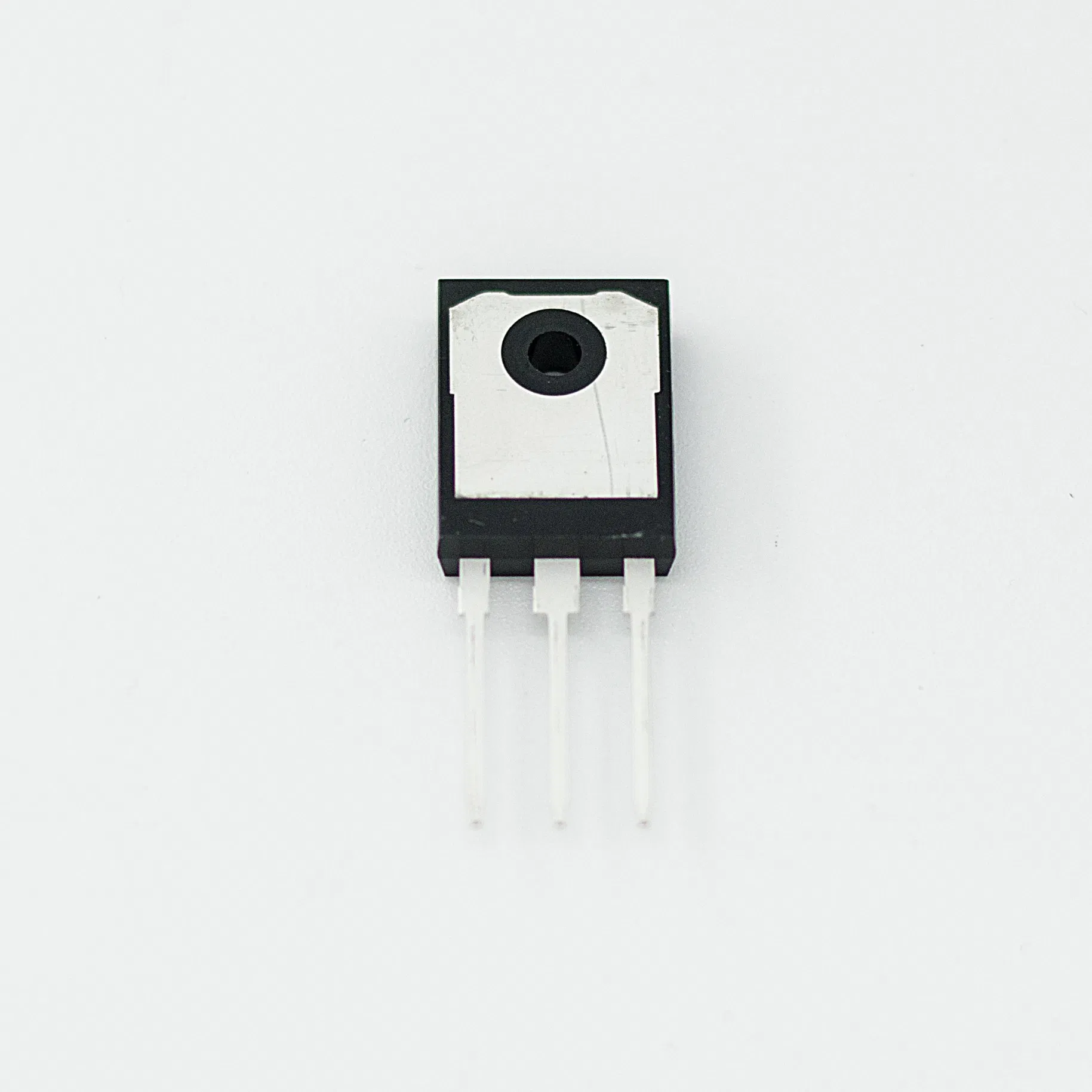

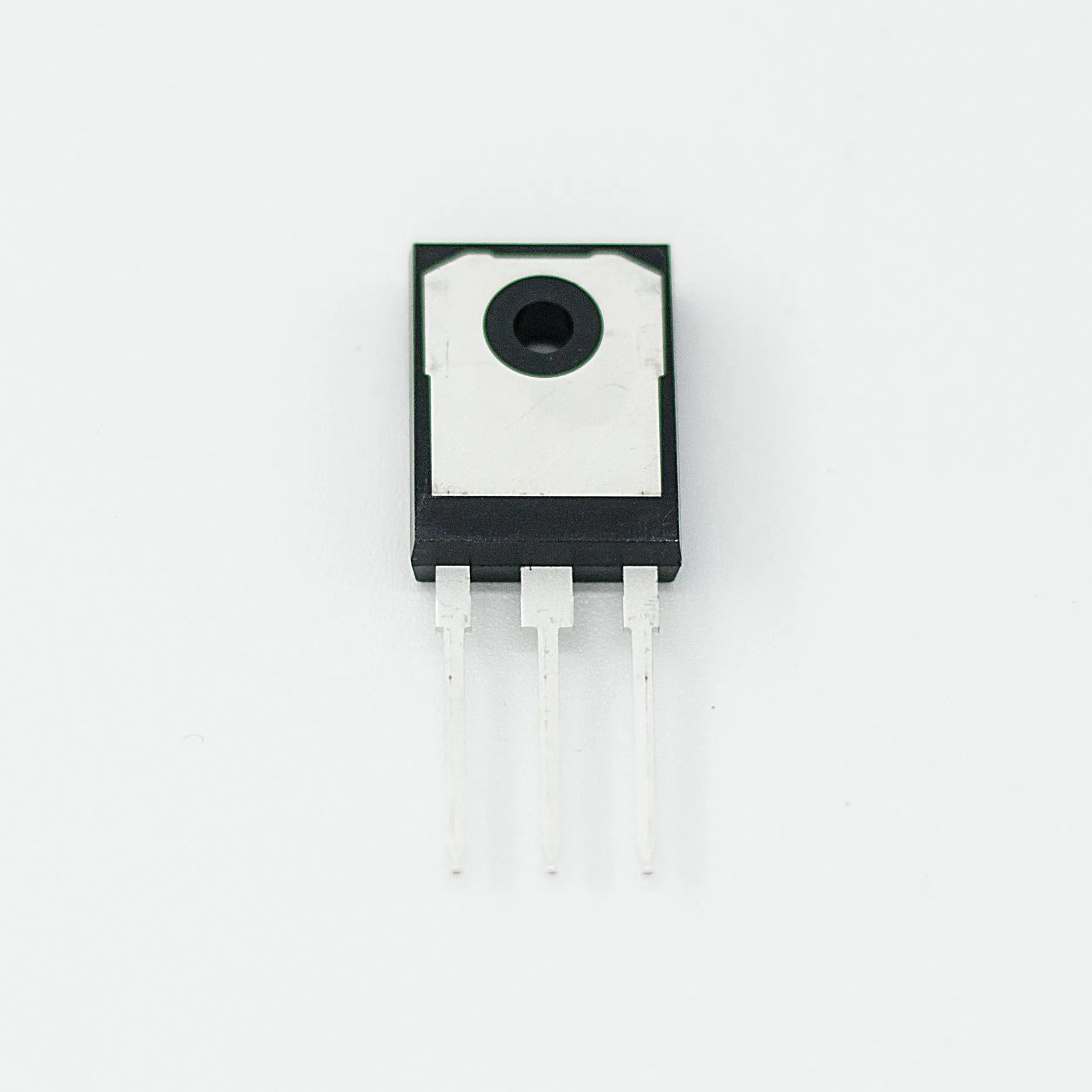

Package:TO-247

Type:N-Type Semiconductor

Voltage:650V

Current:80A

HS Code:8541290000

Capacity:500,000,000 Pcs/Year

Package Size:50.00cm * 20.00cm * 30.00cm

Gross Weight:15.000kg

Rating Parameters

PARAMETER	SYMBOL	RATING	UNIT
Collector-Emitter Voltage	VCES	650	V
Gate- Emitter Voltage	VGES	±30	V
Collector Current (T=25ºC)	IC	160	A
Collector Current (Tc=100ºC)	IC	80	A
Pulsed Collector Current	ICM	240	A
Diode Continuous Forward Current (100°C)	IF	80	A
Diode Pulsed Current	IFM	440	A
Total Dissipation (Tc=25ºC)	PD	220	W
Total Dissipation (Tc=100ºC)	PD	155	W
Junction Temperature	Tj	-45~175	ºC
Storage Temperature	Tstg	-45~150	ºC

Key Features

FS Trench Technology, Positive temperature coefficient
Low saturation voltage: VCE(sat), typ = 1.8V @ IC = 80A and Tj = 25°C
Extremely enhanced avalanche capability

Typical Applications

Welding Equipment
Three-level Inverters
Uninterruptible Power Supplies (UPS)

Frequently Asked Questions

Q1: What is the maximum collector current for the DGC80F65M at 100°C? A1: The DGC80F65M is rated for a continuous collector current (Ic) of 80A at a case temperature of 100°C.

Q2: What type of packaging does this IGBT use? A2: This device is housed in a standard TO-247 package, which is ideal for high-power discrete applications.

Q3: What are the main benefits of FS Trench Technology? A3: FS (Field Stop) Trench Technology provides a lower saturation voltage and a positive temperature coefficient, making it excellent for parallel operation and efficiency.

Q4: Can the DGC80F65M be used in welding machines? A4: Yes, welding is one of the primary applications for this model due to its high current handling and enhanced avalanche capability.

Q5: What is the storage temperature range for this component? A5: The storage temperature range is from -45ºC to 150ºC.

Q6: Is this product RoHS compliant? A6: Yes, the DGC80F65M is Pb-free and complies with RoHS standards.
