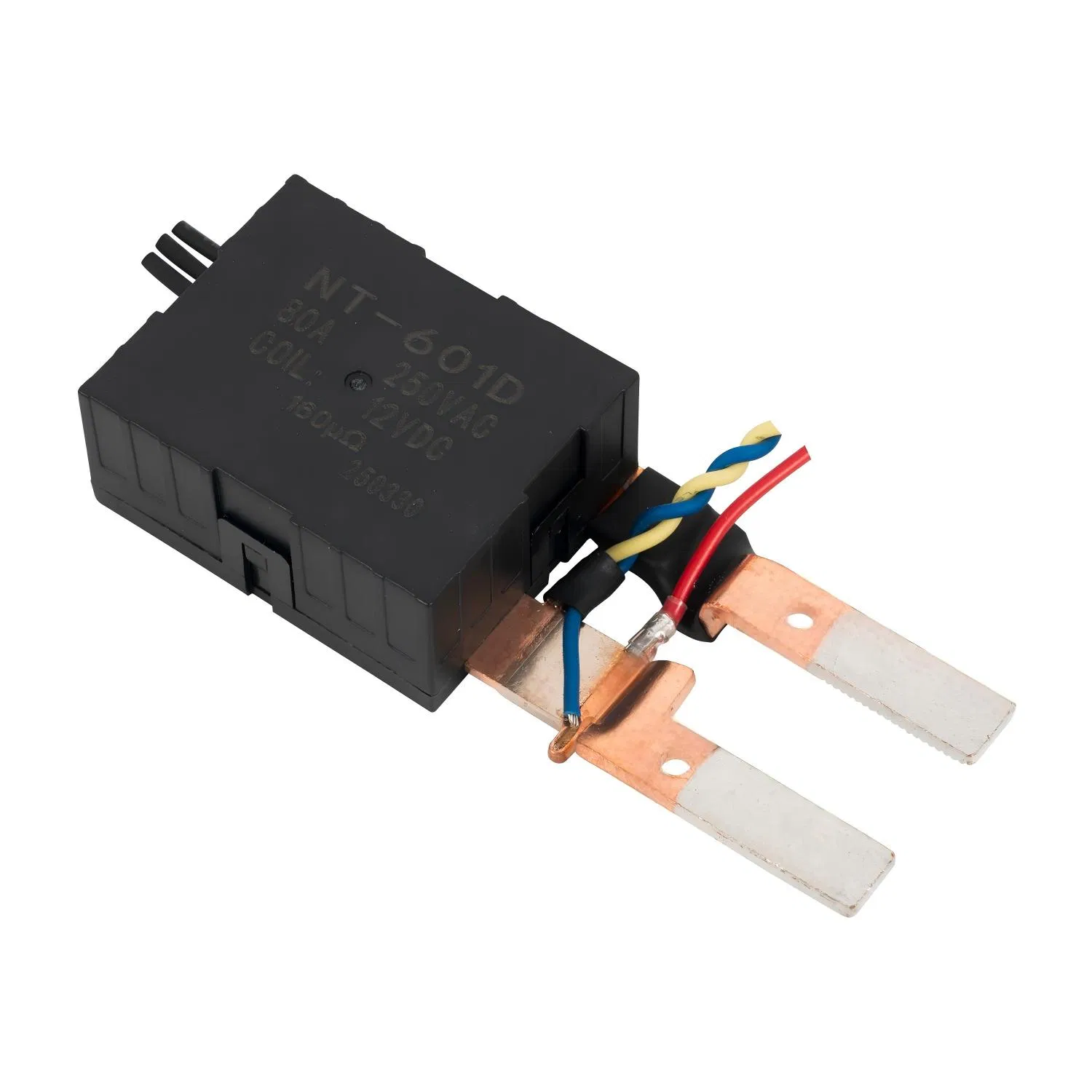

80A Switching Current 250VAC Single Phase Latching Relay

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
NT-601D
Electricity Type
AC
Load
High Power Relay
Protective Characteristics
Enclosed Relay
Action Principle
Electromagnetic Type
Size
Miniature
Type
Electric Parameter Relay
OEM/ODM
Accepted
Industry
Electronics
Certificate
ISO9001
HS Code
902890
Capacity
5,000,000 PCS Per Year
Product Photos
80A Latching Relay View 1

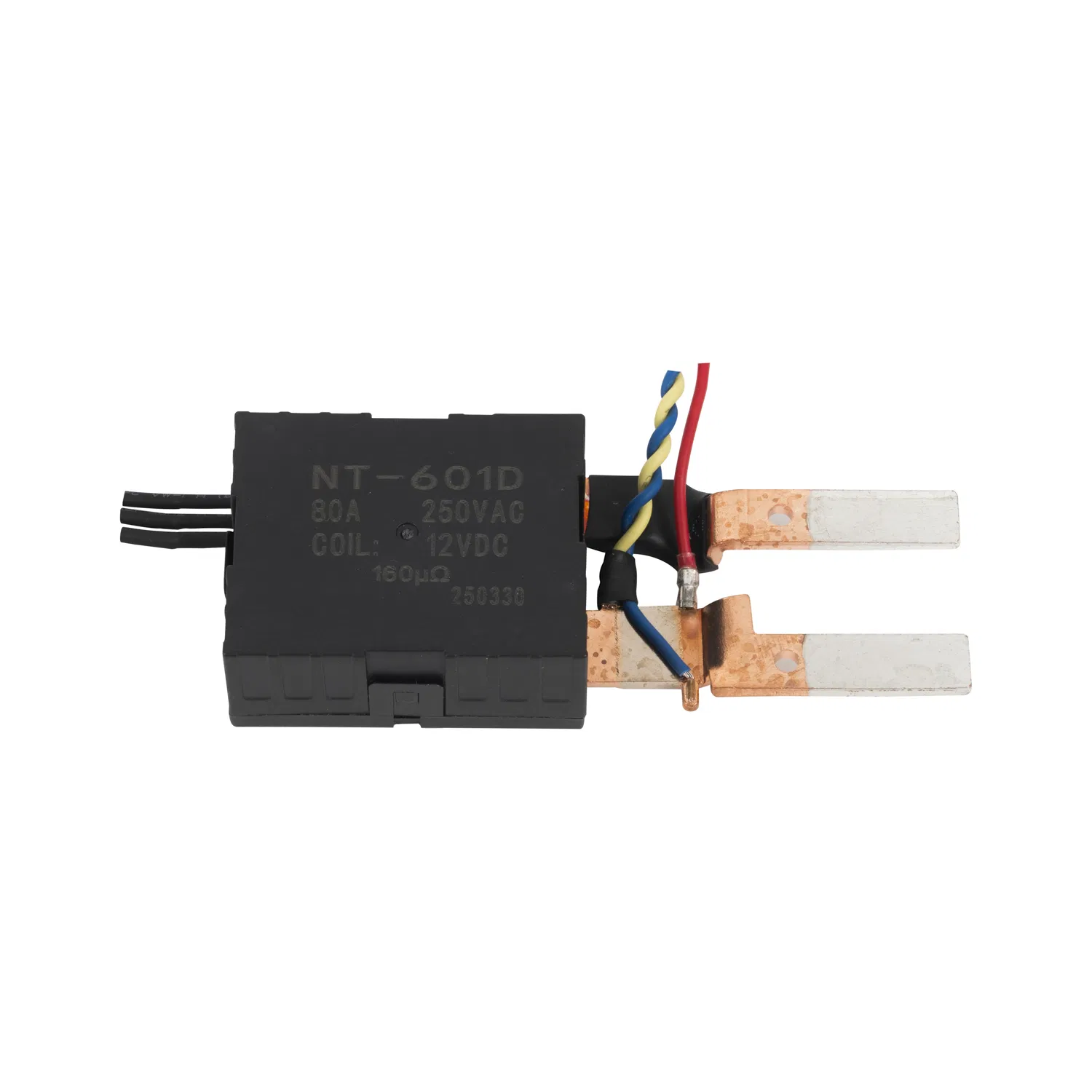

80A Latching Relay View 2
Technical Parameters
Contact Specification
Contact Form1B
Rated Load (Resistive)80A 250VAC
Max. Switching Voltage250VAC
Max. Switching Current80A
Characteristics
Operate / Release TimeMax. 30ms
Insulation Resistance (500VDC)1000MΩ
Dielectric Strength (Contact & Coil)4000VAC
Dielectric Strength (Contact Opening)2000VAC
Mechanical Service Life1x10⁵ OPS
Electrical Service Life1x10⁴ OPS
Coil Specification (Double Coil)
Rated Voltage Coil Resistance Operating VDC Pulse Duration
12V 70 (±10%Ω) ≤8.4 ≥50ms
Our Advantages
Production Advantage
  • National High-tech Enterprise.
  • 20+ years of experience in the Shunt area with a senior design team for perfect modification.
  • 100% QC quality inspection before delivery.
  • 24 Hours Online Service, Quick Quotations, and Fast Delivery.
Frequently Asked Questions
Are you a manufacturer or a trade company?
We are the manufacturer and also operate our own trade company, enabling us to serve buyers globally with direct production support.
How can I get product and price information?
Please send us an inquiry message through the contact portal; our team will reach out to you immediately upon receiving your message.
What are the main application fields for your relays?
Our products are primarily utilized in smart meters, smart home systems, load control, synchronous switches, and leakage protection devices.
Do you offer customized product development?
Yes, most of our products are customizable. You can provide your technical drawings or specific requirements, and our engineers will assist in the development.
What price terms do you typically accept?
We accept various international trade terms, including FOB, FCA, and EXW.
Can we request samples for testing?
We can provide several free samples for testing provided there are no highly specialized requirements. The buyer is responsible for the shipping costs.
