Frequently Asked Questions
What are the primary applications for the DHG60N65D?
The DHG60N65D is ideal for industrial applications including welding machines, three-level inverters, and Uninterruptible Power Supplies (UPS).
What technology is used in this IGBT?
It utilizes Field Stop (FS) Trench Technology, which provides a positive temperature coefficient and low saturation voltage.
What is the voltage and current rating for this device?
The device is rated for a maximum Collector-Emitter Voltage (Vces) of 650V and a continuous Collector Current (Ic) of 60A at 100°C.
What type of packaging is used for the DHG60N65D?

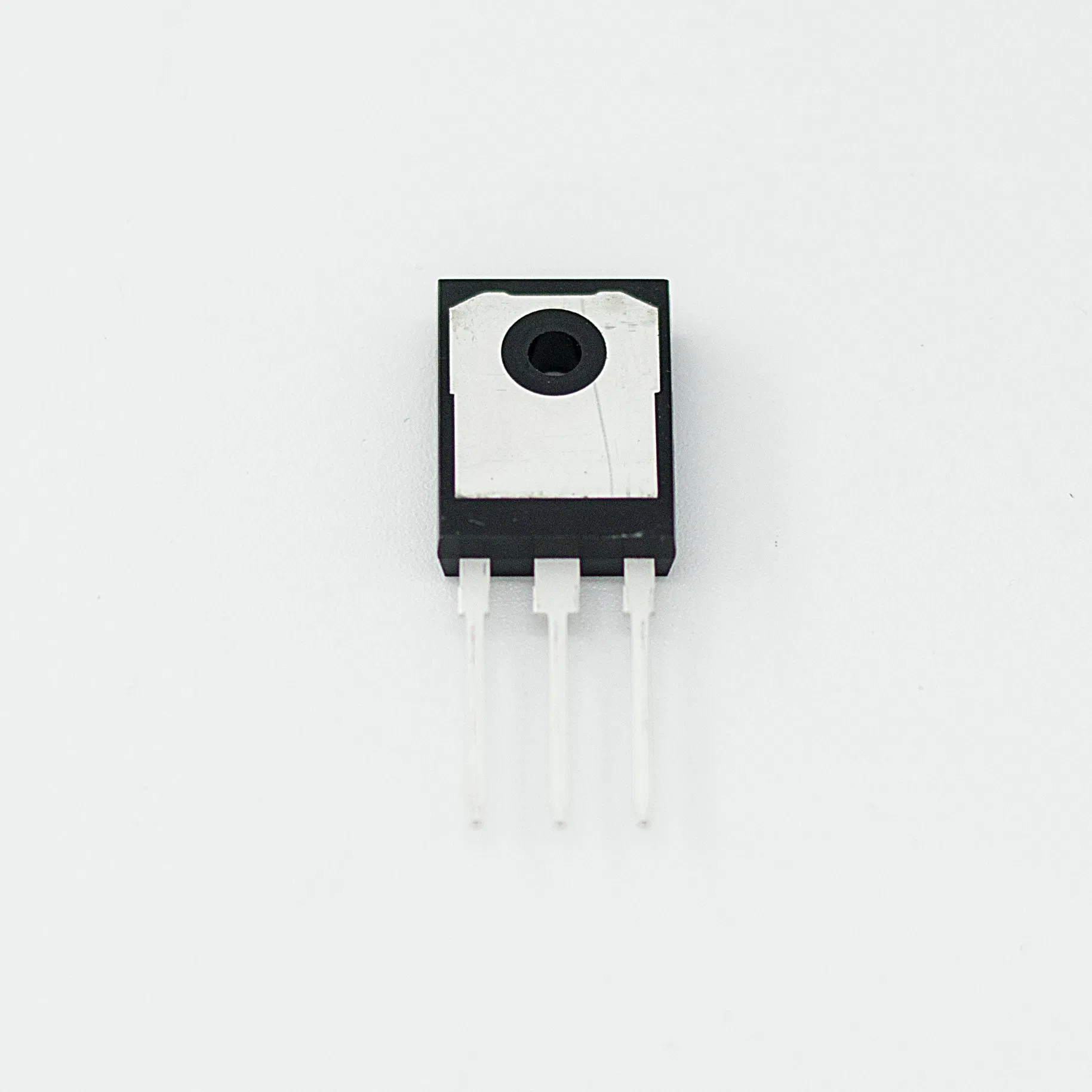

This discrete device comes in a standard TO-247 package and is typically shipped in tubes with a quantity of 1000 pieces per box.
Does this product comply with environmental standards?
Yes, the DGC60N60D model series is Pb-free and compliant with RoHS requirements.
What is the operating temperature range?
The junction temperature (Tj) ranges from -45ºC to 175ºC, allowing for stable performance in demanding environments.
